PCE Instruments PCE-USM PCE-USM Multi-channel data logger

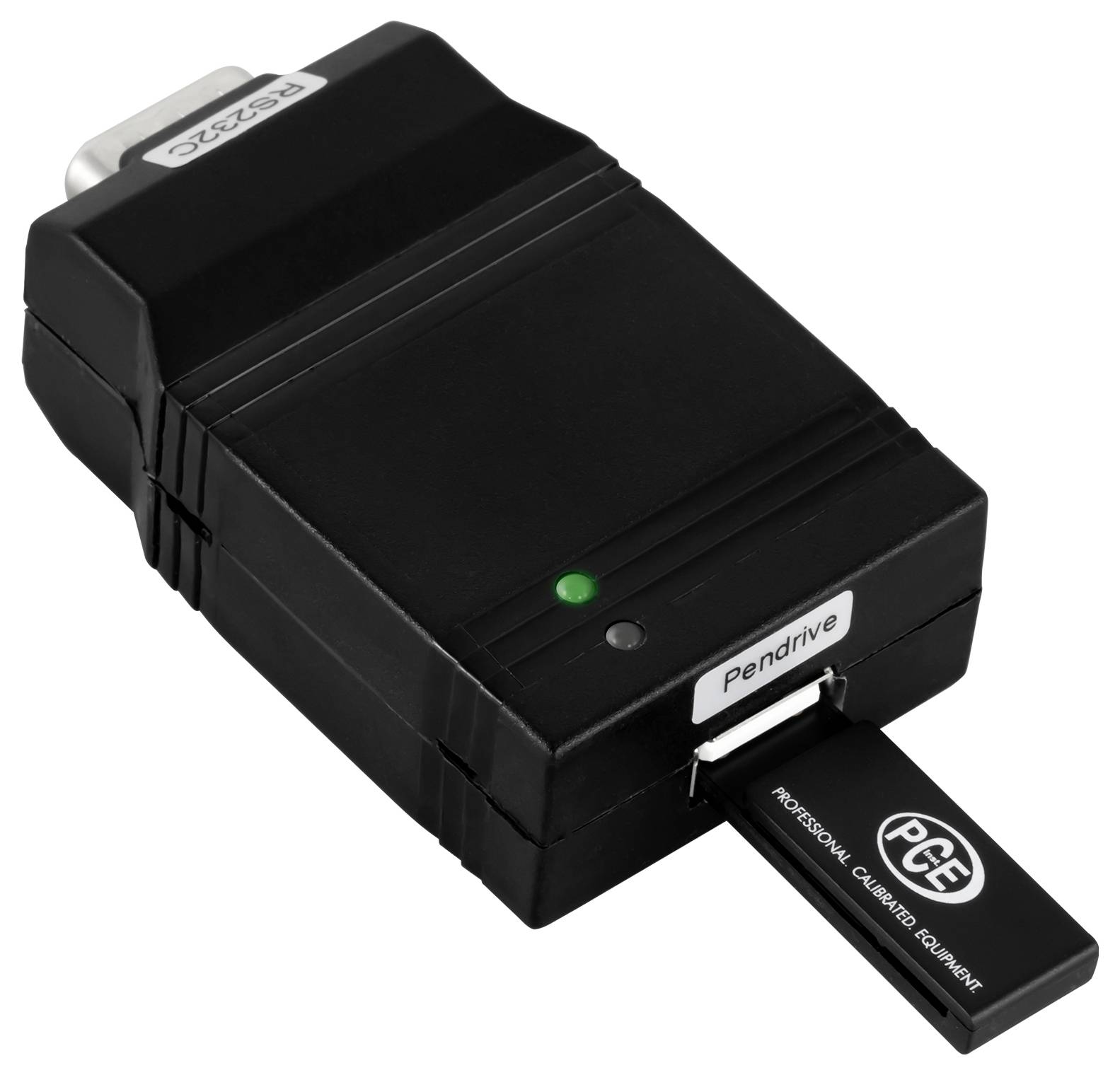

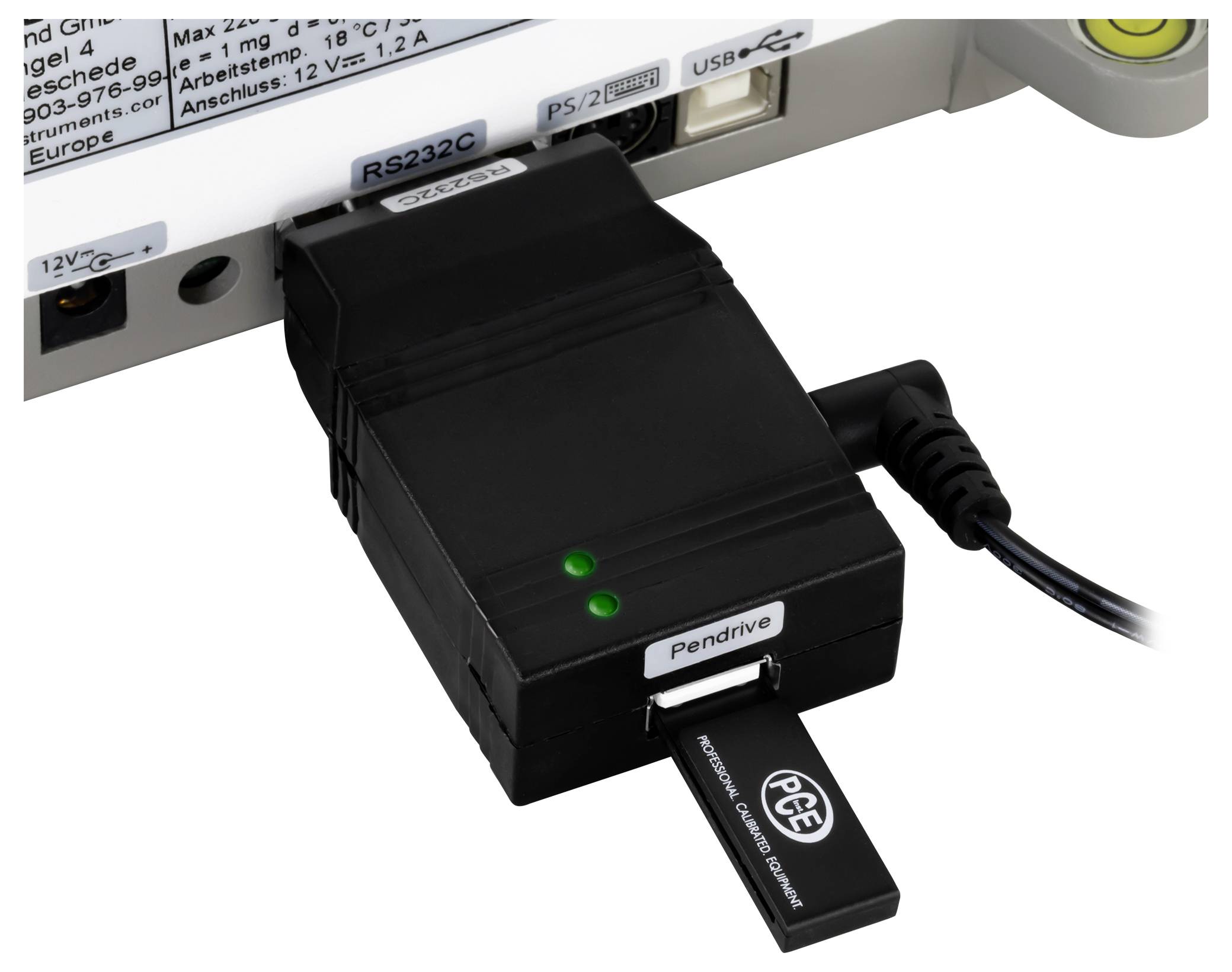

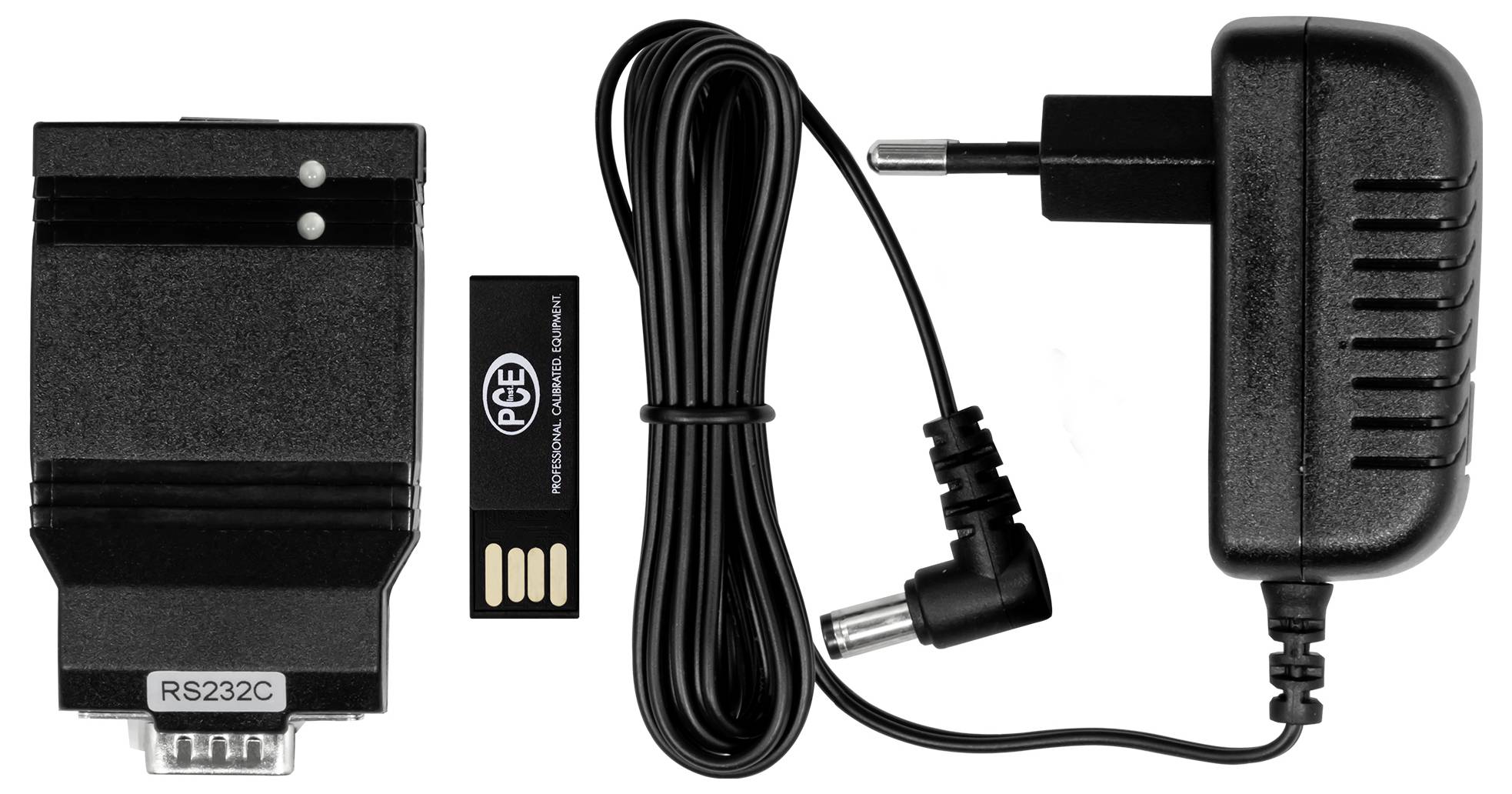

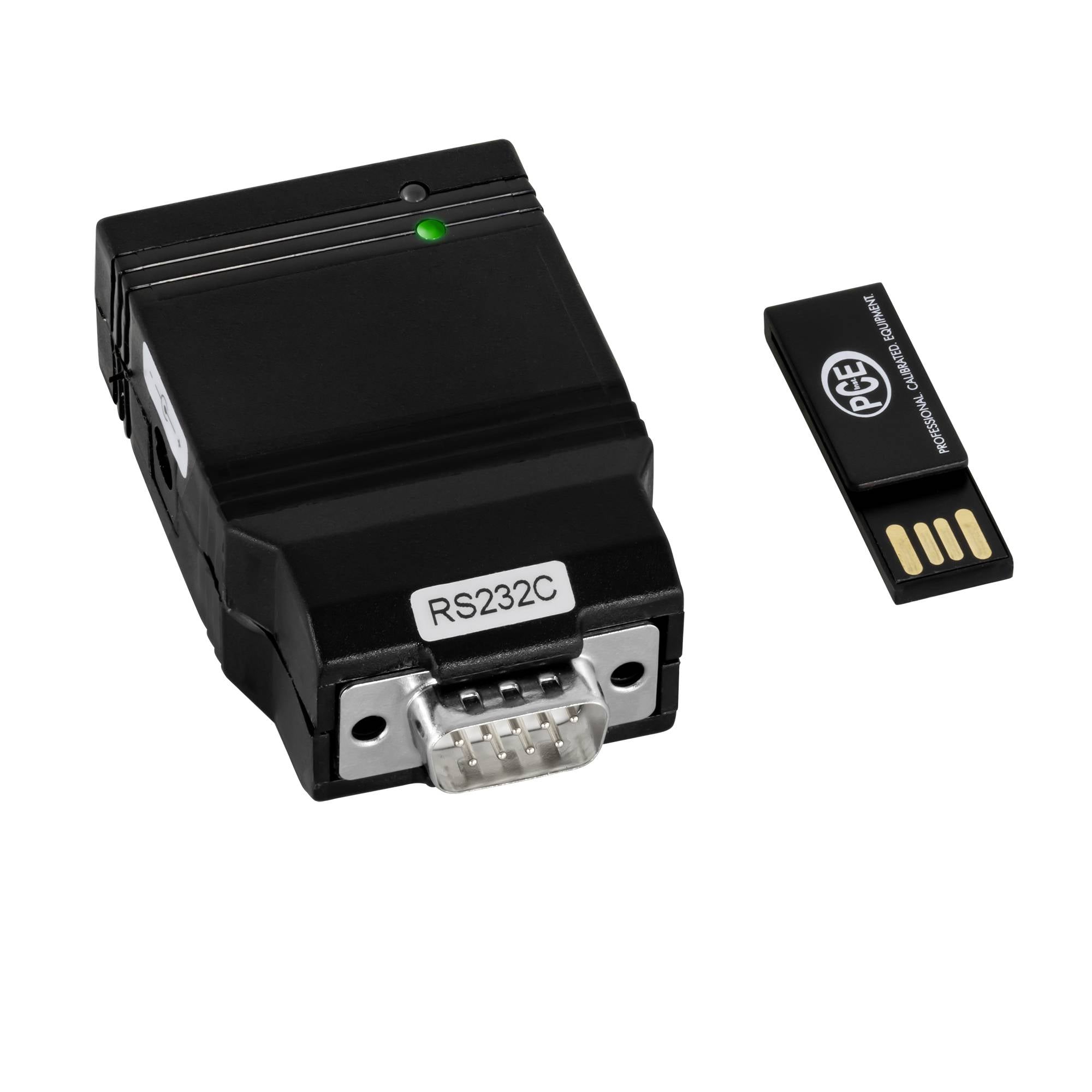

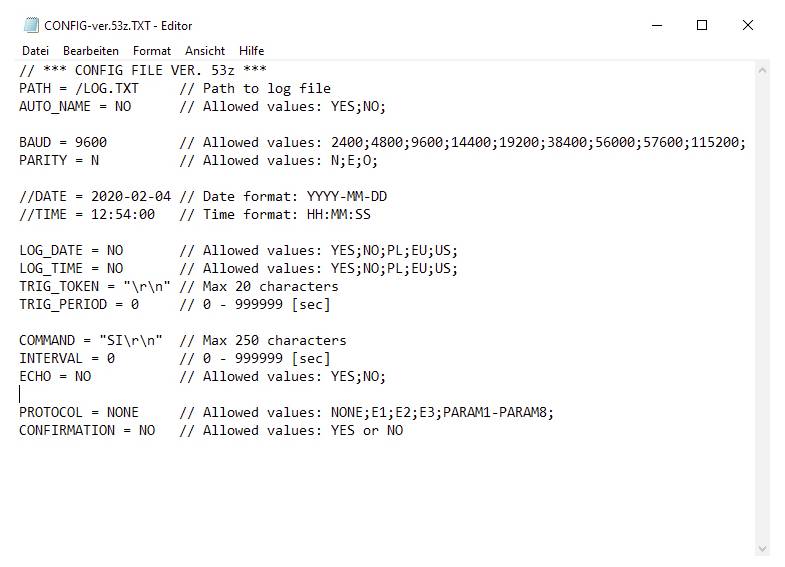

Data logger adapter RS-232 to USB / TXT format / time - date stamp / query function / external power supply / 4 GB USB stick including this RS-232 - USB data logger can be connected to the serial Sub-D 9 interface of a device and the received data on a USB stick in TXT Save format. The power supply of the RS-232 USB data logger is provided by an external power supply unit which is included in the delivery. The RS-232 – USB data logger can save received data with time and date stamp or automatically query the data at adjustable intervals. The query commands as well as other settings can be easily changed in a TXT format and played with the help of a configuration file, which is then located on the USB stick, on the RS-232 - USB data logger. The RS232 USB data logger can always save the data in the same folder or always create a new folder after the USB memory stick has been removed from the adapter and is inserted again. This is the configuration file for the RS232 USB data logger. This file is simply changed in the editor and played on the USB stick (see instructions). After the USB stick is plugged back into the RS-232 - USB data logger, it takes over the settings.

This text is machine translated.
