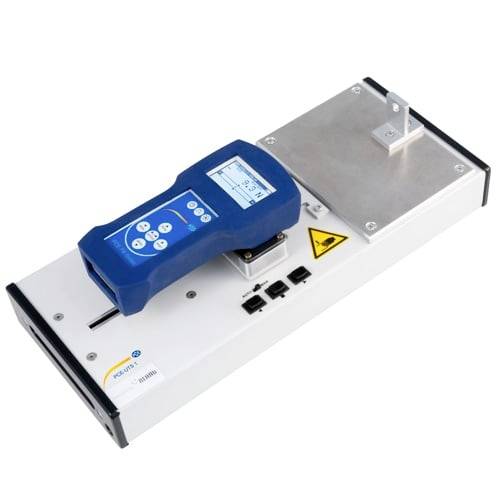

PCE Instruments PCE-UTS 1 Force gauge 500 N (max.) Manufacturer's standards (no certificate)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE Instruments PCE-UTS 1 Force gauge 500 N (max.) Manufacturer's standards (no certificate)
- For adhesive forces up to 500 N High repeat accuracy Defined test parameters Portable version Automatic and manual measurement mode Evaluation possible via software Note: The test version is supplied without brackets!
Technical specifications

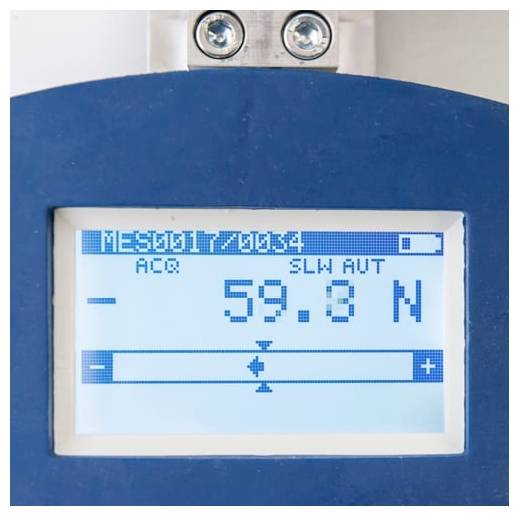

- Measuring range 0 ... 500 N Travel speed 0.3 m/min. Travel 100 mm Measuring accuracy ± 0.1% of measuring range Resolution 0.1 N (10 g) max. Overload ± 20 % Display graphic display 61 x 34 mm with backlighting Manual/automatic operation modes Interface USB Environmental conditions -10 ... +40 °C). Weight approx. 9 kg POWER SUPPLY ~230 V / 12V; 1.2 A Dimensions (LxWxH) 490 mm x 210 mm x 150 mm
- Product type
Force gauge
- Force reading range (max.)
500 N
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 490 x 210 x 150 mm
- Weight
9000 g
- Force reading range
500 N (max.)
- Width
210 mm
- Height
150 mm
- Length
490 mm

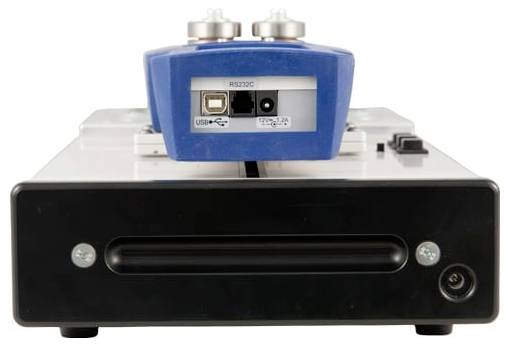

- Interfaces
Europlug
Documents & Downloads
Datasheet
Datasheet 2813695 PCE Instruments PCE-UTS 1 Force gauge 500 N (max.) Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 2813695 PCE Instruments PCE-UTS 1 Force gauge 500 N (max.) Manufacturer's standards (no certificate)
Description

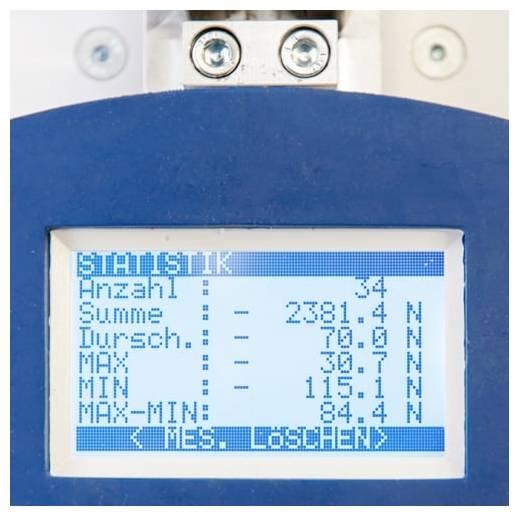

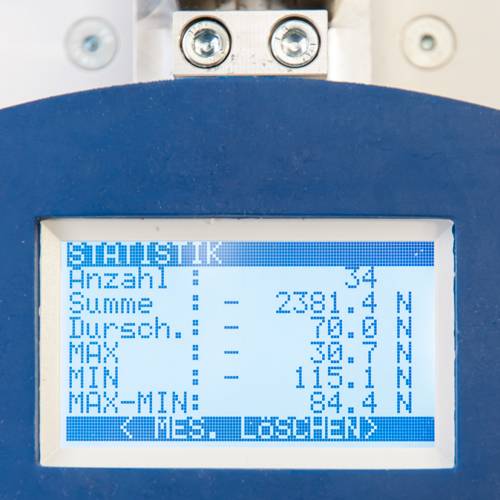

With the force test stand PCE-UTS 1 different tensile or pressure tests can be carried out. The test bench PCE-UTS 1 can be used for force measurements up to 500 N. With a travel distance of 100 mm and a feed speed of 0.3 m/min, the testing of various materials can be carried out by experienced personnel in less than a minute. The measured values can be easily evaluated via the memory and the interface on the PC. The force measuring stand can be used both mobile and stationary.
This text is machine translated.
This text is machine translated.
Features
- Test device for train and pressure testsMobile, robust designTo 500 NHigh accuracyPC evaluation possible
Scope of delivery

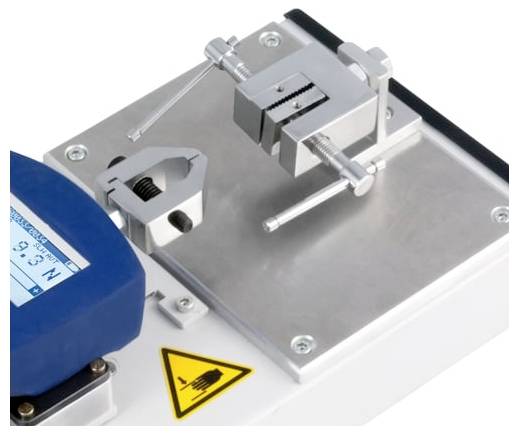

- 1 x force testing bench PCE-UTS 1 2 x power supply 1 x transport case 1 x USB-cable included Including software 1x user manual Note: The test stand is supplied without brackets!
