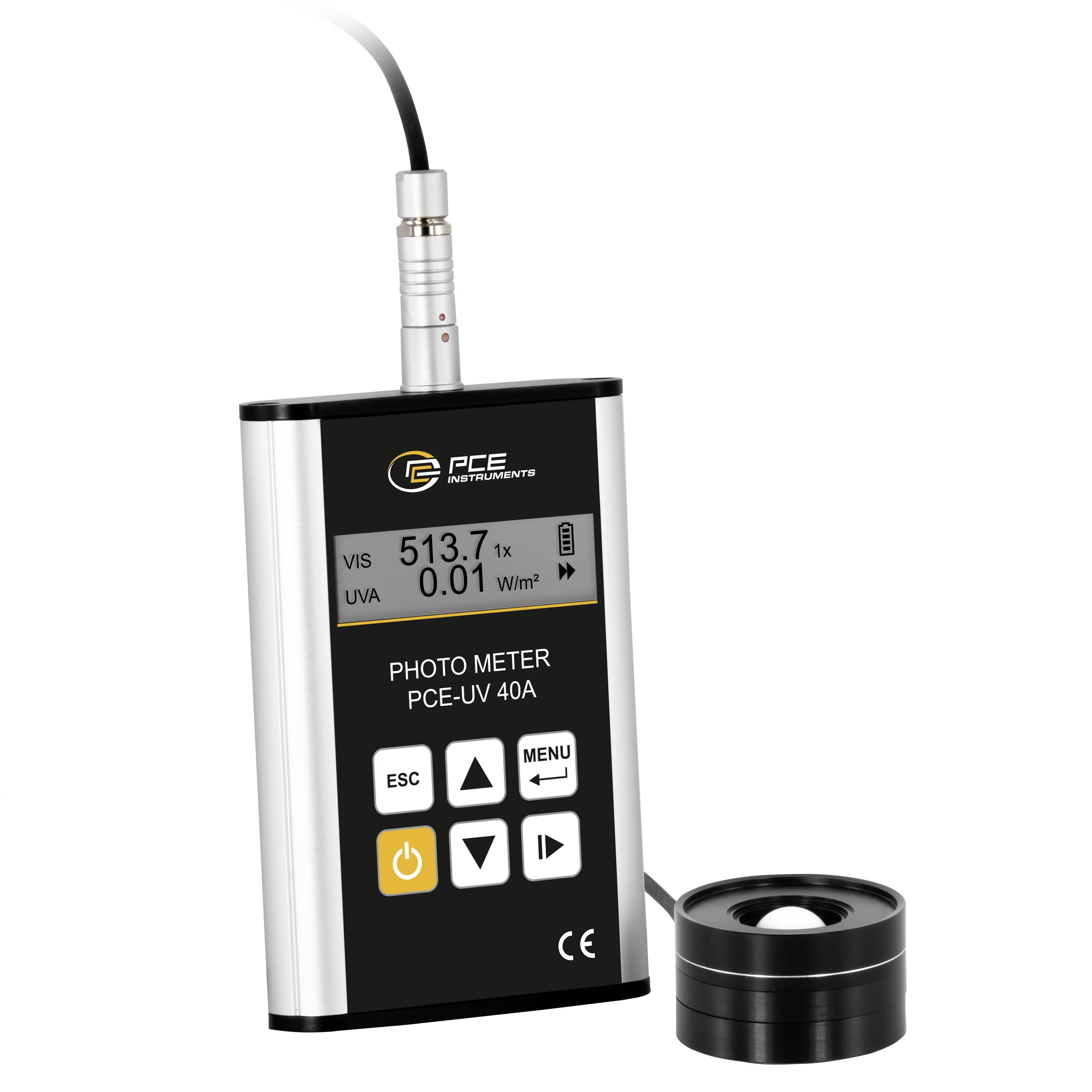

PCE Instruments PCE-UV 40A PCE-UV 40A UV meter 0 - 10000 lx
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-UV 40A
- Two-channel instrument UV-A and visible external light sensor
- Simultaneous measurement
- Two UV-A measuring ranges up to 100 W/m²
- Inspection of UV lamps for testing materials
- Automatic measurement range conversion 0 lx ... 10 lx
- Accurate measurement of lighting regardless of lamp type
- Measurement memory
Technical specifications
- Lighting
- Measuring range 0 lx ... 10 lx
- Resolution 0.1 lx
- Accuracy f1 ≤ 3%
- UV
- Measuring range 0 W/m² ... 100 W/m²
- Resolution 0.01 W/m²
- Accuracy according to EN ISO 3059 V(λ) CIE, ∆λ1/10 320 – 395nm, ∆λ1/2 337 – 385nm, Sλ 365nm, λmax=313nm < 5%, Sλ=405nm < 0.5%
- General Technical Data
- Display type LCD with lighting
- Measurement rate 1 Hz
- Storage medium Internal memory
- Storage capacity of 20 records

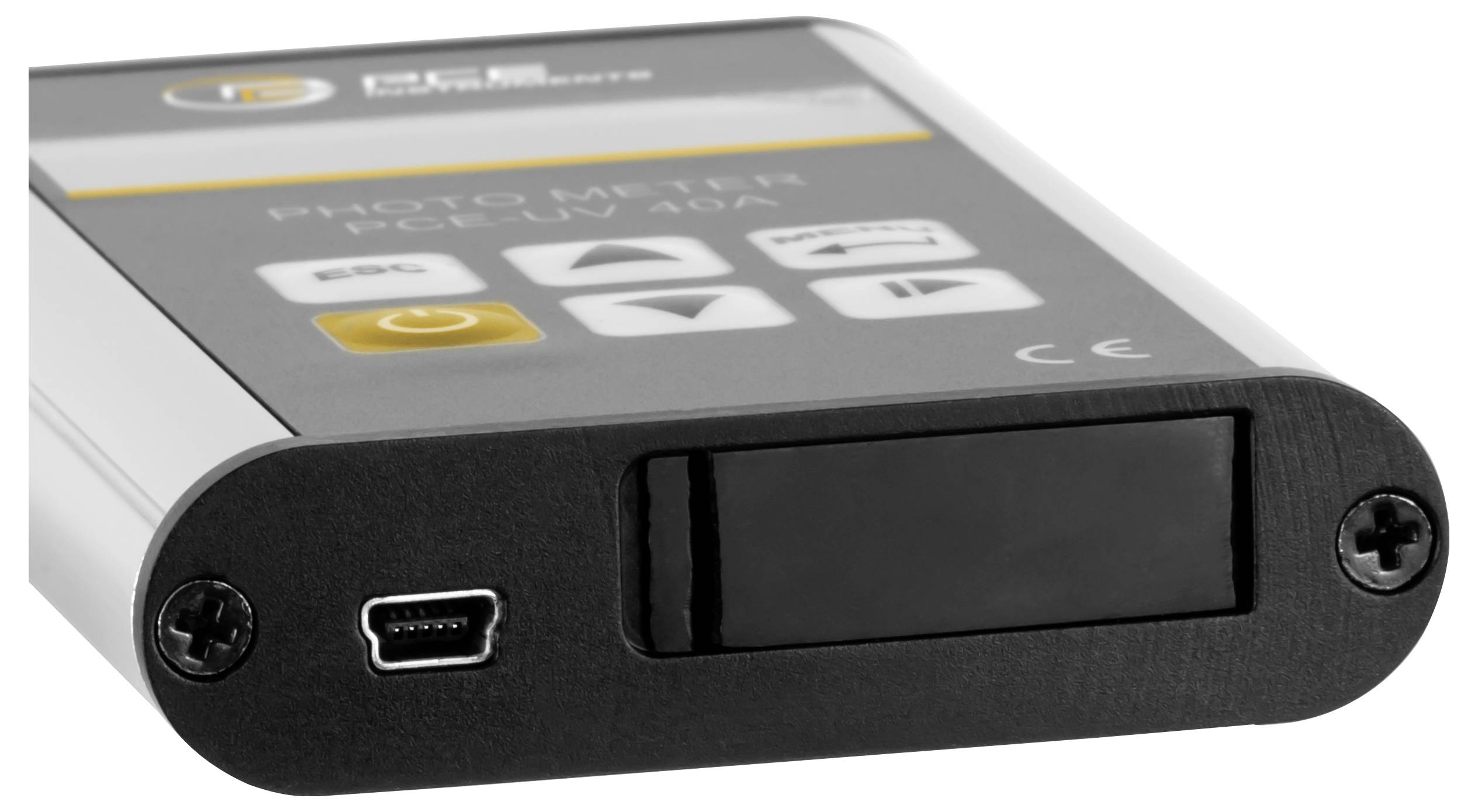

- Interface Mini-USB
- Standard(s) ISO/CIE 19476, EN ISO 3059, EN ISO 9934, DIN 5032-7 (class B)
- Menu language English, Polish
- Protection class (device) IP20
- Weighs 148 g.
- Dimensions (L x W x H) 118 x 72 x 20 mm2
- Further dimensions of probe Ø44 x 25.5 mm, cable length of probe 1.5 m, extension rod 460 mm
- Operating conditions -10 ... 50 °C , 0 ... 90% r.F44
- Storage conditions -10 ... 50 °C , 0 ... 80 % r.F33
- Product type
UV meter
- Reading type
Light intensity
Radiant flux
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 118 x 72 x 20 mm
- Display
LCD
- Weight
148 g
- Features
Data logger
- Illuminance reading range
0 - 10000 lx
- Illuminance reading range (max.)
10000 lx
- Illuminance reading range (min.)
0 lx
- Illuminance reading accuracy
3 lx
- Width
72 mm
- Height
20 mm
- Length
118 mm
- Interfaces
Mini USB
Documents & Downloads
Datasheet
Datasheet 3192952 PCE Instruments PCE-UV 40A PCE-UV 40A UV meter 0 - 10000 lx
User & Safety Instructions
User & Safety Instructions 3192952 PCE Instruments PCE-UV 40A PCE-UV 40A UV meter 0 - 10000 lx
Description
The UVA meter is a highly advanced instrument, which is characterized by its versatility and precision. With its dual measurement channels, the UVA measuring device enables the simultaneous measurement of UV-A radiation and visible light. This function of the UVA meter is especially useful for applications that require extensive light characterization.
The UVA meter offers two separate UVA measuring ranges, WAS enables precise adaptation to different lighting conditions. Automatic measurement range switching in Lux mode ensures reliable recording of lighting strengths in different environments, regardless of the lamp type. The accuracy of the UVA meter is underpinned by compliance with the "ISO/CIE 19476 characterization of the power of illuminance meters and luminance meters" standard.
Thanks to the external sensor, the UVA meter can be flexibly positioned to take exact measurements at different places. This function is useful, for example, for measuring UV lamps for material testing according to the standards "EN ISO 9934-1 Non-destructive testing with magnetic powder" and "EN ISO 3059 Non-destructive testing Intrusion testing and magnetic powder testing", in which a precise UVA measurement is crucial. The precise measurements ensure reliable monitoring and quality assurance in the processing of UV-sensitive materials.
The UVA meter Ideal is also suitable for monitoring workplace lighting. It enables accurate measurement of the intensity of light to ensure that the lighting conditions meet the required standards and that an optimal working environment is ensured.
The possibility for data storage makes the device especially user-friendly. Users can easily record and analyze measurement results to monitor long-term trends or document quality checks.
Overall, the UV/light meter provides a comprehensive solution for applications requiring accurate measurement of UV-A radiation and visible light. With its advanced features and simultaneous measurement capabilities, it is an indispensable tool for areas such as material testing, bench monitoring and workplace lighting control.
This text is machine translated.
The UVA meter offers two separate UVA measuring ranges, WAS enables precise adaptation to different lighting conditions. Automatic measurement range switching in Lux mode ensures reliable recording of lighting strengths in different environments, regardless of the lamp type. The accuracy of the UVA meter is underpinned by compliance with the "ISO/CIE 19476 characterization of the power of illuminance meters and luminance meters" standard.
Thanks to the external sensor, the UVA meter can be flexibly positioned to take exact measurements at different places. This function is useful, for example, for measuring UV lamps for material testing according to the standards "EN ISO 9934-1 Non-destructive testing with magnetic powder" and "EN ISO 3059 Non-destructive testing Intrusion testing and magnetic powder testing", in which a precise UVA measurement is crucial. The precise measurements ensure reliable monitoring and quality assurance in the processing of UV-sensitive materials.
The UVA meter Ideal is also suitable for monitoring workplace lighting. It enables accurate measurement of the intensity of light to ensure that the lighting conditions meet the required standards and that an optimal working environment is ensured.
The possibility for data storage makes the device especially user-friendly. Users can easily record and analyze measurement results to monitor long-term trends or document quality checks.
Overall, the UV/light meter provides a comprehensive solution for applications requiring accurate measurement of UV-A radiation and visible light. With its advanced features and simultaneous measurement capabilities, it is an indispensable tool for areas such as material testing, bench monitoring and workplace lighting control.
This text is machine translated.
Features
- Storage capacity: 20 records
- Interface Mini-USB
- STANDARD(S): ISO/CIE 19476, EN ISO 3059, EN ISO

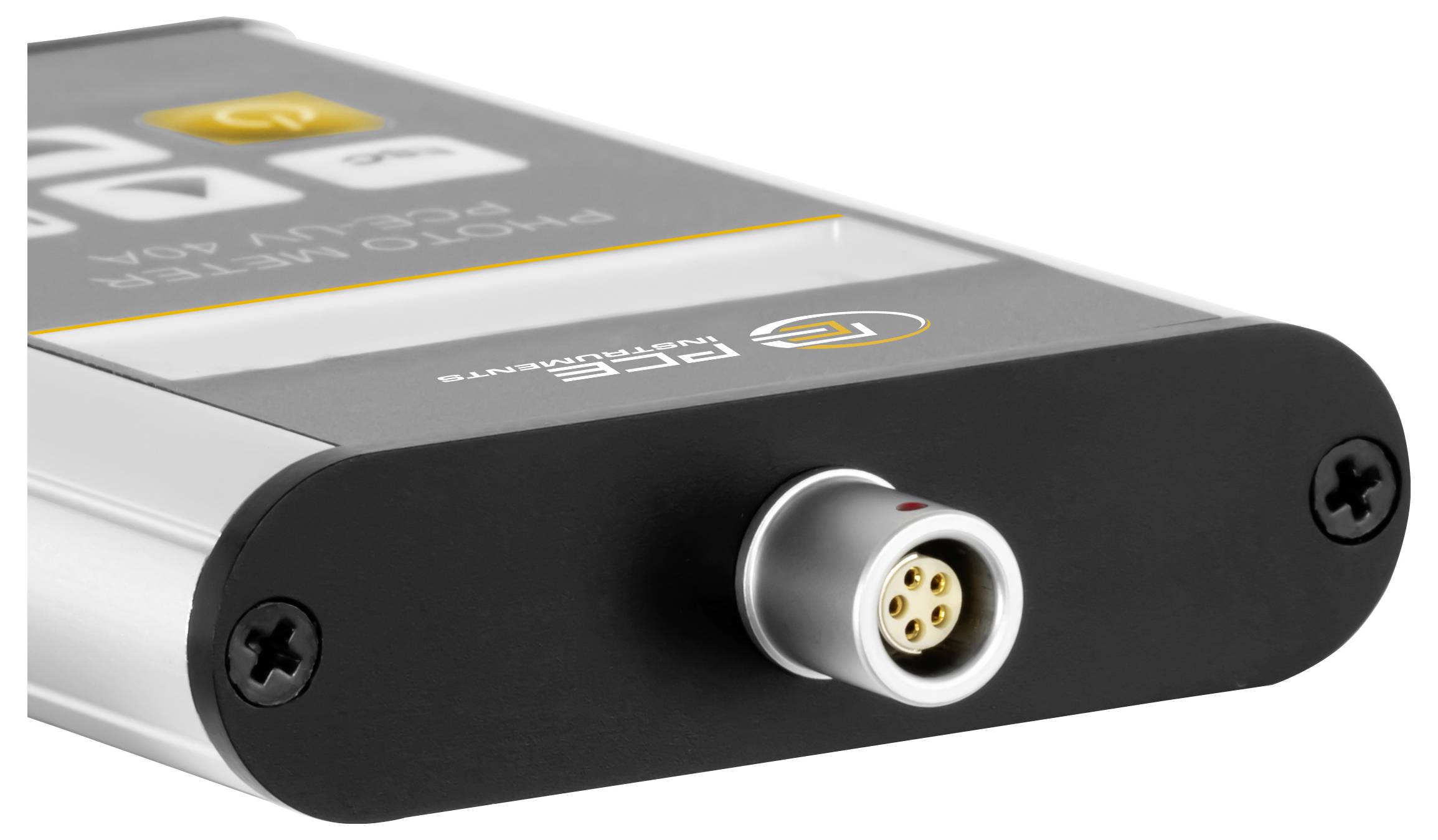

- External sensor
Scope of delivery
- 1 x UVA measuring device PCE-UV 40A

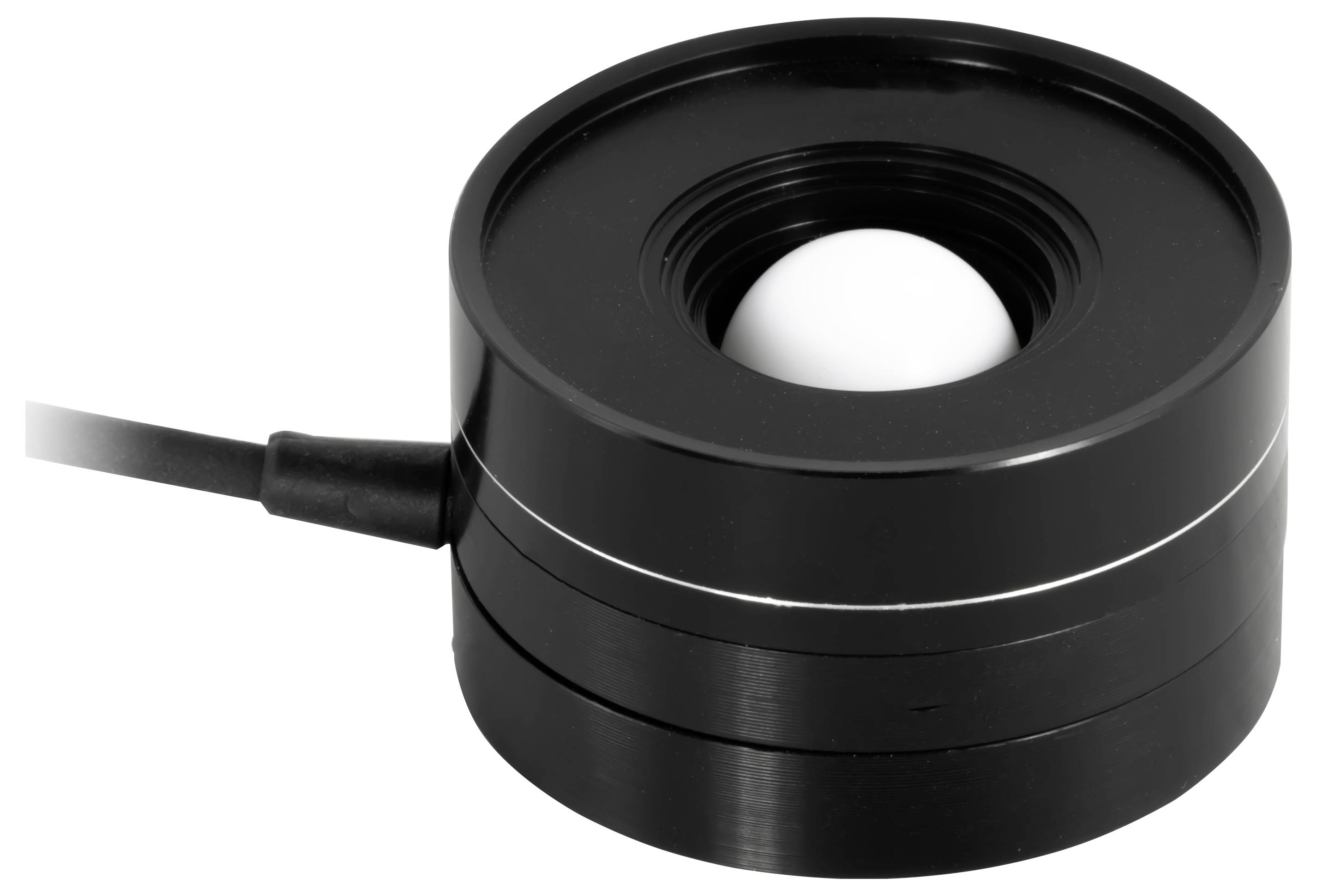

- 1 x UVA / lux sensor

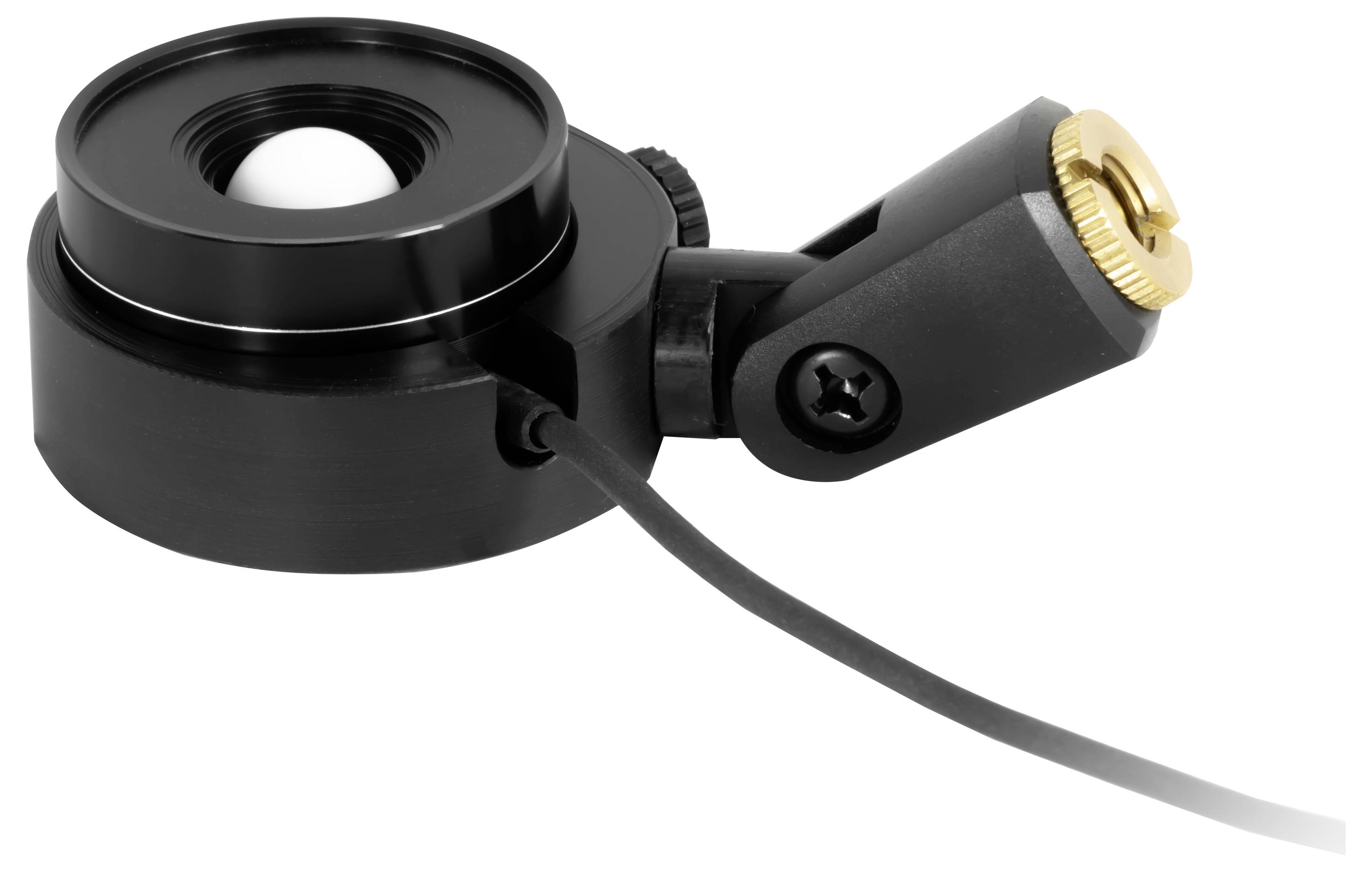

- 1 x sensor holder
- 1 x extension stick short to the sensor holder
- 1 x transport case
- 1x user manual
