Buy PCE Instruments PCE-UV34 PCE-UV34 UV meter 1.999 - 19.99 mW/cm²

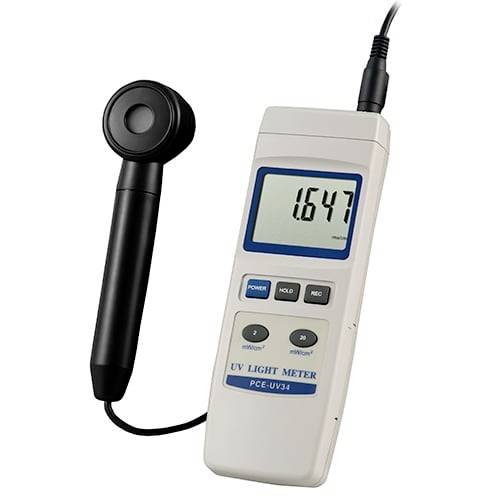

Handheld UV light meter with sensor probe and digital display reading 16.47.

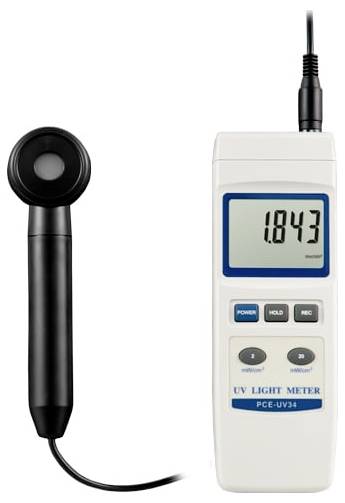

Portable UV light meter with sensor probe and digital display reading 1843.

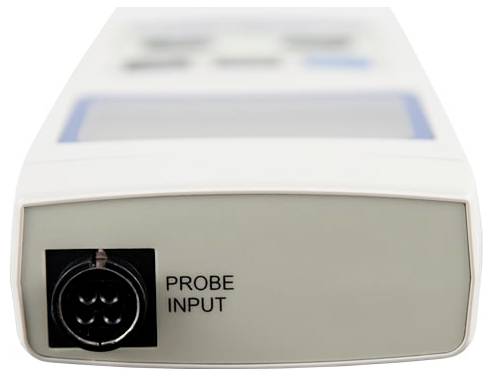

Close-up of a medical device front panel with a circular probe input port labeled 'PROBE INPUT'.

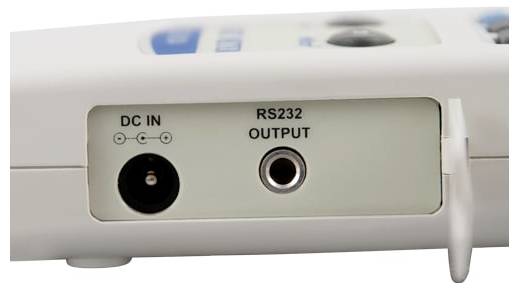

Close-up of an electronic device panel with a 'DC IN' power jack and an 'RS232 OUTPUT' port.

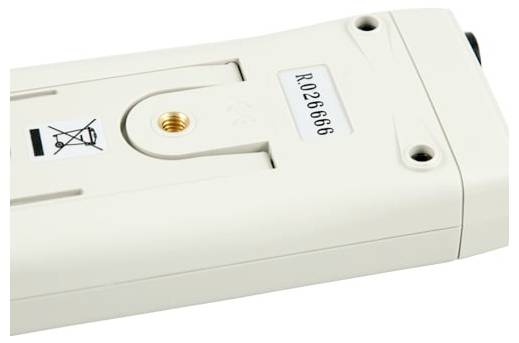

Close-up of the back of a white device with a central threaded mount, screw holes, recycling symbol, and label 'R.02666'.

A man is standing in a park, holding a device, possibly a measuring instrument, in his hand. Surrounded by lush greenery.

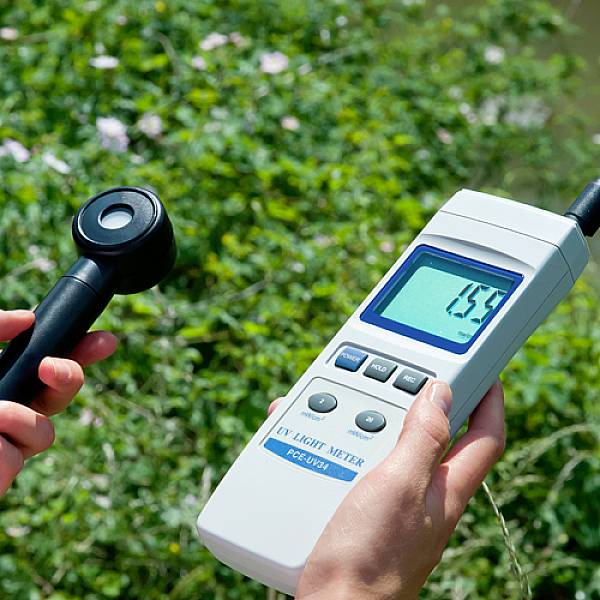

Two hands are holding a digital measuring device outdoors, displaying a UV value of 0.55. A sensor is connected by a cable.

'Diagram shows the penetration of UV-A (94.7%) and UV-B (0.4%) rays into skin layers; Visible light 51.8%, Infrared 43.9%.'

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

UVA-UVB RADIATION METER PCE-UV34

Auto power off after 10 minutes, saves powerVery large LCD displayData-hold function Data-hold functionCompact dimensionsExternal sensor with UV correction filter

Technical specifications

Ranges0.000 ... 1.999 mW/cm²1.999 ...19.99 mW/cm²Resolution0.001 mW/cm²Accuracy±10 % +2 digitsMeasuring frequency0.4 sec.WavelengthBandwidth 290 ... 390 nmZero settingBy means of calibration screwLight sensorPhotodiode with UV correction filterMemoryHoldAuto power-offAutomatically after 10 minutes without activationDisplay22 mm LCD displayOverrange display"- - - -" appears on the displayAmbient temperature0 ... +50 °C / max. 80 % r.h.Operating supply1 x 9 V block battery (PP3)DimensionsMeasuring device 68 x 200 x 30 mmLight sensor 68 x 60 x 27 mmWeight220 g (incl. battery)

Product type: UV meter

Reading type: Light intensity
Radiant flux

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 68 x 200 x 30 mm

Display: LCD

Weight: 220 g

Illuminance reading range: 1.999 - 19.99 mW/cm²

Illuminance reading range (max.): 19.99 mW/cm²

Illuminance reading range (min.): 1.999 mW/cm²

Illuminance reading accuracy: 19.99 W/m²

Width: 200 mm

Height: 30 mm

Length: 68 mm

Interfaces: RS232

Documents & Downloads

Datasheet

Datasheet 2620734 PCE Instruments PCE-UV34 PCE-UV34 UV meter 1.999 - 19.99 mW/cm²

User & Safety Instructions

User & Safety Instructions 2620734 PCE Instruments PCE-UV34 PCE-UV34 UV meter 1.999 - 19.99 mW/cm²

Description

UVA - UVB - radiation meter UVA-UVB PCE-UV34 for measuring UV radiation, with external sensor The UVA - UVB - Safety meter is a device for measuring the ultraviolet radiation. This accurate safety device works in a wavelength range of 290 ... 390 nm With this measuring device, you can measure the UVA radiation of the sun, for example, and protect yourself from too high a radiation (sunburn). In industry too, UV radiation is often too high (arc during welding). The UV meter can be used flexibly with radiation measurement thanks to the external sensor. Other areas of application are: UV radiation sterilization, photochemical calibration, in laboratories, etc. Virology, DNA research.

This text is machine translated.
