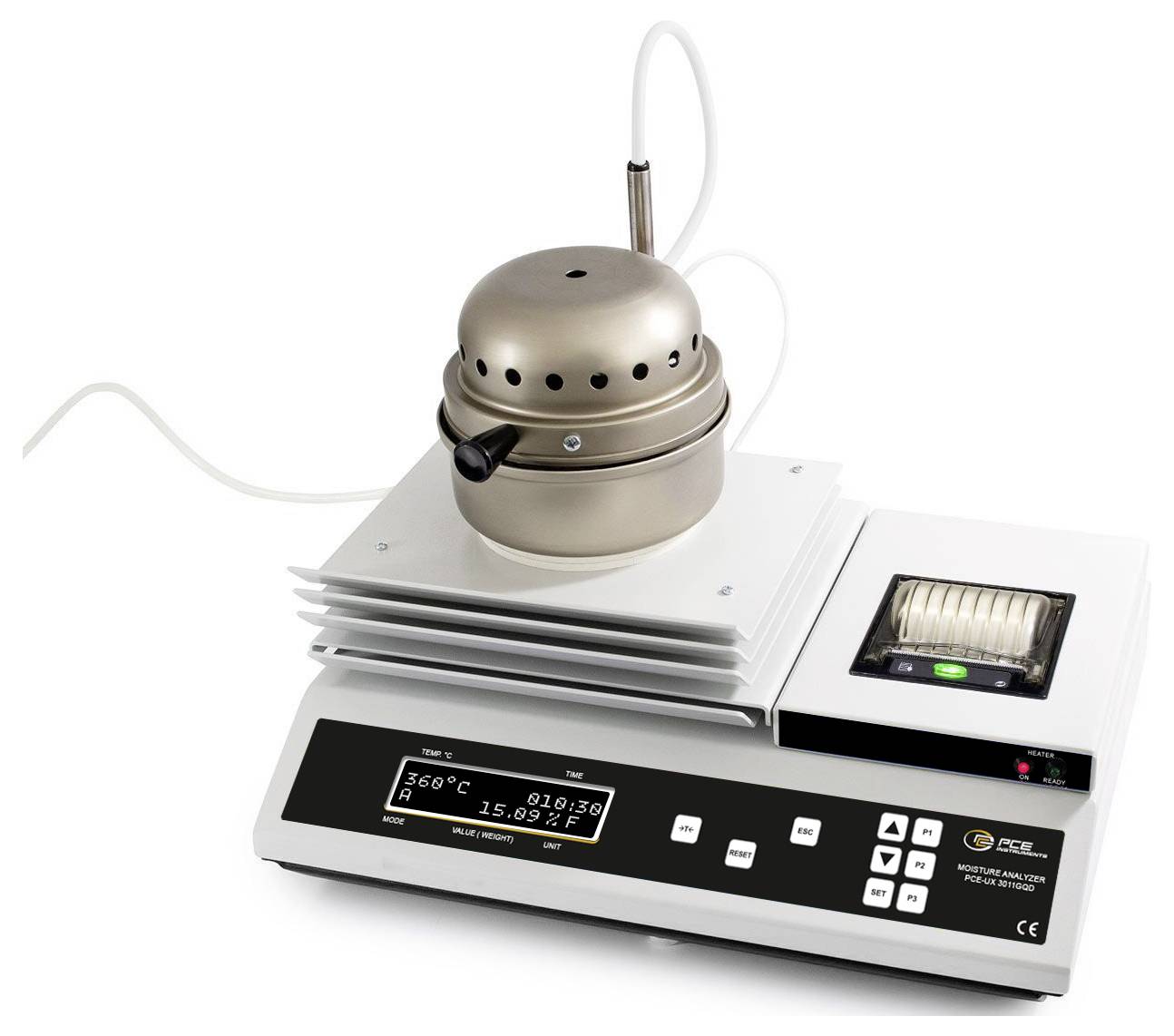

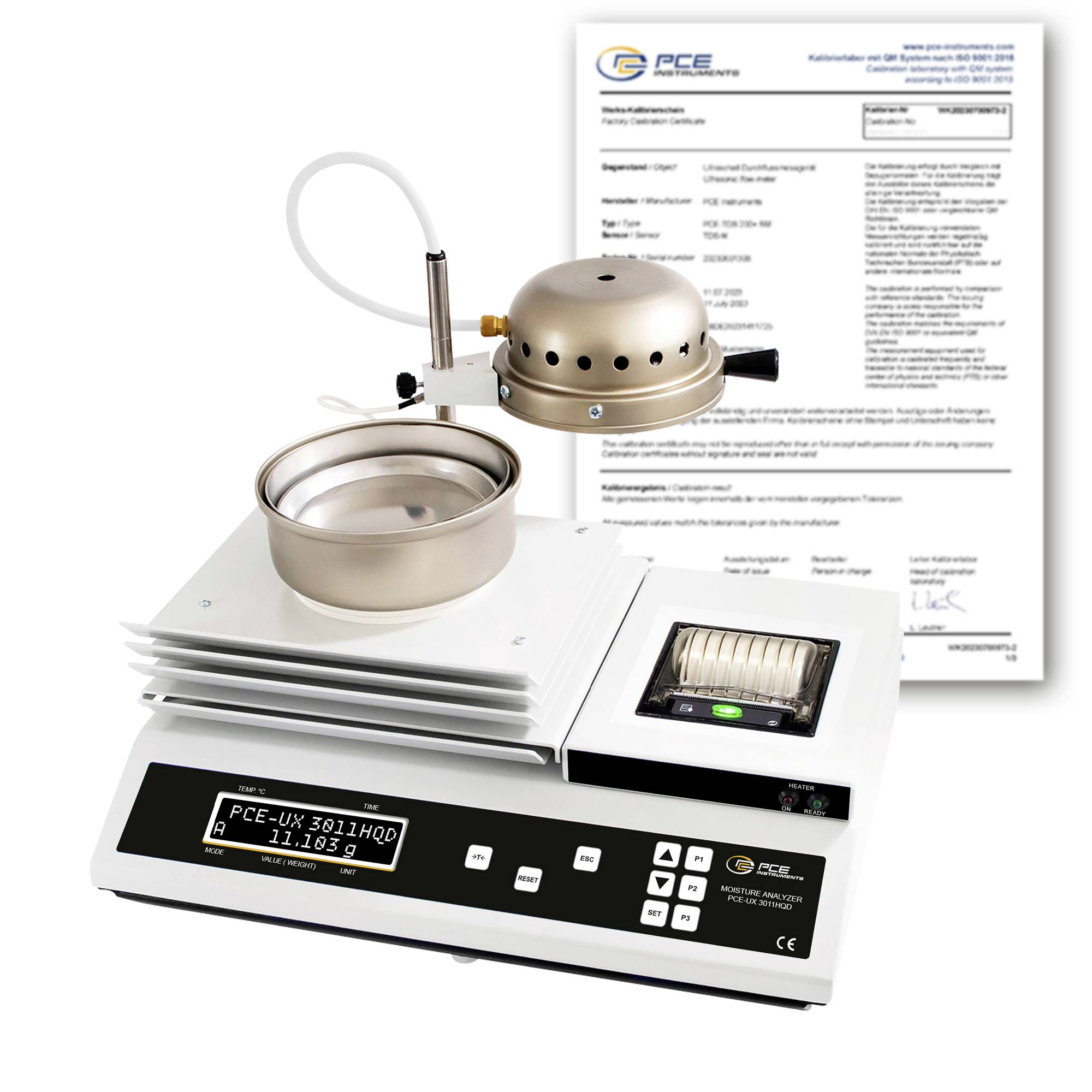

PCE Instruments PCE-UX 3011GQD-ICA Moisture scales PCE-UX 3011GQD-ICA Calibrated to (ISO standards) Weight range 200 g R

Our moisture balance and ash balance is a precise device for the determination of dry matter and ash content in samples. It is suitable for applications in the extraction of raw materials, production, processing, storage, trade, Research and recycling. With a maximum weighing of 200 g and a high resolution of 0.001 g, the moisture balance and carburiser allows exact measurements of the moisture content as well as the glow residue.

The device works according to the principle of drying and flushing with simultaneous weight measurement. During the drying process, weight loss is recorded continuously and displayed as a percentage of the total mass. Thanks to a 375 W emitter power and an adjustable heating temperature from 105 °C to 600 °C, the moisture balance and carpenters offer fast and flexible drying and flushing of the samples. Various parameters are available for measurement analysis: % Humidity, % Dry mass, % Humidity ATRO, g Remaining weight / kg, remaining weight, % Filament and % glow loss. These measurements allow for a detailed analysis and precise determination of the dry matter and ash content.

The moisture balance and wipers have an adjustable automatic shut-off with three individually adjustable criteria: Start of inquiry, weight loss per sampling interval and sampling interval. These functions provide flexible control of the drying process. In addition, dry substance, glow residue and humidity content can also be determined via the timer, which is adjustable between 1 and 180 minutes. Up to nine parameter combinations are available in the program memory for managing samples, which can be adapted to different sample types.

A menu lock with PIN prevents accidental adjustment of the parameters. The menu item CAL remains available here, so that calibration can be performed at any time. The PreFlash function reduces the drying time at temperatures up to 180 °C and thus accelerates the entire process. The scales also have a program memory with up to 9 memory locations, in order to store different drying profiles and to retrieve them quickly.

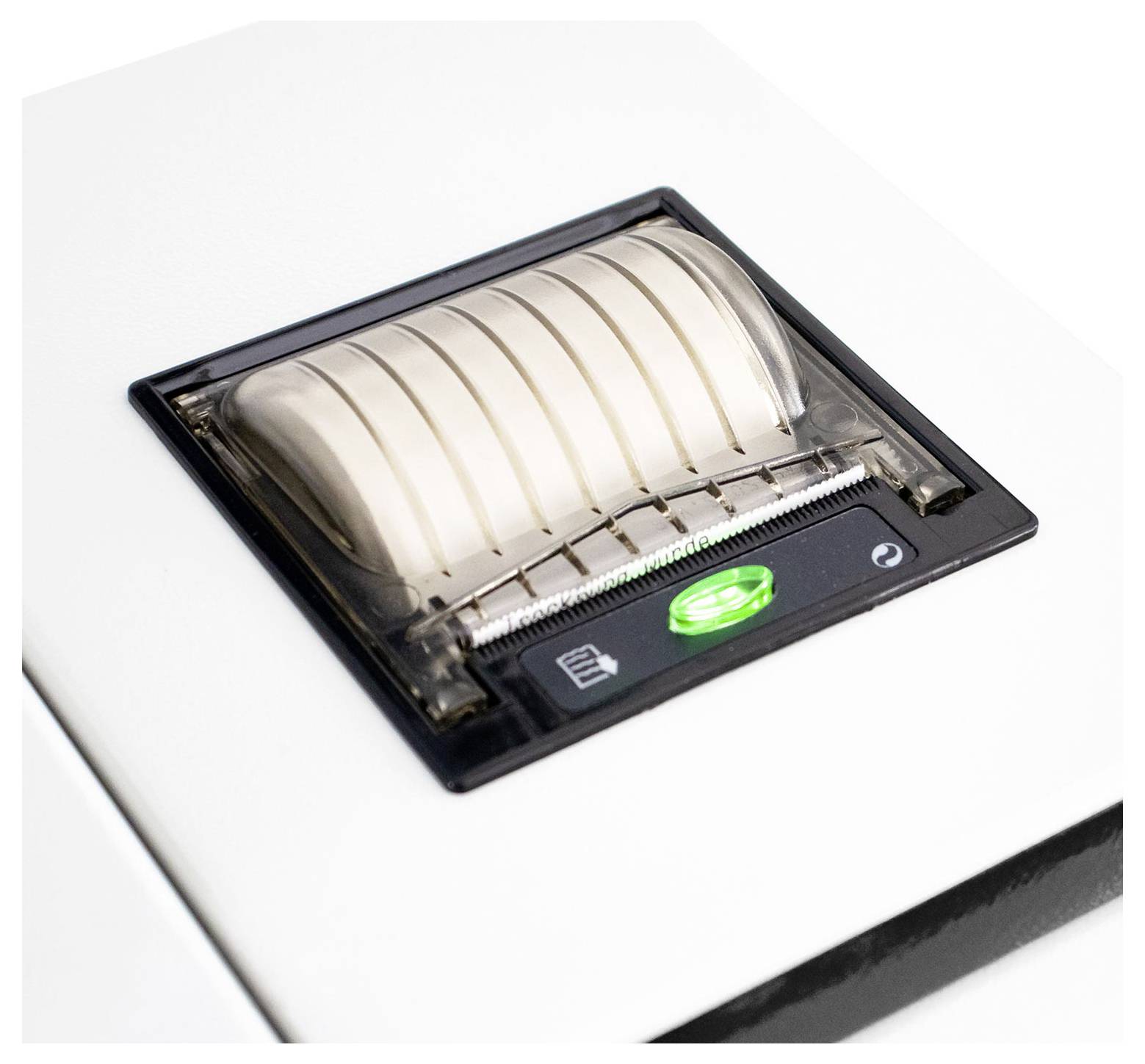

The device provides a GLP-compliant output of all data that takes place via Data Bridge. Intermediate values can be printed at individually adjustable intervals. A simple data transfer takes place via the serial RS-232 interface and USB. The built-in printer can be deactivated as needed. The data can be transferred to a PC via software, which however must be purchased separately. The humidity determination scale also possesses a 4-digit device ID for unique identification of the device, which enables an exact allocation of the measured data.

The humidity determination scale is suitable for temperature-insensitive materials in different areas, like construction materials like cement, concrete and gravel. The humidity determination scale can also be used in the chemical industry as well as in biogas plants, in order to reliably test powders, granules, pastes and organic materials for moisture content.

This text is machine translated.
