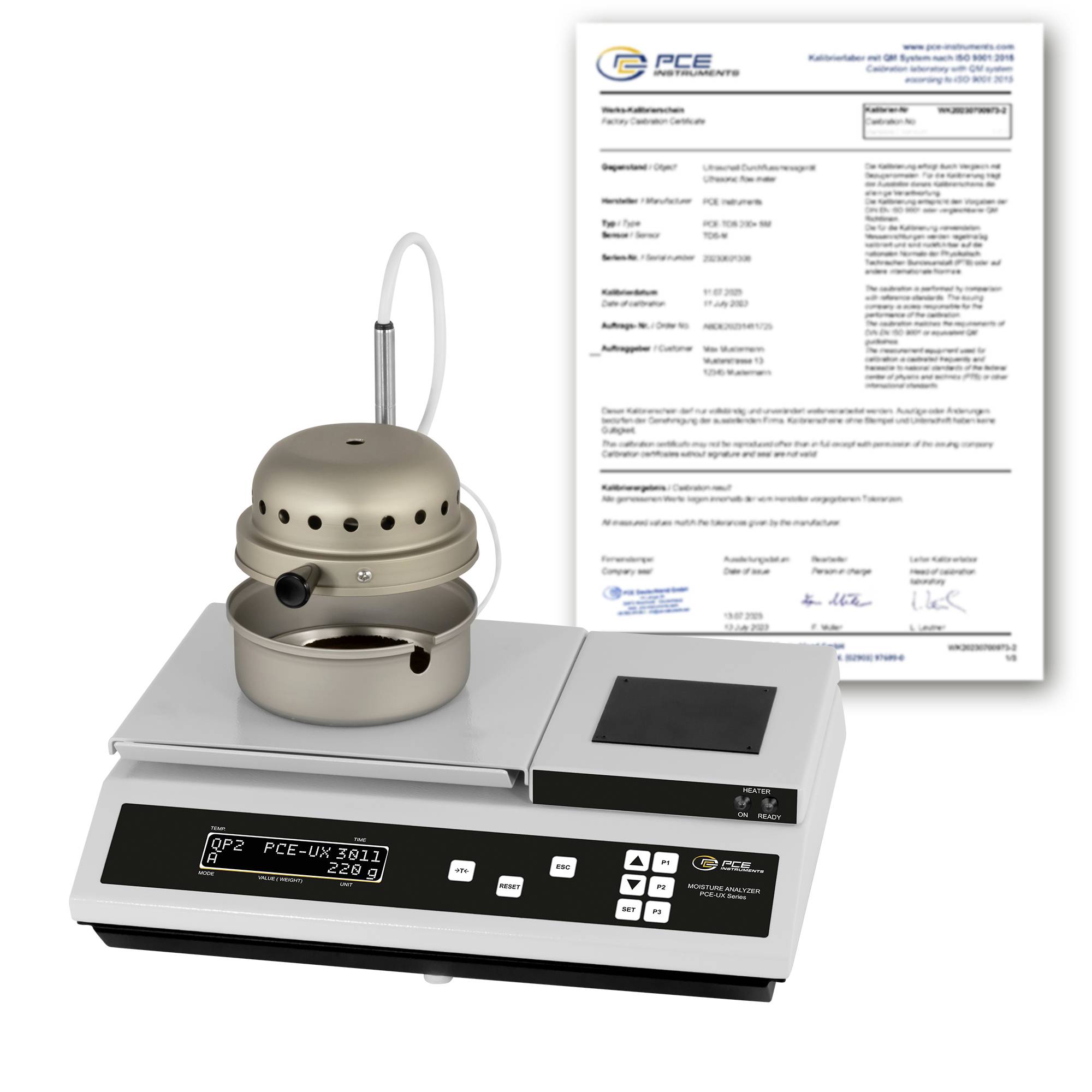

PCE Instruments PCE-UX 3011Q-ICA Moisture scales PCE-UX 3011Q-ICA Calibrated to (ISO standards) Weight range 220 g Reada

Our humidity determining scale is the special device for temperature-insensitive materials with a maximum drying temperature of up to 360 °C. Ideal is suitable for use in raw materials production, manufacturing, processing, research and recycling, as well as in building materials such as cement, concrete and gravel and the chemical industry, including powders, granules and pastes. With a maximum weighing of 220 g and a high measurement resolution of 0.001 g it enables an exact measurement of humidity.

The operating principle is based on drying and weighing at the same time, with the weight loss being recorded continuously and displayed as a percentage of the total mass. With a emitter power of 375 W and an adjustable heating temperature of 105 °C to 360 °C the moisture balance ensures fast, precise drying, even in case of demanding materials. For the measurement evaluation, parameters such as % humidity, % dry mass, % humidity ATRO as well as g residual weight / kg and residual weight are available, which enable a detailed analysis of the sample.

An automatic shutdown stops the drying process automatically when the weight stability is reached. Automatic shutdown can be controlled by three adjustable criteria: Start of query, polling interval and weight loss per polling interval, WAS allows flexible and precise control of the process. In addition, the moisture balance has a timer that is adjustable from 1 to 180 minutes. The menu lock protects against accidental parameter adjustment and can be backed up by PIN, while the calibration mode (CAL) remains accessible. The scales also have a program memory with up to 9 memory locations, in order to store different drying profiles and to retrieve them quickly.

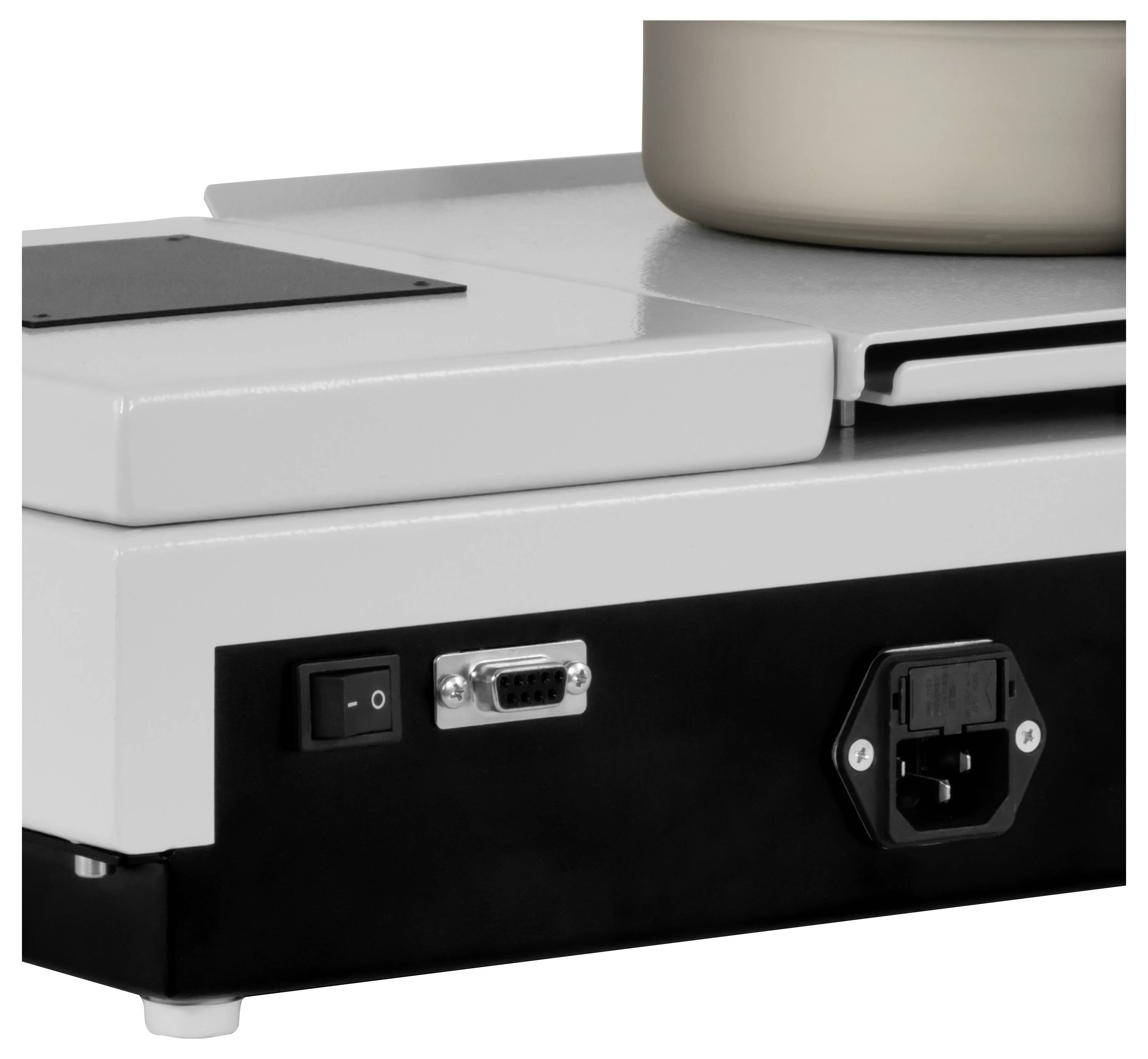

The data can be transferred to a PC via software, which however must be purchased separately. All data can also be output via the RS-232 serial interface and USB. The moisture balance ensures GLP-compatible documentation, whereby the data is output via the software Data Bridge, because the balance does not have a built-in printer. The scales also have a 4-digit device ID for unique identification of the device which enables an exact allocation of the measured data.

With its robust construction and the ability to reach high drying temperatures, the moisture balance is a reliable device for humidity determination and process control in various industrial and scientific applications.
