Buy PCE Instruments PCE-VA 11 Anemometer

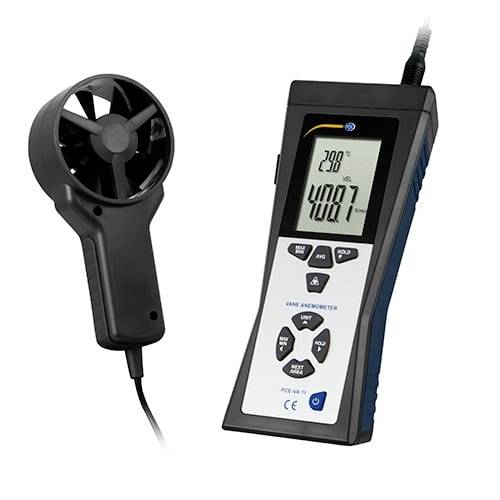

Handheld vane anemometer with detached fan sensor, showing digital readout of 29.9°C and 400.7 on the display.

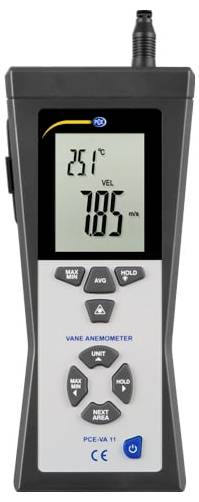

Handheld vane anemometer showing wind speed 7.85 m/s and temperature 25.1°C on its digital display.

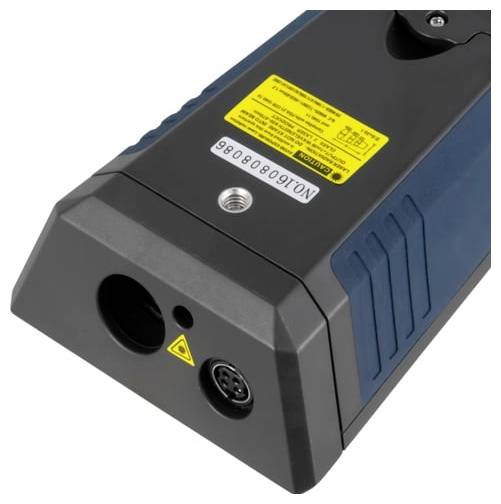

Close-up of a handheld laser device showing the front aperture, warning labels, and connector port on a white background.

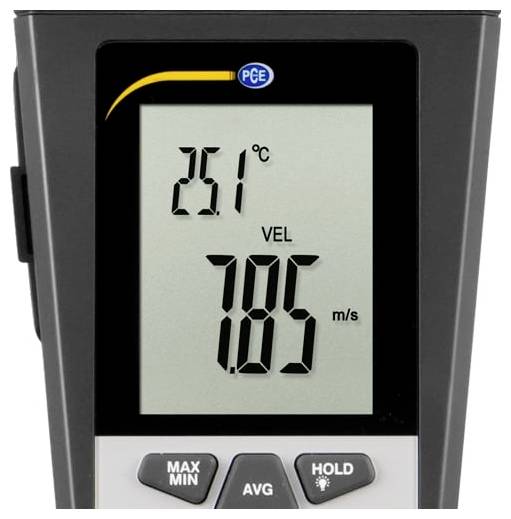

Digital anemometer display showing 25.1°C and wind speed VEL 7.85 m/s, with MAX/MIN, AVG, and HOLD buttons visible.

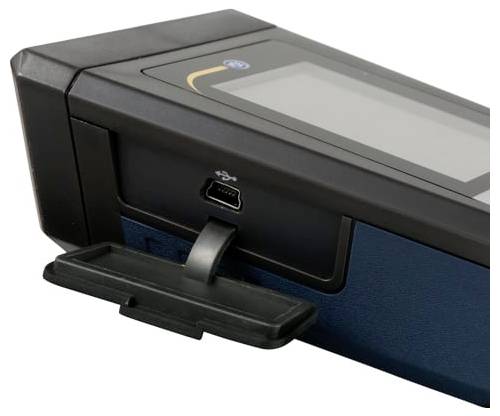

Close-up of a black electronic device with a USB port and small tray or cover on the front, shown on a white background.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Volume flow anemometer PCE-VA 11

Suitable for low air speeds
Units of measurement m/s, km/h, ft/min, knots, mph
Large LCD
Max and min values
Data hold function
High precision

Technical specifications

Display backlit LCD Functions automatic switch-off Hold Extreme value measurement (min / max) Average Range selection Anemometer cable length 1.2 m. Power supply 9 V block battery Air speed Reading range m/s: 0.4 ... 30 ft/min: 80 ... 5900 km/h: 1.4 ... 108 MPH: 0.9 ... 67 Nodes: 0.8 ... 58 Resolution m/s 0.1 ft/min: 1 km/h: 0.1 MPH: 0.1 Node: 0.1 Accuracy m/s: ± 3% ± 0.2 m/s. ft/min: ± 3% ± 40 ft/min km/h: ± 3% ± 0.8 km/h. MPH: ± 3 % ± 0.4 MPH Node: ± 3% ± 0.4 nodes Air temperature Measurement range -10 ... +60 °C Resolution 0.1 °C Accuracy: ±2 °C Infrared temperature Measurement range -50 ... +500 °C Resolution 0.1 °C Accuracy at -50 ... -20 °C: ±5 °C at -20 ... +500 °C: ±2 % of the measured value / ±2 °C.

Product type: Anemometer

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 206 x 95 x 45 mm

Weight: 313 g

Width: 95 mm

Height: 45 mm

Length: 206 mm

Documents & Downloads

Datasheet

Datasheet 2452695 PCE Instruments PCE-VA 11 Anemometer

User & Safety Instructions

User & Safety Instructions 2452695 PCE Instruments PCE-VA 11 Anemometer

Description

Anemometer for air temperature and infrared temperature / Extreme value measurement / Measurement of air speed and volume flow / Backlit LCD / Measurement in °C and °F / Measurement of m/s, km/h, ft/min, knots, mph Volume flow anemometer PCE-VA 11 is a widely used measuring instrument. The anemometer offers the chance to determine air speeds, volume flow, air temperature and surface temperature. The illuminated LCD allows comfortable readings and facilitates use in dimly lit areas. To mount the sensor from the volumetric flow anemometer, it has a thread on the back. The fast response time of the device enables real-time measurement without any problems. Immediately after the impeller has been connected, the measurement can be started and measured values are still immediately shown on the display. The volume flow of anemometers can be used to measure the volume flow, i.e. the air volume, in addition to the air velocity. For this purpose, the cross-section of the ventilation duct or other pipe is set in the volume flow anemometer. After switching the measuring mode, the volume flow is then measured. In order to be able to use the volume flow anemometer holistically in the maintenance of ventilation and air conditioning systems, the measuring device measures the air temperature and the surface temperature via infrared in addition to the flow parameters. The air temperature measures the volume flow of anemometers via a temperature sensor installed in the impeller sensor. The surface temperature is measured using the infrared sensor located on the face of the volume flow anemometer. A laser helps to point the object at the non-contact temperature measurement. The volume flow anemometer is used primarily in the maintenance and maintenance of service technicians and installers in the HVAC field. It can also be used for research purposes. In the field of research, it is often important to record the measured values. To ensure this, a USB interface is installed in the volume flow anemometer. The measured values can be saved via the software.

This text is machine translated.
