Buy PCE Instruments PCE-VA 20 Anemometer 0.2 up to 30 m/s

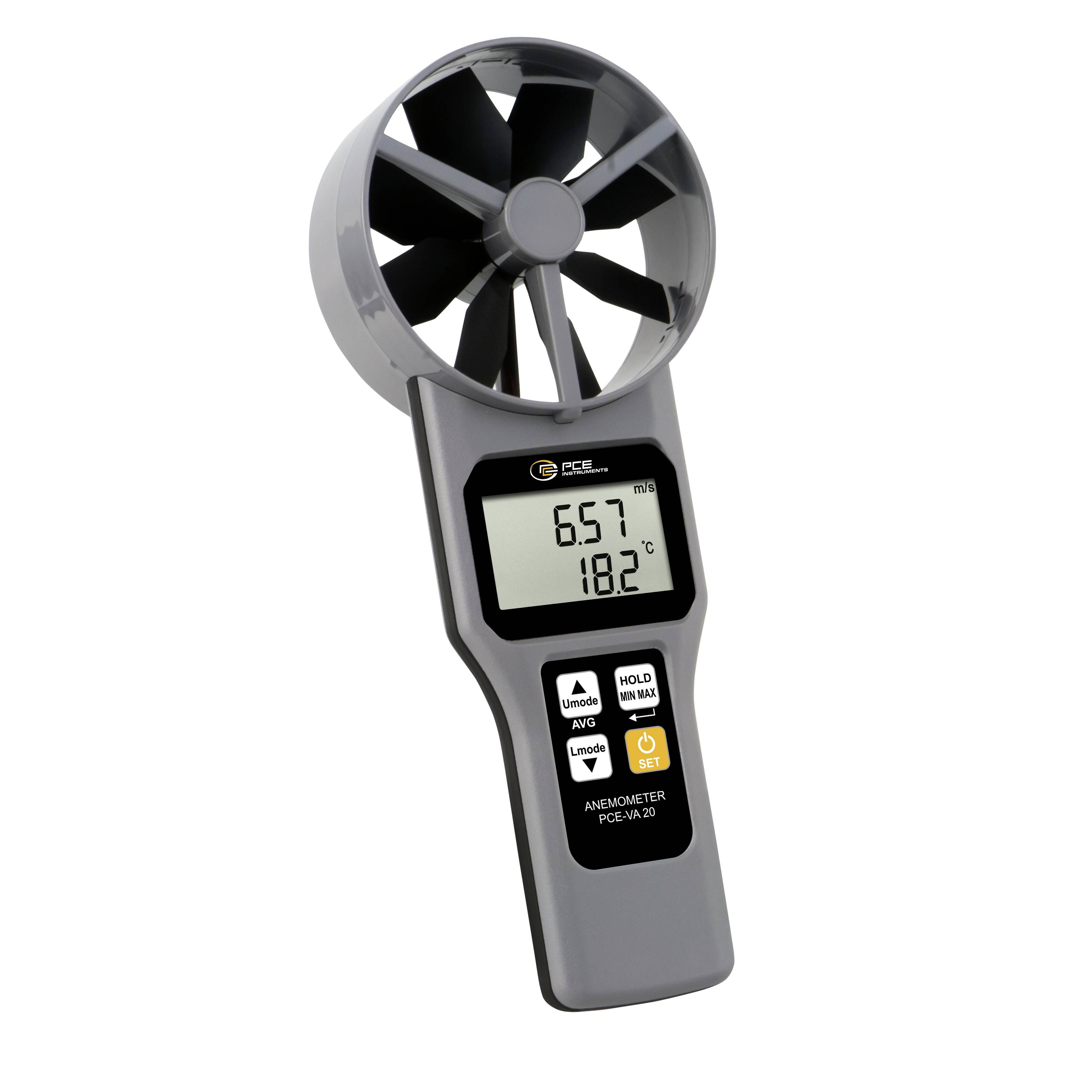

Handheld digital anemometer with a fan sensor and display showing 6.57 m/s wind speed and 18.2°C temperature.<br>

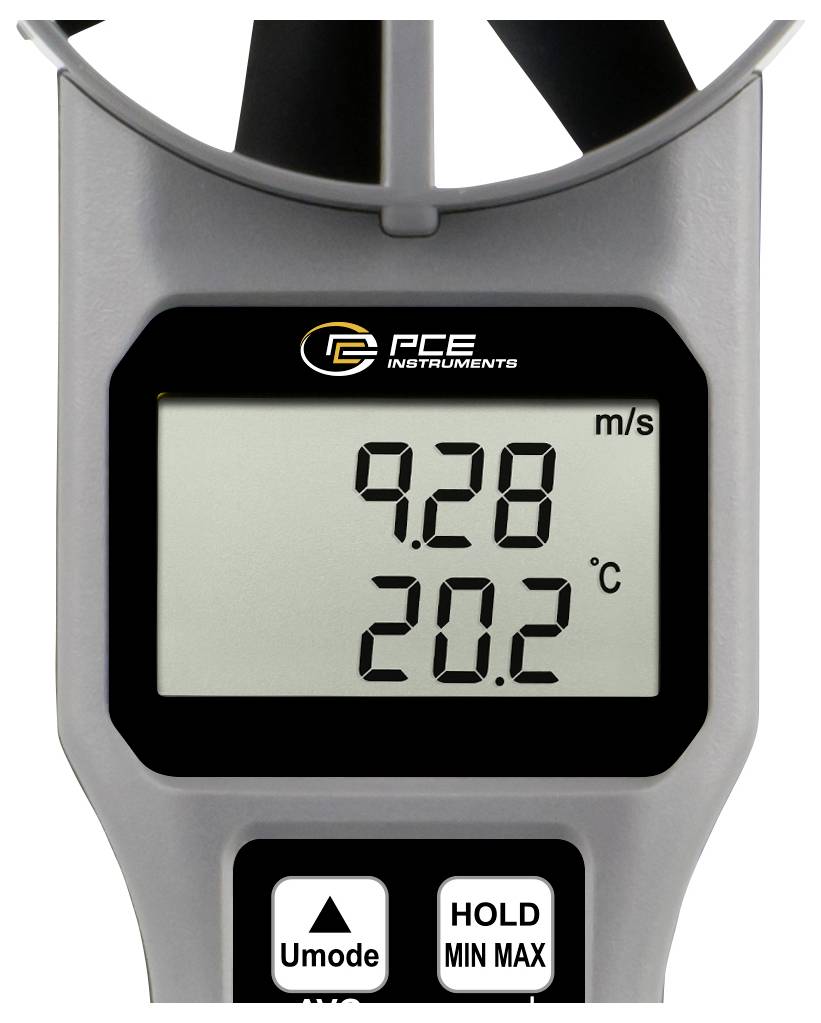

Handheld PCE Instruments meter displaying wind speed 9.28 m/s and temperature 20.2°C, with Umode and HOLD MIN MAX buttons visible.

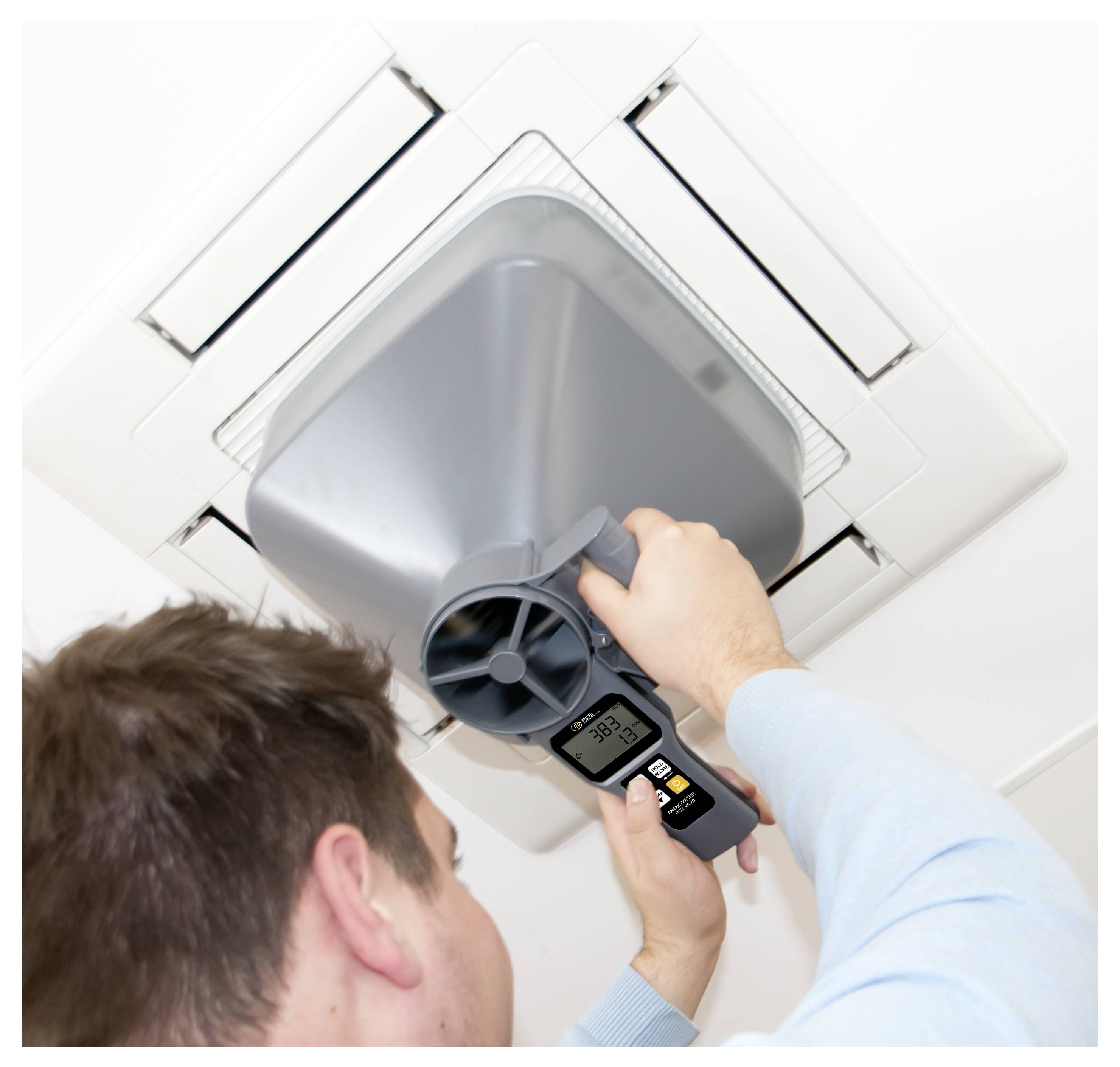

Technician measuring airflow from a ceiling vent with a handheld anemometer under a suspended HVAC unit.

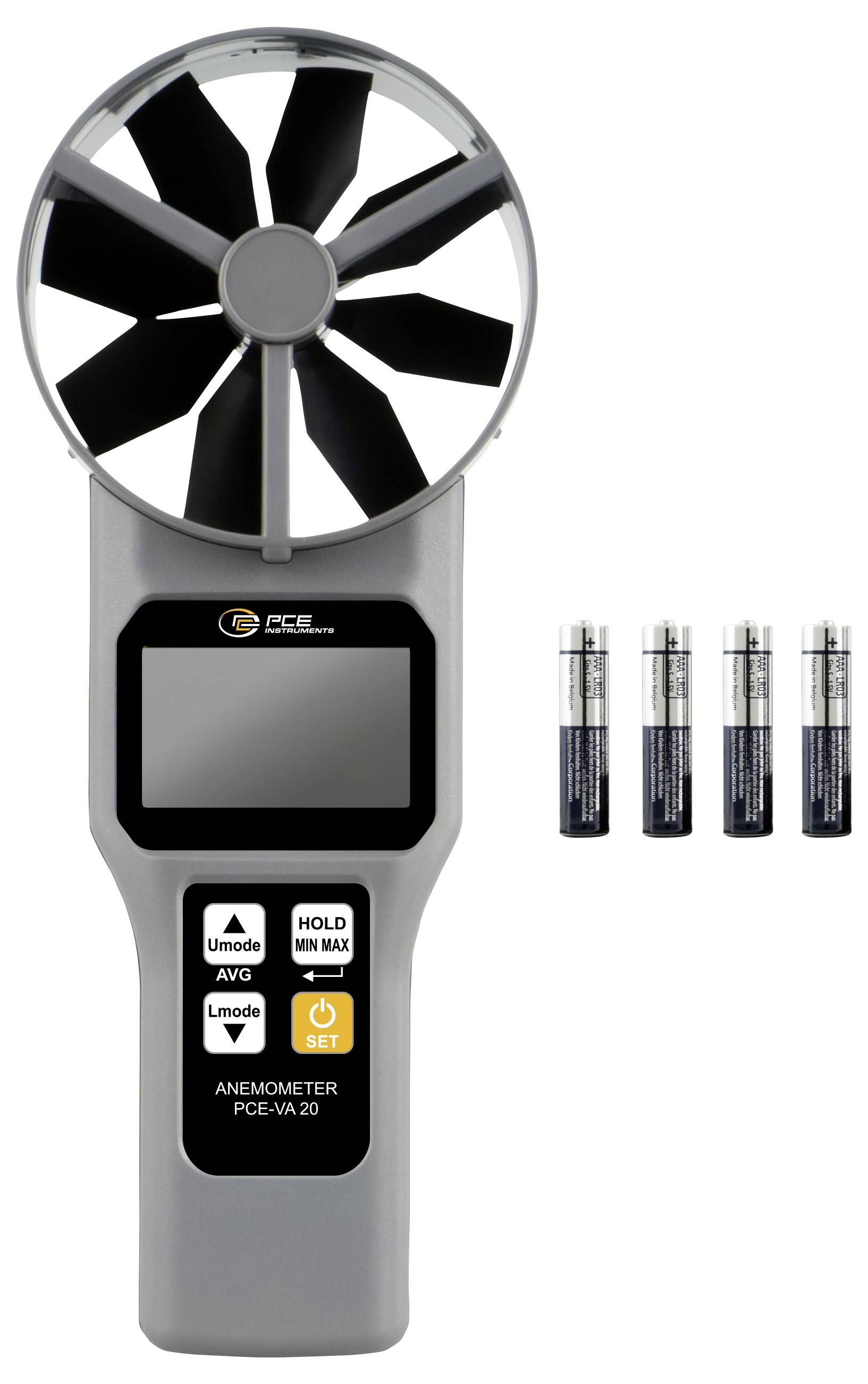

Digital handheld anemometer with large propeller fan and LCD screen, shown with four batteries beside it.

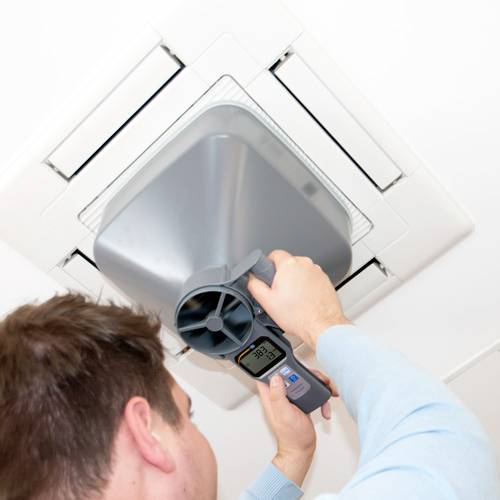

A person is checking the functionality of a square air conditioning unit mounted on the ceiling using a measuring device.

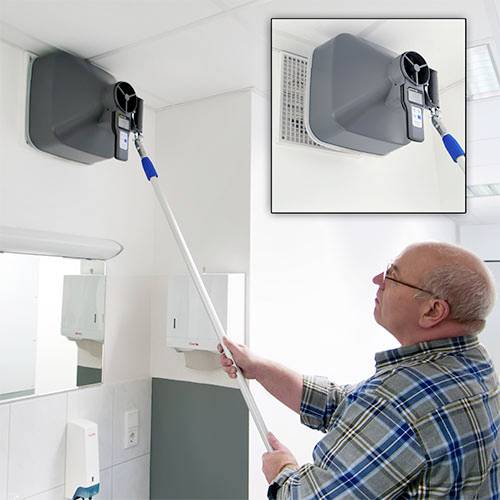

A man is using a telescopic tool to clean an air intake vent on the ceiling. Bathroom walls can be seen in the background.

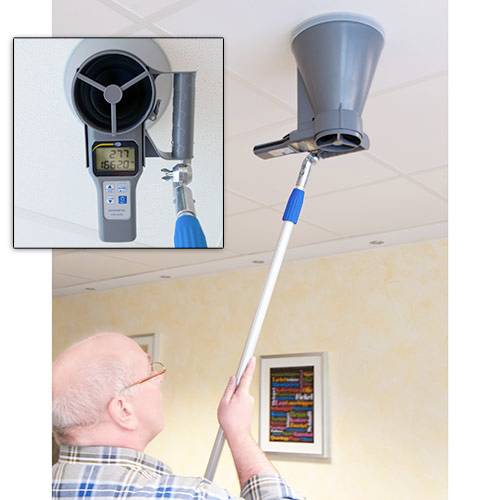

A man is using a device to measure the airflow at a ceiling ventilation point. Close-up shows a reading of '257' on the display.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Industrial safety measuring device PCE-VA 20

Measurement of wind speed
Measurement of temperature and humidity
Dew point temperature and wet bulb temperature
Volume flow measurement optional
Extreme value measurement
Hold function
Impeller Ø 100 mm
automatic cut-off function

Technical specifications

Technical specifications measuring range Wind speed 0.2 ... 30 m/s Accuracy of wind speed < 20 m/s: ±(1.5% MW + 0.3 m/s) > 20 m/s: ±(3% MW + 0.3 m/s) Measurement range air temperature -20 ... +60 °C Air temperature accuracy ±0.6 °C. Air temperature resolution 0.1 °C / °F. Measuring range of air humidity 0.1 ... 99.9 % r.F. Accuracy of humidity ±3 % r.h. (At 25 °C and 10...90 % r.F.) otherwise: ±5 % r.h.. Humidity resolution 0.1 % r.h. Response time temperature 60 seconds Response time air humidity 60 seconds LCD update 1 x per second Display of wet bulb temperature -20 ... +59.9 °C Dew point temperature display -5 ... +59.9 °C Display volume flow 0 ... 99999 m³/min. Resolution volume flow 0.1 m³/min (0...9999.9 m³/min) 1 m³/min (10000...99999 m³/min) Automatic power off after 20 minutes of inactivity Size LCD 32.5 x 54 mm (H x W) Power supply 4 x 1.5 V AAA batteries Operating conditions 0 ... +50 °C,< 80% r.h. Storage conditions -10 ... +50 °C,< 90% r.h. Dimensions 269 x 106 x 51 mm Weight approx. 200 g

Product type: Anemometer

Temperature reading range: 0 up to 60 °C

Automatic temperature compensation: No

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 270 x 105 x 55 mm

Accuracy: 3 m/s

Weight: 210.5 g

Temperature reading range (max.): 60 °C

Temperature reading range (min.): 0 °C

Air speed reading range (max.): 30 m/s

Air speed reading range (min.): 0.2 m/s

Width: 105 mm

Height: 55 mm

Length: 270 mm

Documents & Downloads

Datasheet

Datasheet 2452696 PCE Instruments PCE-VA 20 Anemometer 0.2 up to 30 m/s

User & Safety Instructions

User & Safety Instructions 2452696 PCE Instruments PCE-VA 20 Anemometer 0.2 up to 30 m/s

Description

Industrial safety measuring device PCE-VA 20 Measurement of wind speed, volume flow, temperature, humidity Dew point and humidity temperature / background lighting / 10 cm impeller diameter Extreme value measurement / HOLD function / automatic shutdown The industrial safety measuring device PCE-VA 20 is a versatile measuring device for measuring the parameters wind speed, temperature, air humidity, dew point and wet temperature. With the help of the optional volume flow hood set, the flow rate can also be determined with the safety measuring device. To measure the wind speed and the volume flow, the industrial safety measuring device has a impeller with a diameter of ten centimeters. The safety device also offers extensive functions such as an extreme value measurement, a HOLD function, background lighting, an automatic switch-off and a warning function with low battery charging. Thus, the user is made much easier to use and as comfortable as possible. Due to its small dimensions and low weight, the PCE-VA 20 industrial safety meter is ideal for mobile use.

This text is machine translated.
