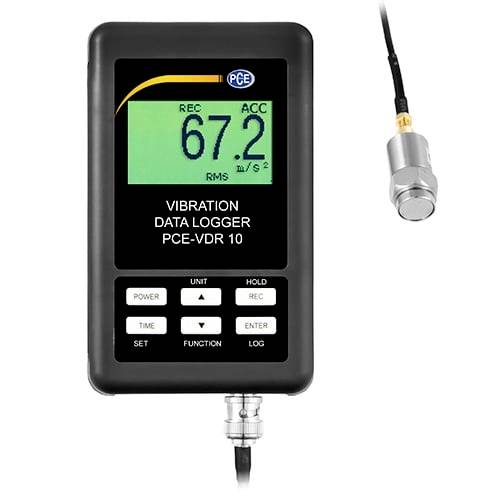

Handheld vibration data logger labeled 'PCE-VDR 10' with attached sensor, displaying a 67.2 RMS reading in m/s².<br>

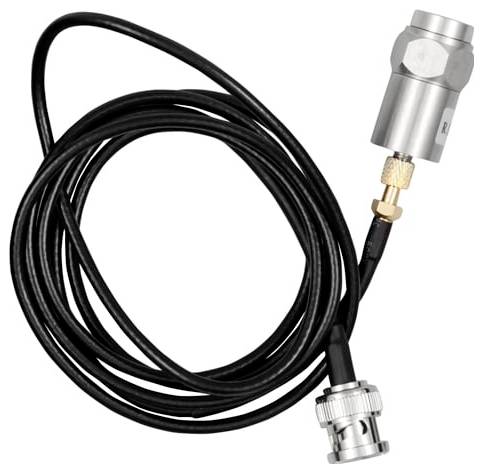

Black coiled cable with metal connectors and a silver cylindrical sensor or adapter on a white background.

Close-up of a metal push-button switch with a black cable attached, shown on a white background.<br>

Black electronic device shown upside down, with labeled port openings and a green 2.0A output connector on one end.

Black handheld vibration data logger device with LCD screen, labeled 'VIBRATION DATA LOGGER GENERATOR', showing DC 9V power and input connectors on the front.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments PCE-VDR 10 PCE-VDR 10 SPL data logger

Single-axis measurement
Evaluation via MS Excel
Real-time measurement
RS-232 and USB interface
4 ... 20 mA control output
Easy to read LCD

Technical specifications

Frequency range 10 Hz ... 1 KHz Acceleration Calibrated at 50 m/s² (160 Hz) Measurement ranges: 0.5 ...199.9 m/s² 0.05 ... 20.39 g 2 ... 656 ft/s² Resolution 0.1 0.01 1 Accuracy ± (5% of the measured value + 2 digits) Speed calibrated at 50 mm/s (160 Hz) Measurement ranges: 0.5 ... 199.9 m/s 0.05 ... 19.99 cm/s 0.02 ... 7.87 inch/s Resolution 0.1 0.01 1 Accuracy ± (5% of the measured value + 2 digits) Display LCD Display update time 1 second Memory SD card Memory rate 5 ... 3600 seconds (adjustable) Analogue output 4 ... 20 mA Power supply 9 V DC power supply 6 x 1.5 V AAA battery Interfaces RS-232, USB Dimensions 132 x 80 x 32 mm Evaluation possibility MS-Excel

Product type: SPL data logger

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 132 x 80 x 32 mm

Weight: 199 g

Width: 80 mm

Height: 32 mm

Length: 132 mm

Type: PCE-VDR 10

Display: LCD

Reading type: Acceleration
Vibration

Documents & Downloads

Datasheet

Datasheet 2452700 PCE Instruments PCE-VDR 10 PCE-VDR 10 SPL data logger

User & Safety Instructions

User & Safety Instructions 2452700 PCE Instruments PCE-VDR 10 PCE-VDR 10 SPL data logger

Description

Shock data logger for single-axis measurement / real-time measurement / storage on SD card / USB and RS-232 interface / easy to read LCD of shock data logger PCE-VDR 10 is a single-axis measuring device for vibration monitoring. The shock data logger can perform both a real-time measurement and a measurement recording. The measured values determined with the shock data logger can be stored on an SD card. The measured value analysis takes place later on a computer. No special software is required for this. The measured values can be directly edited by a table calculation such as Microsoft Excel. The shock data logger has a 4 ... 20 mA output signal. A 4 ... 20 mA controller. If this is the case, the shock data logger can be used as an alarm device, which gives an alarm if the vibration exceeds or falls below a certain value.
