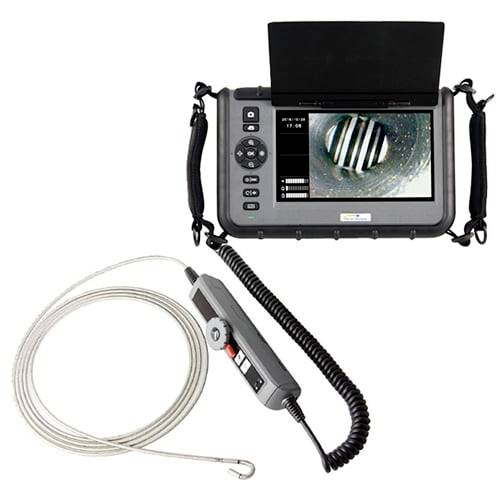

Portable inspection camera system with monitor, control panel, and attached flexible probe cable for viewing tight spaces.

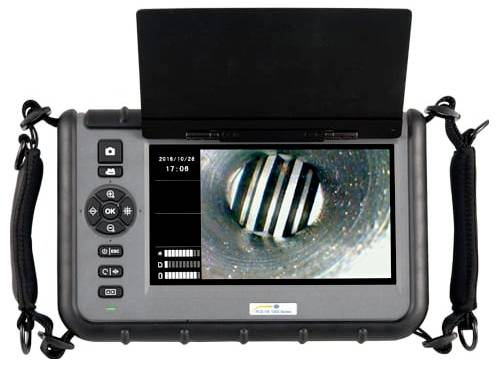

Portable inspection monitor with a live camera view of a pipe interior, showing striped object blockage and on-screen date/time controls.

Handheld medical imaging device with a cable-connected rectangular sensor plate and strap mount, shown on a white background.

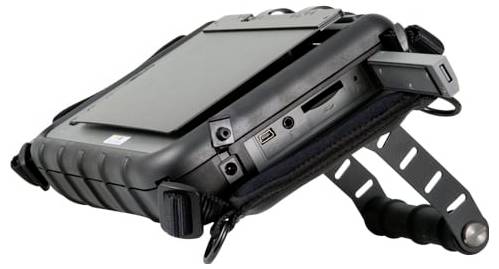

Rugged handheld tablet with a large touchscreen and side handle, designed for industrial or field use.

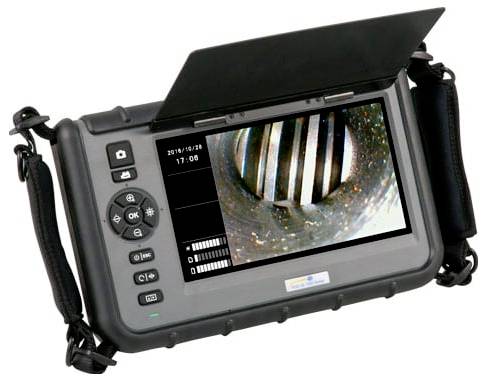

Portable inspection camera with a screen showing the inside of a pipe or tunnel, mounted in a rugged handheld case with control buttons.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Endoscope camera PCE-VE 1034N-F / 2-way head

3 m endoscope cable with 2-way camera head
Camera head diameter: Ø 4.5 mm
Storage of images and videos
8 GB memory card included
LED Lighting
Robust carrying case incl.

Technical specifications

Display 7 " LCD (800 x 480) Image resolution 640 x 480 JPEG Video recording 640 x 480 MPEG (with sound recording) Drop test 1 m Power supply Li-ion battery Interface USB Image and video memory on SD card (up to 32 GB maximum) AV OUTPUT NTSC / PAL Audio input in-built microphone Brightness setting can be set in 10 settings on the main unit Run time per battery charge 5 hours Charging time battery 3 hours Charging temperature +10 ... +40 °C). Operating temperature 0 ... +60 °C Storage temperature 0 ... +60 °C Protection class IP57 Dimensions 240 x 154 x 47 mm Weighs 1.3 kg. Cable length 3 m 2-way endoscope cable 90° Functions on the control unit of the cable Lighting improvement Image rotation 360 ° in 90 ° steps Changing the lighting for mirror use Camera head lock Keypad lock Lighting 5 white LEDs on the camera head Length of camera head approx. 13 mm Material camera head stainless steel Diameter of camera head 4.5 mm Resolution VGA (640 x 480) Depth of field 10 ... 60 mm Working and storage temperature -20 ... +60 °C IP67protection class NTSC video output Viewing angle 135 ° Control unit dimensions 228 x 35 x 53 mm Weight approx.: 400 g

Product type: Endoscope

Endoscope features: LED lit
Video output
Image function

Display resolution: 800 x 480 Pixel

Camera resolution: 640 x 480 Pixel

: IP57

Field of view: 90°

Weight: 1310 g

Dim: (L x W x H) 240 x 154 x 47 mm

Length: 240 mm

Width: 154 mm

Height: 47 mm

Type: PCE-VE 1034N-F

Documents & Downloads

Datasheet

Datasheet 2452701 PCE Instruments PCE-VE 1034N-F Endoscope

User & Safety Instructions

User & Safety Instructions 2452701 PCE Instruments PCE-VE 1034N-F Endoscope

Description

Endoscope camera PCE-VE 1034N-F / image and video recordings / large 7" LC-display for exact viewing / recording on SD-card / images can be rotated by 360 ° (90° steps) / bright LEDs on the camera head / camera head DRM.: Ø 4.5 mm the endoscope PCE-VE 1034N-F is a versatile inspection instrument. Various endoscope cables with different properties can be connected to the endoscope. A special advantage of the endoscope is the large display, which offers the user the best possible overview of the surface to be viewed through its dimensions and resolution. The endoscope enables the recording of images and videos, whereby the videos are additionally saved with an audio recording. The clear resolution becomes clear even when the images are stored in the endoscope by pressing a button on the inserted SD card. When the SD card is read on the computer, the pictures and videos taken are clearly displayed. Due to the fact that the recordings are stored on an external mass storage device, you can choose which SD card is inserted in the endoscope. However, the maximum capacity should be 32 GB. An 8 GB memory card allows the storage of more than 60000 pictures or more than 530 minutes of video material. The two-way optics are a great advantage of the endoscope in places that are difficult to access. However, if the control over the camera head is not sufficient and images cannot be displayed satisfactorily, there is still the possibility to rotate the images at a 90° angle on the display of the hand-held device. In addition to the image rotation, various other functions can also be set on the hand-held device itself. Thus, the endoscope enables a digital zoom as well as the setting of the LED brightness of the camera head. The endoscope has a thread on the back, which allows the user to position the main device on a tripod in order to make permanent recordings. To this end, the automatic shut-off function can be activated or deactivated in the menu of the endoscope, whereby, when the automatic shut-off function is activated, it is also possible to select between 5 and 30 minutes between different time intervals. In addition to the stand device, the main device can also be comfortably held on the padded retaining straps.
