Buy PCE Instruments PCE-VE 180 Endoscope Probe diameter: 3.9 mm Probe length: 1 m

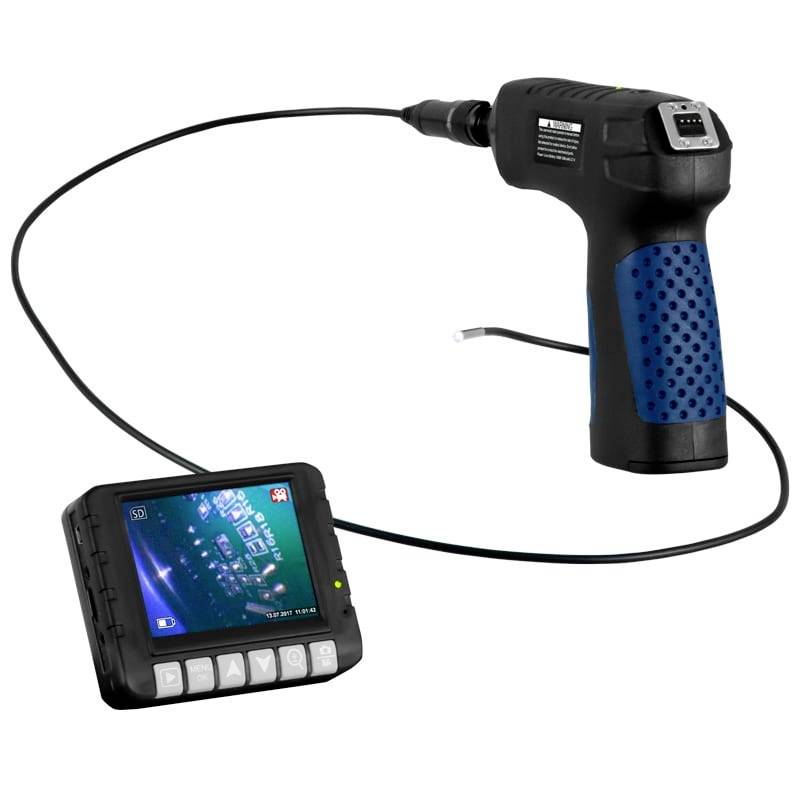

Handheld inspection camera with a flexible cable connected to a small monitor screen<br>

Three stainless steel manicure tools with small metal tips, shown on a white background.

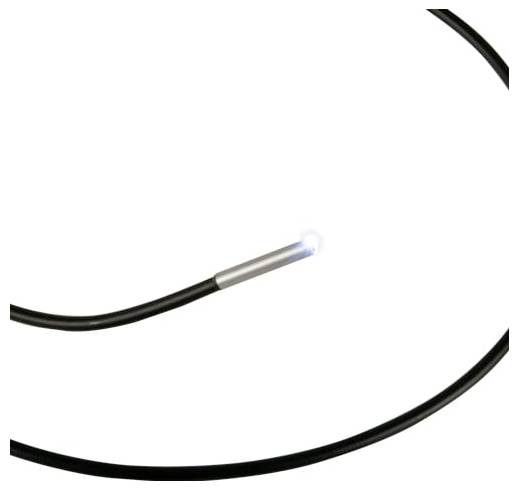

Close-up of a black cable with a glowing white tip on a plain white background.

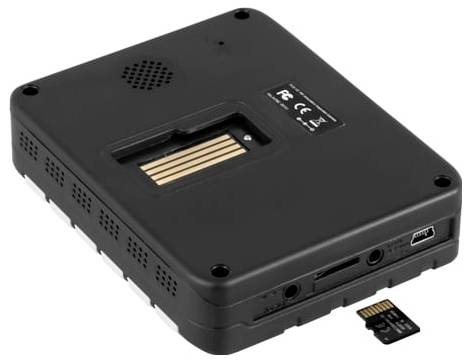

Black portable electronic device with a slot for a memory card and a small card shown beside it on a white background

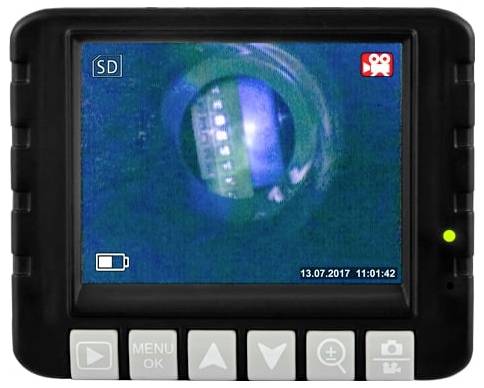

A handheld inspection camera screen shows a close-up of a pipe or tunnel interior with a bright circular opening and on-screen date/time stamp.

1/5

Datasheet (PDF)

Unavailable

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Industrial endoscope PCE-VE 180

1 m endoscope cable
3.9 mm cable diameter
Image and video function
30 ... 80 mm focus distance
Coded 2.4 GHz radio transmission
High interpolated resolution
Battery and mains operation

Technical specifications

Cable length 1 m / 3.28' Semi-flexible cable type (gooseneck) Cable diameter 3.9 mm / 0.16 " Lighting 2 LEDs Resolution 1280 x 980 pixels (interpolated) Protection class endoscope cable IP67 Focus range 30 ... 80 mm / 1.18 ... 3.15 " Field of view 60 ° Screen size 3.5" / 320 x 240 pixels Memory formats Pictures: JPG / BMP Video format: AVI memory Micro SD card (max. 32 GB) 2.4 GHz wireless transmission Power supply Display: Li-Ion 3.7 V 1200mAh Handle: Li-Ion 3.7 V 1600mAh power supply / battery charger: 5 V / 2 A. Battery life approx. 1 ... 3 hrs.

Product type: Endoscope

Probe diameter: 3.9 mm

Probe length: 1 m

Endoscope features: LED lit
Video output
Image function
Wireless transmission

Display resolution: 320 x 240 Pixel

: IP20

Field of view: 60°

Weight: 173 g

Dim: (L x W x H) 88 x 100 x 25 mm

Length: 88 mm

Width: 100 mm

Height: 25 mm

Type: PCE-VE 180

Documents & Downloads

Datasheet

Datasheet 2452703 PCE Instruments PCE-VE 180 Endoscope Probe diameter: 3.9 mm Probe length: 1 m

User & Safety Instructions

User & Safety Instructions 2452703 PCE Instruments PCE-VE 180 Endoscope Probe diameter: 3.9 mm Probe length: 1 m

Description

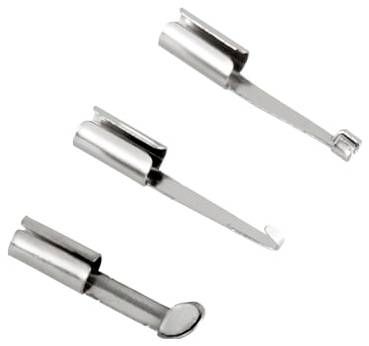

Video wireless endoscope PCE-VE 180 Video wireless endoscope with LED lighting / memory function / removable wireless display with small cable diameter / 1 m working length The PCE-VE 180 wireless endoscope with video and image function possesses a 1 m semi-flexible endoscope cable. The handle and display of the video endoscope can be separated and connected to each other via 2.4 GHz radio. The display and the handle of the wireless endoscope are equipped with a rechargeable battery, which can last for approx. 3 hours. The integrated memory function allows images and videos to be stored on a micro SD memory card with the wireless endoscope. This memory can be extended up to 32 GB. The wireless video endoscope cable has a diameter of 3.9 mm and can thus be inserted into the smallest cavities. Due to the high degree of protection of IP67, the wireless endoscope can also be used under adverse conditions. Three different attachments are supplied for the wireless endoscope. A mirror can thus be viewed at a 90° angle with the wireless endoscope objects. A hook and magnet helps to get parts out of the holerooms. ***Not suitable for medical purposes***

This text is machine translated.
