PCE Instruments PCE-VE 200-KIT1 Endoscope
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ENDOSCOPE CAMERA PCE-VE 200-KIT1
- Endoscope 4.5 mm cable diameter 3.5" display Brightness adjustable on the camera head 2600 mAh rechargeable battery Cable length 1 m SD card slot for micro SD card air flow meter Measurement of wind speedMeasures temperature and humidity Dew point temperature and wet bulb temperature Volume flow hoods includedExtreme value measurement Hold function Fan wheel Ø 100 mm automatic cut-off function
Technical specifications
- Endoscope display 3.5 " LCD Video function resolution AVI (640 x 480)Resolution image function JPEG (1600 x 1200) Image rotation 180° rotation and mirror function Freeze function yes Zoom up to 4 times Storage medium: Micro SD card Menu Languages German English Spanish French Russian Japanese Simplified Chinese Traditional Chinese Interfaces Micro USB 2.0, TV output, Micro SD card slot TV output PAL Power supply Li-ion battery capacity 2600 mAh Operating conditions -10 ... 40 °C, rel. Humidity <75% cable diameter 4.5 mmImage sensor 1/8 CMOS chip Resolution camera 640 x 480 pixels Camera lighting 6 white LEDs (intensity can be set) Field of view / field of view 90 ° Field of view depth 15 ... 100 mm 1 m camera tube Semi-flexible connecting cable (semi-rigid spiral) Environmental conditions of the video borescope PCE-VE 200 Operating temperature of probe In air: -10 … +50 °C In water: +5 … +50 °C Main unit In air: -10 … +50 °C Relative humidity probe main unit 15 ... 90 % Fluid resistance probe and main machine oil, light oil or saline solution 5% Protection against penetration of probe water, oil and dust, according to protection class IP67 Main unit rain in wind (battery compartment must be closed) Do not under waterTechnical specifications of the airflow meter Measuring range wind speed 0.2 ... 30 m/s Wind speed accuracy <;20 m/s: ±(1.5% MW + 0.3 m/s) >20 m/s: ±(3% MW + 0.3 m/s) Measurement range air temperature -20 ... +60 °C Air temperature accuracy ±0.06 °C Air temperature resolution 0.1 °C / °F Measuring range humidity 0.1 ... 99.9 % r.F. Humidity accuracy ±3 % r.h. (At 25 °C and 10...90 % r.F.) otherwise: ±5 % r.h. Resolution air humidity 0.1 % r.F. Response time temperature 60 seconds Response time humidity 60 seconds Update LCD 1 x per second Display of humidity temperature -20 ... +59.9 °C Display of dew point temperature -5 ... +59.9 °C Display of volume flow 0 ... 99999 m³/min. Volume flow resolution 0.1 m³/min (0...9999.9 m³/min) 1 m³/min (10000...99999 m³/min) Automatic shut-off after 20 minutes of inactivity Size LCD 32.5 x 54 mm (H x W) Power supply 4 x 1.5 V AAA batteries Operating conditions 0 ... +50 °C, <;80 % r.F. Storage conditions -10 ... +50 °C, <;90 % r.F. Dimensions 269 x 106 x 51 mm Weight approx. 200 g
- Product type
Endoscope
- Type
PCE-VE 200-KIT1
Documents & Downloads
Datasheet
Datasheet 2813702 PCE Instruments PCE-VE 200-KIT1 Endoscope
User & Safety Instructions
User & Safety Instructions 2813702 PCE Instruments PCE-VE 200-KIT1 Endoscope
Description
The video stroboscope PCE-VE 200 is an inspection camera for non-destructive measurement. This makes the video borescope the ideal instrument for diagnostics in hard to reach places. Mechanical engineering, sanitary and heating engineering, and the entire construction and construction sector are among the main areas of application of the video borescope. The video endoscope is also suitable for use in the automotive industry. Due to the fact that it has a camera tube of one meter long, there is the possibility to use the video endoscope in such a way that in many cases a dismantling of machines or motors is not necessary. This means time and money saving by turning the phone around. The camera head of the video borescope has bright LEDs that can be controlled and adjusted by the user on the device. The LEDs have different brightness levels so that an optimum illumination at the point of interest is possible. Therefore, there may not be overexposure, which would cause the image displayed on the screen to no longer be visible because the camera of the video borescope is dazzled. In addition to the lighting, there is also the function of a digital zoom for the current image section. The 2-fold, 3-fold or 4-fold magnification level is available here. The recorded images and videos are automatically saved on the micro SD card. This means that they can read and document the images from the video borescope later on.AIR FLOW METER PCE-VA 20 SET Measurement of wind speed, volume current, temperature, humidity Dew point and humidity temperature / Backlight / 10 cm Fan wheel diameter Extreme value / HOLD function / automatic switch-off The air flow meter PCE-VA 20-SET is a versatile measuring device for measuring the parameters wind speed, temperature, humidity, dew point and humidity. In addition, the air flow meter can determine the volume flow using the volume flow hoods supplied. To measure wind speed and volume flow, the airflow meter has a vane with a diameter of ten centimeters. The air flow meter also offers extensive functions such as an extreme measurement, a HOLD function, background lighting, an automatic switch-off and a warning function with low battery charge. This makes the user much easier to use and as comfortable as possible. Through its small dimensions and low weight, the air flow meter PCE-VA 20-SET Ideal is suitable for mobile use.
This text is machine translated.
This text is machine translated.
Features
- Endoscope camera for non-destructive machine diagnosisDiameter of camera head 4.5 mm 3.5 " LCD 2600 mAh rechargeable battery Cable length 1 m 6 white, adjustable LEDs at the camera head Micro SD card slot
Scope of delivery

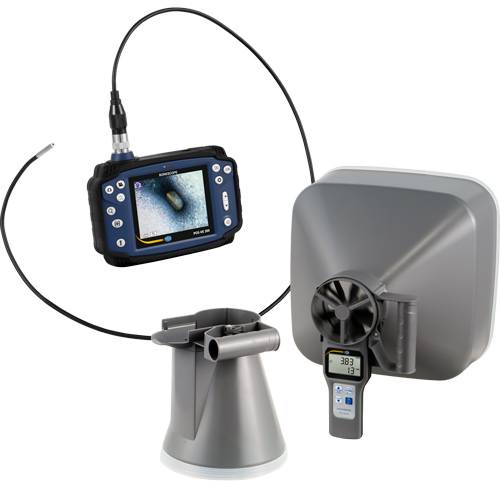

- 1 x video borescope PCE-VE 200 1 x Air flow meter PCE-VA 20 1x USB cable 1 x USB adapter 1 x Volume hood round Ø 210 mm 1 x square volume flow hood 346 x 346 mm 4 x 1.5 V AAA batteries 1 x transport case 1x user manual
