Buy PCE Instruments PCE-VE 260HT Endoscope Probe diameter: 6 mm Probe length: 2 m

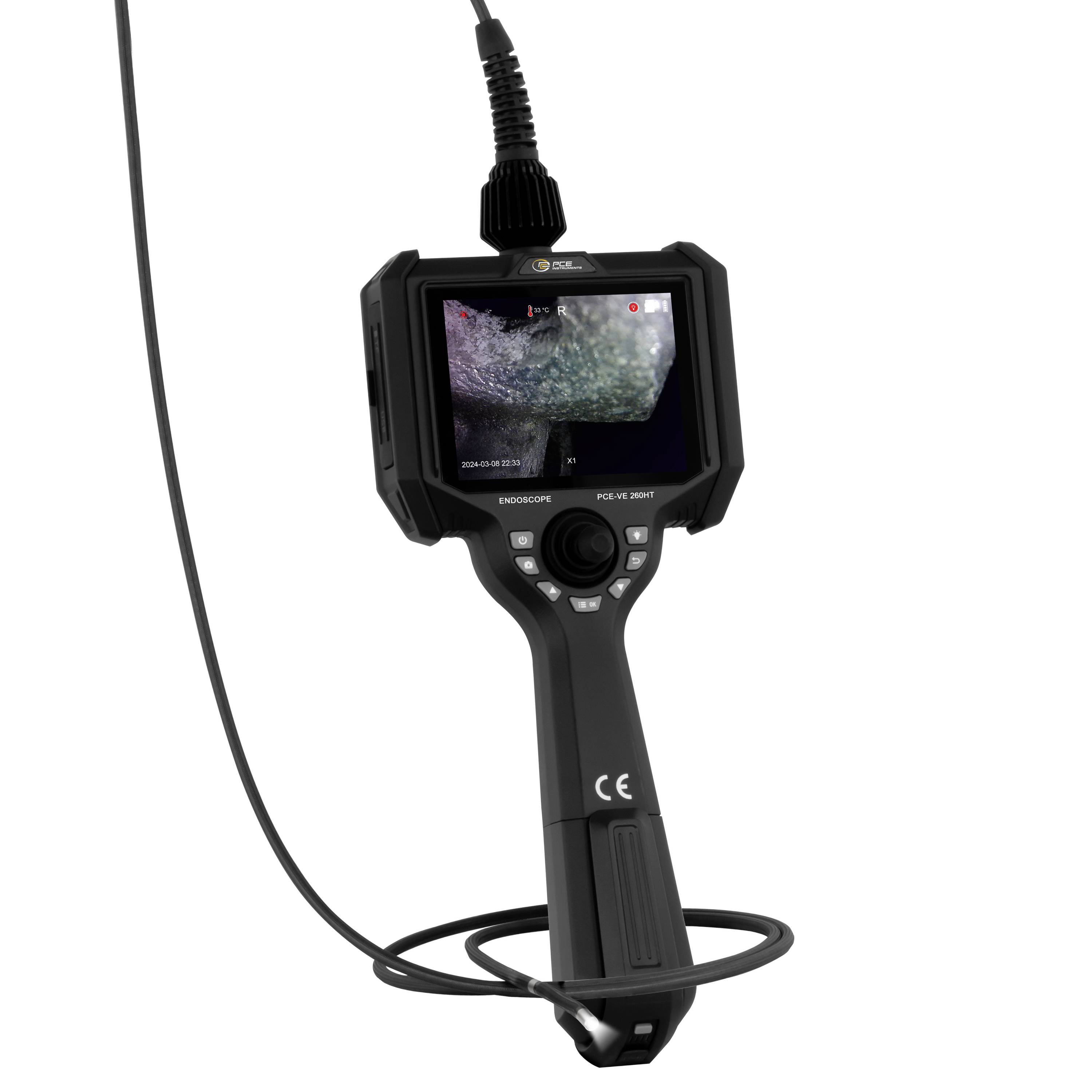

Handheld endoscope inspection camera with built-in screen, control buttons, and attached cable on a white background.

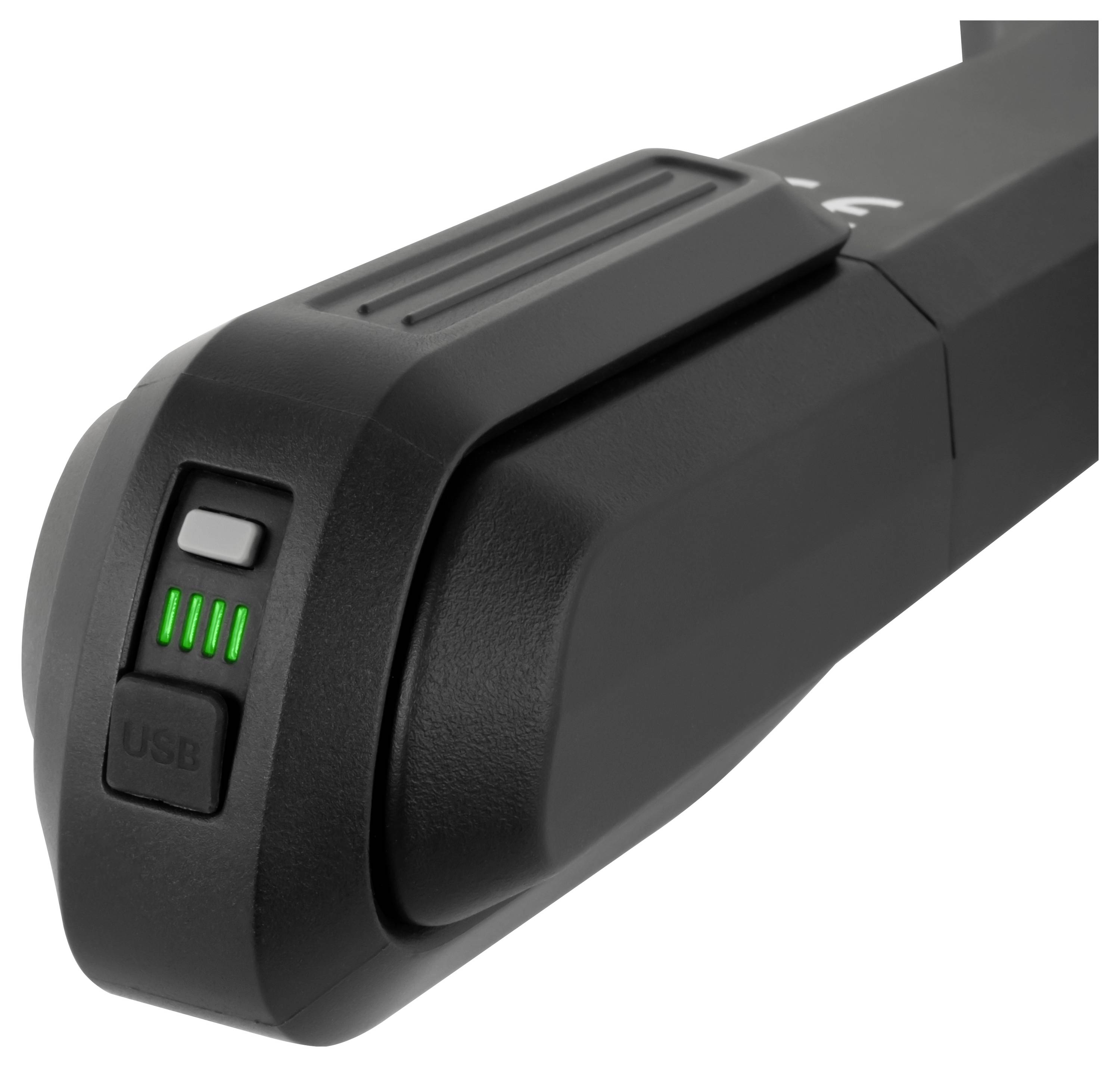

Black USB device with a button and four green LED battery indicators on the end, shown in close-up.

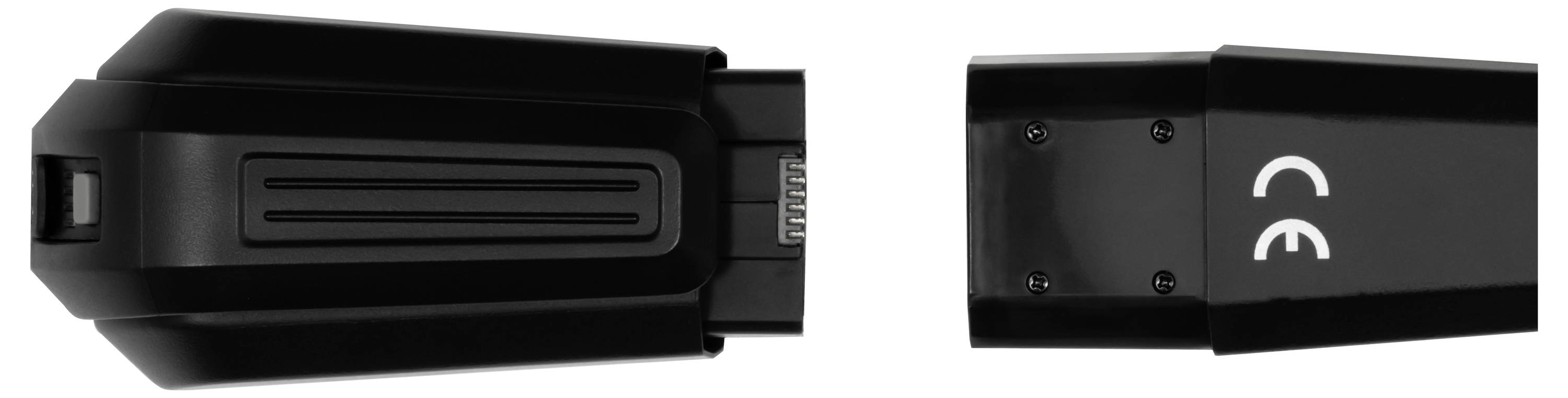

Black electronic device shown from two angles, with a slot-like front opening and CE-marked rear end.

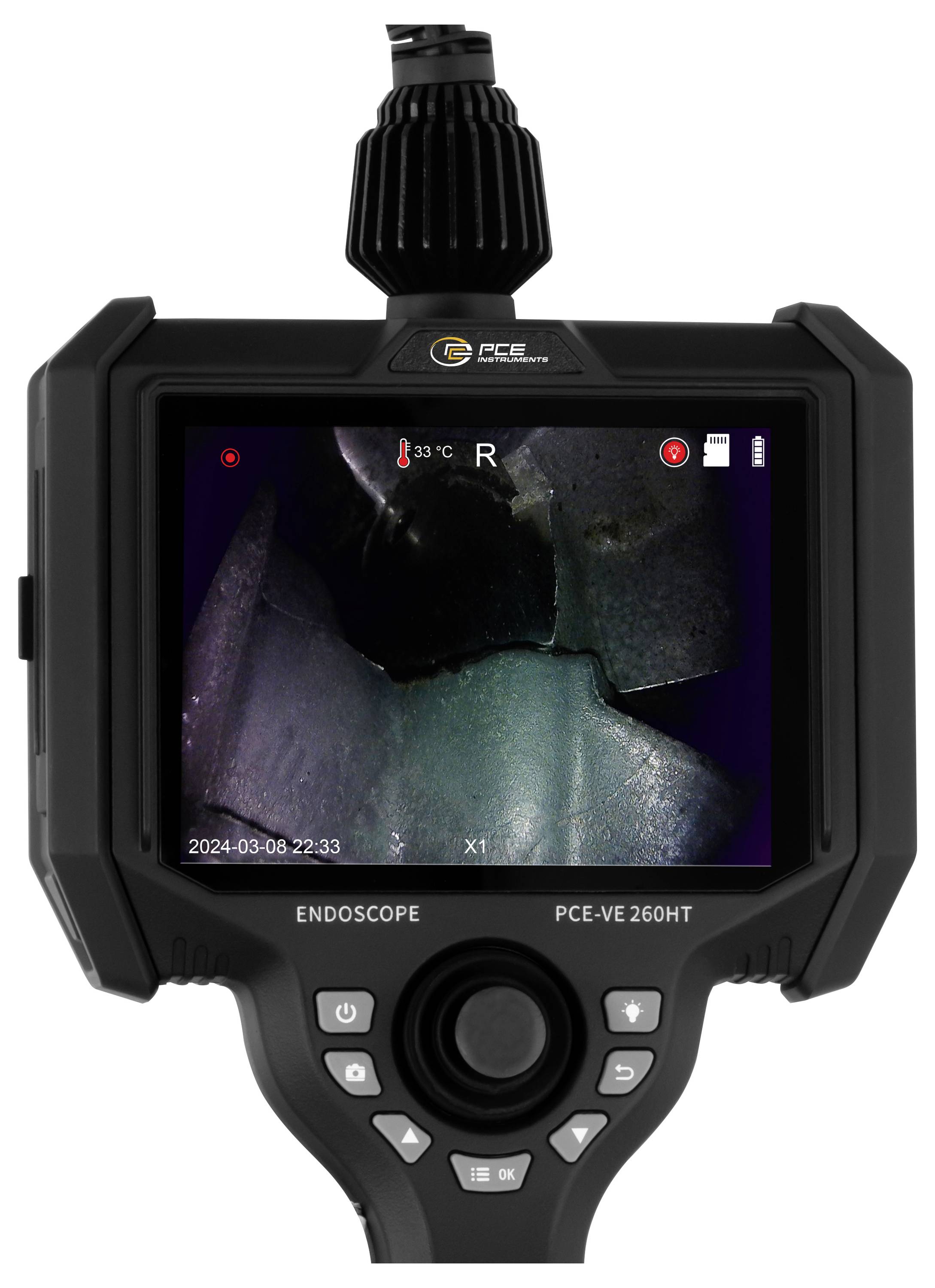

Handheld digital endoscope with a live inspection image on its screen, showing a close-up of a dark internal surface and on-screen status icons.<br>

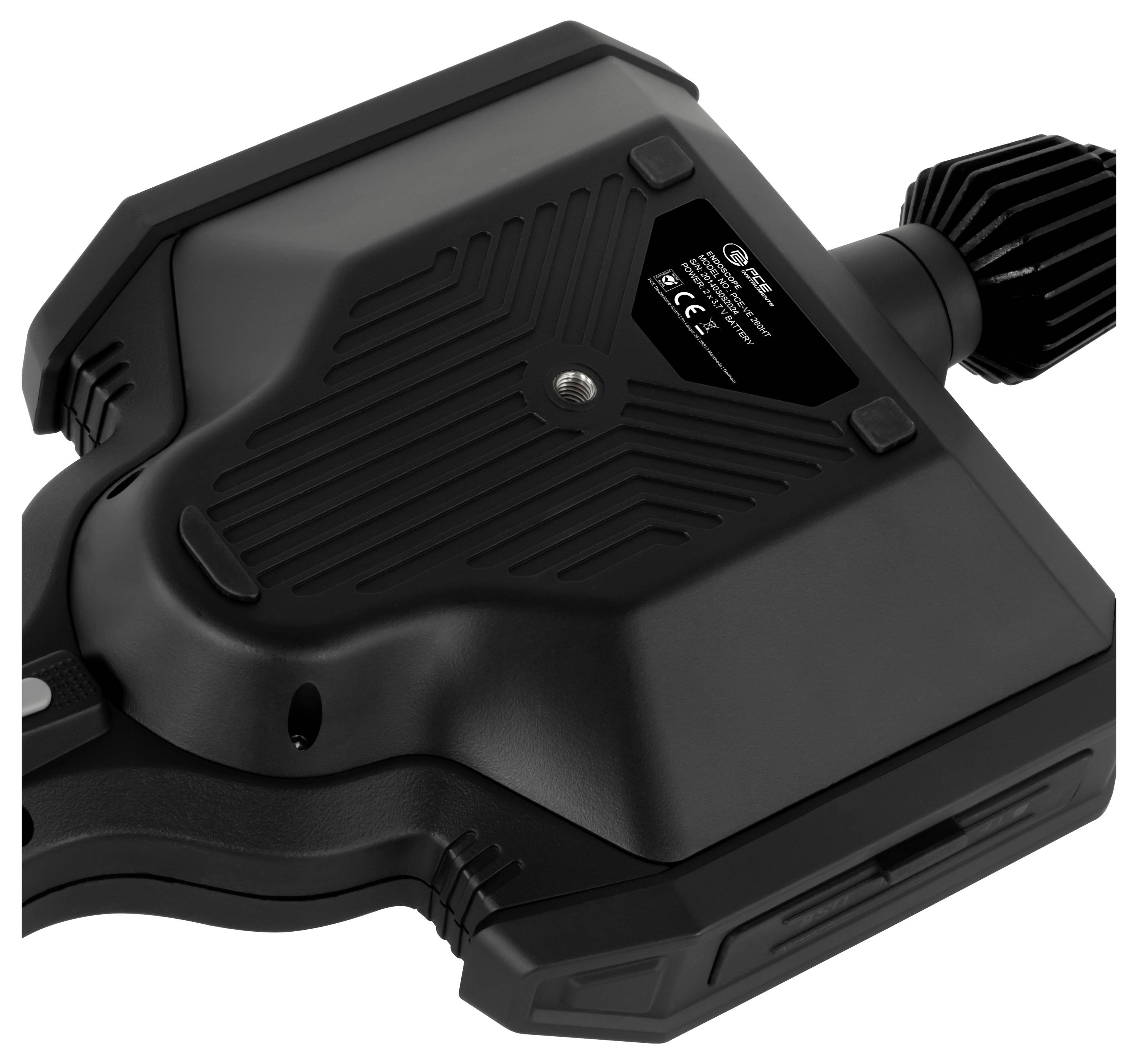

Close-up of a black mechanical device housing with a side mounting knob and vented, textured casing on a white background.

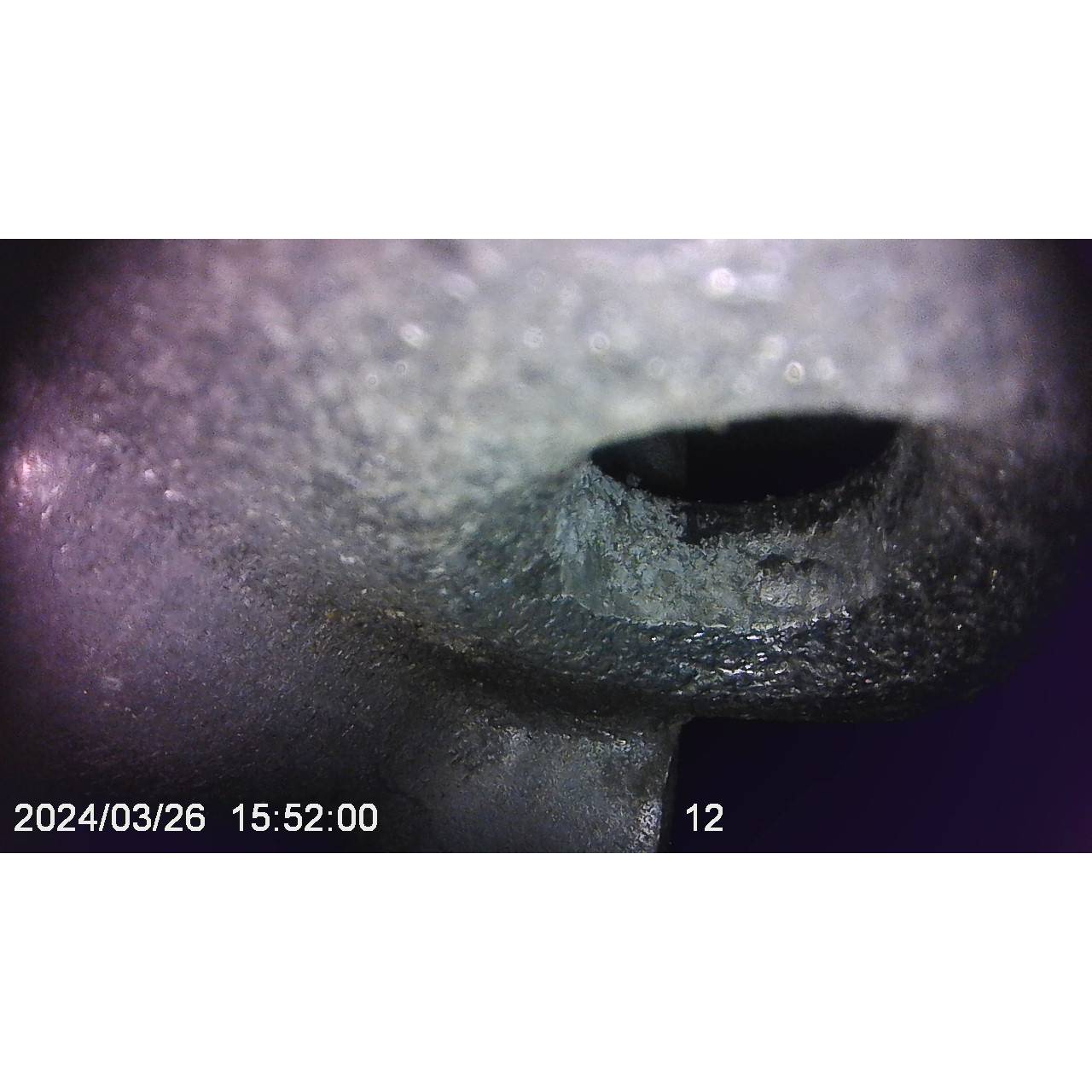

PCE Instruments PCE-VE 260HT Endoscope Probe diameter: 6 mm Probe length: 2 m-5

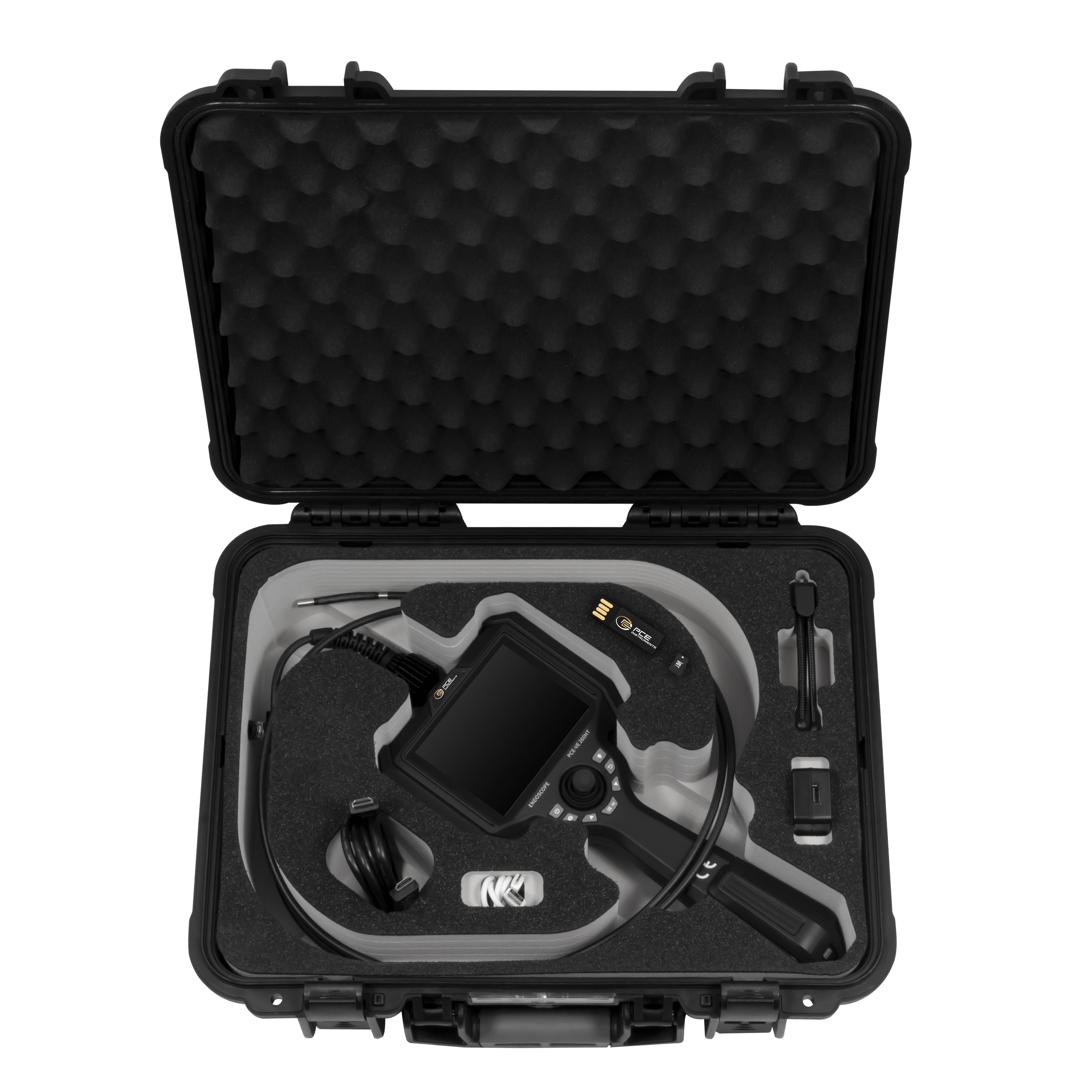

PCE Instruments PCE-VE 260HT Endoscope Probe diameter: 6 mm Probe length: 2 m-6

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-VE 260HT

High-temperature camera cable up to 300 °C.
Connection for air cooling
Removable Li-ion battery
4-way camera head
Lighting via LED light wave guide
HDMI image transfer
32 GB micro-SD card memory

Technical specifications

General Technical Data
Display type LCD
Display size 5 inches
Storage medium: Micro SD card
Storage capacity: 32 GB
Capacity (additional information) max. 128 GB possible
Interface HDMI, Micro USB, AUX
Camera resolution 1280 x 720
Camera alignment front 0°
Operating time 4 h
2 m camera probe length
Material camera probe tungsten braided
Motion camera probe 4-way
Protection class IP67 camera probe
Diameter of camera head 6 mm
Field of view 120°
Field of view depth 12 ... 200 mm
Bending angle 220 °
Light intensity 40000 lx, optical fiber guide, rear LED
Flexible cable type
Image / video format JPEG, AVI, MP4
Pressure connection Quick connection, max. permissible air pressure 4 bar
Menu language: German, English, Chinese, French, Spanish, Italian, Polish, Japanese, Russian, Ukrainian, Dutch, Korean
Protection class (device) IP54
Voltage supply: 5 V DC
Connector type for device Euro plug
Weighs 1018 g.
Dimensions (L x W x H) 360 x 157 x 75 mm
Operating conditions -10 ... 50 °C , 0 ... 90 % r.F.
Storage conditions -20 ... 60 °C , 0 ... 90 % r.F.
Battery/Battery 1x 3.7 V , Lithium-ion battery
Capacity 3400 mAh

Product type: Endoscope

Probe diameter: 6 mm

Probe length: 2 m

Endoscope features: Audio function
High-resolution
HDMI
Video output
LED lit

Camera resolution: 1280 x 720 Pixel

: IP67 (probe)

Power supply (details): 3.7 V

Field of view: 120°

Weight: 1018 g

Dim: (L x W x H) 360 x 157 x 75 mm

Length: 360 mm

Width: 157 mm

Height: 75 mm

Type: PCE-VE 260HT

Ambient temperature: 60 °C

Documents & Downloads

Datasheet

Datasheet 3324712 PCE Instruments PCE-VE 260HT Endoscope Probe diameter: 6 mm Probe length: 2 m

User & Safety Instructions

User & Safety Instructions 3324712 PCE Instruments PCE-VE 260HT Endoscope Probe diameter: 6 mm Probe length: 2 m

Description

The endoscope camera offers an advanced solution for visual inspection in extreme environments with temperatures up to 300°C. With a specially developed high-temperature camera cable it enables reliable image and video recordings even under extreme conditions. The integrated connector on the camera cable for air cooling ensures an effective cooling while using.

Thanks to the removable Li-ion battery, a flexible and mobile use of the endoscope camera is possible without being dependent on an external power source. The 4-way camera head enables comprehensive monitoring and inspection from different angles. For optimum illumination in dark environments, the endoscope camera is equipped with LED light via fiber optic cable that ensures uniform and intensive illumination. The HDMI image transfer enables a high-resolution live transmission of the inspection image to external monitors or recording devices.

For recording and storage of inspection data, the endoscope has a 32 GB micro SD card memory, which offers sufficient space for extensive recordings. In addition, an audio recording can be added to a video via the AUX-input. In the menu, the device allows user-defined notes and file names to be assigned. With these powerful features, the endoscope camera is the ideal solution for demanding inspection applications in hot and extreme environments.

This text is machine translated.
