Buy PCE Instruments PCE-VE 270HRS Endoscope Probe diameter: 2.1 mm

Handheld borescope with a flexible probe and screen, labeled 'Ø 2,1 mm' to indicate the probe diameter.

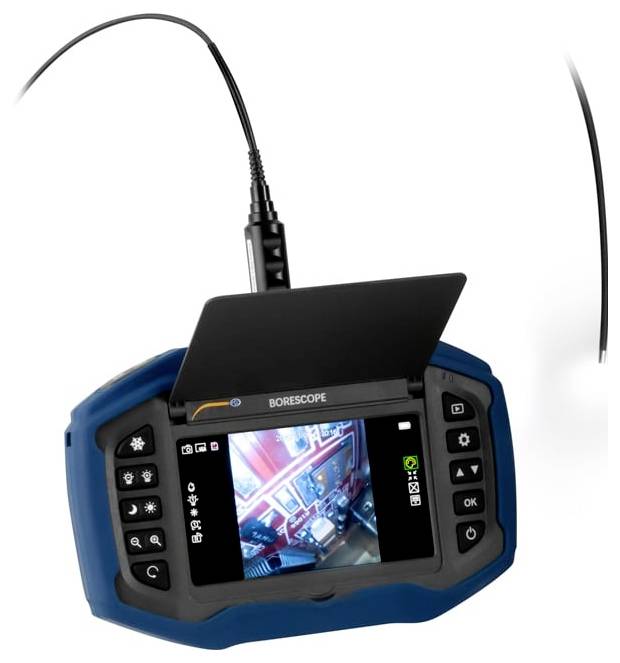

Handheld borescope inspection camera with flexible probe and live screen showing an internal view of machinery.

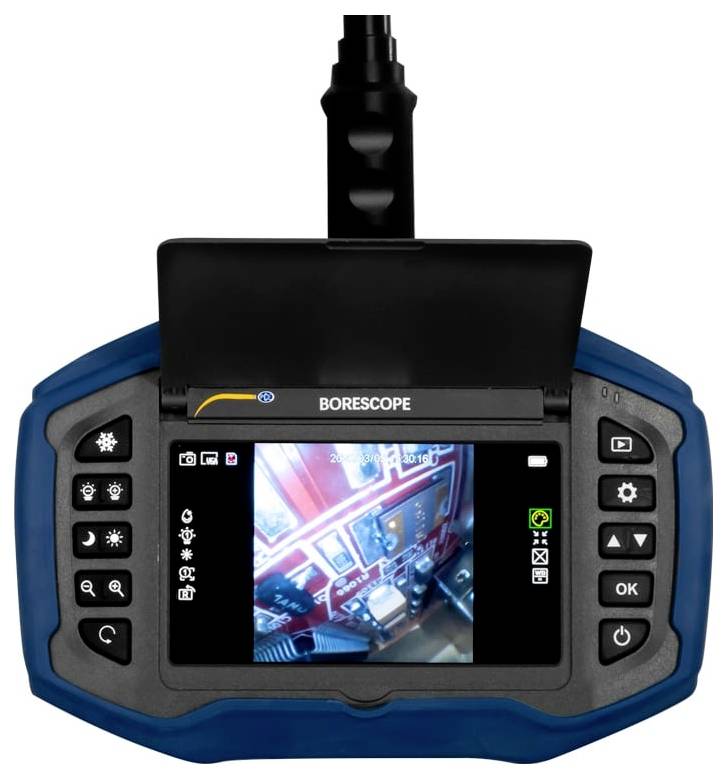

Handheld borescope inspector with screen showing a close-up view inside machinery or equipment.<br>

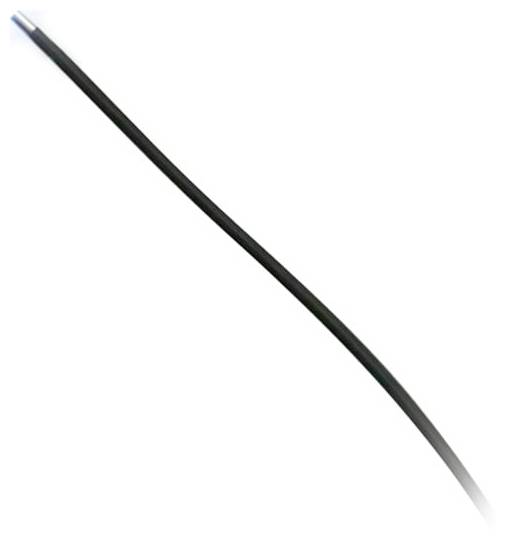

A long black cable or wire shown diagonally on a white background, with no connectors visible.

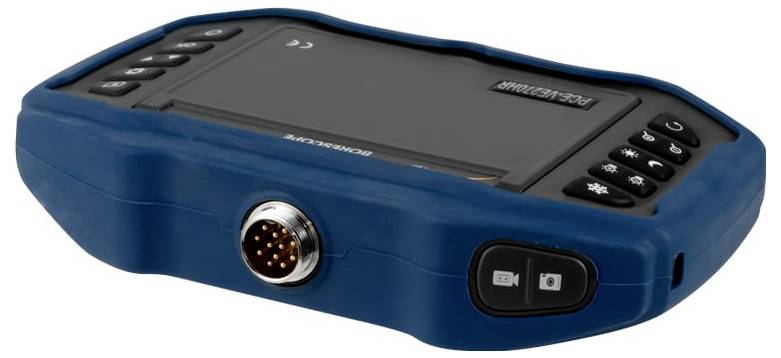

Blue handheld electronic device with a large screen, side buttons, and a round multi-pin connector on the front.

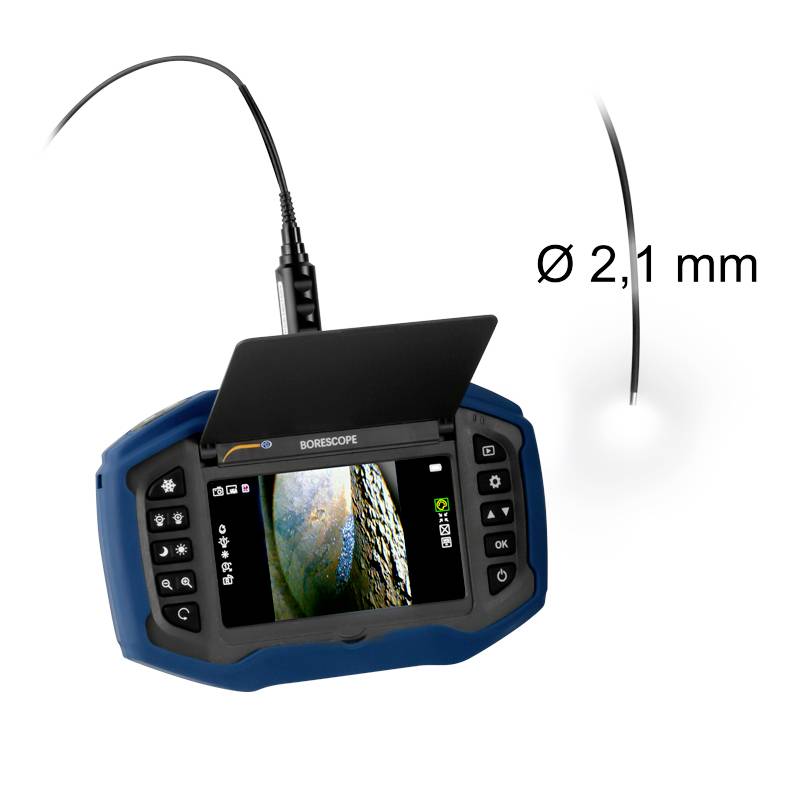

Borescope with display shows an image of an inspection. The cable is 2.1 mm thick. Device is blue with black buttons.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

BOROSCOPE PCE-VE 270HRS

1 m cable length
2.1 mm cable diameter
Memory function on micro-SD-card
LED light
0° field of view
Miniature probe cable with 90° viewing angle opt.

Technical specifications

Cable length 1000 mm Flexible cable type cable diameter 2.1 mm Protection class IP 67 Field of view 5 ... 50 mm Field of view 120° Field of view 0° Lighting 4 LEDs`s Illumination automatic Automatic anti-reflection Image sensor 1/18 " CMOS Camera resolution / image sensor 400 x 400 px Display 5" TFT screen Interface Micro USBHDMI Storage possibility of image and video Memory micro SD memory card (included) Image format JPEG (400 x 400 px) Video format MP4 (400 x 400 px) Video output HDMI Menu navigation German, English, chinese, spanish, portuguese, french, russian, japanese, korean Operating and storage temperature -10 ... +50 °C Power supply 3.7 V Li-ion battery, 5200 mAh Battery life min. 6 h Dimensions 200 x 130 x 58 mm Weighs 595 g.

Product type: Endoscope

Probe diameter: 2.1 mm

Camera resolution: 400 x 400 Pixel

: IP67

Field of view: 120°

Weight: 595 g

Dim: (L x W x H) 200 x 130 x 58 mm

Length: 200 mm

Width: 130 mm

Height: 58 mm

Type: PCE-VE 270HRS

Documents & Downloads

Datasheet

Datasheet 2452708 PCE Instruments PCE-VE 270HRS Endoscope Probe diameter: 2.1 mm

User & Safety Instructions

User & Safety Instructions 2452708 PCE Instruments PCE-VE 270HRS Endoscope Probe diameter: 2.1 mm

Description

Battery-operated boroscope with 2.1 mm diameter / for inspecting motors and machine parts / memory / HDMI output / different camera cables the boroscope enables you new, optical insights into the inner workings of motors and systems. The boroscope is the ideal tool for servicing and maintenance in workshops or industrial plants. Optical analysis with a boroscope has never been so easy. Guide the flexible cable through a hole or cavity near the site to be reviewed and look at everything from the boroscope display. Thanks to the flexible guidance, low weight and excellent optics, this boroscope allows you to identify weak points and problem areas very easily and early and thus take specific preventive measures without having to carry out complex dismantling first. This boroscope can be used extremely variably due to the length of the flexible part (1000 mm) and the small diameter of 2.1 mm. LEDs on the boroscope illuminate the cavities. The waterproof lens and camera can also be used in liquids without any concern. Make your daily work easier and use the boroscope for the maintenance and inspection of your plant and machinery. The boroscope can be used to store images and videos on a memory card for documentation purposes. The boroscope can be connected to a monitor via the HDMI interface.
