Buy PCE Instruments PCE-VE 270SV Endoscope Probe diameter: 3 mm Probe length: 2 m

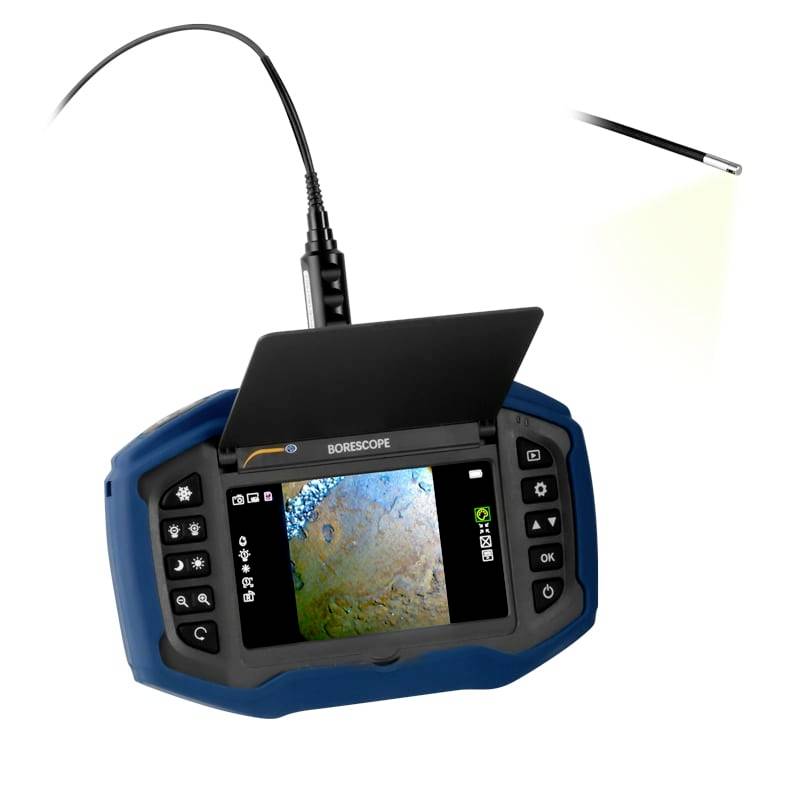

Handheld borescope with flexible inspection camera displaying a close-up surface image on its screen and a lighted probe tip.

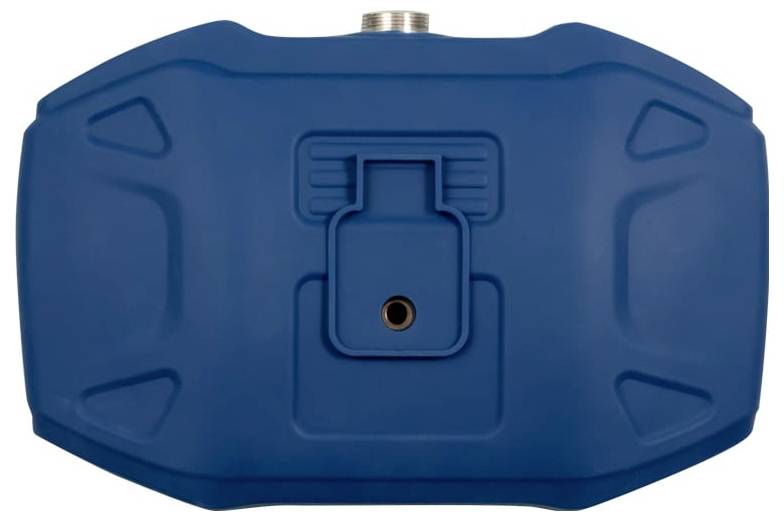

Blue rectangular plastic water tank or reservoir with a central fitting on top, shown against a white background.

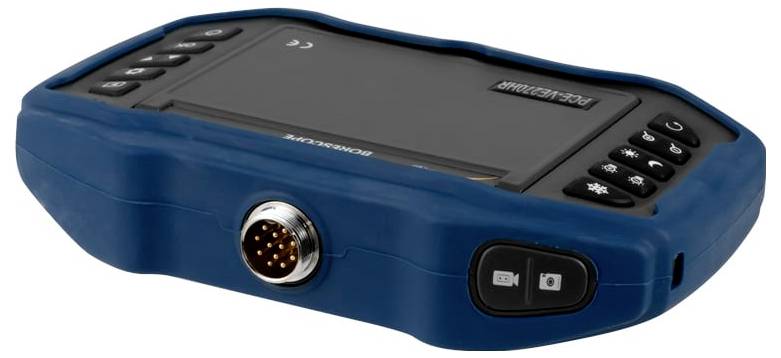

Blue handheld electronic device with a screen, keypad, and connector port, shown on a white background.

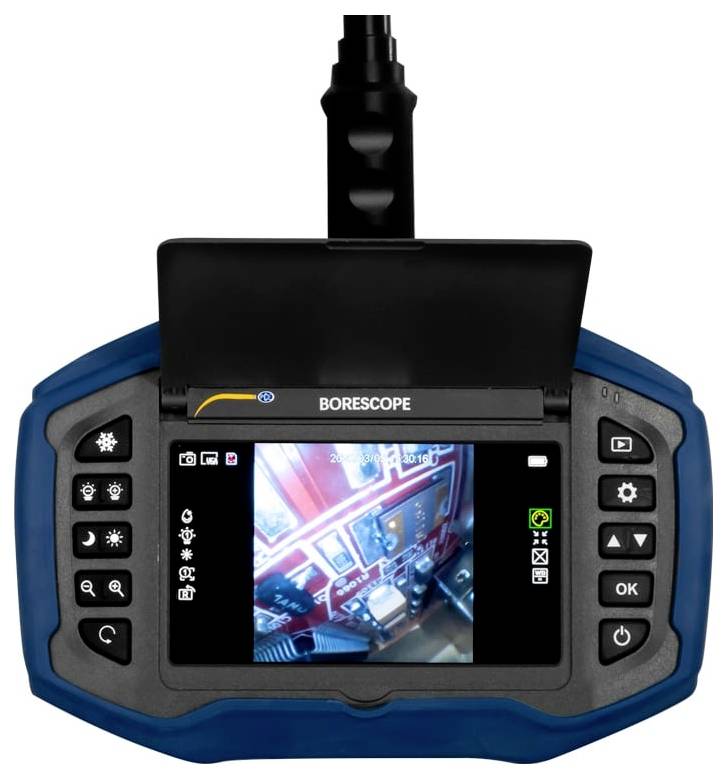

Handheld borescope inspection device with built-in screen showing a close-up view from the camera probe.

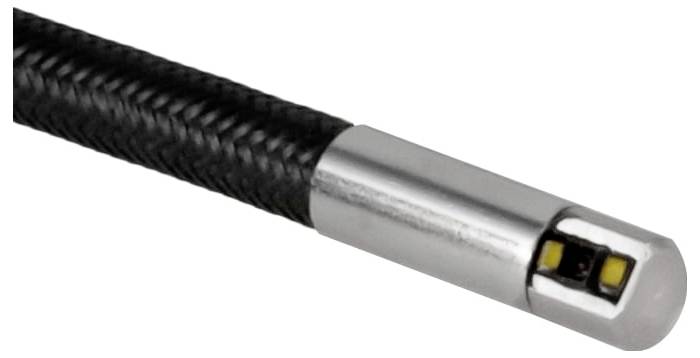

Close-up of a braided black cable with a silver metal tip housing a small rectangular sensor or LED module.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Video endoscope PCE-VE 270SV incl. 3mm / 2 meter probe with Site View camera

2 m cable3 mm cable diameterMemory function on micro-SD-cardLED light0° field of viewMiniature probe cable with 90° viewing angle opt.

Technical specifications

Cable length: 2000 mmCable type: Flexiblecable diameter 3 mmProtection class IP 67Field of view depth: 5 ... 50 mmField of view: 120°Viewing angle: 0°Lighting: 4 LEDs`sExposure: AutomaticAnti-reflection: AutomaticImage sensor 1/18" CMOSCamera resolution / image sensor 400 x 400 pxDisplay: 5" TFT screenInterface: Micro-USB, HDMIStorage option: Image and videoMemory: Micro SD memory card (included)Image format JPEG (400x400px)Video format MP4 (400x400px)Video output: HDMIMenu navigation: german, English, chinese, spanish, portuguese, french, russian, japanese, koreanOperating and storage temperature: -10 ... +50 °CPower supply: 3.7 V Li-ion battery, 5200 mAhBattery life: Min. 6 hDimensions 200 x 130 x 58 mmWeight: 595 g.

Product type: Endoscope

Probe diameter: 3 mm

Probe length: 2 m

Endoscope features: LED lit
Video output
Image function

Display resolution: 400 x 400 Pixel

Camera resolution: 400 x 400 Pixel

Digital zoom: 4 x

: IP52

Field of view: 120°

Weight: 600 g

Dim: (L x W x H) 200 x 130 x 58 mm

Length: 200 mm

Width: 130 mm

Height: 58 mm

Type: PCE-VE 270SV

Ambient temperature: +50 °C

Documents & Downloads

Datasheet

Datasheet 2620736 PCE Instruments PCE-VE 270SV Endoscope Probe diameter: 3 mm Probe length: 2 m

User & Safety Instructions

User & Safety Instructions 2620736 PCE Instruments PCE-VE 270SV Endoscope Probe diameter: 3 mm Probe length: 2 m

Description

Battery operated boroscope with 3 mm diameter / for inspecting motors and machine parts / memory / HDMI output / different camera cables The boroscope provides you with new, optical insights into the internal workings of motors and systems. The boroscope is the ideal tool for servicing and maintenance in workshops or industrial plants. Optical analysis with a boroscope has never been so easy. Guide the flexible cable through a hole or cavity near the site to be reviewed and look at everything from the boroscope display. Thanks to the flexible guidance, low weight and excellent optics, this boroscope allows you to identify weak points and problem areas very easily and early and thus take specific preventive measures without having to carry out complex dismantling first. This boroscope can be used extremely variably due to the length of the flexible part (2000 mm) and the small diameter of 3 mm. LEDs on the boroscope illuminate the cavities. The waterproof lens and camera can also be used in liquids without any concern. Make your daily work easier and use the boroscope for the maintenance and inspection of your plant and machinery. The boroscope can be used to store images and videos on a memory card for documentation purposes. The boroscope can be connected to a monitor via the HDMI interface.
