Buy PCE Instruments PCE-VE 320HR Endoscope

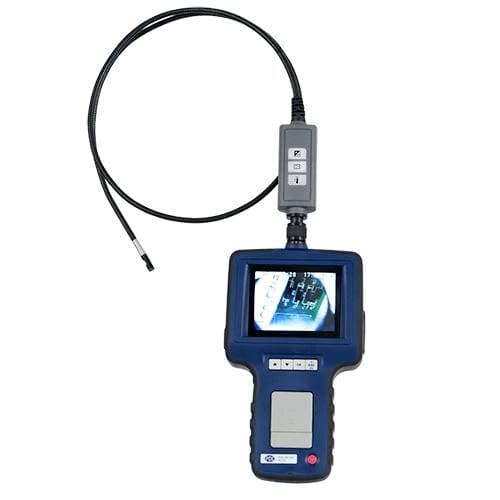

Handheld inspection camera with a flexible probe, control unit, and small display showing a close-up of electronics.

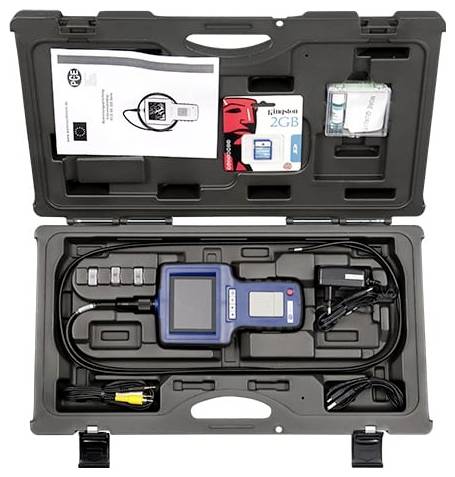

Open carrying case with a handheld inspection camera, cables, charger, memory card, and instruction manual in foam cutouts.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Industry - endoscope PCE-VE 320HR

With boost function: Better pictures in dark environment
Image rotation possible
Hose diameter 5.5 mm
Storage of images and videos
Memory card included
LED lighting (2 additional side LEDs for better lighting)

Technical specifications

Cable length: 1,000 mm Semi-flexible cable type (semi-rigid spiral) Cable diameter Ø 5.5 mm Bending radius: ≥ 90 mm Field of view 1.5 ... 10 cm Field of view / viewing angle 67 ° Lighting 4 LEDs`s front, 2 LEDs on the side Illumination automatic White balance Image sensor CMOS Camera resolution / image sensor 320 x 240 / 640 x 480 Frame rate 30 / s. Display 3.5" TFT screen Interface Mini-USB 1.1 and AV out Storage possibility of image and video Image memory 8 GB SD memory card (incl.) Compression format MPEG4 Image format JPEG (640 x 480) Video output format NTSC & PAL Video format ASF (320 x 240) Menu navigation Menu navigation Operating and storage temperature 0 ... +60 °C Power supply rechargeable 3.7 V Li-ion batteryProtection class camera IP67 Dimensions 207 mm x 118 mm (79 mm) x 37 mm Weight 450 g

Product type: Endoscope

Endoscope features: LED lit
Video output
Image function

Camera resolution: 320 x 240 Pixel

: IP52

Field of view: 60.7°

Weight: 390 g

Dim: (L x W x H) 207 x 118 x 37 mm

Length: 207 mm

Width: 118 mm

Height: 37 mm

Type: PCE-VE 320HR

Documents & Downloads

Datasheet

Datasheet 2452709 PCE Instruments PCE-VE 320HR Endoscope

User & Safety Instructions

User & Safety Instructions 2452709 PCE Instruments PCE-VE 320HR Endoscope

Description

Industry - endoscope PCE-VE 320HR videoscopes for industry, trade, and development / with 8 GB memory card / video recording and image recording / diameter 5.5 mm / length 1 meter the video endoscope PCE-VE 320HR is the absolute optimum for experts and development engineers. This videoscope not only provides you with visual insights into the interior of machines and systems without dismantling them beforehand, but also allows you to store images and video sequences of the components to be evaluated directly in the device. Optical analysis with simultaneous documentation with a videoscope has never been so simple and economical. Please also note the small diameter of the videoscopes (5.5 mm). This allows you to penetrate into the smallest components.
