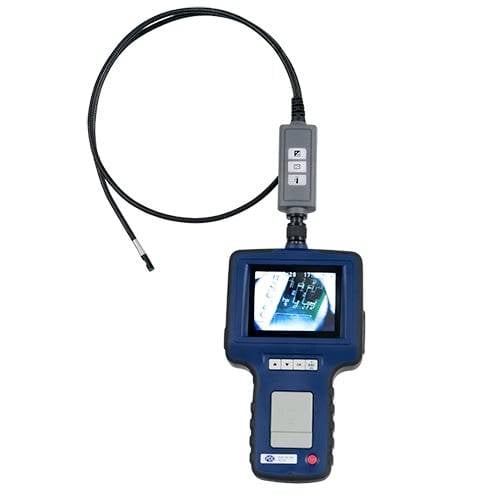

Handheld inspection camera with a flexible probe and small screen displaying a close-up image of an internal component.<br>

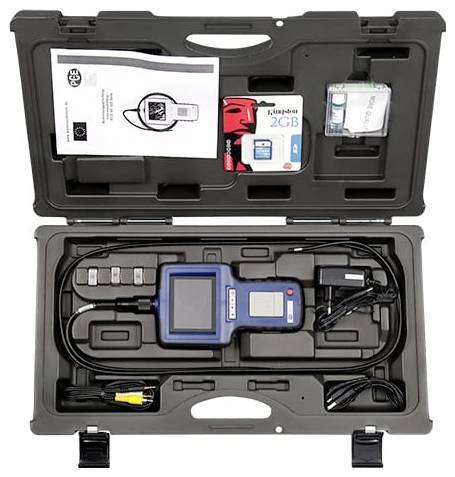

Open carrying case with a handheld inspection camera kit, including monitor, probe cables, accessories, SD card, and manual.<br>

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Industry - endoscope PCE-VE 333HR

With boost function: Better pictures in dark environment
Image rotation possible
Hose diameter 5.5 mm
Storage of images and videos
8 GB memory card
Incl. LED lighting (2 additional side LEDs for better lighting)

Technical specifications

Cable length: 3,000 mm Semi-flexible cable type (semi-rigid spiral) General information Video endoscope PCE-VE 333HR Cable diameter Ø 5.5 mm Bending radius: ≥ 90 mm Field of view 1.5 ... 10 cm field of view / 67 ° viewing angle Lighting 4 LEDs`s front, 2 LEDs on the side Illumination automatic White balance Image sensor CMOS Camera resolution / image sensor 320 x 240 / 640 x 480 Frame rate 30 / s. Display 3.5" TFT screen Interface Mini-USB 1.1 and AV out Storage possibility of image and video Image memory 8 GB SD memory card (included) Compression format MPEG4 Image format JPEG (640 x 480) Video output format NTSC & PAL Video format ASF (320 x 240) Menu navigation Multilingual Operating and storage temperature 0 ... +60 °C Power supply rechargeable 3.7 V Li-ion battery Protection class camera IP67 Dimensions 207 mm x 118 mm (79 mm) x 37 mm Weight 450 g

Product type: Endoscope

Endoscope features: LED lit
Video output
Image function

Camera resolution: 320 x 240 Pixel

: IP52

Field of view: 60.7°

Weight: 390 g

Dim: (L x W x H) 207 x 118 x 37 mm

Length: 207 mm

Width: 118 mm

Height: 37 mm

Type: PCE-VE 333HR

Documents & Downloads

Datasheet

Datasheet 2452712 PCE Instruments PCE-VE 333HR Endoscope

User & Safety Instructions

User & Safety Instructions 2452712 PCE Instruments PCE-VE 333HR Endoscope

Description

Video endoscope of PCE-VE 333HR videoscopes for industry, trade, and development / with 8 GB memory card / video recording and image recording / diameter 5.5 mm / length 3 meters the video endoscope PCE-VE 333N is the absolute optimum for experts and development engineers. This videoscope not only provides you with visual insights into the interior of machines and systems without dismantling them beforehand, but also allows you to store images and video sequences of the components to be evaluated directly in the device. Optical analysis with simultaneous documentation with a videoscope has never been so simple and economical. Please also note the small diameter of the videoscopes (5.5 mm). This allows you to penetrate into the smallest components.
