Buy PCE Instruments PCE-VE 380N Endoscope Probe diameter: 28 mm Probe length: 30 m

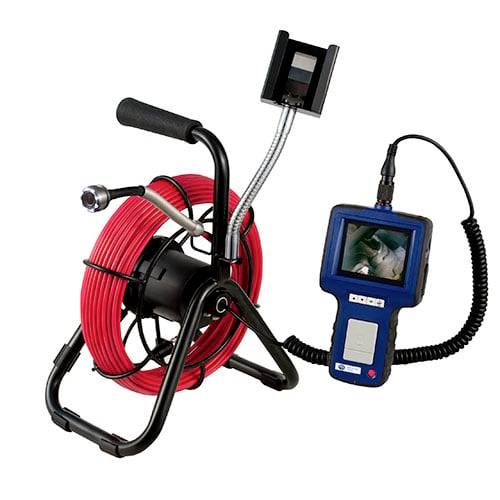

Drain inspection camera system with red reel, flexible cable, and handheld monitor displaying an internal pipe view.

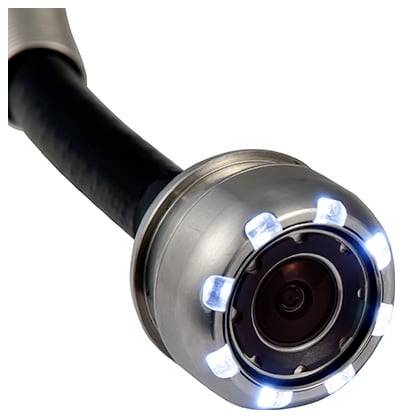

Close-up of an inspection camera head with a circular lens and bright blue LED lights on a flexible black cable.

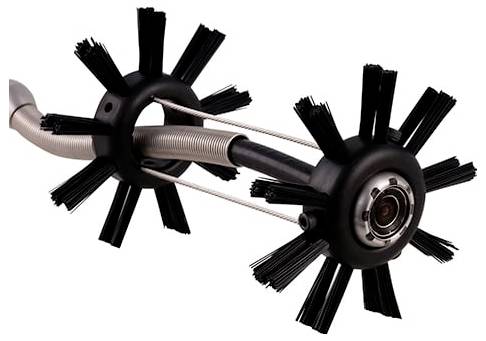

Two black spoked cleaning brushes mounted on a flexible metal shaft, used to scrub inside pipes or ducts.

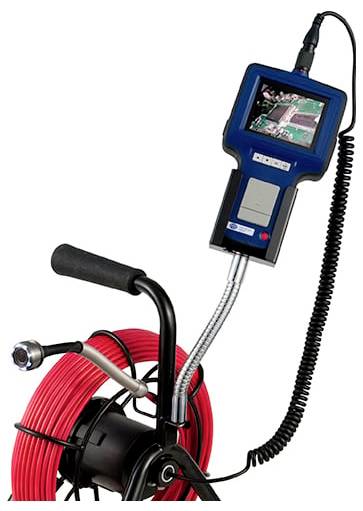

Portable inspection camera with handheld display attached to a cable reel and red coiled hose, used for viewing inside pipes or ducts.

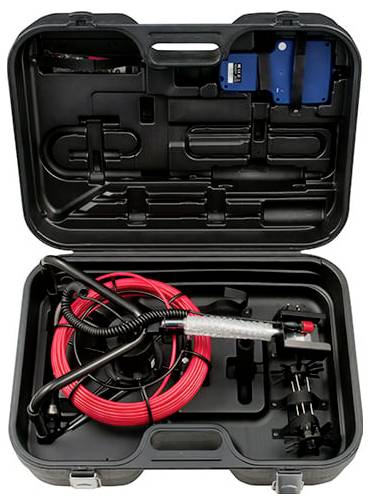

Open hard case with custom foam holding inspection equipment: red cable reel, black probe assembly, and blue device modules.

Close-up of an endoscope camera with LED lights at the camera head for medical examinations.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

BOROSCOPE PCE-VE 380N

Camera head with only 28 mm diameter
Camera head waterproof
Bright LED lighting
Incl. handset
Connecting cable with 30 meters length
Operation via accumulators
SD card memory
Supplied in a case complete with centering star and SD card

Technical specifications

cable diameter 28 mm Cable length 30 m. Field of view depth 10.... mm Field of view / viewing angle 150.8 ° Lighting 8 LEDs`s Illumination automatic White balance Image sensor CMOS Image sensor 640 x 480 Frame rate 30 / s. Display 3.5" TFT screen Interface Mini-USB 1.1 and AV out Storage possibility of image and video Image memory 8 GB SD memory card (incl.) Compression format MPEG4 Image format JPEG (640 x 480) Video output format NTSC & PAL Video format ASF (320 x 240) Menu navigation Menu navigation Operating and storage temperature -10 ... +70 °C Power supply rechargeable 3.7 V Li-ion battery Dimensions of hand-held device 207 mm x 118 mm (79 mm) x 37 mm Protection class camera IP 68

Product type: Endoscope

Probe diameter: 28 mm

Probe length: 30 m

Endoscope features: LED lit
Video output
Image function

Display resolution: 640 x 480 Pixel

Camera resolution: 640 x 480 Pixel

: IP52

Field of view: 150°

Weight: 390 g

Handle grip dimensions: 79 mm

Dim: (L x W x H) 207 x 118 x 37 mm

Length: 207 mm

Width: 118 mm

Height: 37 mm

Type: PCE-VE 380N

Variants(All information is without VAT, plus shipping costs)

Endoscope features

Probe diameter

Display resolution

IP rating

Product type

Probe length

Camera resolution

PCE Instruments PCE-VE 380N Endoscope Probe diameter: 28 mm Probe length: 30 m

Item no:2452717

This article

LED litVideo outputImage function

28 mm

640 x 480 Pixel

IP52

Endoscope

30 m

640 x 480 Pixel

PCE Instruments PCE-IVE 320 Borescope Probe diameter: 23 mm Probe length: 320 mm

Item no:2452488

LED lit

23 mm

800 x 480 Pixel

Borescope

320 mm

704 x 576 Pixel

PCE Instruments PCE-PIC 120 Endoscope Probe diameter: 60 mm Probe length: 120 m

Item no:2452587

Video output

60 mm

1200 x 800 Pixel

IP68

Endoscope

120 m

1920 x 1080 Pixel

PCE Instruments PCE-PIC 20 Inspection camera Probe diameter: 23 mm Probe length: 20 m

Item no:2452588

Battery indicatorAuto-switch offSD card slotHigh-resolutionWaterproofImage rotationImage functionDigital zoomExchangeable camera attachmentVideo outputSprayproof screenLED lit

23 mm

IP67/IP69KIP65/67Splash-proof controllerIP69/IP69K

Inspection camera

20 m

PCE Instruments PCE-RS 27 Endoscope Probe diameter: 2.7 mm Probe length: 175 mm

Item no:2452614

High-resolutionLED lit

2.7 mm

Endoscope

175 mm

PCE Instruments PCE-VE 200-S Endoscope Probe diameter: 3.7 mm Probe length: 1 m

Item no:2452704

LED litVideo outputImage function

3.7 mm

1600 x 1200 Pixel

IP54

Endoscope

1 m

640 x 480 Pixel

PCE Instruments PCE-VE 200-S3 Endoscope Probe diameter: 3.7 mm Probe length: 3 m

Item no:2452705

LED litVideo outputImage function

3.7 mm

1600 x 1200 Pixel

IP54

Endoscope

3 m

640 x 480 Pixel

PCE Instruments PCE-VE 270HRS Endoscope Probe diameter: 2.1 mm

Item no:2452708

2.1 mm

IP67

Endoscope

400 x 400 Pixel

PCE Instruments PCE-VE 800N4 Endoscope Probe diameter: 2.8 mm Probe length: 1.5 m

Item no:2452719

LED litVideo outputImage function

2.8 mm

IP58

Endoscope

1.5 m

400 x 400 Pixel

PCE Instruments PCE-IVE 330 Borescope Probe diameter: 23 mm Probe length: 320 mm

Item no:2452790

Video output

23 mm

800 x 480 Pixel

Borescope

320 mm

704 x 576 Pixel

Documents & Downloads

Datasheet

Datasheet 2452717 PCE Instruments PCE-VE 380N Endoscope Probe diameter: 28 mm Probe length: 30 m

User & Safety Instructions

User & Safety Instructions 2452717 PCE Instruments PCE-VE 380N Endoscope Probe diameter: 28 mm Probe length: 30 m

Description

Boroscope PCE-VE 380N for industrial companies, craft enterprises or workshops / with 8 GB memory card / Video recording and image recording / diameter 28 mm / 30 meters Push cable the endoscope PCE-VE 380N enables you new, optical insights into the interior of machines and plants as well as in cavities, ventilation ducts, drop pipes, chimneys, sewage pipes... The endoscope is the ideal tool for maintenance and servicing in every industrial company, craft enterprise or workshop. An optical analysis with an endoscope has never been so easy. This endoscope offers you the entry in the professional video inspection. Easily and independantly of the mains, you inspect damaged areas in machines and plants, pipes and other cavities. The robust camera head with a diameter of only 28 mm masters bends even in pipes with a diameter of only 50 mm. With the endoscope, images and video sequences of the components to be examined can be stored directly in the device on the SD card.

This text is machine translated.

Scope of delivery

1 x boroscope PCE-VE 380N
1 x endoscope cable on roll
1 x centering star
1 x 8GB SD card
1 x carrying case
