Buy PCE Instruments PCE-VE 40 Inspection camera Probe diameter: 5.5 mm Probe length: 32 mm

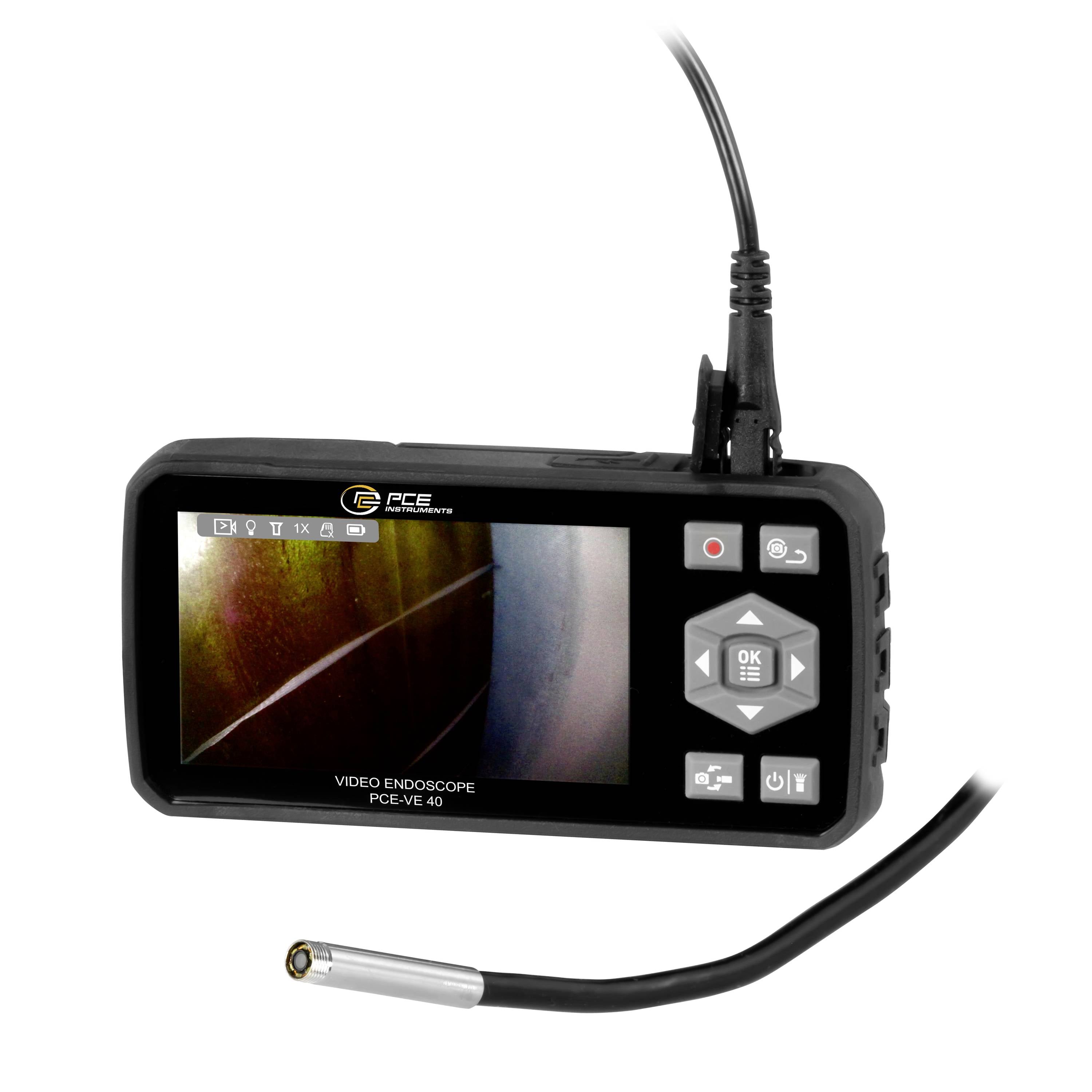

Handheld video endoscope with screen and control buttons, connected to a flexible inspection probe displaying a close-up interior view.

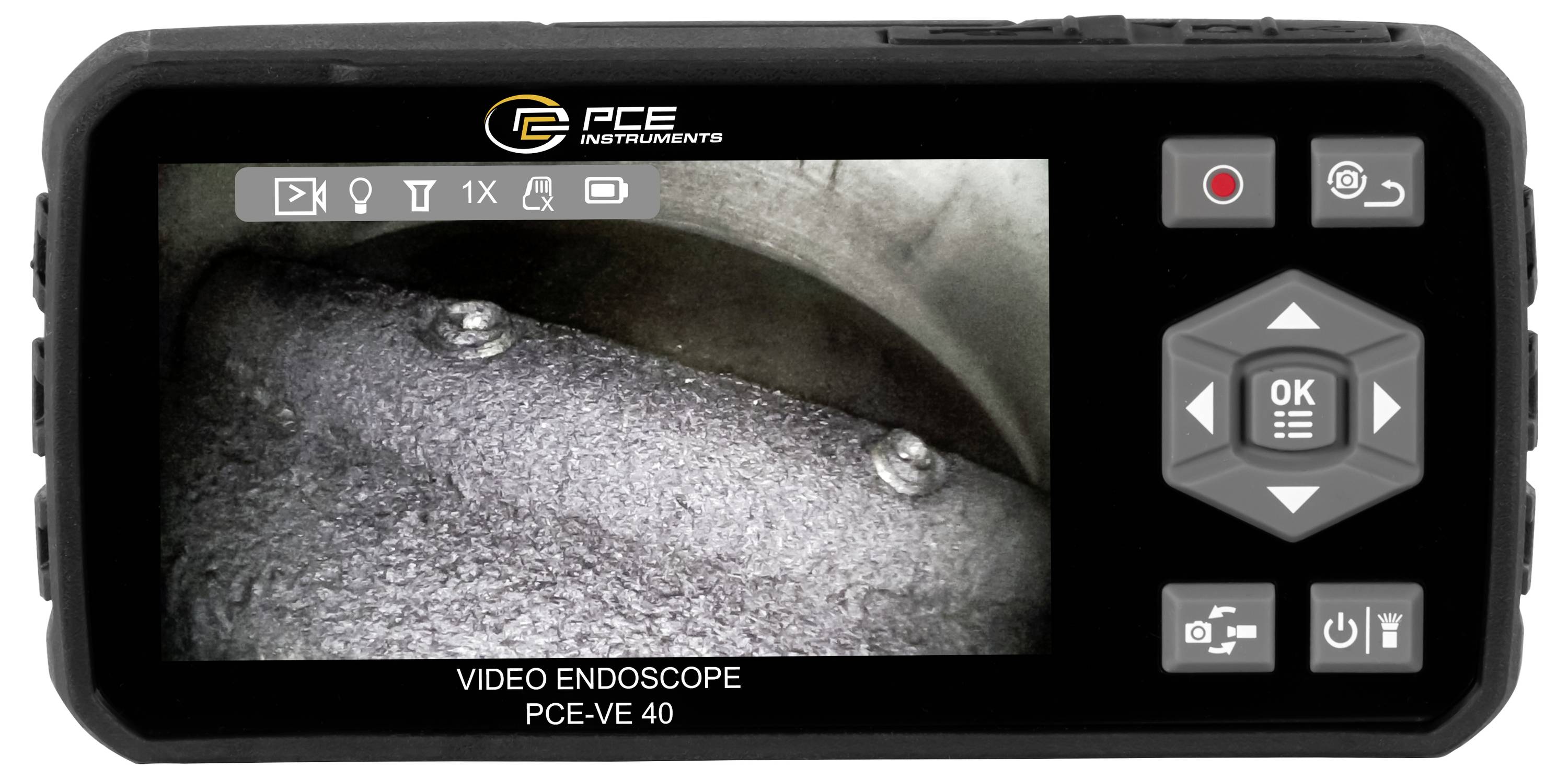

Handheld PCE video endoscope display showing a close-up inspection view inside a metal pipe or cavity, with control buttons on the right.

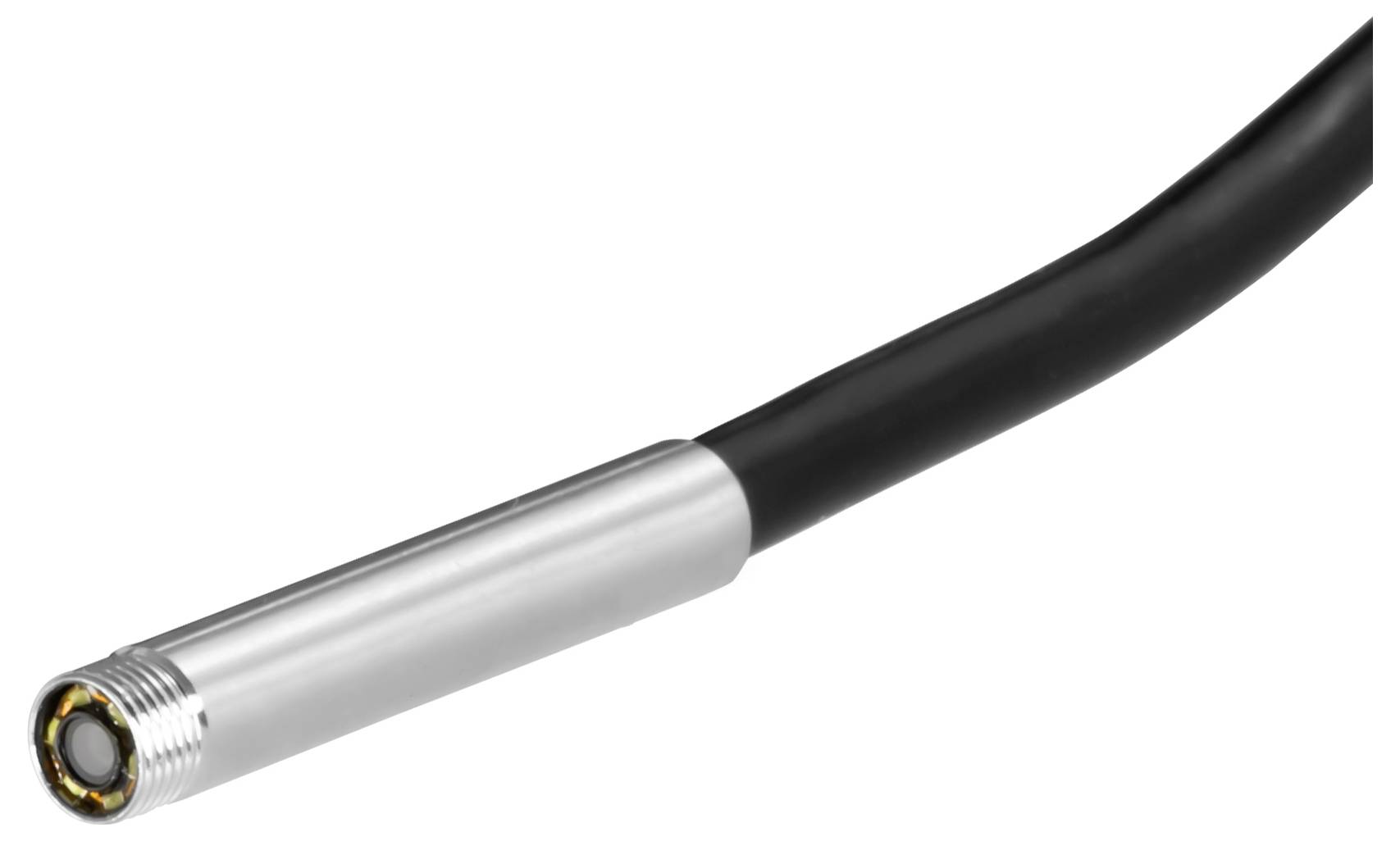

Close-up of a black cable with a silver metal cylindrical connector showing a threaded tip and circular contact end.<br>

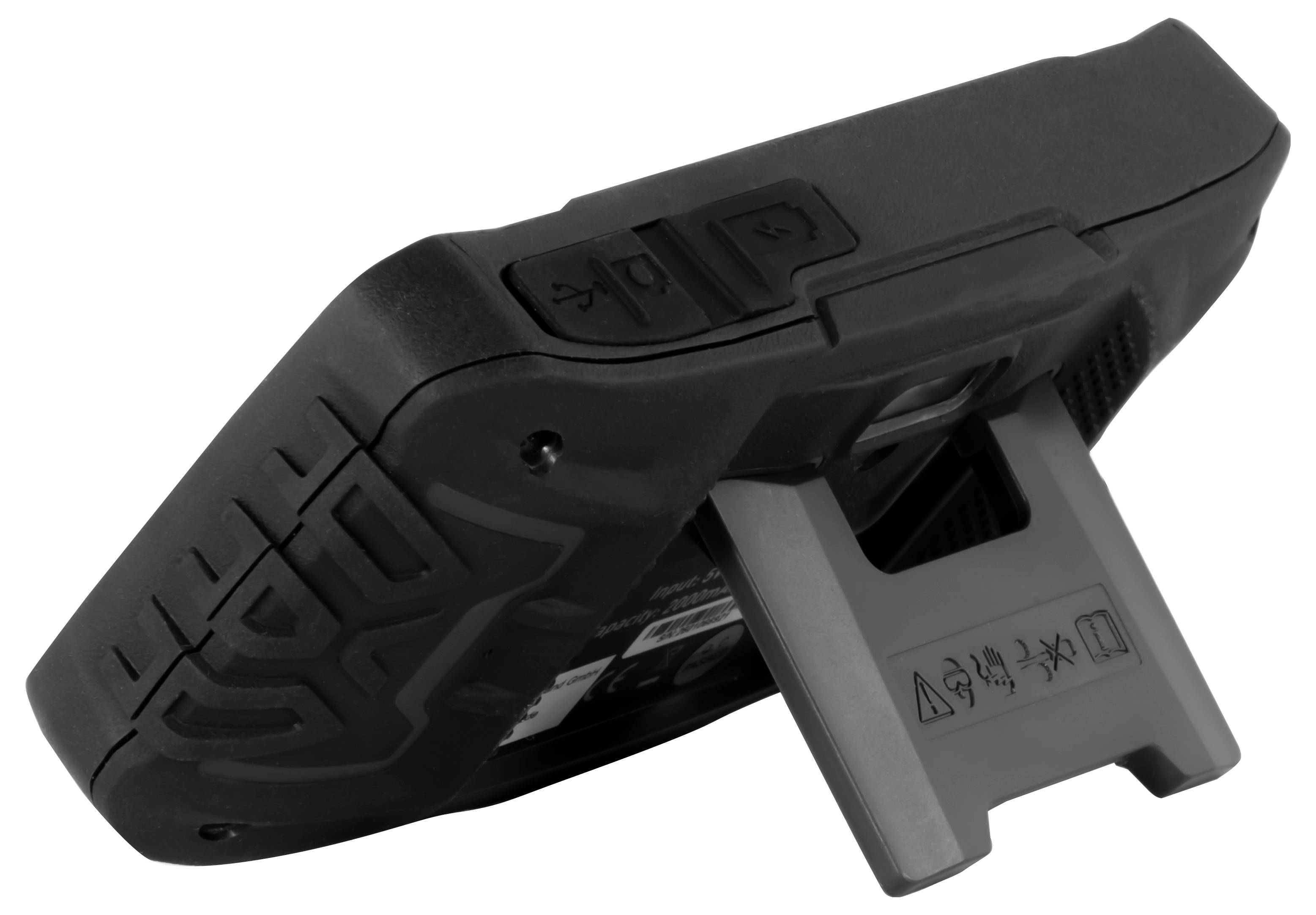

Black handheld electronic device shown from the back with a fold-out kickstand extended, likely a rugged portable scanner or testing tool.

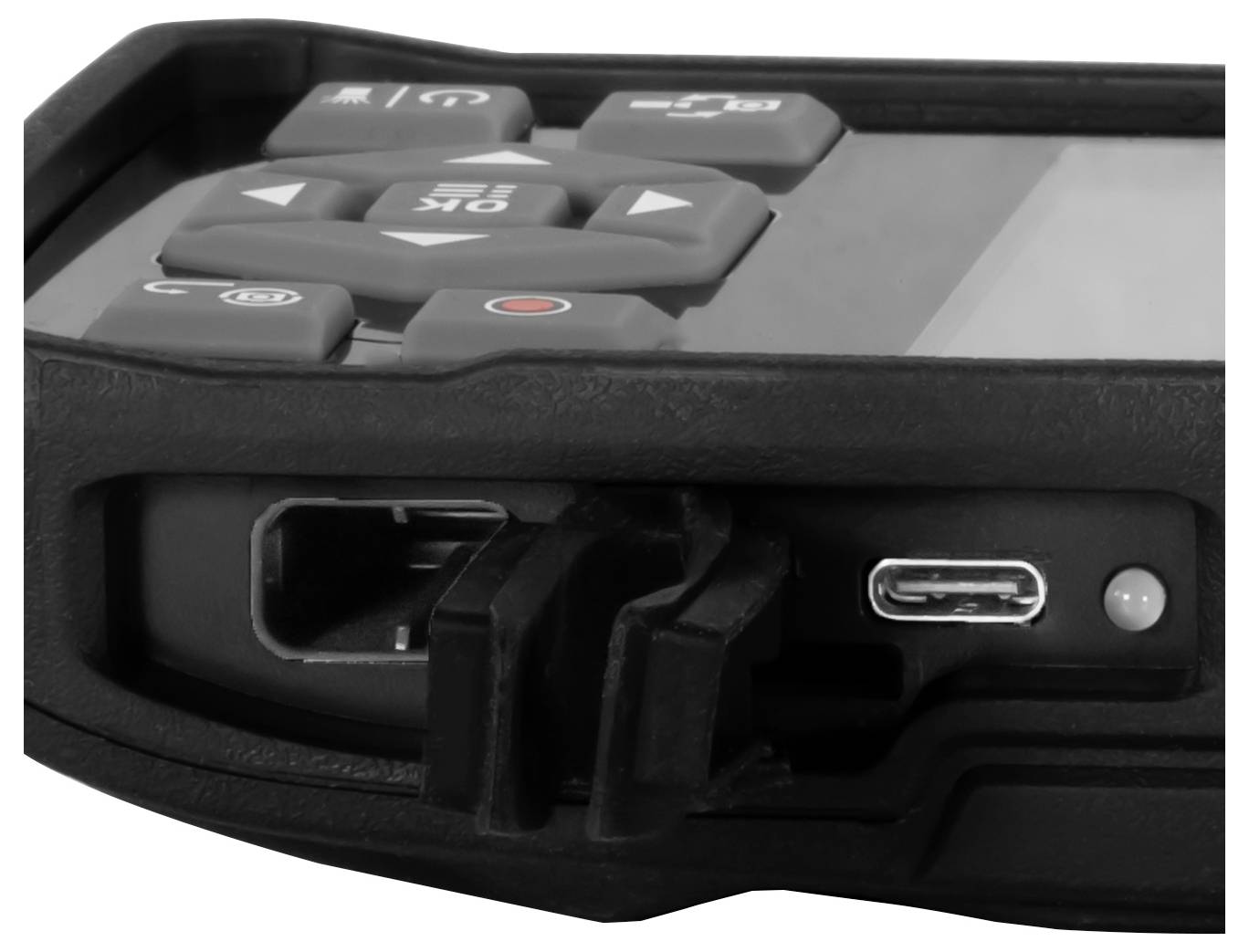

Close-up of a rugged handheld device showing large control buttons, a USB-C port, and a connector slot on the side.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-VE 40

Semi-rigid camera probe Ø 5.5 mm
Camera resolution 1280 x 720
Picture and video recording
Digital Zoom 1×, 2×, 3×
8 GB Micro SD card
Probe attachments included

Technical specifications

General Technical Data
Cable type PVC
Cable length 3 m
Display type TFT color display
Display size 4.5 inches
Display resolution 854 x 480 pixels
Storage medium: Micro SD card
Storage capacity: 8 GB
Storage capacity (additional information) up to 128 GB possible
Interface USB-C
Camera resolution 1280 x 720
Camera alignment front 0°
Operating time 3 h
Automatic shutdown of ... to 30 ... 120 min.
Diameter of camera head 5.5 mm
32 mm camera probe length
Metal camera probe
Semi-rigid motion camera probe
Protection class IP67 camera probe
Field of view 70°
Field of view depth 30 ... 80 mm
Brightness 6 LED's
Image / video format MP4, jpg
Image frequency 25 fps
Menu language: English (US), English (GB), French, Spanish
IP67 protection (device)
Voltage supply: 5 V DC / 1.5 A
Battery/Battery 1 x 3.7 V internal , Lithium-Ion polymer battery
Capacity 2000 mAh
Operating conditions -10 ... 50 °C , 0 ... 85 % r.F.
Storage conditions -20 ... 60 °C , 0 ... 85 % r.F.
Dimensions ( L x W x H ) 35 x 170 x 83 mm
Weight 250 g

Product type: Inspection camera

Probe diameter: 5.5 mm

Probe length: 32 mm

Endoscope features: Swivelling
LED lit
Video output
SD card slot

Display resolution: 854 x 480 Pixel

Camera resolution: 1280 x 720 Pixel

Digital zoom: 3 x

: IP67

Power supply (details): 5 V DC

Field of view: 70°

Weight: 250 g

Dim: (L x W x H) 35 x 170 x 83 mm

Length: 35 mm

Width: 170 mm

Height: 83 mm

Type: PCE-VE 40

Documents & Downloads

Datasheet

Datasheet 3812984 PCE Instruments PCE-VE 40 Inspection camera Probe diameter: 5.5 mm Probe length: 32 mm

User & Safety Instructions

User & Safety Instructions 3812984 PCE Instruments PCE-VE 40 Inspection camera Probe diameter: 5.5 mm Probe length: 32 mm

Description

The video endoscope is used for inspection of hard-to-reach areas such as motors, pipes, machines and cavities and enables non-destructive visual inspection without dismantling.

The video endoscope features a 4.5 inch TFT color display with a resolution of 854 × 480 pixels and an HD camera probe with up to 1280 × 720 pixels. The video endoscope features video and video recording directly to a micro-SD card, eliminating the need for external devices. An integrated, adjustable LED lighting provides good visibility even in dark areas, while the digital Zoom enables a more exact consideration of details. The camera sensor is also protected according to IP67 and is thus suitable for use in demanding environments. In addition, different attachments can be used like magnet, hook or mirror, in order to grab the objects or to reach lateral viewing areas.

The video endoscope is used by mechanics, craftsmen and technicians to detect damage, blockages or wear quickly and reliably in hard-to-reach areas.

Not for medical use!

This text is machine translated.
