Buy PCE Instruments PCE-VE 500N Endoscope Probe diameter: 4.5 mm Probe length: 1 m

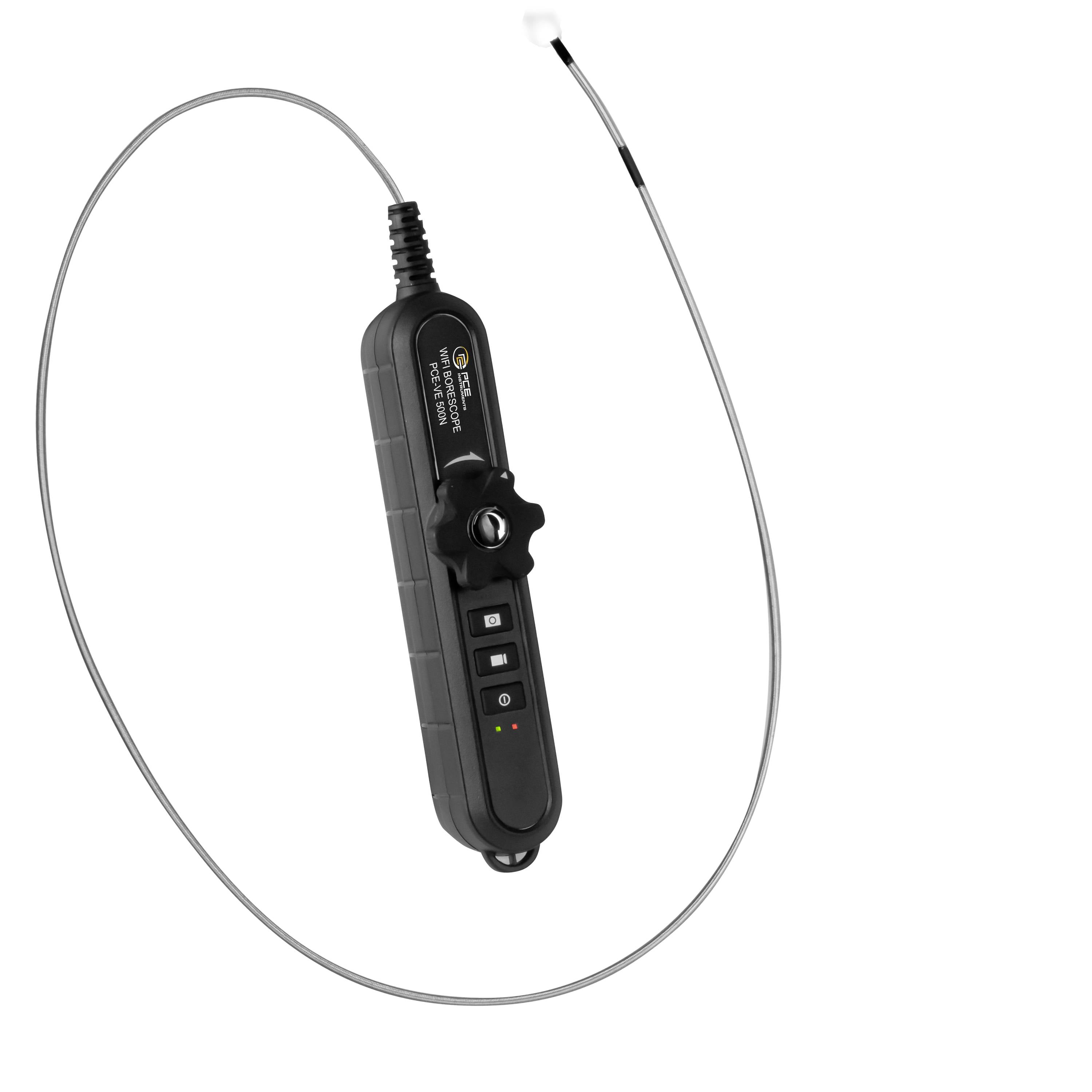

Black handheld inspection camera control unit with a flexible probe cable looped around it and a small camera tip<br>

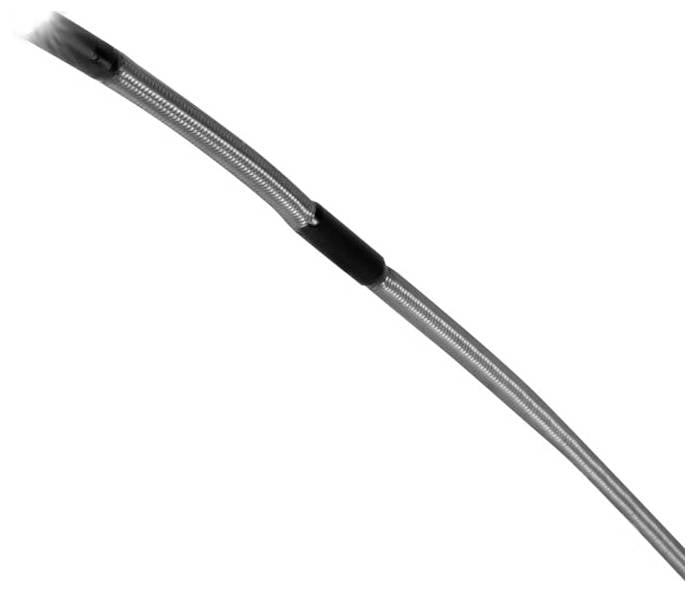

Close-up of a flexible braided metal cable with black heat-shrink sections on a white background.

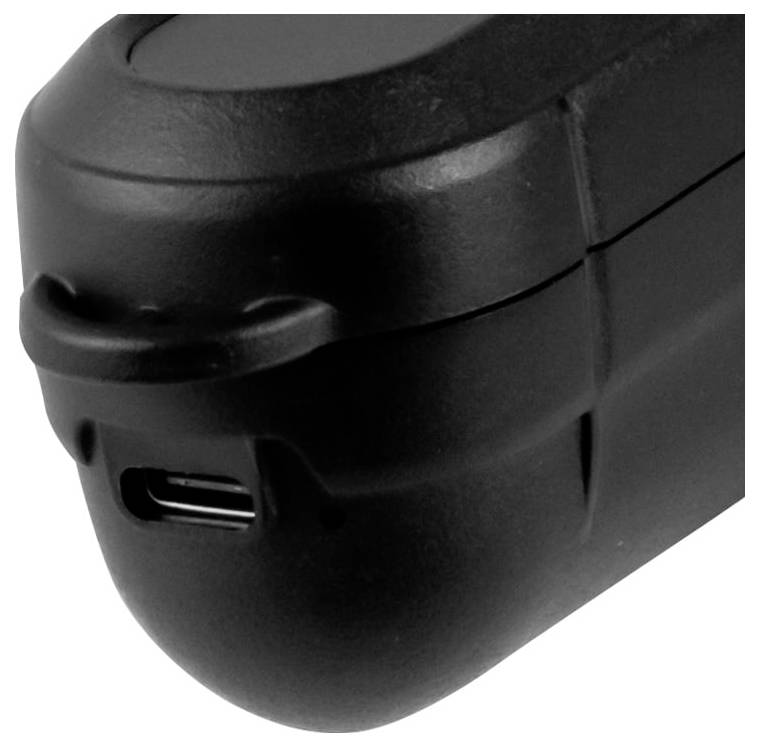

Close-up of a black device base or handle with a USB charging port visible on a white background.

Close-up of a corroded metal lock or drain fitting, with rust and peeling residue around the circular opening.

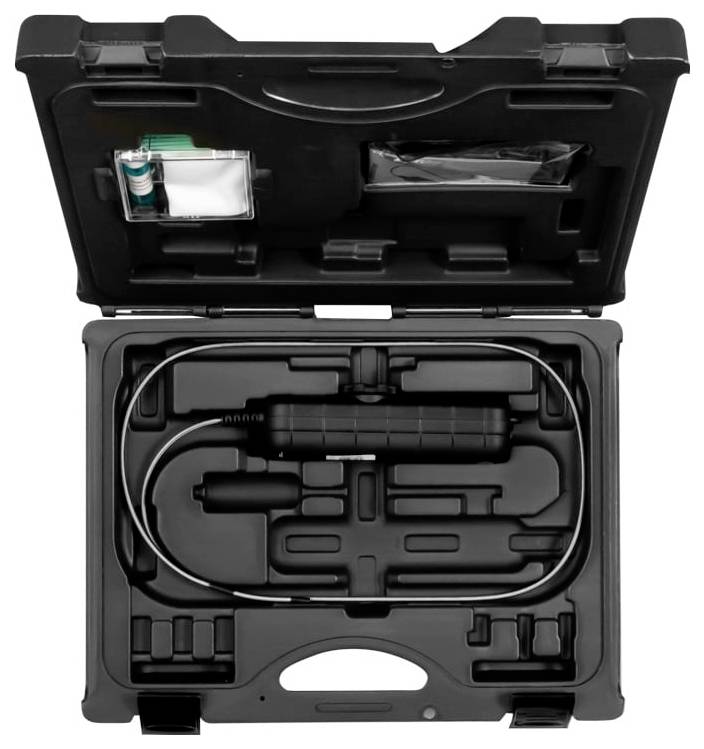

Open hard case containing a coiled cable, handheld tool, and accessories in custom molded foam compartments.

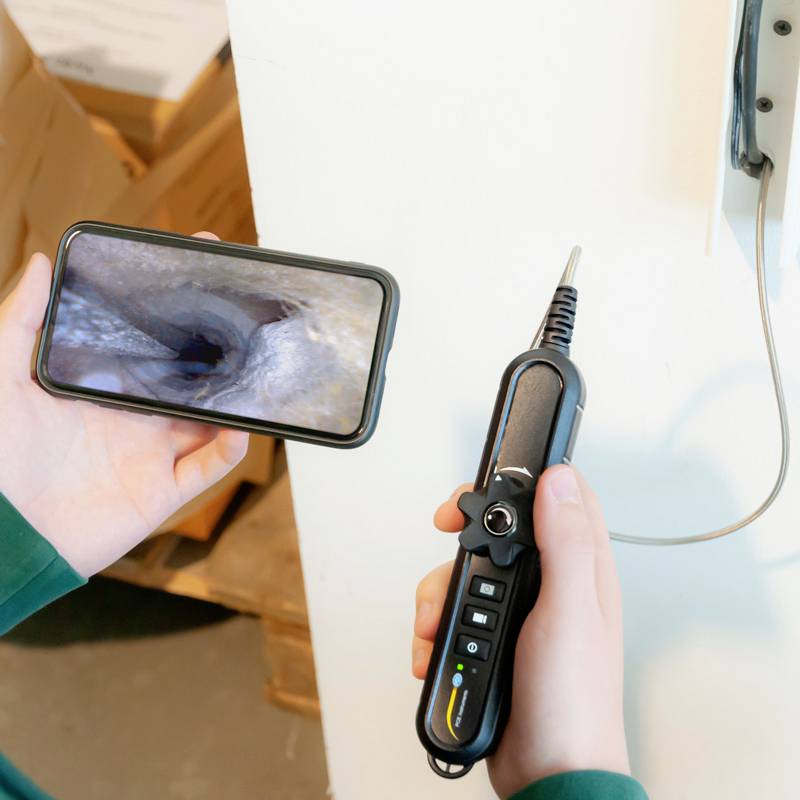

A person is holding an endoscope and a smartphone. The interior of a pipe is visible on the mobile phone screen.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

WiFi Industry - Endoscope PCE-VE 500N

Image transfer via WiFi
For iOS and Android
Storage for picture and video app
Movable camera head Ø 4.5 mm
Cable length 1 m (flexible)
5 LEDs with adjustable light intensity

Technical specifications

Cable length 1000 mm Cable type flexible, metal braided 180 ° swivelling camera cable diameter 4.5 mm Protection class IP 67 Field of view depth 10 ... 100 mm Field of view 90° Field of view 0° Illumination`s 5 LEDs dimmable via app Illumination automatic Automatic anti-reflection Camera resolution / image sensor 1024 x 768 px Interface USB-C. Charging socket 5 V / 1 A WIFI IEEE 802.11b/g/n 2.4 GHz Storage possibility of image and video Storage via iOS or Android device Image format JPEG (1024 x 768 px) Video format MP4 (1024 x 768 px) Menu navigation illustrated app Operating and storage temperature -10 ... +60 °C (Endoscope cable) 0 ... 40 °C (handle) Power supply 3.7 V Li-ion battery, 2600 mAh Operating time min. 4 h Recharge time 2 h Dimensions 207.5 x 35 x 50 mm Weight 248 g.

Product type: Endoscope

Probe diameter: 4.5 mm

Probe length: 1 m

Endoscope features: LED lit
Video output
Image function
Wi-Fi

Display resolution: 1024 x 768 Pixel

: IP67

Field of view: 90°

Weight: 248 g

Dim: (L x W x H) 207.5 x 35 x 50 mm

Length: 207.5 mm

Width: 35 mm

Height: 50 mm

Type: PCE-VE 500N

Documents & Downloads

Datasheet

Datasheet 2452718 PCE Instruments PCE-VE 500N Endoscope Probe diameter: 4.5 mm Probe length: 1 m

User & Safety Instructions

User & Safety Instructions 2452718 PCE Instruments PCE-VE 500N Endoscope Probe diameter: 4.5 mm Probe length: 1 m

Description

WiFi industry - endoscope for Android and iOS / camera head Ø 4.5 mm / 1 m cable length / camera can be swiveled by 180° / IP 67 the WiFi industry - endoscope can be connected to a tablet or smartphone via Android or iOS app. The WiFi industry - endoscope impresses through its simple handling and its robust design. With the flexible, metal-braided endoscope cable, investigations are possible under adverse operating conditions with the WiFi industry endoscope. The cable and head diameter is only 4.5 mm. The camera head of the WiFi industrial endoscope can be swiveled by 180°. This makes it particularly suitable for use in narrow cavities and for visibility in almost all directions. 5 LEDs ensure that the surfaces and cavities to be examined are very well illuminated by the WiFi industry endoscope. The brightness of the lighting can be adjusted in stages via the app. Images and videos can be stored in the app of the WiFi industry endoscope. It is also possible that these files from the WIFI Endoscope app will be sent directly via email or messenger. The WiFi industrial endoscope is particularly suitable for workshops for testing cylinders and spark plug holders. It can also be used in the same way in the construction area for the examination of drywall or for the analysis of water damages. Thanks to the app for Android and iOS, no external display device or PC is required for further use of the image data.

This text is machine translated.
