PCE Instruments PCE-VE 800N4 Endoscope Probe diameter: 2.8 mm Probe length: 1.5 m

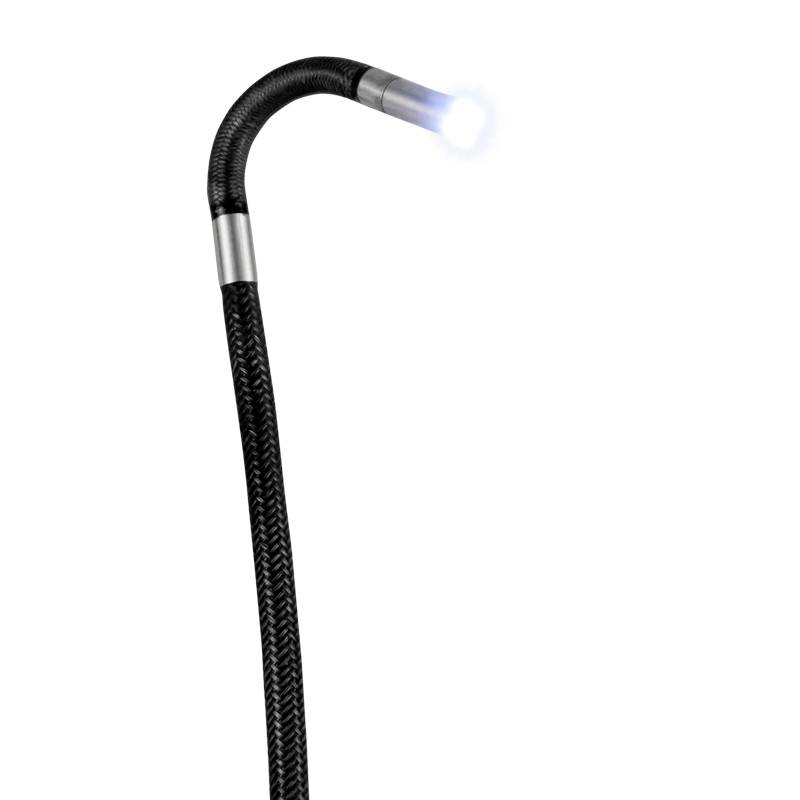

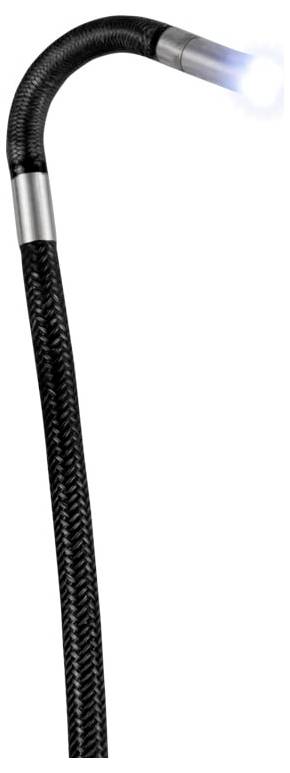

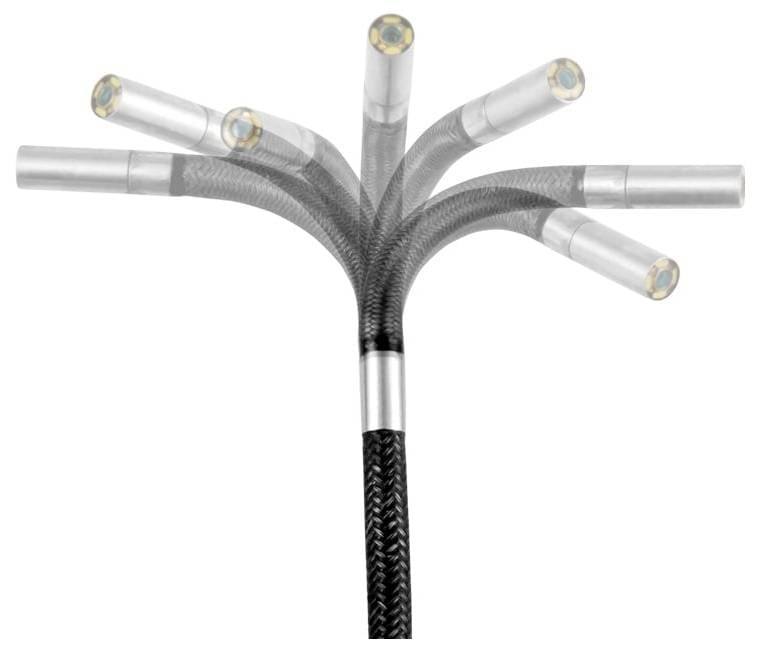

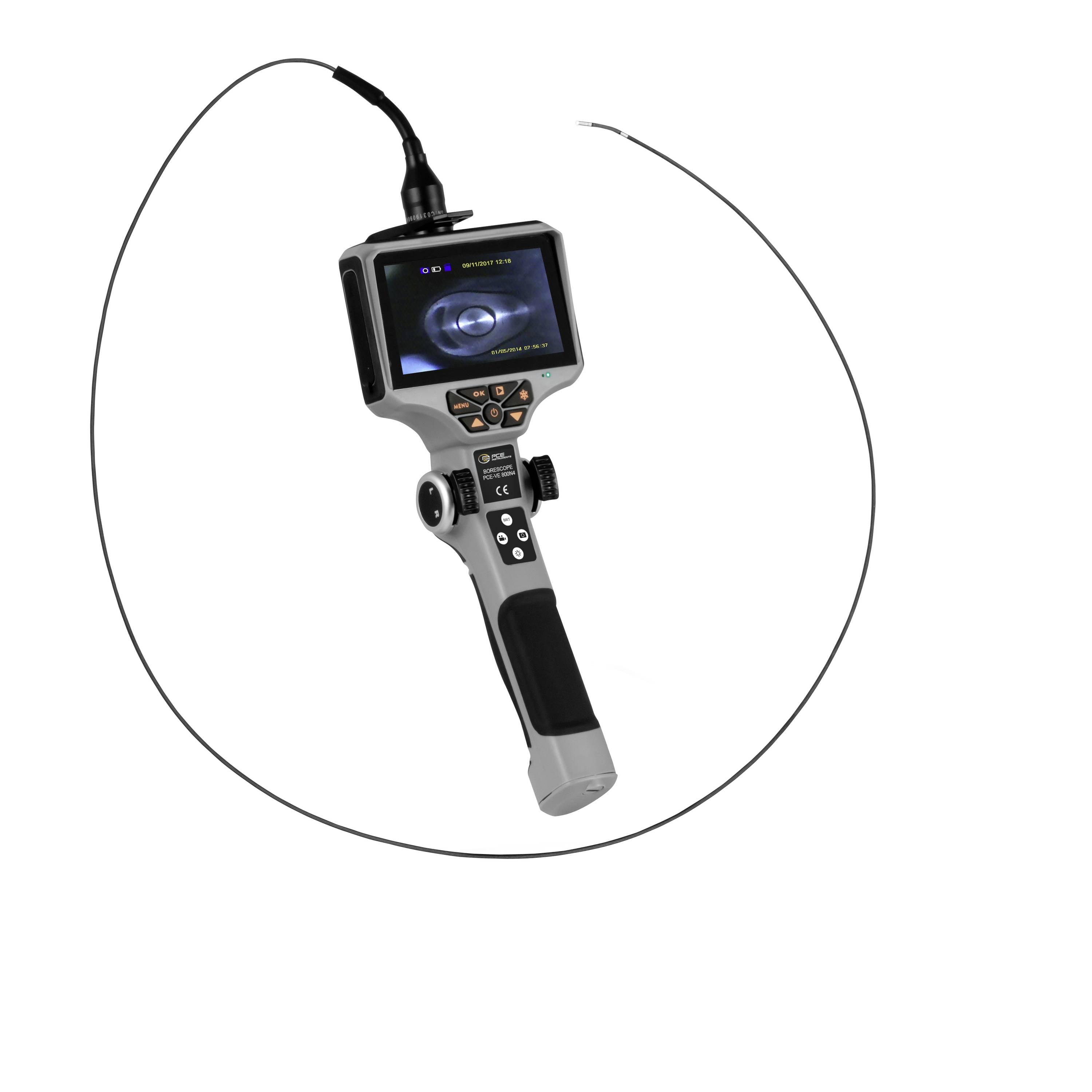

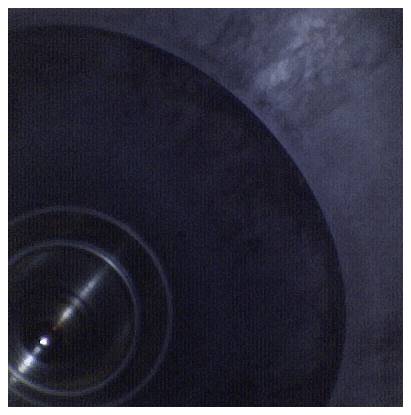

Boroscope diameter 2.8 mm / for inspection of machine parts, cavities ... / dimmable LED lighting / 4-way camera head / data storage / IP58 the boroscope has a 1.5 m long endoscope cable. With a diameter of only 2.8 mm, cavities with a minimum access can be viewed with the help of this boroscope. The camera head of the boroscope can be moved freely in 4 directions. Especially in the maintenance of engines, turbines, etc., the high-resolution display from the boroscope offers a good insight into cavities and hard-to-reach places. The mobile camera has a resolution of 400 x 400 pixels. The field of view is 80°, so that at a relatively short distance to the object to be checked, very large image recordings can be created with the boroscope. All recordings from the boroscope can be saved as an image or video. This helps to accurately document damage to components. The focus distance of the very small camera is between 5 and 50 mm. The boroscope is supplied with a Li-ion battery and can be operated optionally with a power supply. The degree of protection of the camera cable is IP58 . This allows the boroscope to be used even in difficult and harsh industrial environments. General information on the boroscope The boroscope was developed in 1806 by the German physician Philipp Bozzini for medical diagnostics. The first design was rigid and worked with a candle as a light source. Over the years, the boroscope has become an important component in many different areas through continuous further development. Medicine is still a very important field of application, here the boroscope is not only used for examination, through integrated channels the introduction of micro tools is possible, this makes the boroscope a multi-functional tool and enables operations in places difficult to access. Another very important area of application for the boroscope is the technical area, whether in the automotive industry for testing motors, in the sanitary area for testing drains or in the protection of buildings for pest control, in all these areas the boroscope is indispensable. The Boroscope owes its popularity to the many different versions available on the market today. The basic types are the rigid boroscope or the flexible boroscope.
