PCE Instruments PCE-VE 900N4 Endoscope Probe diameter: 2 mm Probe length: 1.2 m

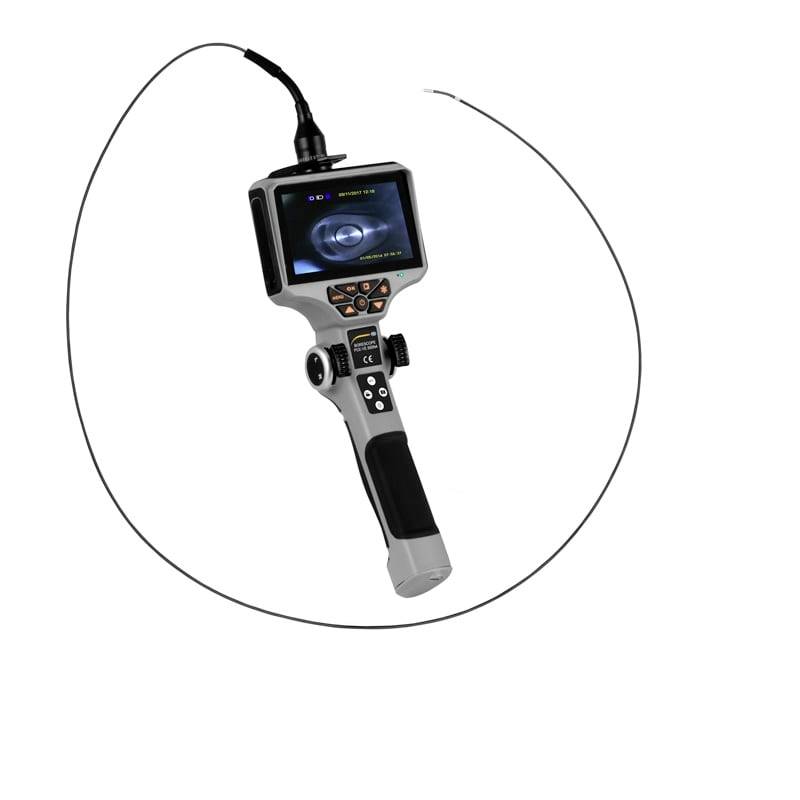

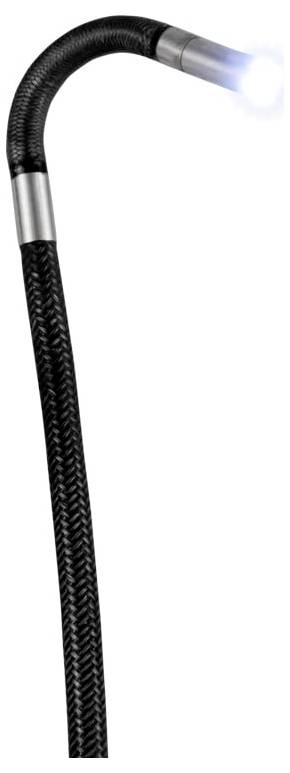

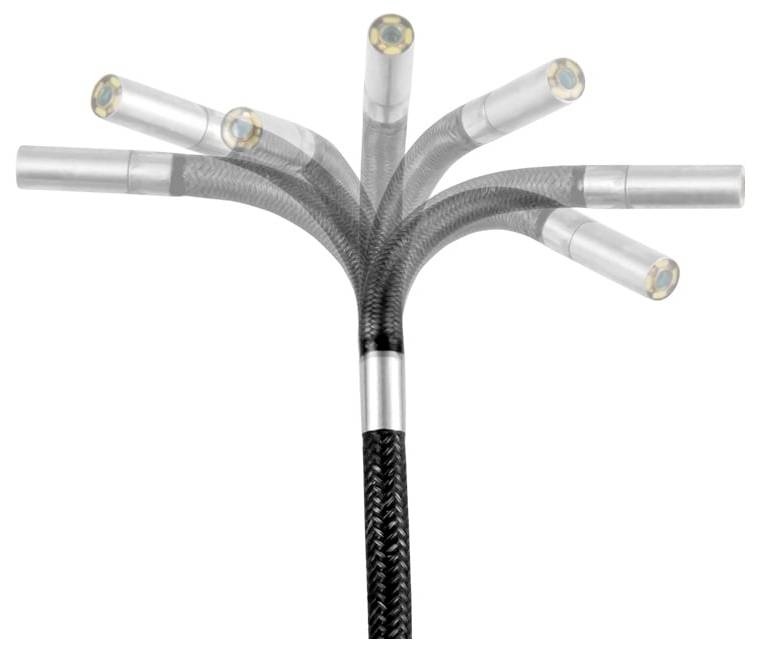

Industrial endoscope diameter 2 mm / for inspection of machine parts, cavities ... / Dimmable LED lighting / 4-way camera head / data memory / IP58 The industrial endoscope has a 1.2 m long endoscope cable. With a diameter of only 2 mm, cavities with a minimum access can be viewed with the help of this industrial endoscope. The camera head of the industrial endoscope can be moved freely in 4 directions. Especially in the maintenance of motors, turbines etc., the high-resolution display of the endoscope offers a good insight into cavities and difficult to access places. The mobile camera has a resolution of 400 x 400 pixels. The field of view is 80°, which means that very large image recordings can be generated with the endoscope at a relatively short distance to the object to be tested. All recordings from the industrial endoscope can be saved as image or video. This helps to accurately document damage to components. The focus distance of the very small camera is between 5 and 50 mm. The industrial endoscope is supplied with a Li-ion battery and can also be operated optionally with a power supply. The degree of protection of the camera cable is IP58. This means that the industrial endoscope can also be used in difficult and harsh industrial environments. General information about the industrial endoscope The industrial endoscope was developed in 1806 by the German physician Philipp Bozzini for medical diagnostics. The first design was rigid and worked with a candle as a light source. Over the years, the industrial endoscope has become an important component in many different areas through continuous further development. A very important area of application is still medicine, here the industrial endoscope is not only used for examination, through integrated channels the introduction of micro-tools is possible, this makes the industrial endoscope a multi-functional tool and enables operations in difficult accessible places. Another very important area of application for the endoscope is the technical area, whether in the automotive industry for testing motors, in the sanitary area for testing drains or in the construction protection for checking houses for pest infestation, in all these areas the industrial endoscope is indispensable. The industrial endoscope owes its popularity to the many different designs available on the market today. The basic types are the rigid endoscope or the flexible industrial endoscope.
