PCE Instruments PCE-VM 20 Vibration tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

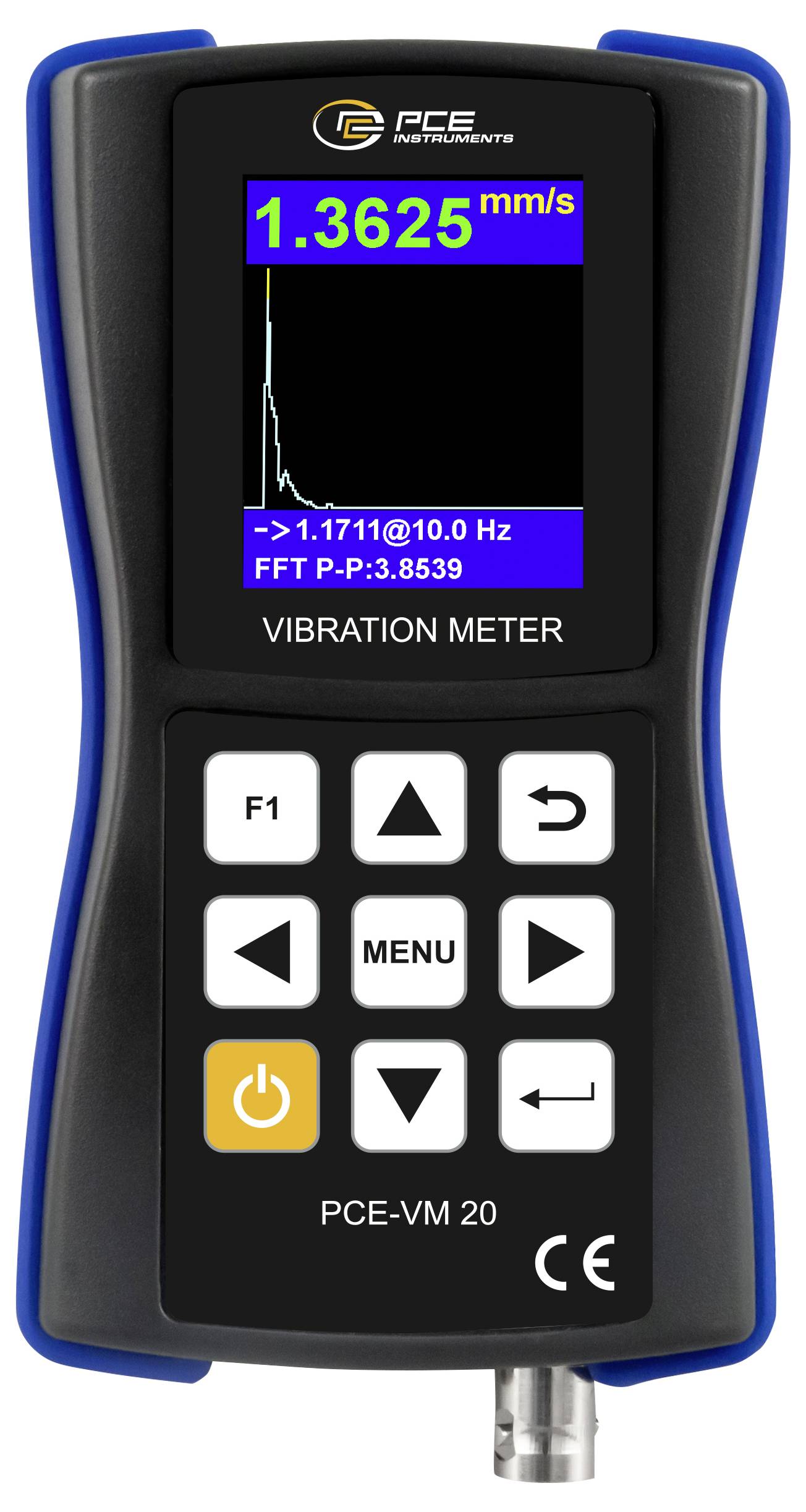

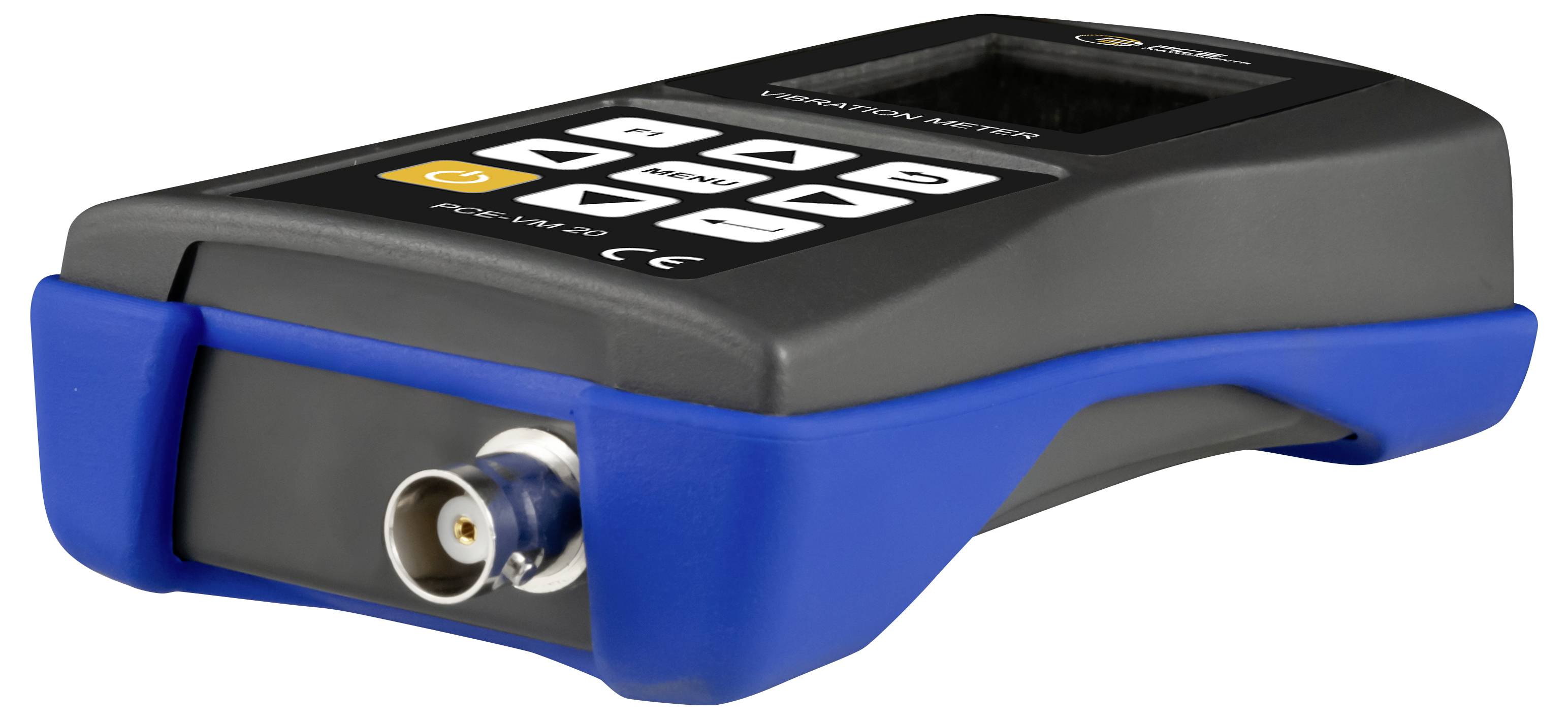

Vibration meter PCE-VM 20
- Real-time FFT analysisRobust housingMany vibration parametersDirect evaluation according to DIN ISO 10816Integrated LiPo-battery
Technical specifications
- Vibration acceleration: 0 ... 200 m/s², RMS and peak peak peakVibration speed: 0 ... 200 mm/s, RMSSwing path: 0 ... 2000 µm, peak peak peak Accuracy vibration: ±5 % Operating modes: Vibration, temperature, speedDisplayable measured variables FrequencyVibration accelerationVibration speedVibration pathFFT spectrum Units metric, imperialHz, mm/s², mm/s, µmRpm and Hz Interface: USB 2.0Memory: 4 GB micro SD-cardBattery life: Up to 8 hours continuous operationBattery type: Lithium polymerdisplay. 128 x 160 pixel color LCDAmbient conditions:-10 ... +55 °C ≤80 % RH, non-condensingDimensions 132 x 70 x 33 mm (L x W x D)Weight approx. 150 g Handheld device: Do not expose to strong vibrations, magnetic fields, corrosive media or dust Technical data for the acceleration sensorSensitivity 100 mV/gFrequency response (±3 dB): 0.5 ... 15000 HzFrequency response (±10 %): 2.0 ... 10000 HzDynamic range: ±50 g, peakPower supply (IEPE): 18 ... 30 V DCConstant power source: 2 ... 10 mASpectral noise at 10 Hz 14 µg/√HzSpectral noise at 100 Hz 2.3 µg/√HzSpectral noise at 1000 Hz: 2 µg/√HzOutput impedance < 100 ΩWorking voltage: 10 ... 14 V DCEnclosure insulation: > 100 MΩAmbient conditions: -50 ... +121 °CMaximum shock protection 5000 g, peakResonance frequency. 23000 HzHousing material. 316L stainless steelConnection: 2 pin MIL-C-5015Protection class: IP68Weight: 90 g
- Product type
Vibration tester
- Reading type
Acceleration
Speed
Vibration
Frequency
- Display
LCD
Digital
- Dim
(L x W x H) 132 x 70 x 33 mm
- Weight
90 g
- Width
70 mm
- Height
33 mm
- Length
132 mm
- Interfaces
USB
- Type
PCE-VM 20
ISO standards
Documents & Downloads
Datasheet
Datasheet 2623500 PCE Instruments PCE-VM 20 Vibration tester
User & Safety Instructions
User & Safety Instructions 2623500 PCE Instruments PCE-VM 20 Vibration tester
Description

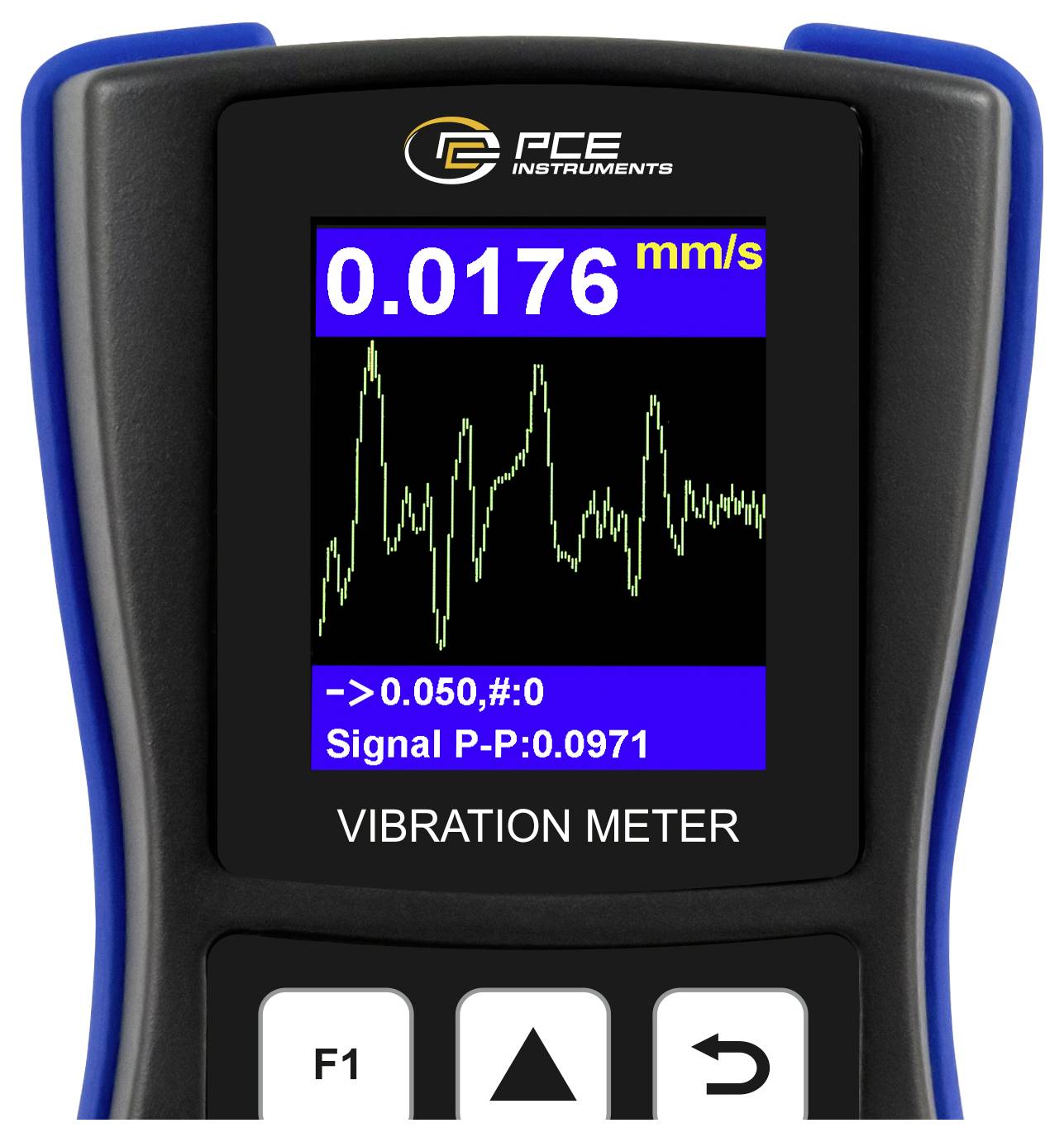

Occupational safety measuring device PCE-VM 20 Vibration measuring device for vibration measurement on machines / direct evaluation according to DIN ISO 10816 / different measuring modes / real-time FFT analysis / route option for fast recording of measuring points The PCE-VM 20 vibration tester is a compact device for direct evaluation of the vibration behavior of a machine. The device can measure and display various vibration parameters, such as vibration acceleration, vibration velocity or vibration path. The integrated real-time FFT analysis allows the condition of a machine to be analyzed and determined during the measurement. The PCE-VM 20 vibration tester can evaluate and display the signals from piezoelectric vibration sensors according to IEPE standard, as well as from piezoelectric vibration sensors with charge output.
This text is machine translated.
This text is machine translated.
Scope of delivery

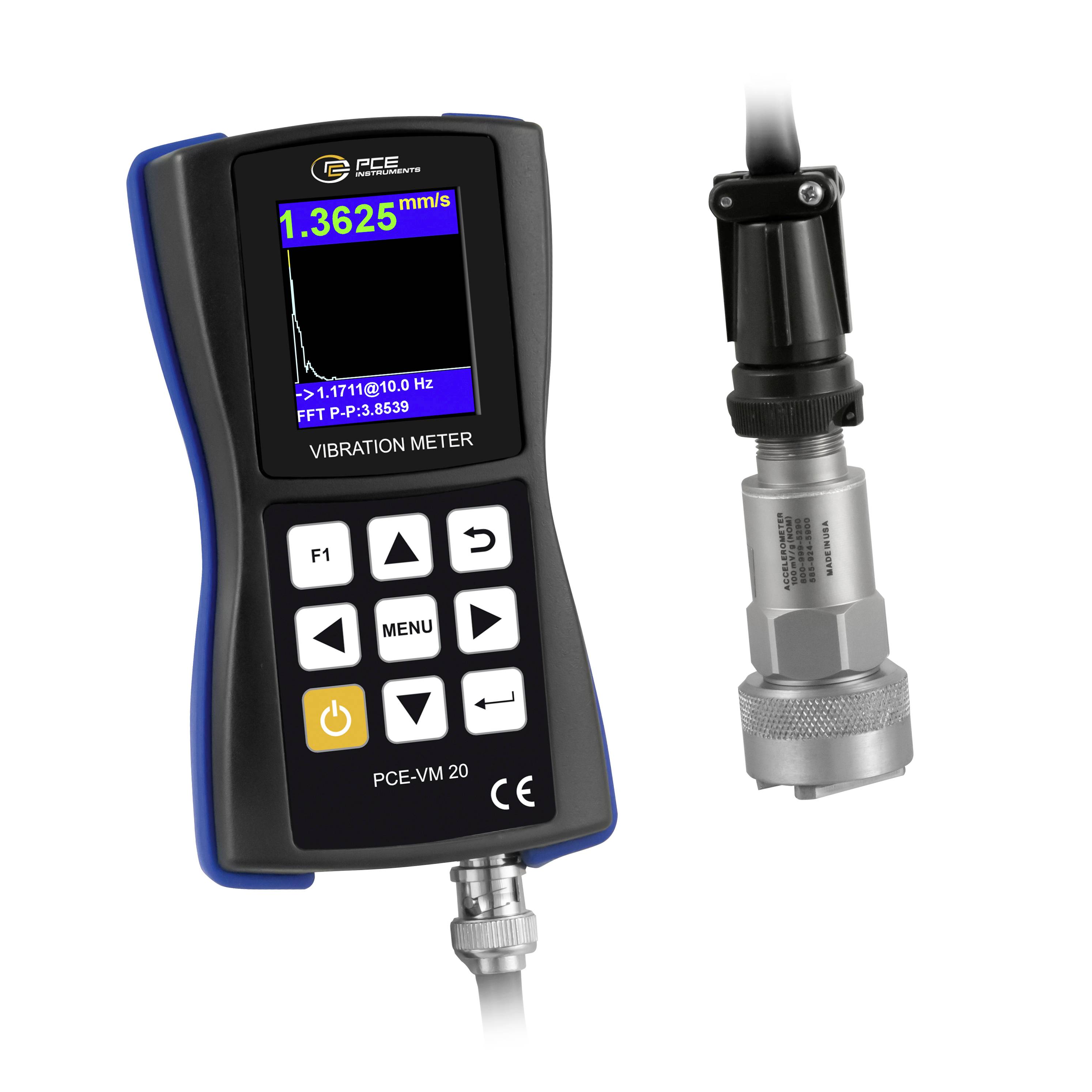

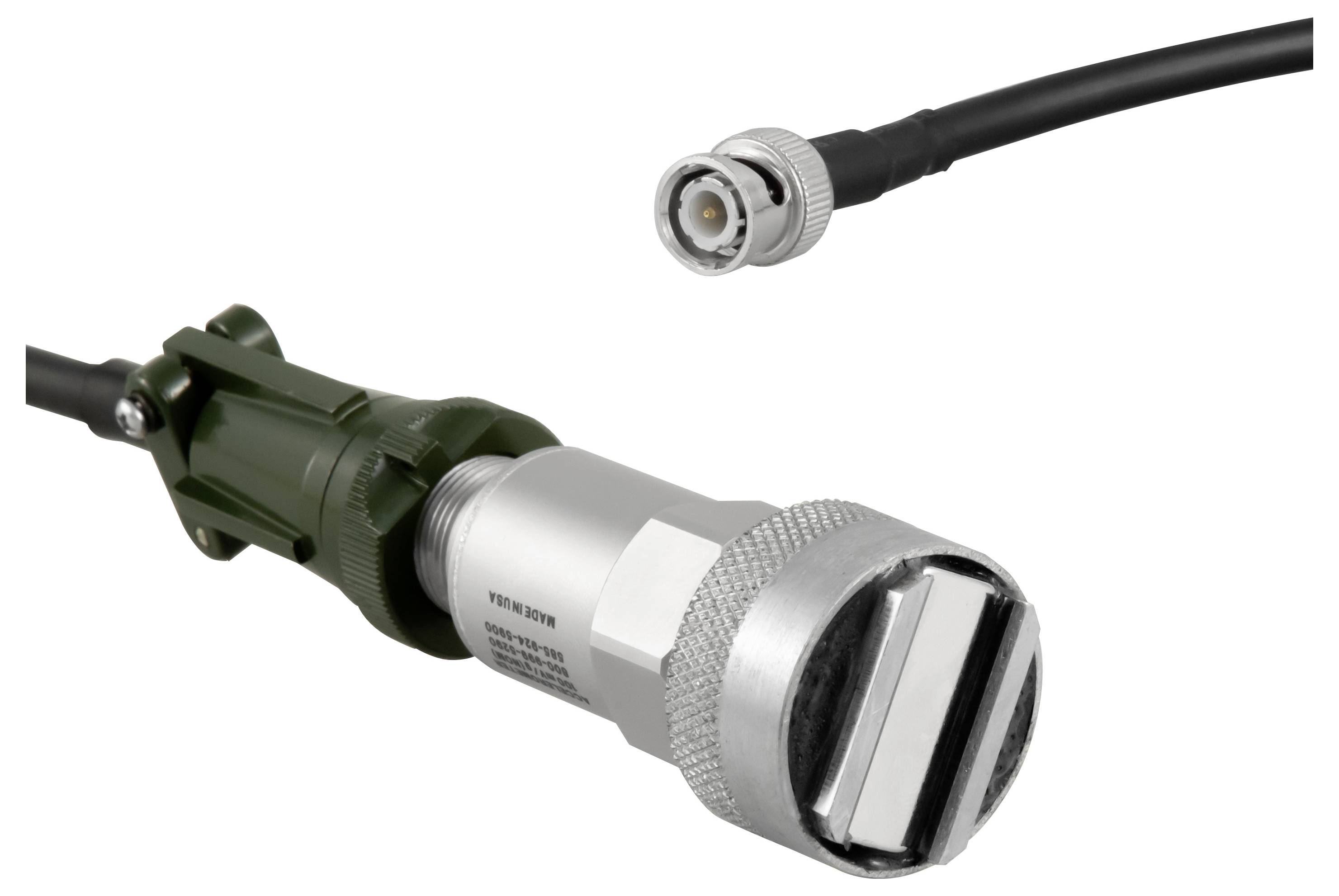

- 1 x Safety measuring device PCE-VM 20 1 x magn. Acceleration sensor with 1.8 m connection cable 1 x USB connection cable 1 x Charger 100 ... 240 V/ AC 1 x PC software 1x user manual
