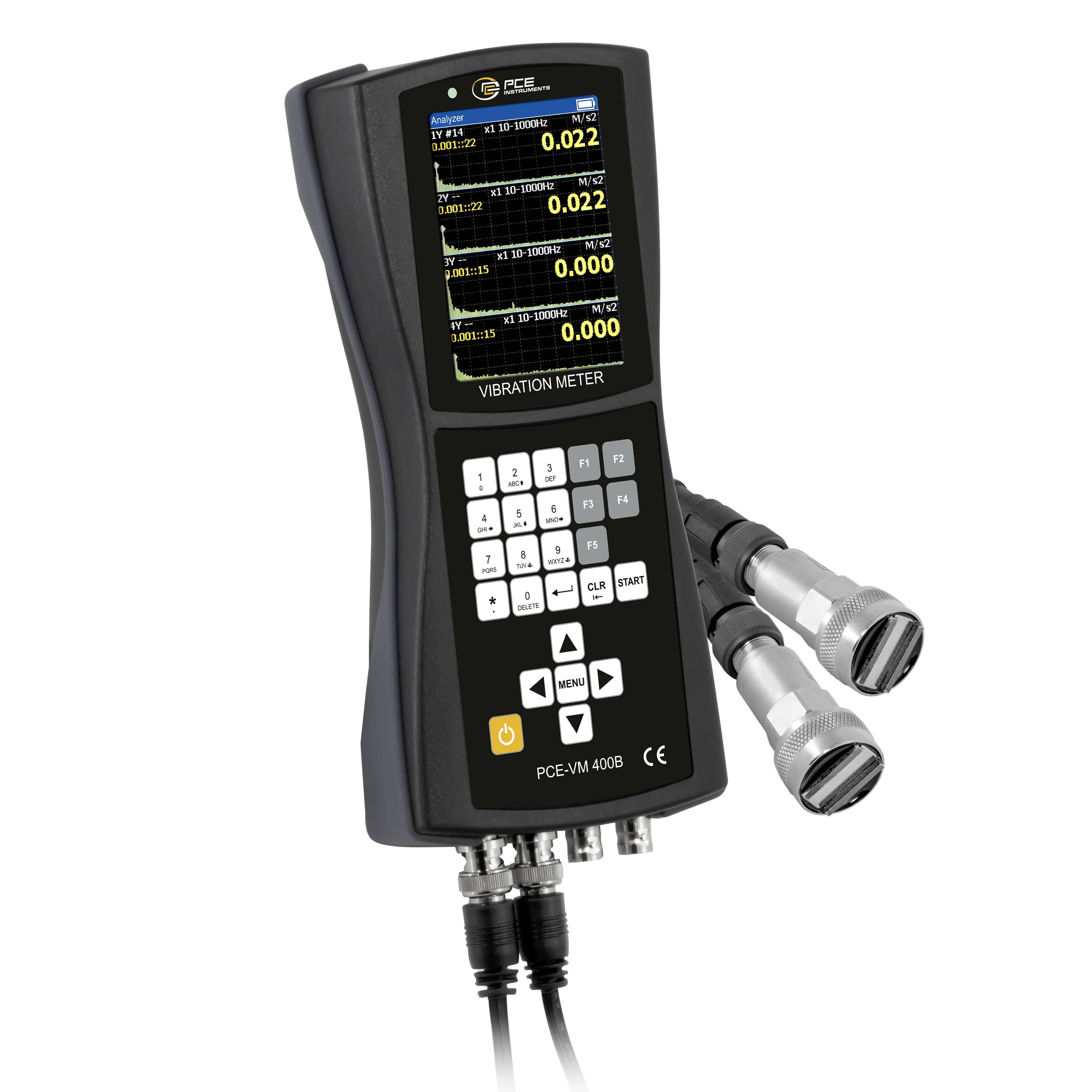

PCE Instruments PCE-VM 400B Vibration tester 5 %
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE VM 400B
- 4 Channels for measuring and evaluating the vibrations

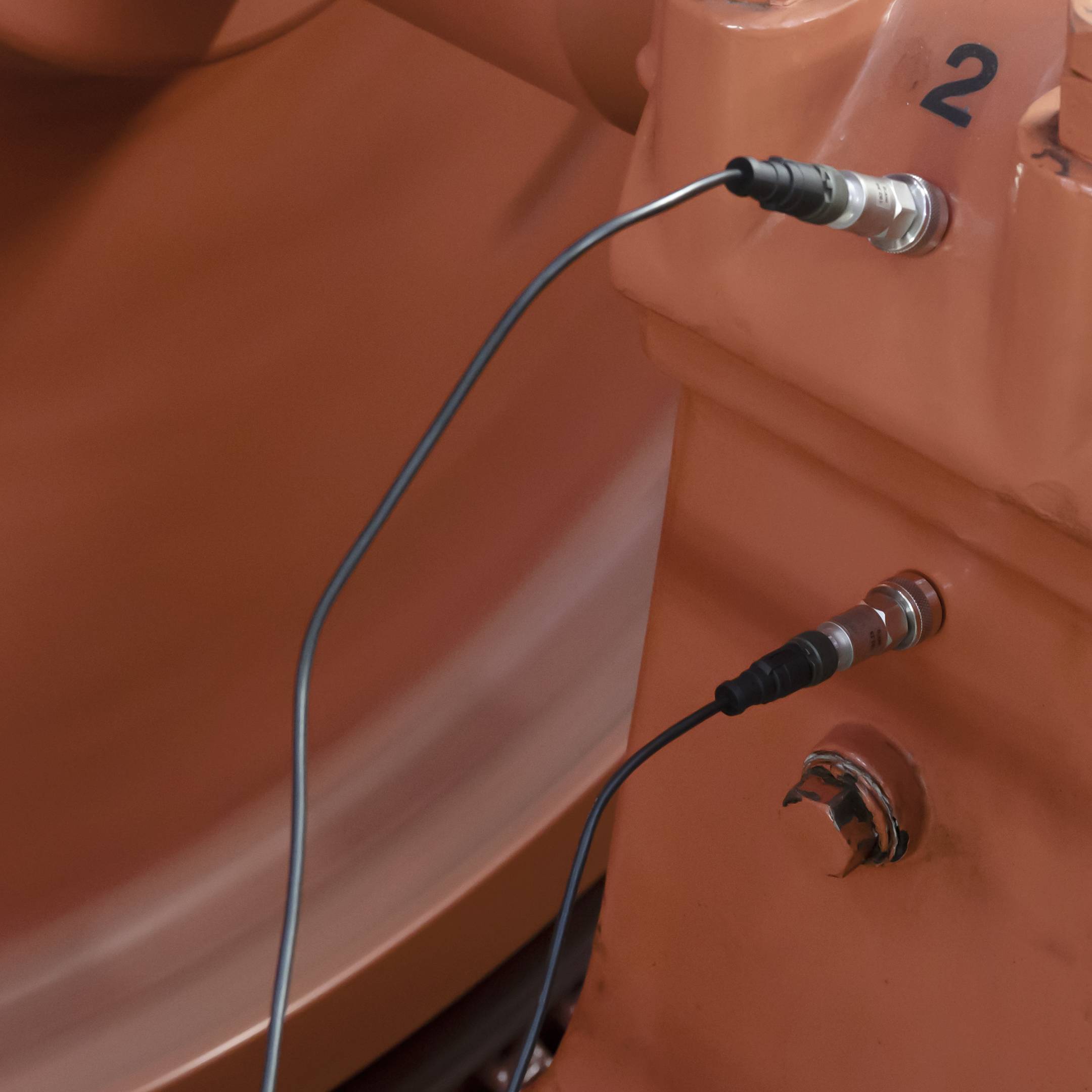

- Measurement at shafts and bearings
- Reliable piezo acceleration sensors
- Wide frequency range: 1 ... 25000 Hz
- Measuring range: 0.001 ... 200 m/s²
- Measuring range speed: 0.001 ... 200 mm/s
- Balancing - up to 8 correction levels
- Rating according to ISO 10816
- USB port and 4 GB data storage
- Measurement of acceleration, speed, oscillation travel and speed
- Incl. 2 vibration sensors with 140cm cable length
Technical specifications
- Acceleration
- Measuring range 0.001 ... 200 m/s²
- Resolution 0.001 m/s²
- Accuracy ± 5 %
- Frequency range 1 ... 25000 Hz
- Rotational speed, optical
- Measuring range 10 ... 200000 R/min
- Resolution 1 Rev/min.
- Accuracy ± 5 %
- Speed
- Measuring range 0.001 ... 200 mm/s
- Resolution 0.001 mm/s.
- Accuracy ± 5 %
- Frequency range 1 ... 25000 Hz
- Way
- Measuring range 0.001 ... 2000 µm
- Resolution 0.001 µm
- Accuracy ± 5 %
- Frequency range 1 ... 25000 Hz
- Sensor
- Designation PCE-VM 400B-SENS
- Additional description of additional standard sensor , 1.5m cable, magnetic holder
- General Technical Data
- Number of measurement channels 4
- FFT 0
- Frequency 1 ... 25000 Hz
- Display type VGA color display
- Display size 3.5 inches
- Storage medium Internal memory
- Storage capacity: 4 GB
- Interface USB
- Operating time 8 h
- Automatic shutdown of...to 30 ... 99999 s
- Menu language English (US), Polish, Spanish, German, Chinese, Russian, French, Indonesian
- Protection class (device) IP20
- Voltage supply: 5V DC / 1A
- Connector type for device Euro plug
- Weight 460 g
- Further dimensions Sensor cable length: 140 cm
- Operating conditions -10 ... 50 °C , 0 ... 90 % r.F.
- Storage conditions -10 ... 50 °C , 0 ... 90 % r.F.
- Capacity 3200 mAh
- Dimensions ( L x W x H ) 220 x 100 x 42 mm
- Basic accuracy
5 %
- Product type
Vibration tester
- Reading type
Acceleration
Speed
Vibration
Frequency
- Display
Digital
Graphical
Numeric
- Dim
(L x W x H) 220 x 100 x 42 mm
- Weight
460 g
- Minimum object size
10
- Width
100 mm
- Height
42 mm
- Length
220 mm

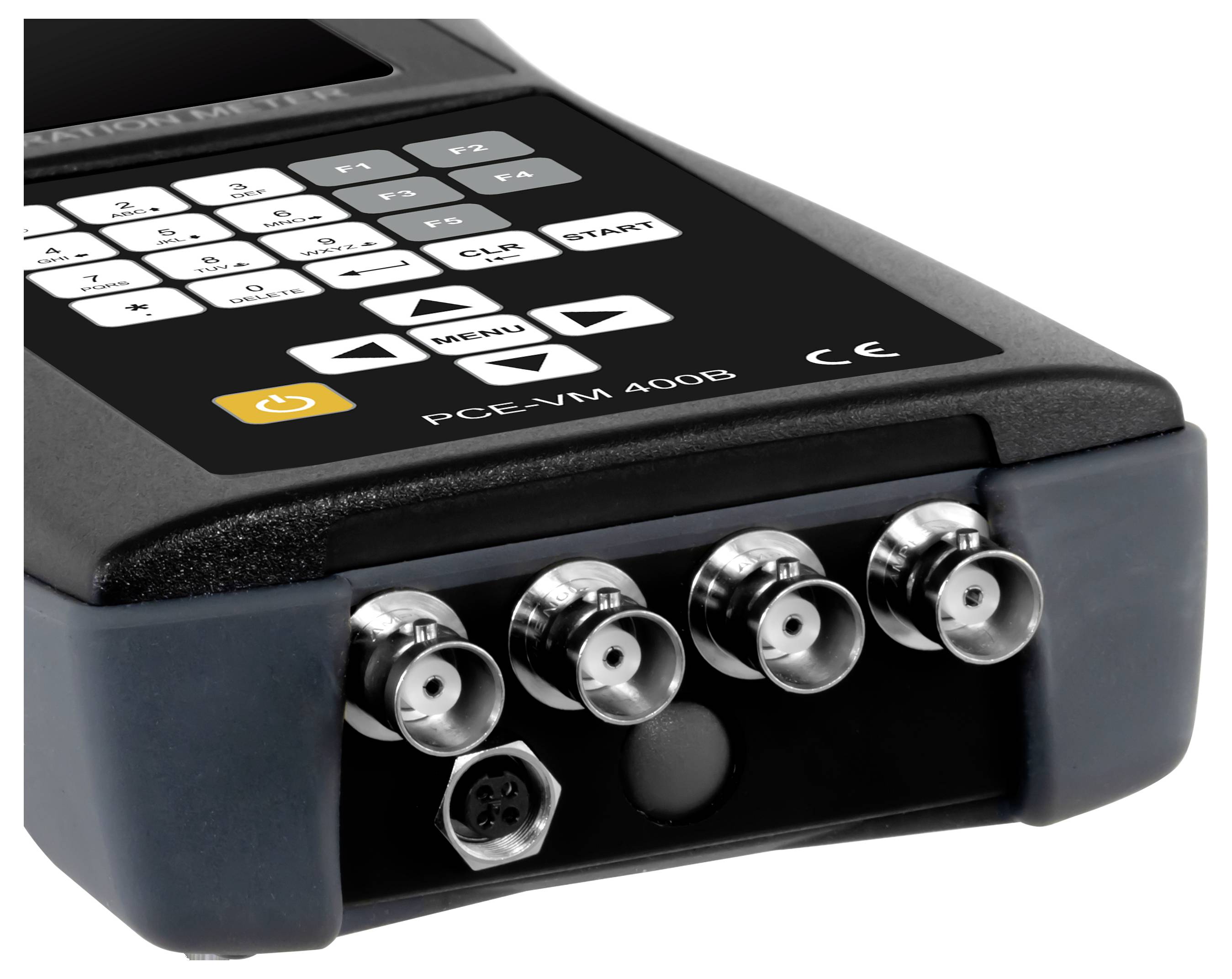

- Interfaces
Micro USB
BNC socket
USB device
BNC plug
USB host
BNC
1x USB 2.0 (host)
- Type
PCE-VM 400B
Documents & Downloads
Datasheet
Datasheet 3324713 PCE Instruments PCE-VM 400B Vibration tester 5 %
User & Safety Instructions
User & Safety Instructions 3324713 PCE Instruments PCE-VM 400B Vibration tester 5 %
Description

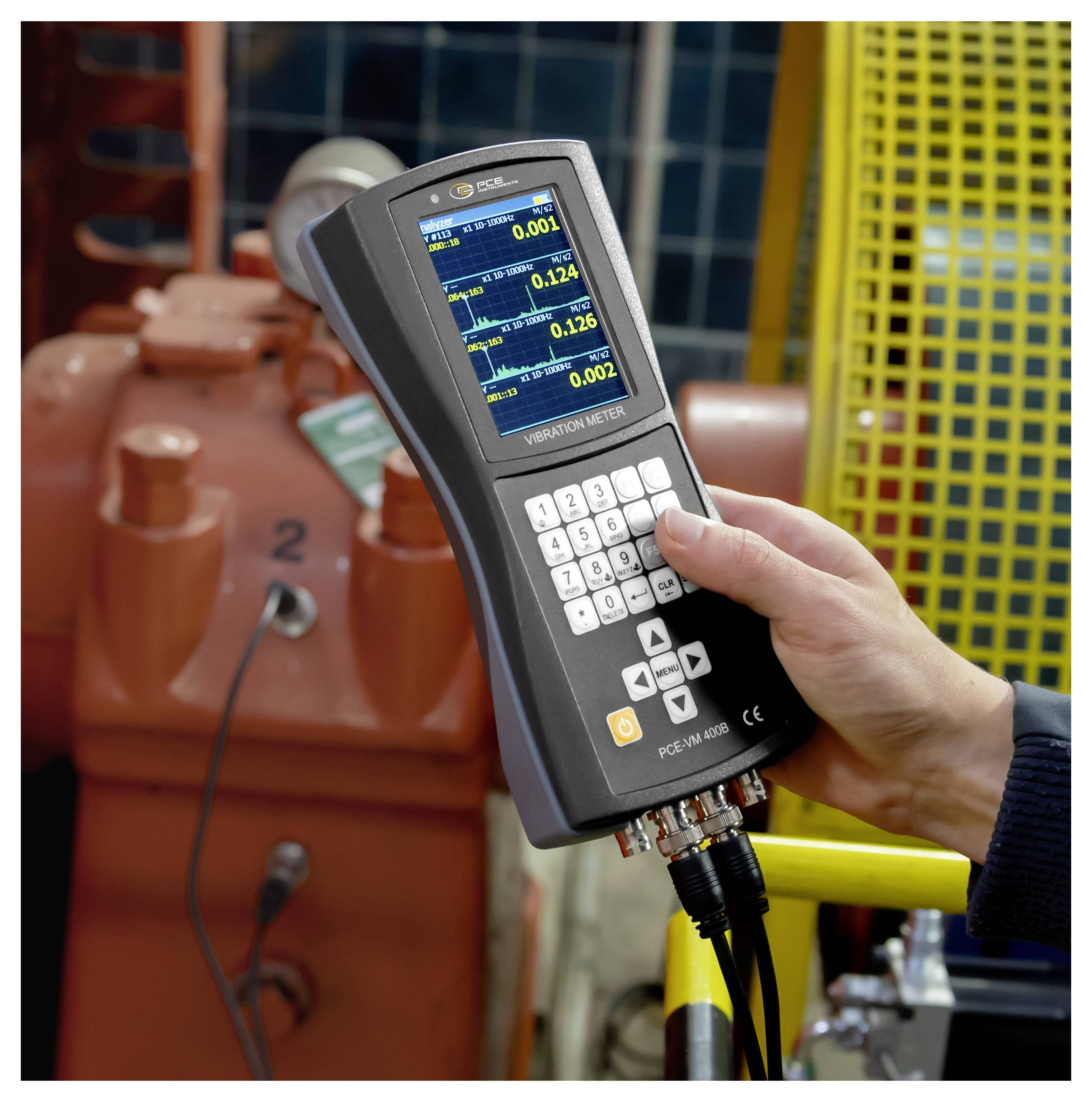

The four-channel vibration measuring device is a technically advanced instrument for the precise measurement and evaluation of vibrations in industrial applications. It enables the simultaneous measurement of vibrations at shafts and bearings via four independent channels. Equipped with high-quality piezo acceleration sensors, even the smallest vibrations can be accurately detected.
The multi-channel vibration meter has various measurement functions, including acceleration, speed, distance and speed, to cover a wide range of applications. It also offers the possibility of balancing with up to 8 correction levels in order to balance out imbalances in rotating machines. In addition, a route measurement can be carried out with the vibration meter/vibration meter, especially for recurring measurements at identical measurement points. An evaluation according to ISO 10816 "Evaluation of mechanical vibrations" is also possible.
The device is equipped with a USB interface and an internal memory of 4 GB for data transfer and storage. The four-channel vibration meter has a robust design and is protected against dust and moisture to ensure operation in demanding industrial environments.
Engineers and technicians can use this 4-channel vibration meter to monitor and analyze machines to ensure smooth operation and longer service life.
This text is machine translated.
The multi-channel vibration meter has various measurement functions, including acceleration, speed, distance and speed, to cover a wide range of applications. It also offers the possibility of balancing with up to 8 correction levels in order to balance out imbalances in rotating machines. In addition, a route measurement can be carried out with the vibration meter/vibration meter, especially for recurring measurements at identical measurement points. An evaluation according to ISO 10816 "Evaluation of mechanical vibrations" is also possible.
The device is equipped with a USB interface and an internal memory of 4 GB for data transfer and storage. The four-channel vibration meter has a robust design and is protected against dust and moisture to ensure operation in demanding industrial environments.
Engineers and technicians can use this 4-channel vibration meter to monitor and analyze machines to ensure smooth operation and longer service life.
This text is machine translated.
Features
- Measurement at shafts and bearings
- Rating according to ISO 10816
- 4 GB data storage

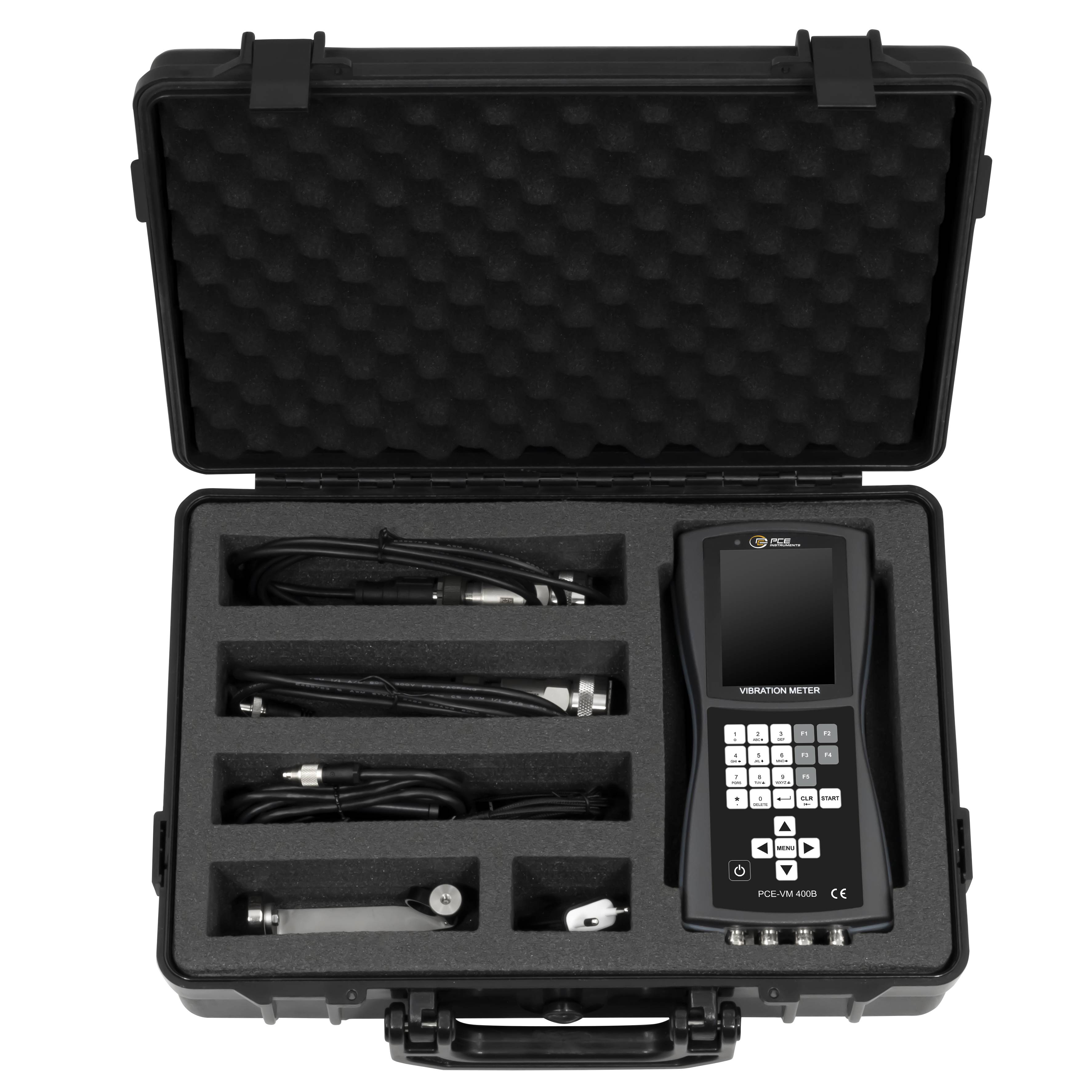

Scope of delivery
- 1 x 4-Canal vibration meter PCE-VM 400B

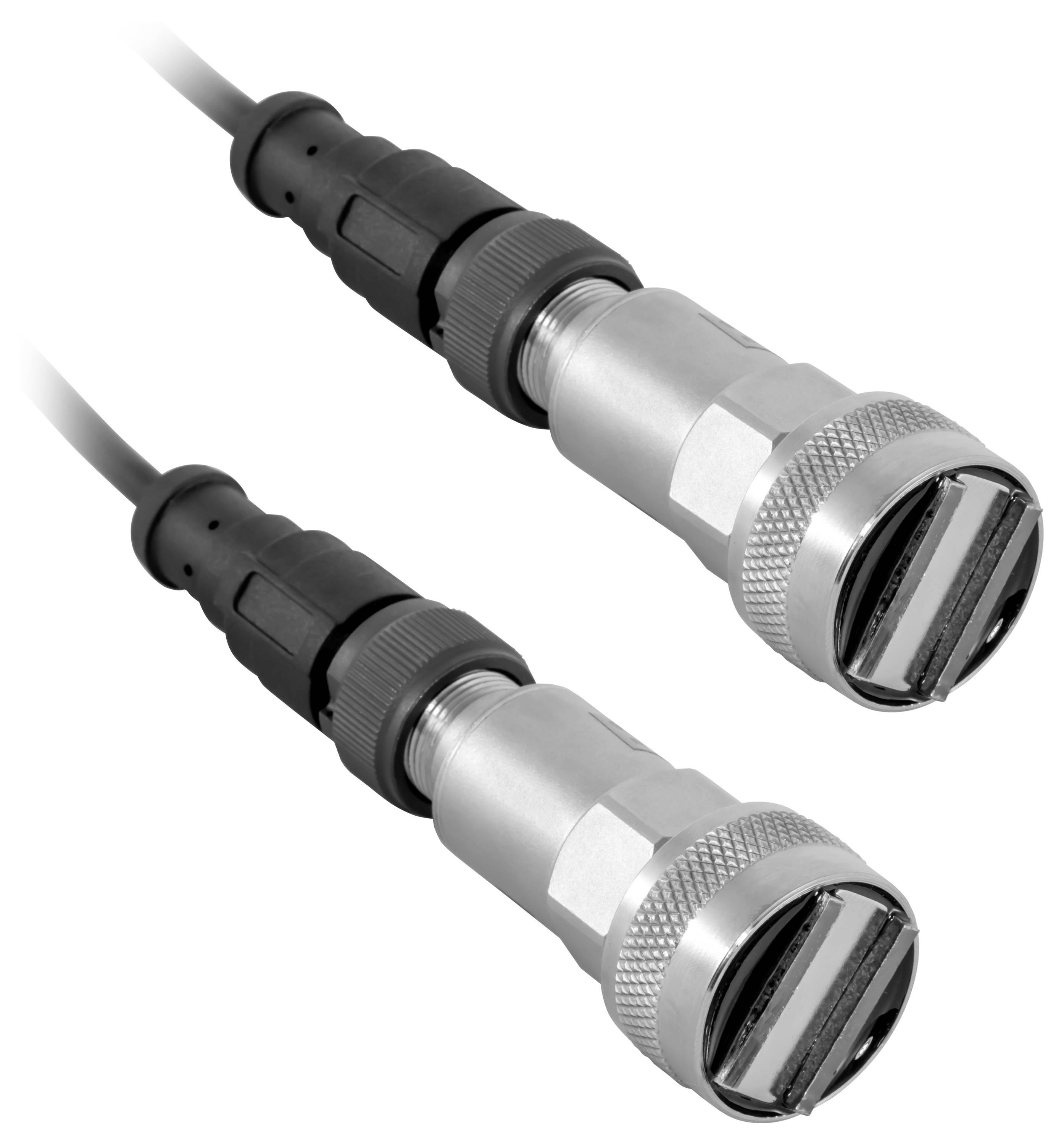

- 2 x vibration sensor

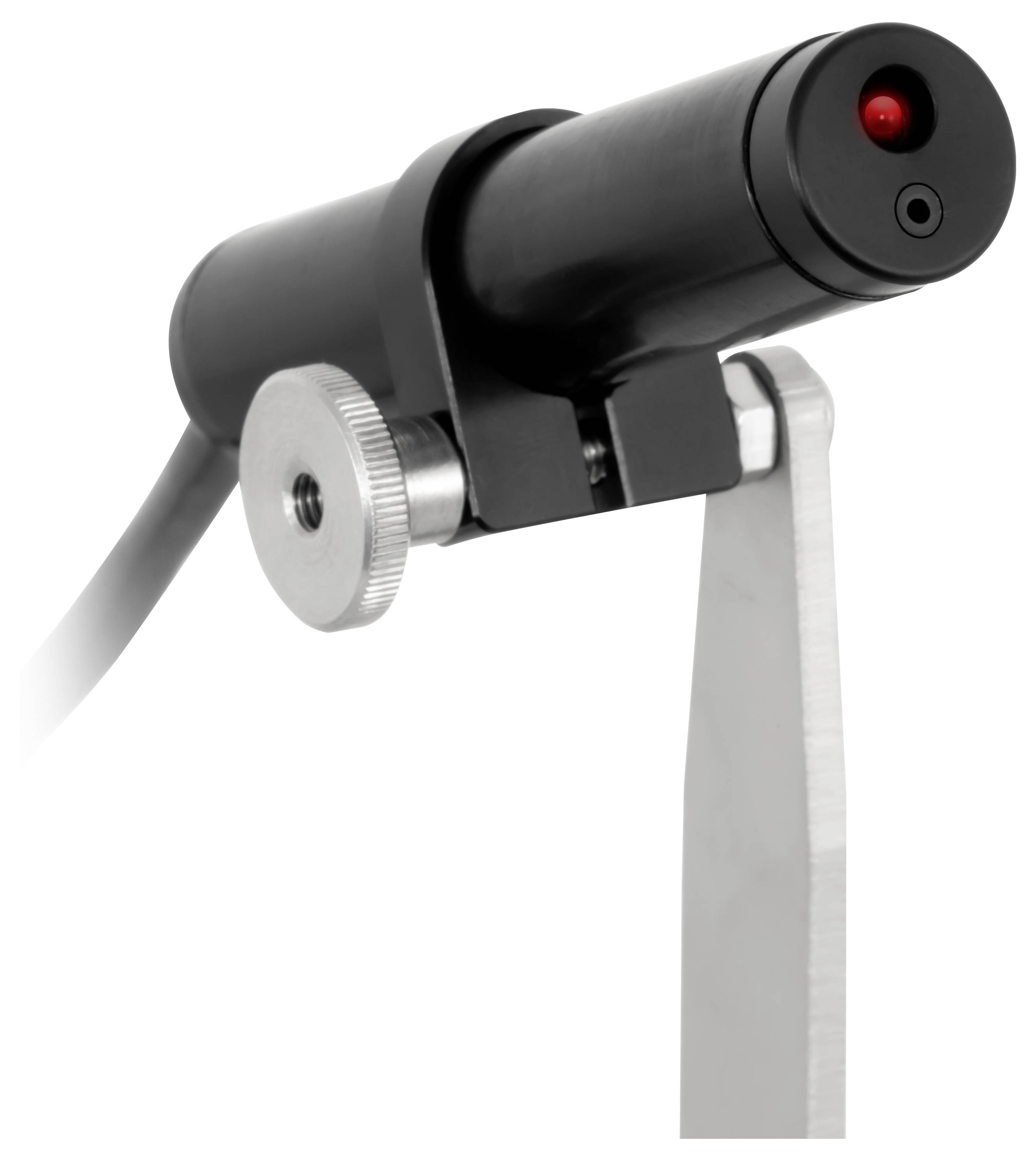

- 1 x infrared sensors
- 1 x bracket for infrared sensor
- 1 x Reflective tape
- 1 x power supply 5V/1A
- 1 x micro USB cable
- 1 x plastic case
- 1x user manual
