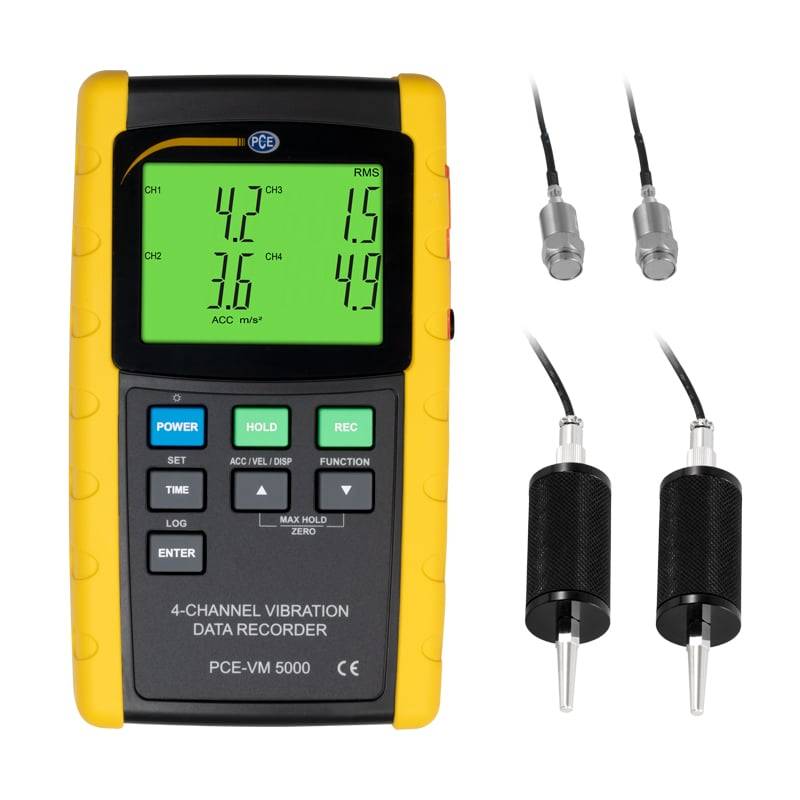

PCE Instruments PCE-VM 5000-KIT Accelerometer 5 %
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE-VM 5000 KIT ACCELEROMETER
- 4-channel vibration meter with data logger function for measuring speedAcceleration and expansion of vibrationsFrequency range: 10 Hz ... 1 kHzMeasurement of acceleration, speed and expansionSimultaneous connection of up to 4 sensorsData Storage on SD CardRugged designPrecise measurementsLarge backlit displayEvaluation of the data on the PC with Excel
Technical specifications
- AccelerationUnit: M/s² Range: 0.5 ... 199.9 m/s²Accuracy ± (5% rdg + 5 d) @ 80 and 160 HzUnit: G Range: 0.05 ... 20.39 gAccuracy ± (5% rdg + 5 d) @ 80 and 160 HzUnit: Ft/s² Range: 2 ... 656 ft/s²Accuracy ± (5% rdg + 5 d) @ 80 and 160 HzCalibration point 50 m/s² (160 Hz)SpeedUnit: Mm/s. Range: 0.5 ... 199.9 mm/sAccuracy ± (5% rdg + 5 d) @ 80 and 160 HzUnit: Cm/s. Range: 0.05 ... 19.99 cm/sAccuracy ± (5% rdg + 5 d) @ 80 and 160 HzUnit: Inch/s. Range: 0.02 ... 7.89 inch/sAccuracy ± (5% rdg + 5 d) @ 80 and 160 HzCalibration point 50 mm/s (160 Hz)ExtensionUnit: Mm Range 1.999 mmAccuracy ± (5% rdg + 5 d) @ 80 and 160 HzUnit: Inch Range: 0.078 inchAccuracy ± (5% rdg + 5 d) @ 80 and 160 HzCalibration point 0.141 mm (160 Hz)Display 82 x 61 mm LCD with backlightNumber of channels 4 input channelsMeasurement types: Speed, acceleration, expansionMeasuring units Acceleration: M/s², g, ft/s²Speed: Mm/s, cm/s, inches/s.Extension: Mm, inchesFrequency range 10 Hz ... 1 kHzMaximum Hold Acceleration, Speed: Measures / updates the maximum valueExtension: Measures/updates the p-p valueMax. Hold acceleration, speed: Measures / updates Max. Maximum valueExtension: Measures / updates Max. P-p valueMax. Hold-Reset button activationZero-function key activation for acceleration (RMS) measurementsData logger sampling rate Automatic: 1 ... 3,600 secondsManual: By pressing a buttonMemory card SD memory card (1 ... 16 GBData-Hold-Function Maintains the displayed measurement valueAudio output point Mini stereo jack socketMax. voltage 2 VOutput resistance 100 ohmsOperating temperature 0 ... +50 °COperating humidity 85 % r.F. max.Power supply 8 x 1.5 V AA batteries or 9 V mains adapterPower consumption NiMH rechargeable battery 3 x 2700 mAhOperation-/charging time normal mode: Approx. 12 mA dcWith backlight switched off and data logger switched on: Approx. 35 mA dcWeight of meter 515 gProbe with cable and magnetic base 99 gMain unit dimensions 203 x 76 x 38 mmProbe 16 x 37 mm in diameterCable length 1.2 m.
- Basic accuracy
5 %
- Product type
Accelerometer
- Reading type
Acceleration
Speed
Vibration
- Display
LCD
- Operating voltage
12 V
- Dim
(L x W x H) 76 x 76 x 203 mm
- Weight
515 g
- Width
76 mm
- Height
203 mm
- Length
76 mm
- Interfaces
SD card
- Type
PCE-VM 5000-KIT
Documents & Downloads
Datasheet
Datasheet 2813704 PCE Instruments PCE-VM 5000-KIT Accelerometer 5 %
User & Safety Instructions
User & Safety Instructions 2813704 PCE Instruments PCE-VM 5000-KIT Accelerometer 5 %
Description
The 4-channel vibration meter is able to perform vibration measurements at up to 4 locations at the same time. With the vibration measuring device the speed, acceleration and extension can be measured in a frequency range from 10 Hz to 1 kHz. The cables of the vibration sensors are 1.2 m long so that the vibration meter can record vibrations at different points of the component to be examined. The recorded data can be viewed directly on the display or transferred to a PC with the SD card and further analyzed in Excel.
This text is machine translated.
This text is machine translated.
Features
- Frequency range: 10 Hz ... 1 kHzMeasurement of acceleration, speed and expansionSimultaneous connection of up to 4 sensorsData Storage on SD CardIncl. 2 additional vibration sensors
Scope of delivery
- 1 x PCE-VM 5000 KIT accelerometer2 x VB-83 probe with cable and magnetic base (1.2 m)2 x vibration sensor VB-848 x 1.5 V AA batteries1 x transport case1x user manual
