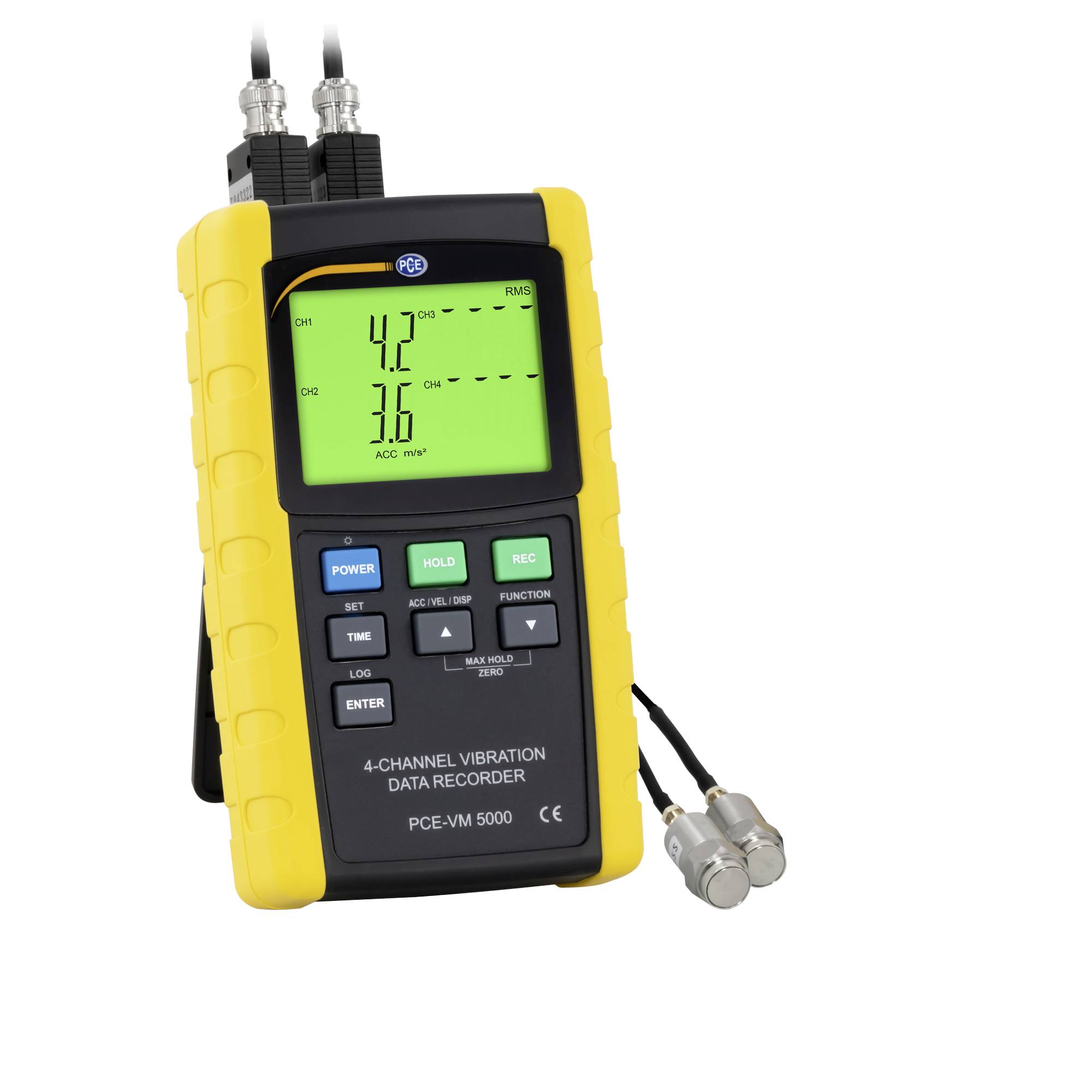

Portable 4-channel vibration data recorder with yellow protective case, green display, and connected sensor cables on a white background.

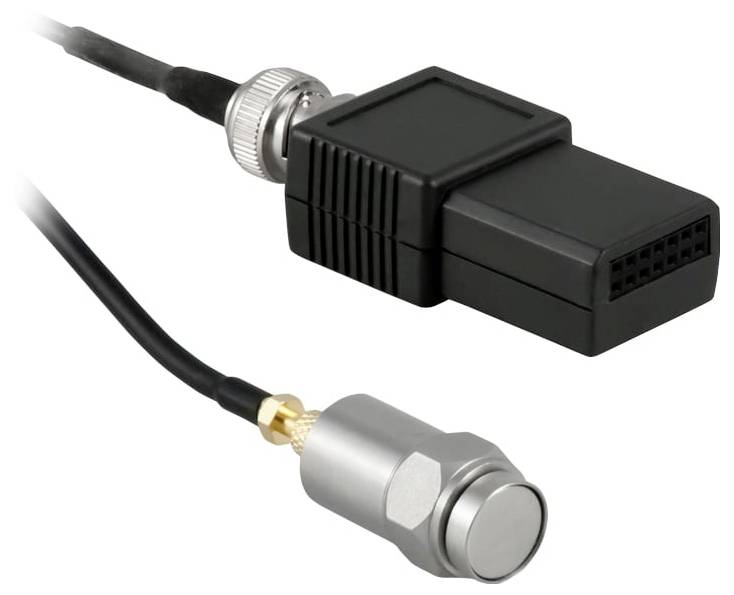

Close-up of an electronic cable connector, showing black and silver plug ends on a white background.

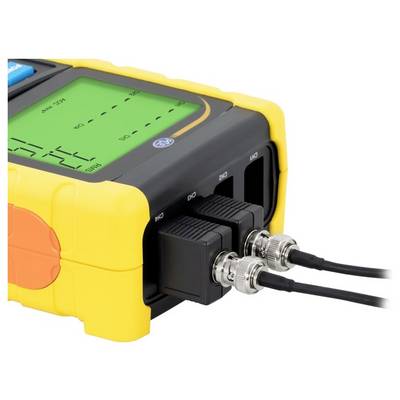

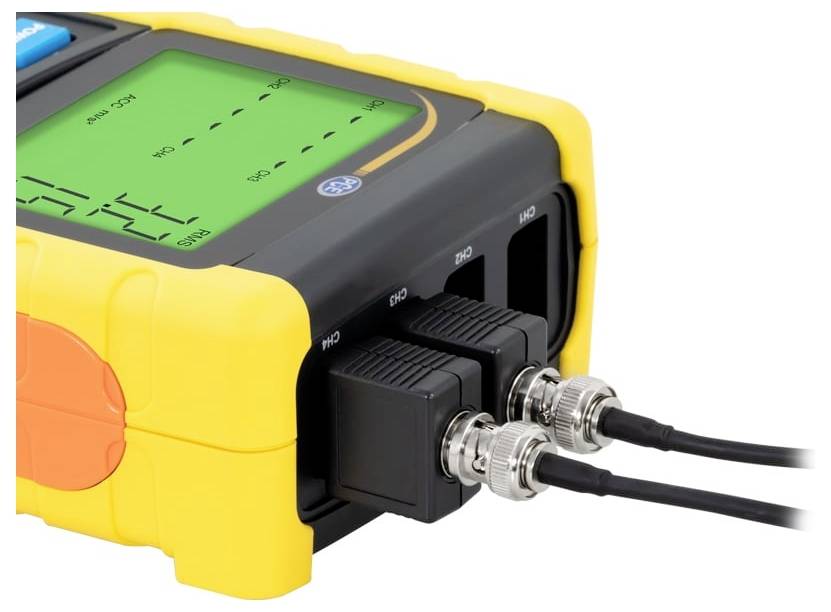

Handheld test device with two black fiber optic cables plugged into front ports, shown in close-up on a white background.

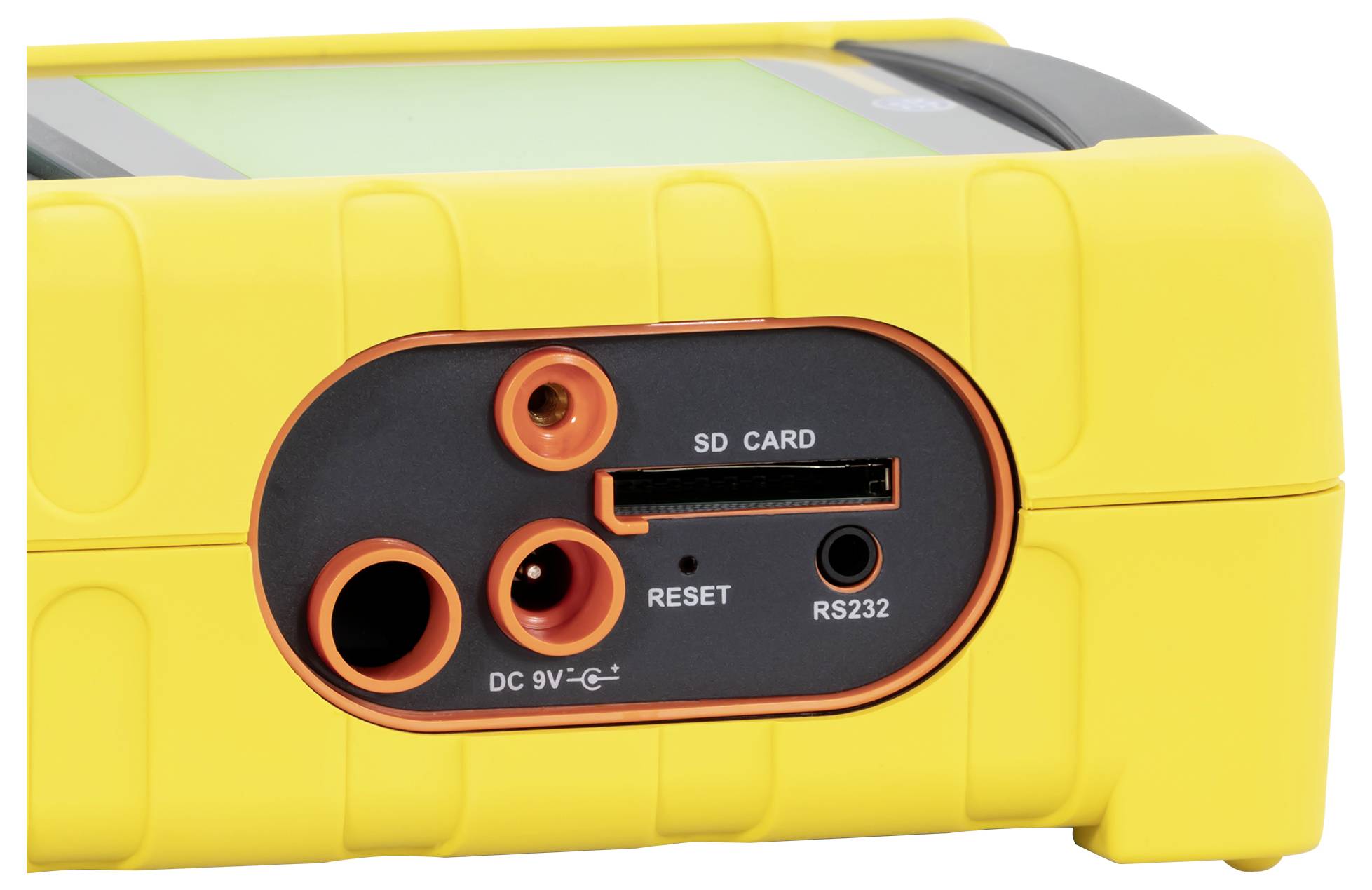

Close-up of a yellow device showing a control panel with SD card slot, reset button, RS232 port, and DC 9V power input.

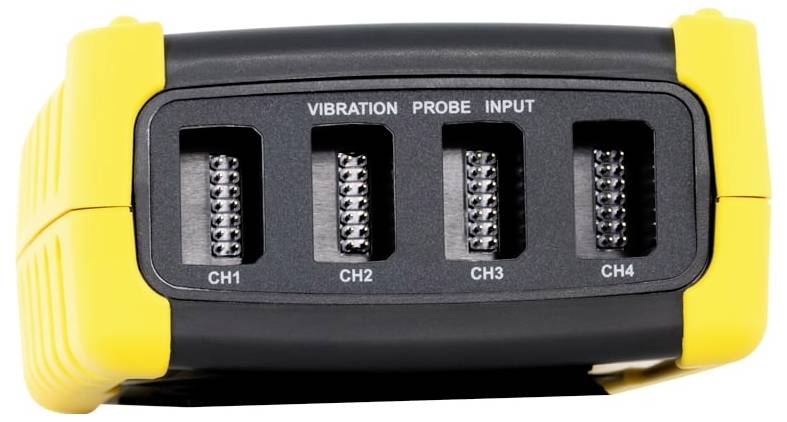

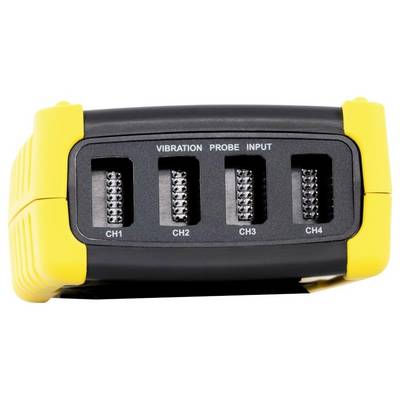

Four-channel vibration probe input device with ports labeled CH1, CH2, CH3, and CH4 on a yellow-and-black housing.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Data logger PCE-VM 5000

Frequency range: 10 Hz ... 1 kHz
Measurement of acceleration, speed and vibration path
Connection of up to 4 sensors simultaneously
Data Storage on SD Card
Rugged design
Precise measurements
Large backlit display

Technical specifications

Acceleration Unit: M/s² Range: 0.5 ... 199.9 m/s² Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz Unit: g Range: 0.05 ... 20.39 g Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz Unit: Ft/s² Range: 2 ... 656 ft/s² Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz Calibration point 50 m/s² (160 Hz) Speed Unit: Mm/s Range: 0.5 ... 199.9 mm/s Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz Unit: Cm/s Range: 0.05 ... 19.99 cm/s Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz Unit: Inch/s Range: 0.02 ... 7.89 inch/s Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz Calibration point 50 mm/s (160 Hz) Vibration path Unit: Mm 1.999 mm range Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz Unit: Inch Range: 0.078 inch Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz Calibration point 0.141 mm (160 Hz) Display 82 x 61 mm LCD with background lighting Number of channels 4 input channels Measuring modes: Speed, acceleration, oscillation travel Acceleration units: M/s², g, ft/s² Speed: Mm/s, cm/s, inches/s Expansion: Mm, inches Frequency range 10 Hz ... 1 kHz Maximum Hold Acceleration, Speed: Measures / updates the maximum vibration path: Measures / updates the p-p value Max. Hold acceleration, speed: Measures / updates max. Maximum vibration path: Measures / updates Max. p-p value Max. Hold-Reset Push button activation Zero-Function Push-button activation for acceleration (RMS) measurements Data logger sampling rate automatic: 1 ... 3,600 seconds manual: At the touch of a button Memory card SD memory card (1 ... 16GB GB) Data hold function holds the displayed measured value Audio output point Mini stereo jack socket Max. Voltage: 2 V Output resistance: 100 Ohm Operating temperature 0 ... +50 °C operating humidity 85 % RH max. power supply 8 x 1.5 V AA batteries or 9 V mains adapter power consumption NiMH battery 3 x 2700 mAh operating/charging time normal operation: Approx. 12 mA dc with backlight off and data logger on: Approx. 35 mA dc Weight measuring device: 515 g probe with cable and magnetic base: 99 g Main unit dimensions: 203 x 76 x 38 mm Probe: 16 x 37 mm in diameter Cable length: 1.2 m.

Product type: Acceleration data logger

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 203 x 76 x 38 mm

Weight: 515 g

Width: 76 mm

Height: 38 mm

Length: 203 mm

Interfaces: Europlug
RS232
USB

Type: PCE-VM 5000

Display: LCD
Digital

Reading type: Acceleration
Speed
Vibration
Frequency

Documents & Downloads

Datasheet

Datasheet 2452722 PCE Instruments PCE-VM 5000 PCE-VM 5000 Acceleration data logger

User & Safety Instructions

User & Safety Instructions 2452722 PCE Instruments PCE-VM 5000 PCE-VM 5000 Acceleration data logger

Description

4-channel vibration data logger PCE-VM 5000 for measuring speed, acceleration and vibration path of vibrations of the 4-channel vibration data logger PCE-VM 5000 is able to carry out vibration measurements at up to 4 places at the same time. The data logger can be used to measure the speed, acceleration and vibration path in a frequency range from 10 Hz to 1 kHz. The cable of the vibration sensors is 1.2 m long, so that the data logger can record vibrations at different places of the component to be examined. The recorded data can be viewed directly on the display or transferred with the SD card to a PC and further analyzed in Excel.
