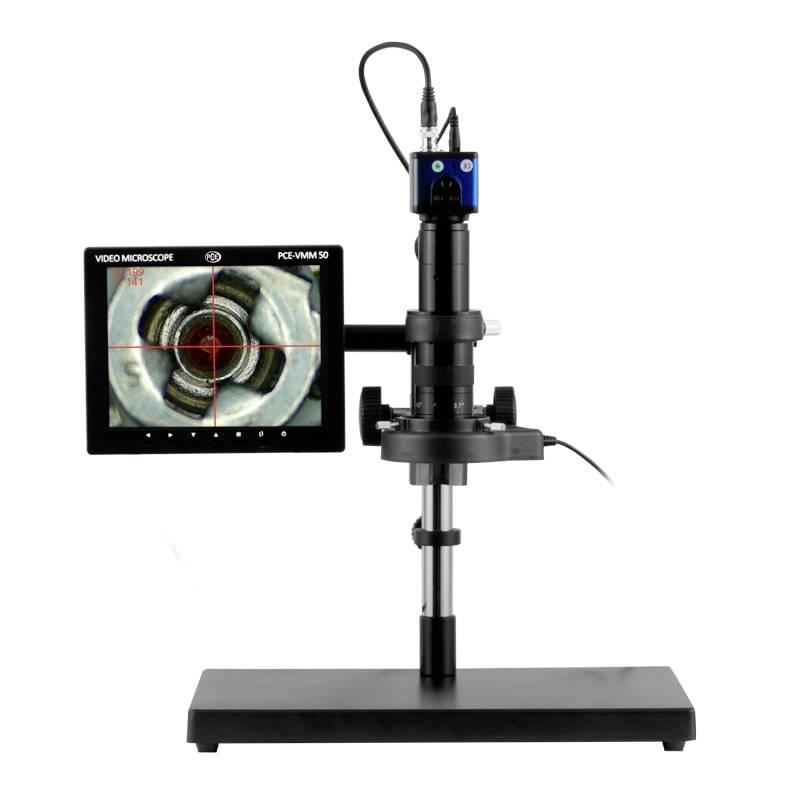

Video microscope with monitor showing a close-up of a threaded metal part, mounted on an adjustable stand with a base.

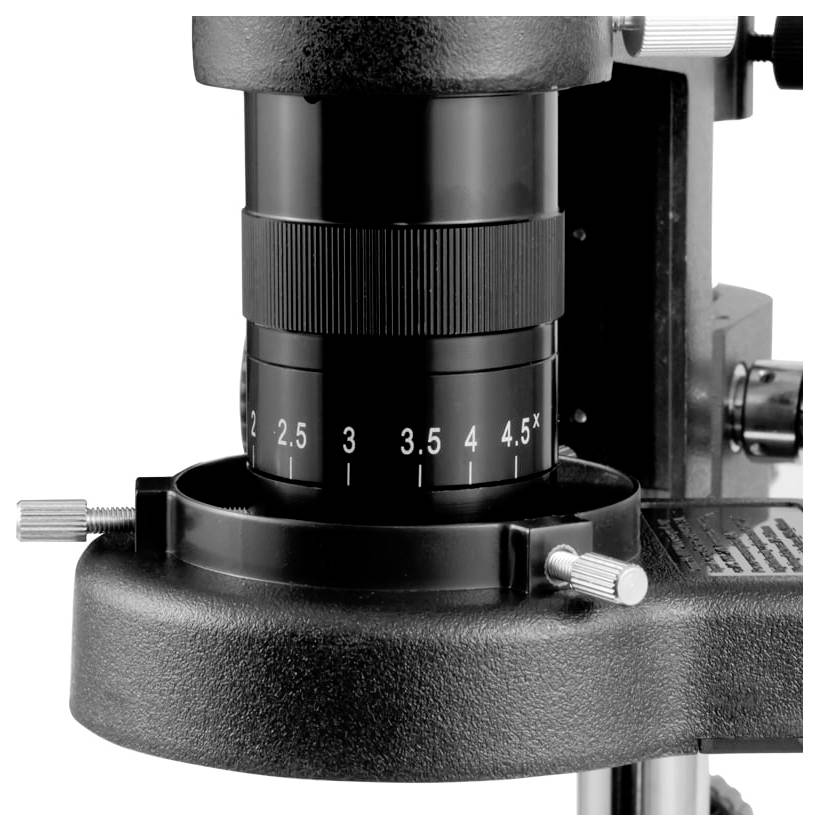

Close-up of a microscope objective lens and focus adjustment ring with magnification markings 2.5, 3, 3.5, 4, and 4.5x.<br>

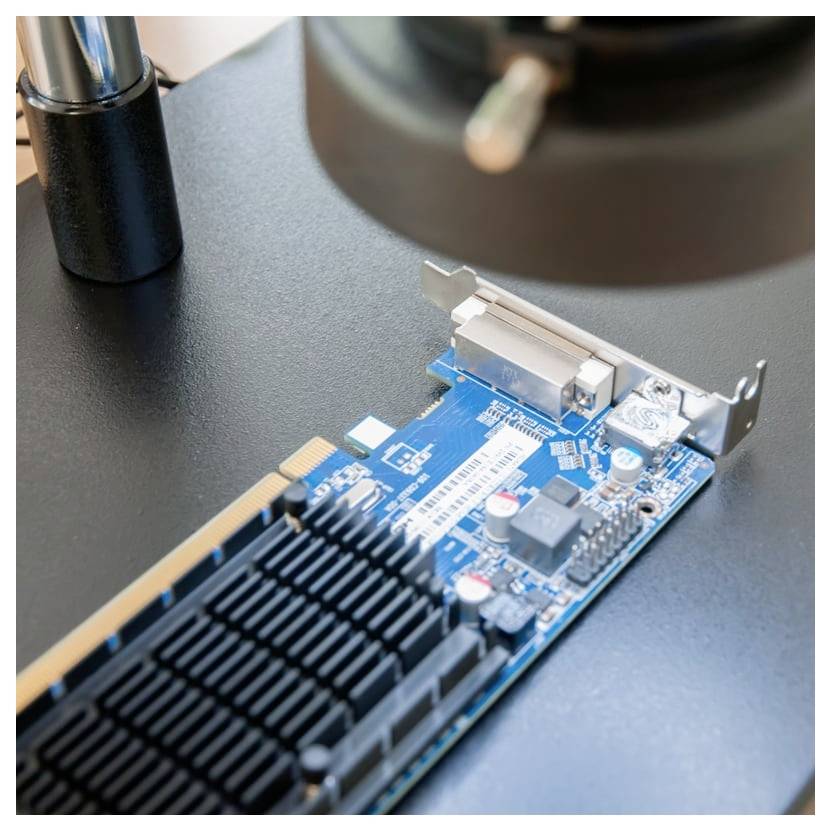

Close-up of a blue computer expansion card with a large black heatsink and metal bracket on a desk, under a microscope or inspection tool.<br>

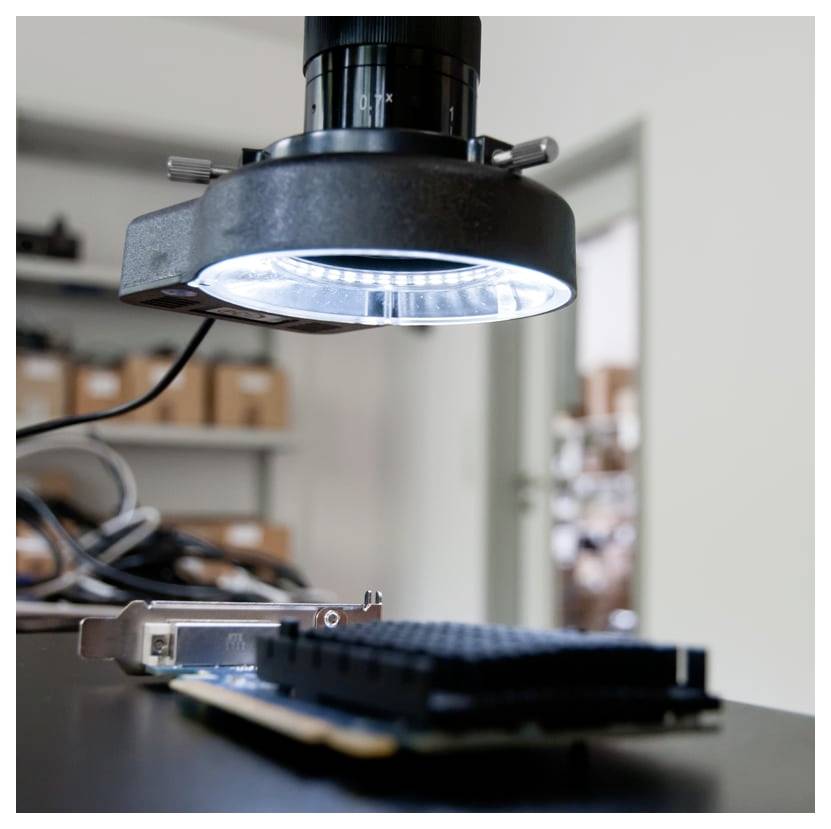

Close-up of a microscope-like inspection light shining on a small circuit board or electronic component on a workbench.

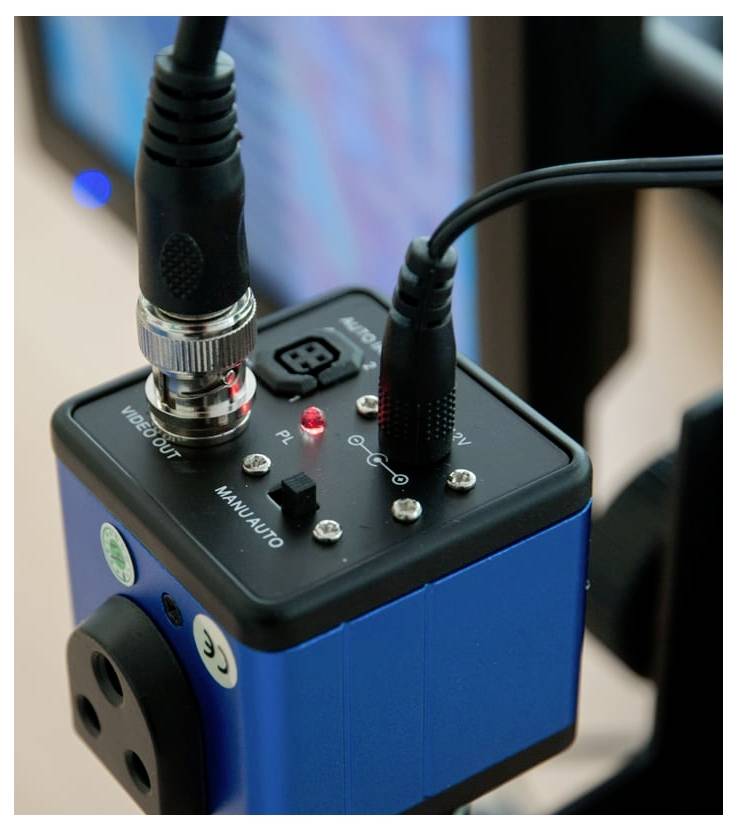

Close-up of a blue electronic control box with connected cables, a red status light, and labels for video output and manual/auto mode.

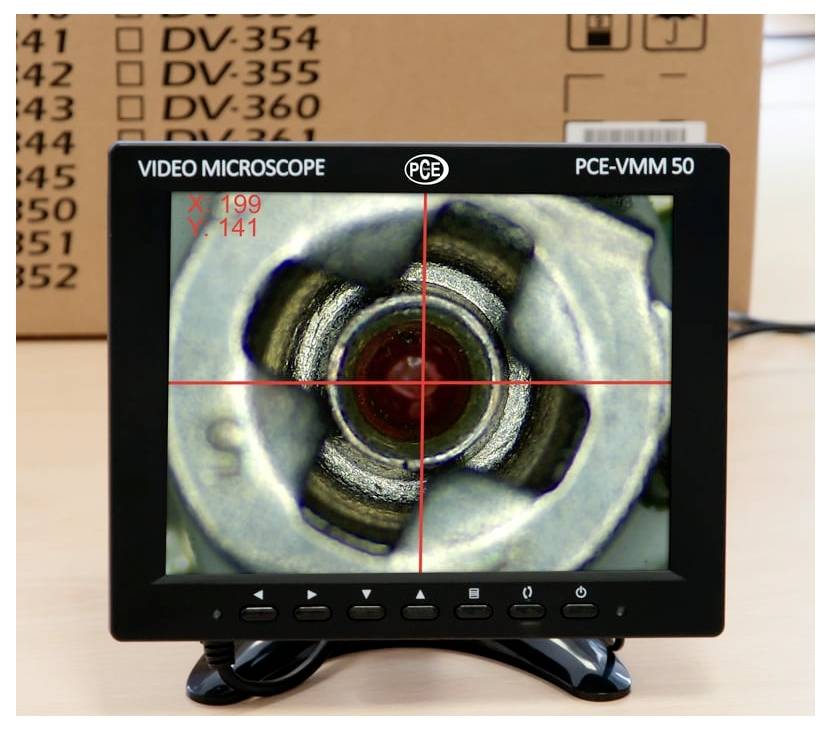

Video microscope displaying a close-up of a metal screw or bearing centered on red crosshairs.

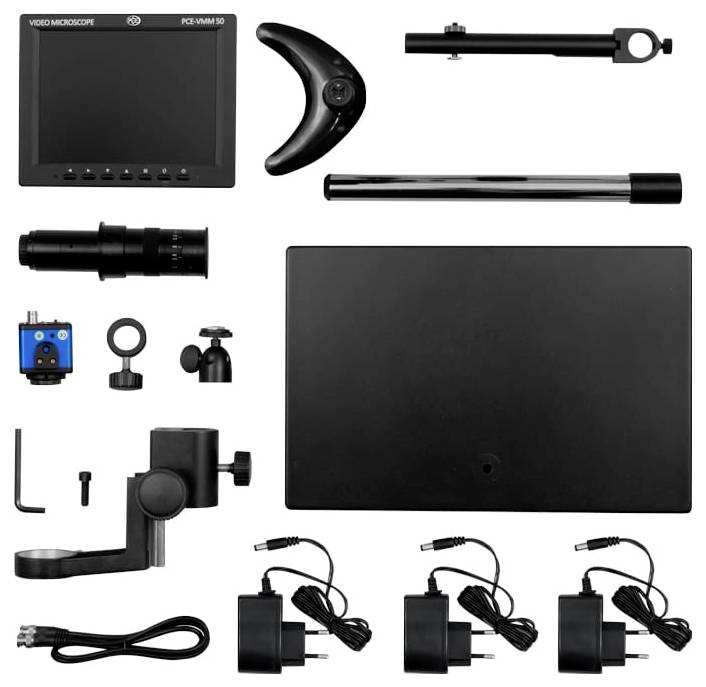

Microscope kit with monitor, camera, lenses, stand parts, cables, and three power adapters laid out on a white background.

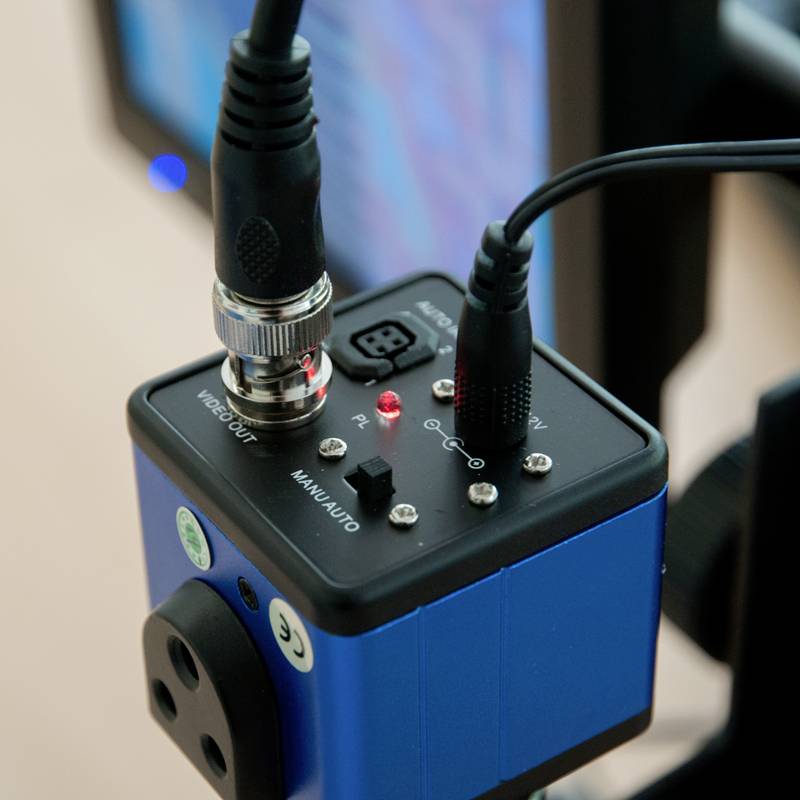

Close-up of a blue electronic device with multiple ports and cables. Display in the background shows a pattern.

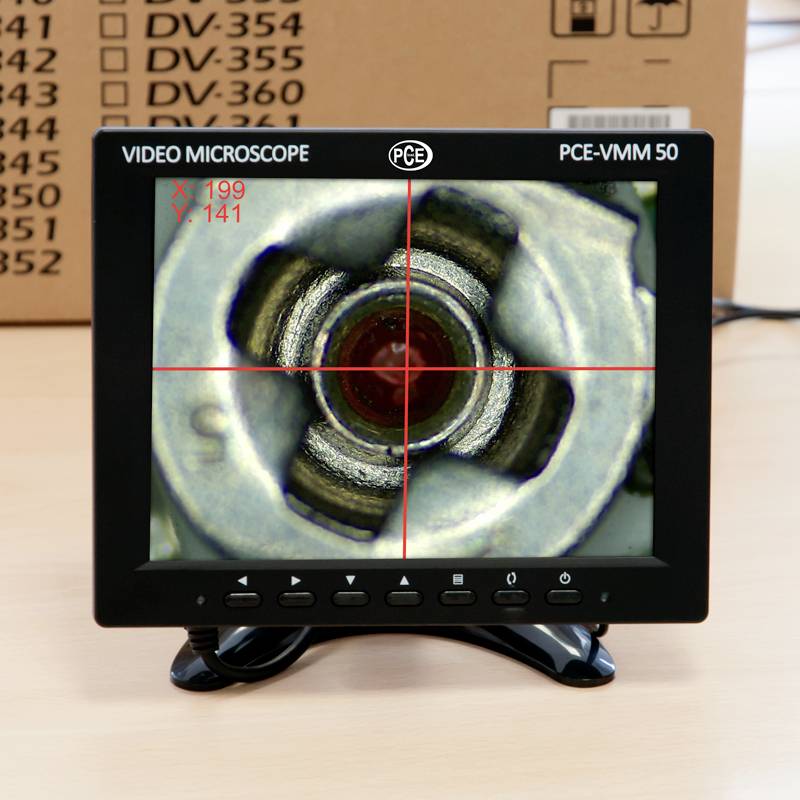

A video microscope shows a highly magnified view of a metallic object with red lines. In the background stands a brown cardboard box.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Magnification 0.7 ... 4.5-fold (optical and continuously variable) 0.5 x eyepiece lens Resolution lens 2-fold 156 mm operating distance Focus range 60 mm Height adjustment range 290 mm Contact area 380 x 225 x 20 mm
Technical data of the digital camera Lens size 1/3 inches Display chip Sony Horizontal visual resolution 720 TVL Video output 1.0 Vpp, 75 Ω Video format PAL / NTSC Power supply 12 V/DC
Technical data of the LC display 7" display (4:3 LCD) Pixels 800 * 600 Signal inputs VGA / AV / TV with BNC Video input PAL / NTSC Power supply 12 V/DC 10 W power consumption
Technical data of the LED lighting Number of LEDs 48 SMD LEDs Connection diameter 65 mm Setting range 0 ... 100% light intensity, infinitely variable Power supply 5 V Power consumption 4 ... 6 W

Product type: Reflected-light microscope

Documents & Downloads

Datasheet

Datasheet 2452771 PCE Instruments PCE-VMM 50 PCE-VMM 50 Reflected-light microscope

User & Safety Instructions

User & Safety Instructions 2452771 PCE Instruments PCE-VMM 50 PCE-VMM 50 Reflected-light microscope

Description

PCE-VMM 50 camera microscope PCE-VMM 50 with large 7-inch screen / integrated camera / 4.5-fold optical zoom / dimmable LED lighting / height adjustable up to 290 mm / large sample surface / removable display The PCE-VMM 50 camera microscope is a microscope with a large sample area of 380 x 225 mm. This makes it possible to freely position even larger samples on the camera microscope. Samples can be analyzed directly on the 7-inch LCD, the camera microscope. In addition, the LC display can be removed from the camera microscope and can be freely positioned on the workplace by means of the stand included in the delivery. The large height adjustment range of 290 mm of the camera microscope can also be used to enlarge particularly high objects. The samples are optimally illuminated with the 48 SMD LED lighting at the camera microscope. This makes the camera microscope ideal for use in schools, universities or workshops, for example, due to its robust and large design.
