PCE Instruments PCE-VMS 100 Vibration tester

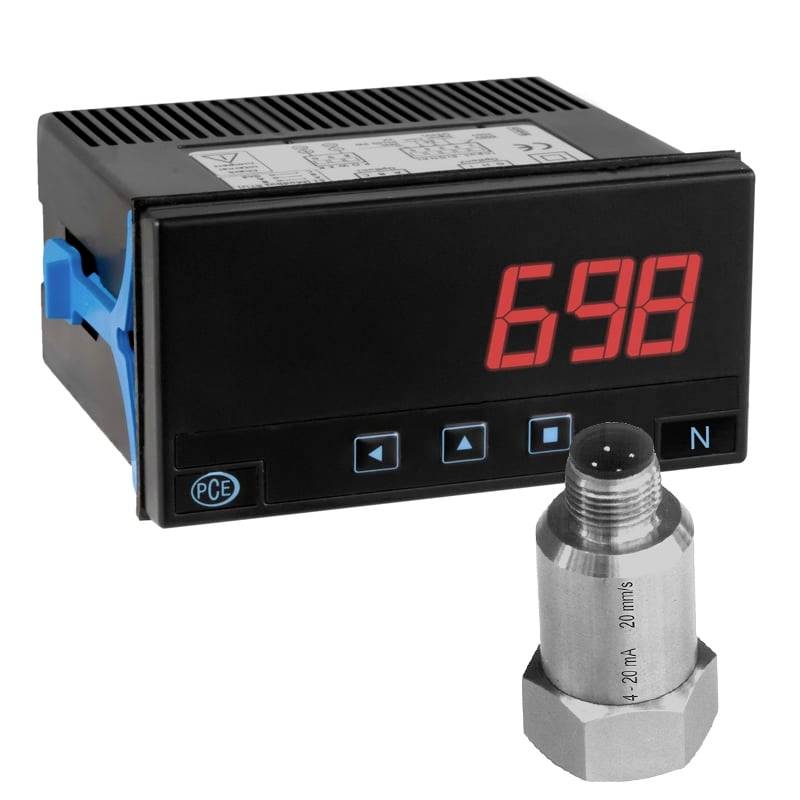

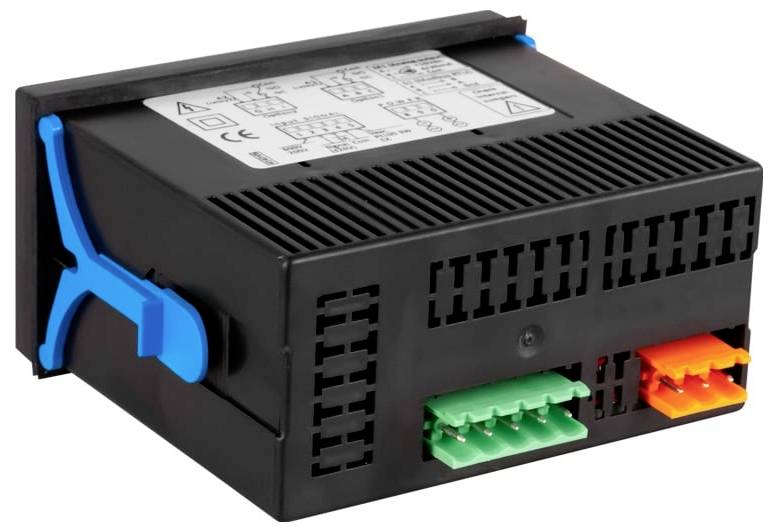

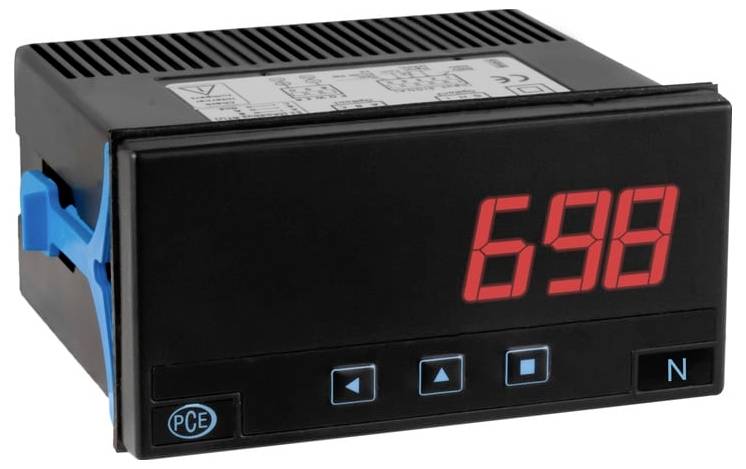

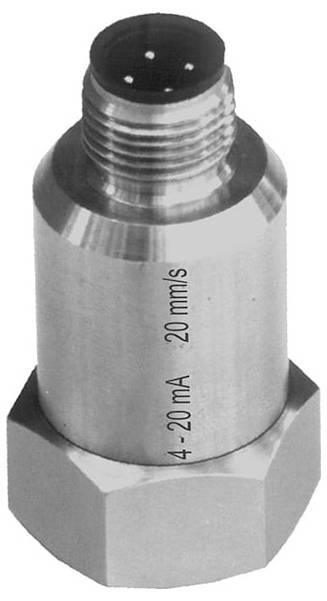

Installation display for different signals / 4-digit / optional output cards / modular design / IP65 front / incl. acceleration sensor The installation display can be configured as AC and DC voltmeter (up to 600 Vac / DC), AC and DC ammeter (up to 5 AAC / DC). Furthermore, the installation display shows measured values of process signals (mA, VDC), thermocouples, resistive temperature sensors (Pt, Ni, PTC and NTC), resistors, potentiometers and frequency. The installation display can be configured via the front buttons. The built-in display is installed in a control panel cut-out with the standard size 96 x 48 mm (1/8 DIN). The measured value is scalable with 4 digits (9999 / -1999). A quick access function for alarm setpoints, external control for activating predefined functions, Eco mode for low consumption, selectable double scaling, 5 configurable brightness levels are also available on the built-in display. A single universal power supply 18 ... 265 V AC / DC makes the built-in display an easy to use process measuring device. Optional modules for output and control (relay, analogue output, Modbus RTU) are available to the user of the installation display. The external acceleration sensor is used to measure the vibration velocity of machines and applications. The acceleration sensor gives the measured value as 4 ... 20 mA standard signal to downstream control and control technology. Thus, the acceleration sensor can be used to perform a complete signal processing for measuring vibration strength. The sensor can be used for measurements according to DIN/ISO 10816. The 4 ... 20 mA signal indicates the effective value of the vibration velocity. The measuring range of the ranges from 0.2 ... 20 mm/s. The frequency range ranges from 10 ... 1000 Hz. The acceleration sensor is supplied via a current loop and is completely galvanically isolated. The vibration sensor is protected against polarity reversal. The sensor is connected to the PLC via a M12 cable connection. In order to be able to use the acceleration sensor even in rough environments, it is protected according to IP67.
