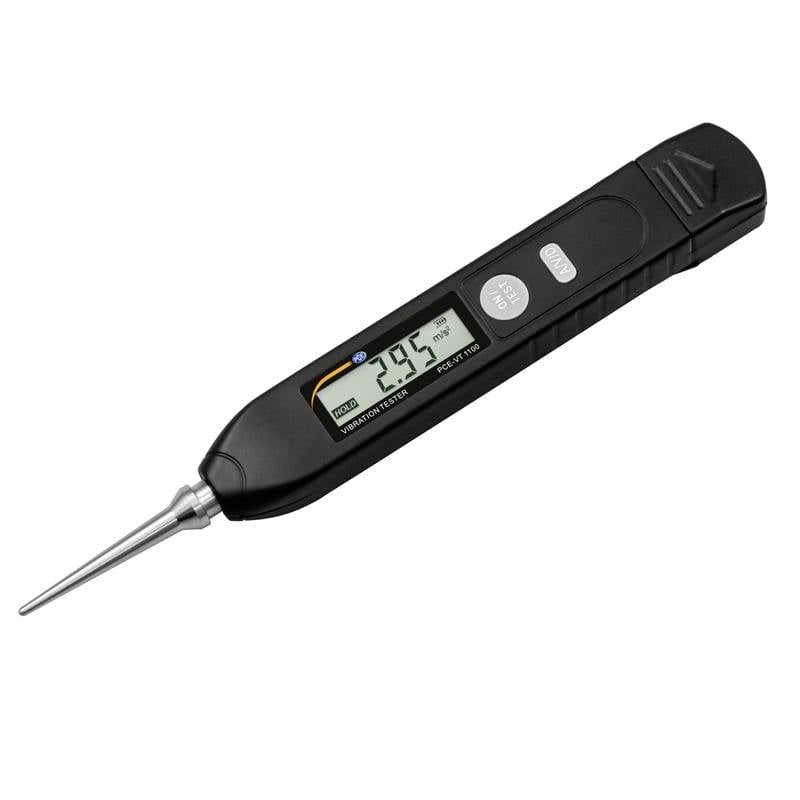

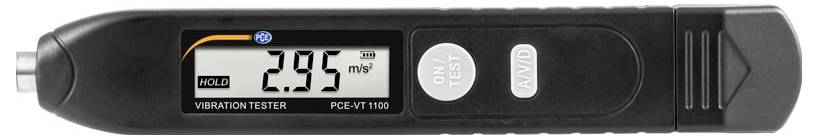

PCE Instruments PCE-VT 1100S Accelerometer
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ACCELERATION TRANSDUCER PCE-VT 1100S
- Measures speed, path, acceleration
- Holds the measured value after each measurement

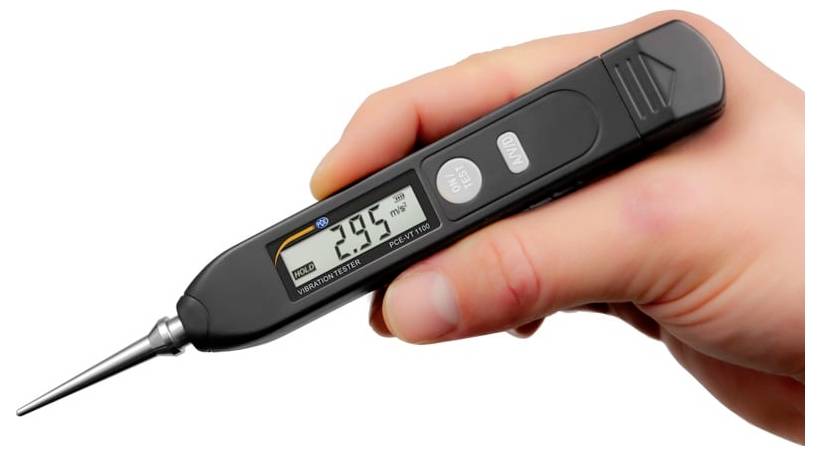

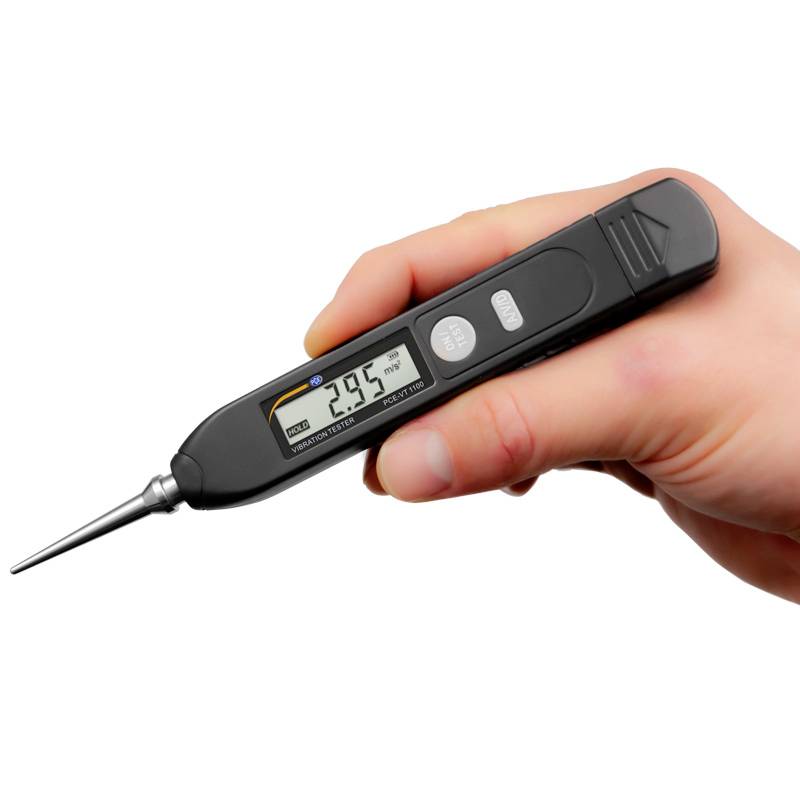

- handy and battery-operated
- Wide frequency range
- Automatic switch-off after 20 seconds
- Battery level indicator
Technical specifications
- Parameter Reading range Frequency range Acceleration 0.01 ... 199.9 m/s² peak 10 Hz ... 1 kHz Vibration speed 0.01 ... 199.9 mm/s rms 10 Hz ... 1 kHz Shift 0.001 ... 1.999 mm p-p 10 ... 500 Hz Accuracy Acceleration: ≤ 3% Vibration speed: ±5%, ±2 digits Offset: +10/-20 % (10...20 Hz) ±5 % (20...1000 HZ) General specifications LCD display, Response time approx. 1 second Power supply 2 x 6 V CR2032 button cells Battery life approx. 5 hours (in continuous operation) Ambient conditions 0 ... +40 °C, 0 ... 84 % r.F. Dimensions 155 x 24 x 18.7 mm Weight approx. 40 g including batteries.
- Product type
Accelerometer
- Display
LCD
- Weight
40
- Type
PCE-VT 1100S
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452726 PCE Instruments PCE-VT 1100S Accelerometer
User & Safety Instructions
User & Safety Instructions 2452726 PCE Instruments PCE-VT 1100S Accelerometer
Description

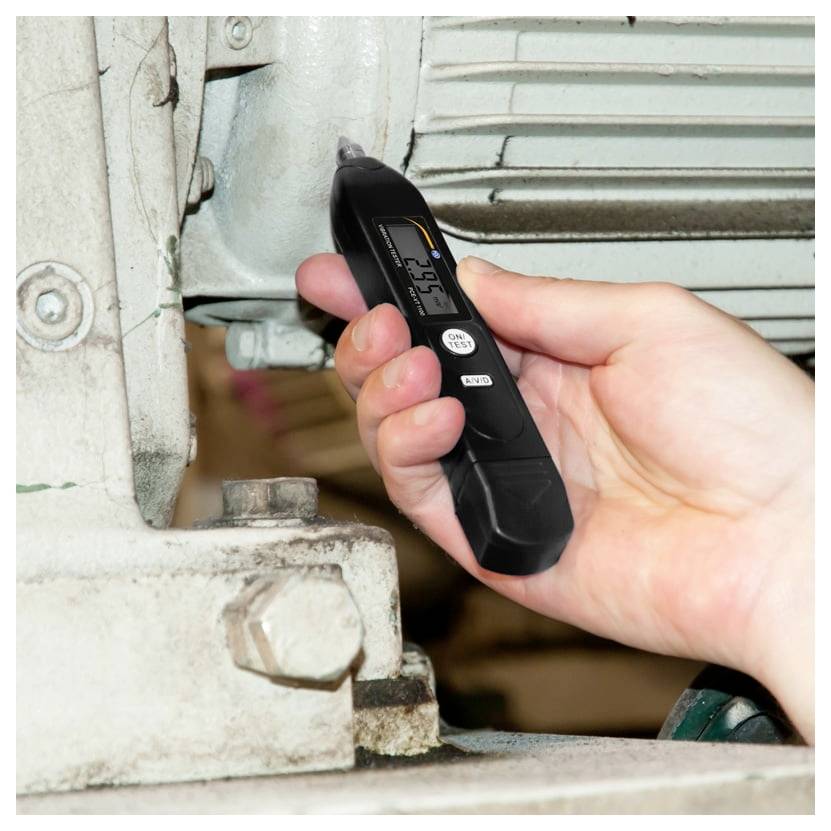

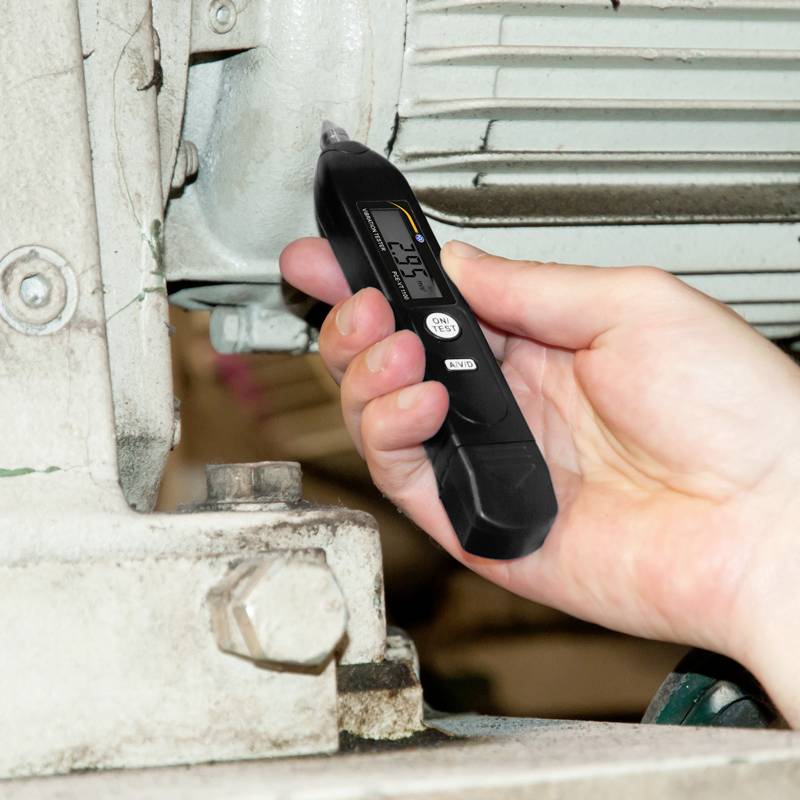

Acceleration transducer for vibration measurement / Measured value memory for previous measurement / Measurement of acceleration, vibration speed and displacement / large frequency range / battery-operated handheld meter / automatic disconnection of the acceleration sensors is used as hand-held measuring device for the individual evaluation of vibration on machines and plants. With the help of this acceleration sensor, the actual state can easily be determined on site. This means that appropriate changes can be made directly on site after the measurement. The new state can also be assessed after this. The acceleration sensor thus serves as a measuring device for a relative measurement on different machines. The acceleration sensor is essentially used for preventive or preventive maintenance of production machines. This acceleration sensor is used for a quick measurement of the imbalance as well as for checking bearing and gear states. Very often, the acceleration sensor is also used to evaluate the condition of smaller electric motors.
This text is machine translated.
This text is machine translated.

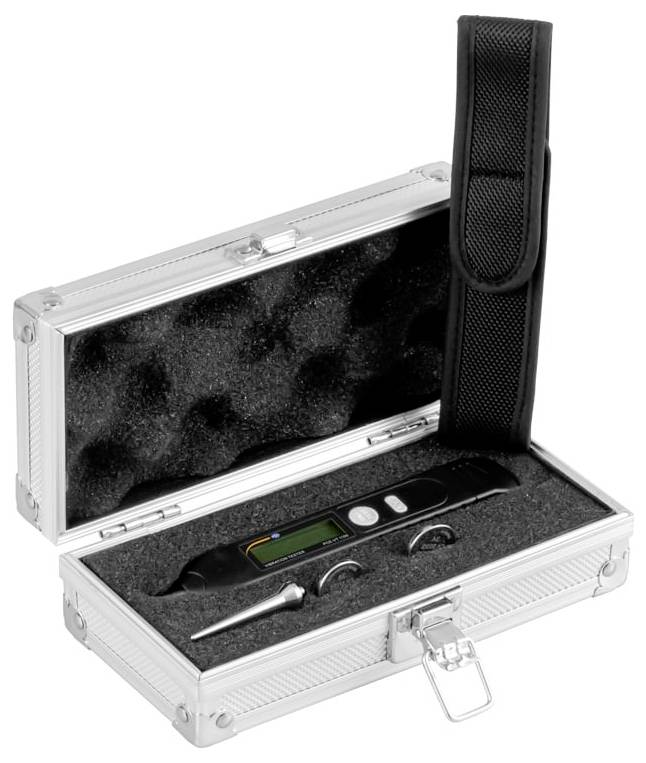

Scope of delivery
- 1 x acceleration sensor PCE-VT 1100S
- 1 x PCE-VT-NF-45 needle sensor (length 45mm)
- 2 x batteries
- 1 x carrying case
- 1 x storage box
- 1x user manual
