PCE Instruments PCE-VT 204 Vibration tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

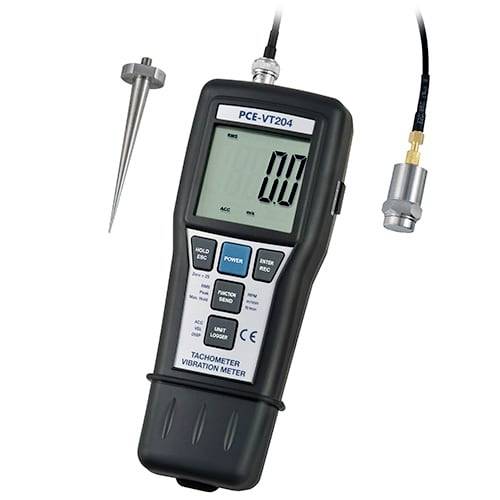

Vibration meter PCE-VT 204
- Vibration path, vibration speed and vibration acceleration
- Speed (optical and contacting)
- Has measured value memory for 1000 values
- 15 mm LCD display
- Display if the battery value is too low
- RS-232 PC interface
Technical specifications
- Vibration Range automatic 10 ... 40 °C). Acceleration 0.5 ... 199.9 m/s² Speed 0.5 ... 199.9 mm/s Offset 0.005 ... 1.999 mm. Resolution Acceleration 0.1 m/s² Speed: 0.1 mm/s Displacement 0.001 mm Accuracy Acceleration ±5% v.MW. ±2 digits (at 160 Hz, 23 ± 5 °C) Speed ±5% v.MW. ±2 digits (at 160 Hz, 23 ± 5 °C) Displacement ±5% v.MW. ±2 digits (at 160 Hz, 23 ± 5 °C) Frequency range Frequency range 10 Hz ... 1 kHz Speed Measuring range speed (optical) 10 ... 99999 rpm Speed (contact) 0.5 ... 19999 rpm Speed 0.05 ... 1999 m/min Resolution 0.1 rpm (< 1000 rpm) 1 rpm ( > 1000 rpm) 0.01 m/min (< 100 m/min) 0.1 m/min ( > 100 rpm) Accuracy ±0.05 % of reading ±1 digit Measuring distance 50 ... 1500 mm (depending on surface) General properties Internal measured value memory 1000 values RS-232 interface yes LCD display with bar graph Power supply 4 x 1.5 V AA batteries Dimensions 188 x 76 x 47 mm Operating conditions 0 ... +50 °C /< 80 % r.h. Weight 400 g ABS plastic casing
- Product type
Vibration tester
- Reading type
Acceleration
Vibration
Shift
Speed
- Display
LCD
- Dim
(L x W x H) 188 x 76 x 47 mm
- Weight
400 g
- Width
76 mm
- Height
47 mm
- Length
188 mm
- Interfaces
RS232
- Type
PCE-VT 204
Documents & Downloads
Datasheet
Datasheet 2452729 PCE Instruments PCE-VT 204 Vibration tester
User & Safety Instructions
User & Safety Instructions 2452729 PCE Instruments PCE-VT 204 Vibration tester
Description
Vibration meter Measuring device for recording vibration speed, - acceleration,- distance / with additional optical and contacting speed measurement function / internal data memory, RS-232 interface / optional software of vibration meter PCE-VT 204 is a true multi-talent. This vibration meter is thus able to measure the three important vibration parameters precisely and at the same time it can be used as a tachometer (optically with reflex marks or contacting via measuring wheel). In addition to the vibration monitoring of motors, gearboxes, shakers, bearings, etc., the vibration meter is also suitable for measuring the speed of rotating machines and systems. The supplied acceleration sensor can be placed flat, provided with the magnetic base included in the delivery or you can combine the sensor with the screw-on needle tip (also included in the delivery). If you want to transfer the measurement data directly from the vibration meter (or from the memory) to a PC / laptop, you can use the optional software. The internal frequency filters suppress background noise, so that only the specific vibrations are recorded.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x Vibration measurer PCE-VT 204
- 1 x attachment sensor at 1.5 m cable
- 1 x 70 mm nail sensor
- 1 x magnetic plate
- 1 x measuring cone (measuring tip and cone for tachometer function)
- 1 x reflex tape (600 mm)
- 1 x carrying case
- 4 x battery
- 1x user manual
