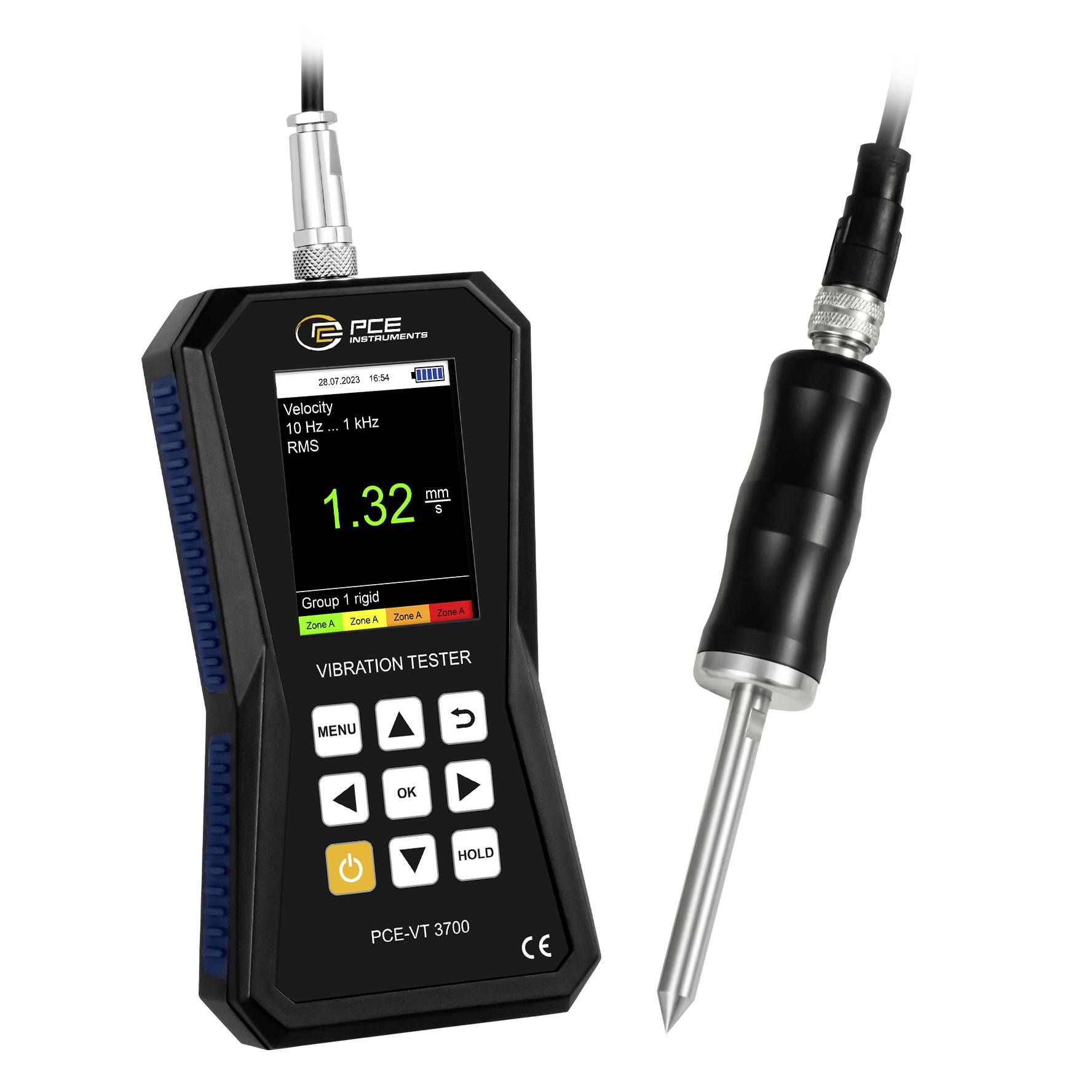

PCE Instruments PCE-VT 3700S Accelerometer
EAN:
Part number:
Item no:
Highlights & Details
ACCELERATION TRANSDUCER PCE-VT 3700S
- Automatic ISO 10816-3 evaluation
- easy to use
- For mobile vibration measurement

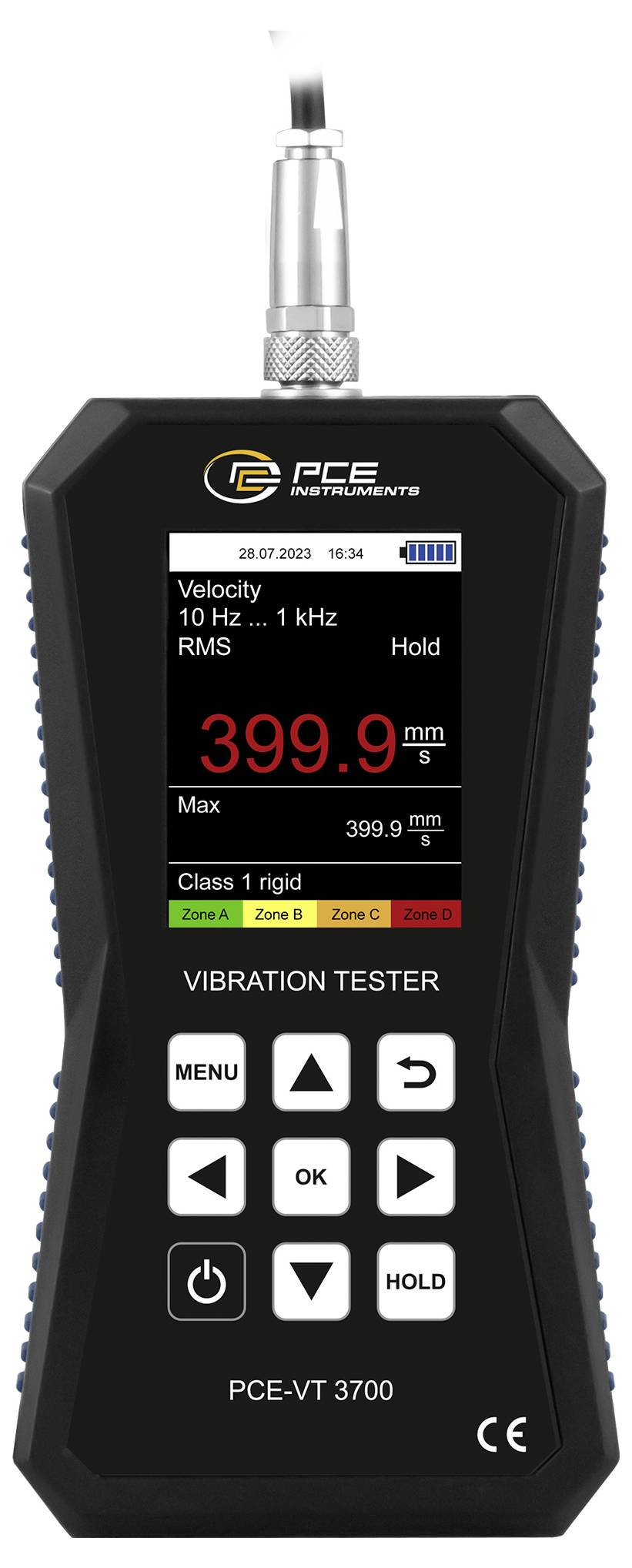

- Color graphic display
- Peak hold function
Technical specifications
- Acceleration measuring range 0.0 ... 399.9 m/s² Resolution 0.1 m/s² Accuracy @ 160 Hz ±2 % Frequency range 1 kHz / 10 kHz 10 Hz ... 10 kHz Measurement range speed 0.00 ... 399.9 mm/s Resolution 0.1 mm/s. Accuracy @ 160 Hz ±2 % Frequency range 10 Hz ... 1 kHz Measurement range path 0.000 ... 3.9 mm Resolution 1 µm Accuracy @ 160 Hz ±2 % Frequency range 10 Hz ... 200 Hz Measurement parameter RMS, peak, peak peak peak peak peak crest factor Units switchable metric / imperial Display 2.4 " LC display Menu languages English, German, French Spanish, Italian, Dutch Portuguese, Turkish, Polish Russian, Chinese, Japanese Power supply 3 x 1.5 V AA batteries Operating and storage conditions -20 ... +65 °C 10 ... 95 % r.F. Dimensions 150 x 80 x 38 mm Weight 170 g Technical data for acceleration sensor Resonant frequency 24 kHz Cross sensitivity ≤ 5% Destruction limit 5000 g (peak) Operating and storage temperature -55 °C … +150 °C. Housing material stainless steel and plastic Mounting thread ¼ - 28" Dimensions Ø 29 x 81 mm Weight (without cable) 119 g
- Product type
Accelerometer
- Reading type
Acceleration
Speed
Vibration
- Display
LCD
- Dim
(L x W x H) 85 x 32 x 165 mm
- Weight
170 g
- Minimum object size
1 cm
- Width
32 mm
- Height
165 mm
- Length
85 mm
- Interfaces
DIN plug 5-pin
- Type
PCE-VT 3700S
ISO standards
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2452731 PCE Instruments PCE-VT 3700S Accelerometer
Description

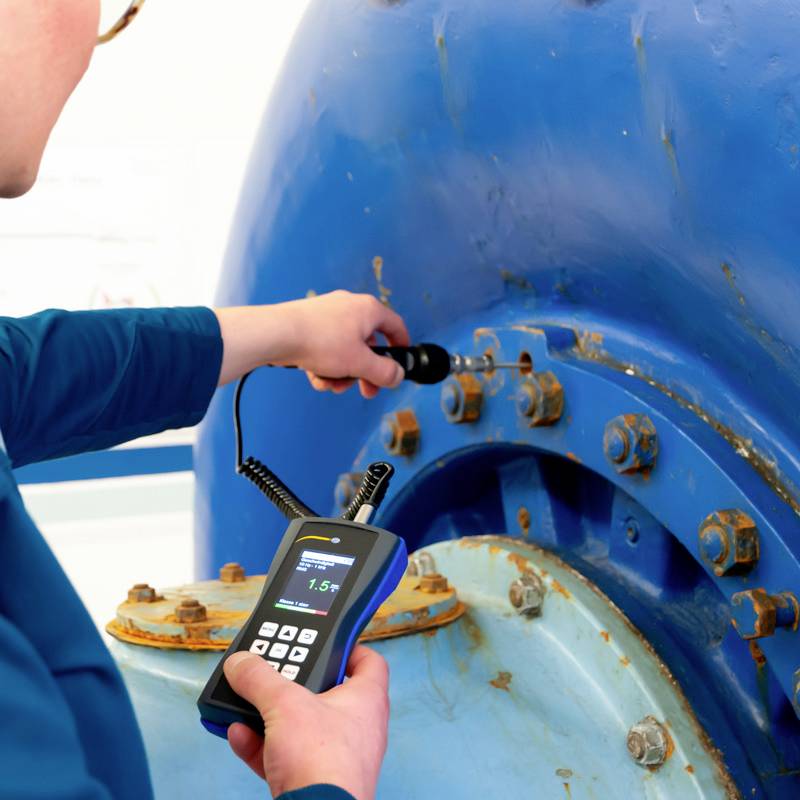

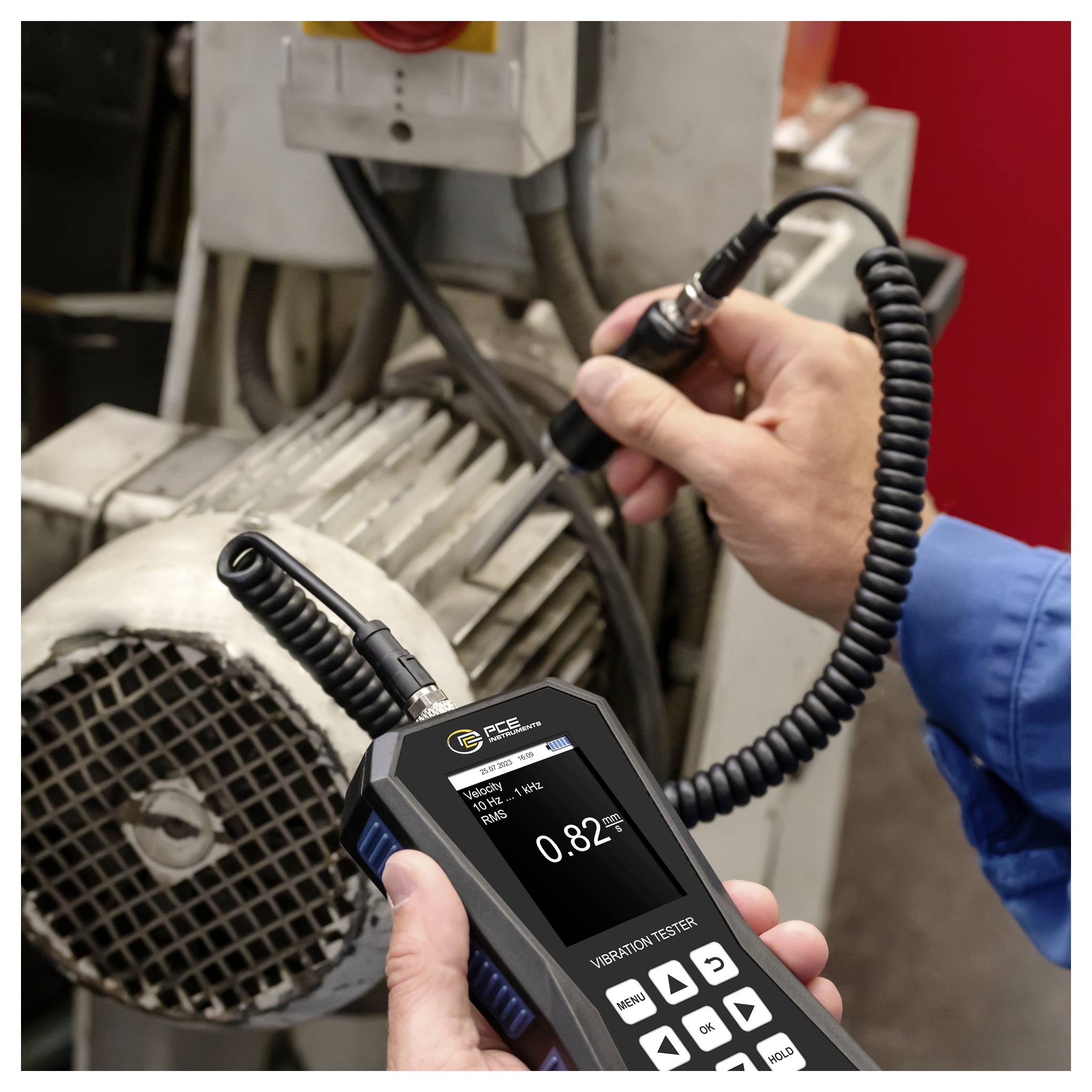

Handy accelerometer for vibration monitoring of machines and systems / HOLD function / Peak measurement / Handheld for mobile vibration measurement / Automatic ISO 10816-3 Evaluation of the acceleration sensors is ideal for maintenance personnel for quick checking of vibrating parts, machines and systems. This acceleration sensor indicates the vibration acceleration, the vibration velocity and the vibration path directly on the display. This allows you to quickly and safely detect and track imbalance and developing bearing damage. The acceleration sensor is equipped with a mode that allows measurement according to ISO 10816-3 to be carried out. The acceleration sensor analyzes the measured values and automatically shows a good-bad evaluation on the display. The accelerometer is supplied with a sensor connected to a spiral cable, retaining magnet, service case and batteries. The ISO factory certificate completes the scope of delivery. The display of the acceleration sensor is a colored graphic display, which simplifies the operation, since all instructions and menu items are shown in plain text. The 12 languages in the menu of the acceleration sensor can be easily switched.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x acceleration sensor PCE-VT 3700S

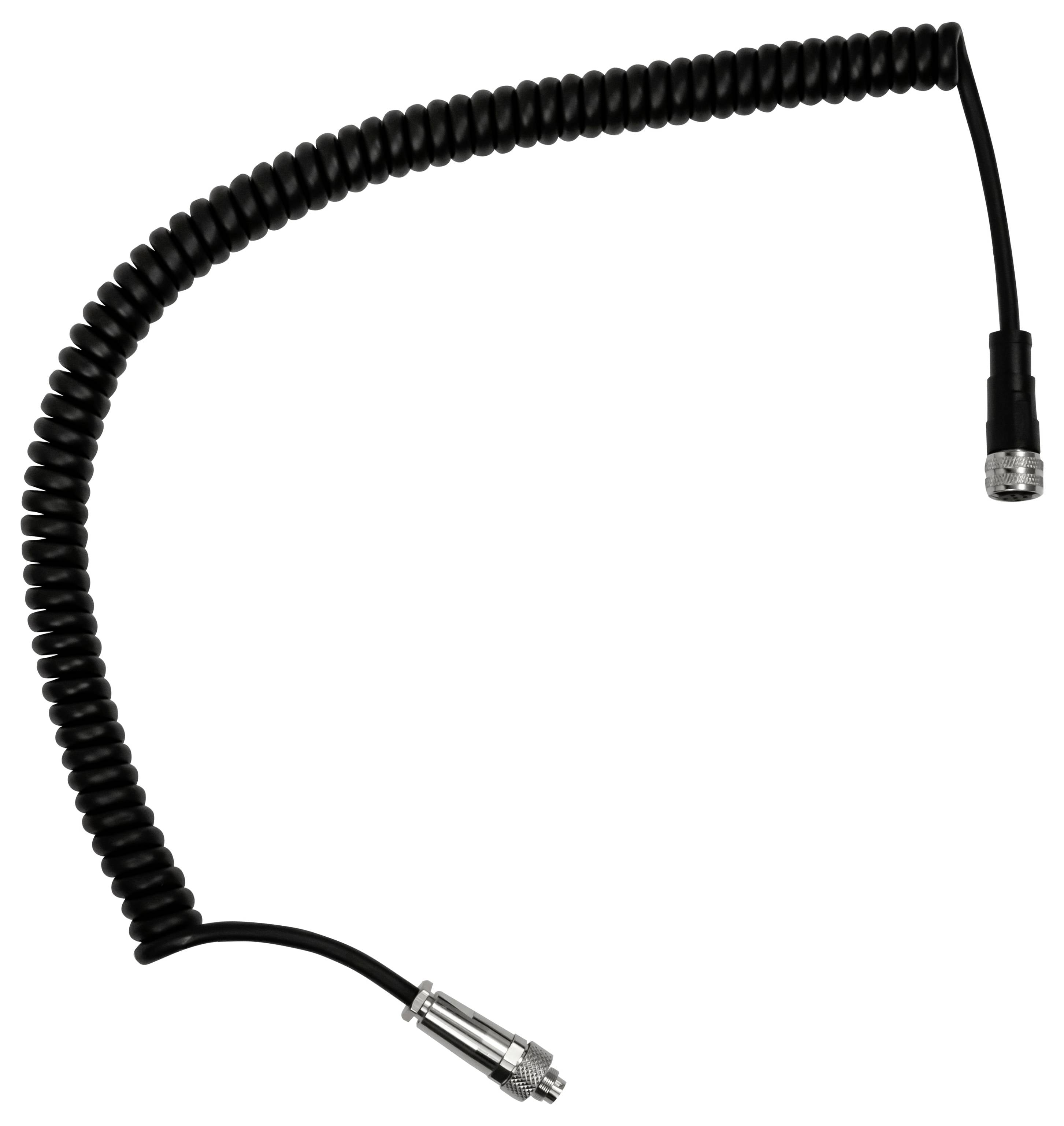

- 1 x sensor with spiral cable PCE-VT 3xxx SENSOR
- 1 x PCE-VT VMH magnetic holder

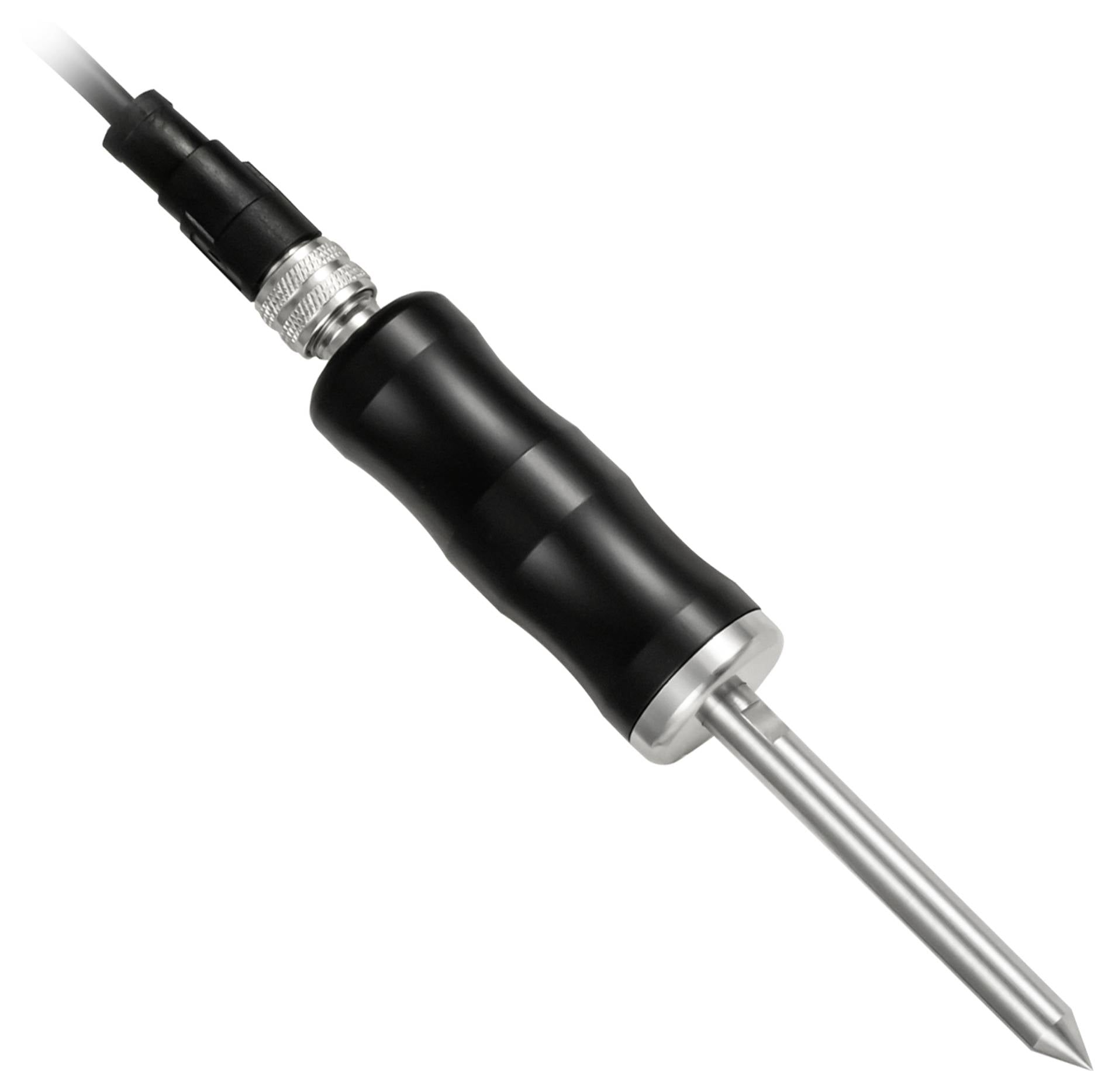

- 1 x Pinstripe sensor PCE-VT NP
- 3 x 1.5 V AA battery
- 1 x QuickStartGuide
- 1 x service case
