PCE Instruments PCE-VT 3700S-ICA Vibration transducer ±2 %
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-VT 3700S-ICA
- Automatic ISO 10816-3 evaluation
- easy to operate
- For mobile vibration measurement
- Colour graphical display
- Peak hold function
- ISO calibration certificate
- Incl. ISO calibration certificate
Technical specifications
- Acceleration
- Measuring range 0 ... 399.9 ft/s²
- Resolution 0.1 ft/s²
- Accuracy ±2 %
- Frequency range 1 kHz ... 10 kHz, 10 Hz ... 10 kHz
- Speed
- Measuring range 0 ... 399.9 km/h
- Resolution 0.1 mm/s.
- Accuracy ±2 %
- Frequency range 10 Hz ... 1 kHz
- Way
- Measuring range 0 ... 3.9 inch
- Resolution 1 inch
- Accuracy ±2 %
- Frequency range 10 Hz ... 200 Hz
- Sensor
- Name PCE-VT 3xxxS
- Additional description Resonance frequency: 24 kHz,Cross sensitivity: Δ 5%,Destruction limit: 5000 g (Peak),Housing material: Stainless steel,Mounting thread: ¼ - 28 UNF
- Dimensions Ø 29 x 91 mm
- General Technical Data
- Number of measurement channels 1
- Measurement functions RMS, peak, peak-peak, crest factor
- FFT 0
- Frequency 10 ... 10000 Hz
- Display type LCD
- Display size 2.8 inches
- Menu language English (US), German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese
- Protection class (device) IP52
- Battery 1 x 1.5 V AA battery , alkaline-manganese
- Capacity 2500 mAh
- Operating conditions -20 ... 65 °C , 10 ... 95 % r.F.
- Storage conditions -20 ... 65 °C , 10 ... 95 % r.F.
- Dimensions ( L x W x H ) 165 x 85 x 32 mm
- Further dimensions vibration sensor Ø29 x 91 mm
- Weighs 239 g.
- Other weights vibration sensor 119 g.
- Basic accuracy
±2 %
- Product type
Vibration transducer
- Reading type
Acceleration
Speed
Vibration
- Display
LCD
- Operating voltage
3 x 1.5 V AA batteries V
- Dim
(L x W x H) 85 x 32 x 165 mm
- Weight
170 g
- Minimum object size
1 cm
- Width
32 mm
- Height
165 mm
- Length
85 mm
- Interfaces
DIN plug 5-pin
- Type
PCE-VT 3700S-ICA
Documents & Downloads
Datasheet
Datasheet 3812928 PCE Instruments PCE-VT 3700S-ICA Vibration transducer ±2 %
User & Safety Instructions
User & Safety Instructions 3812928 PCE Instruments PCE-VT 3700S-ICA Vibration transducer ±2 %
Description

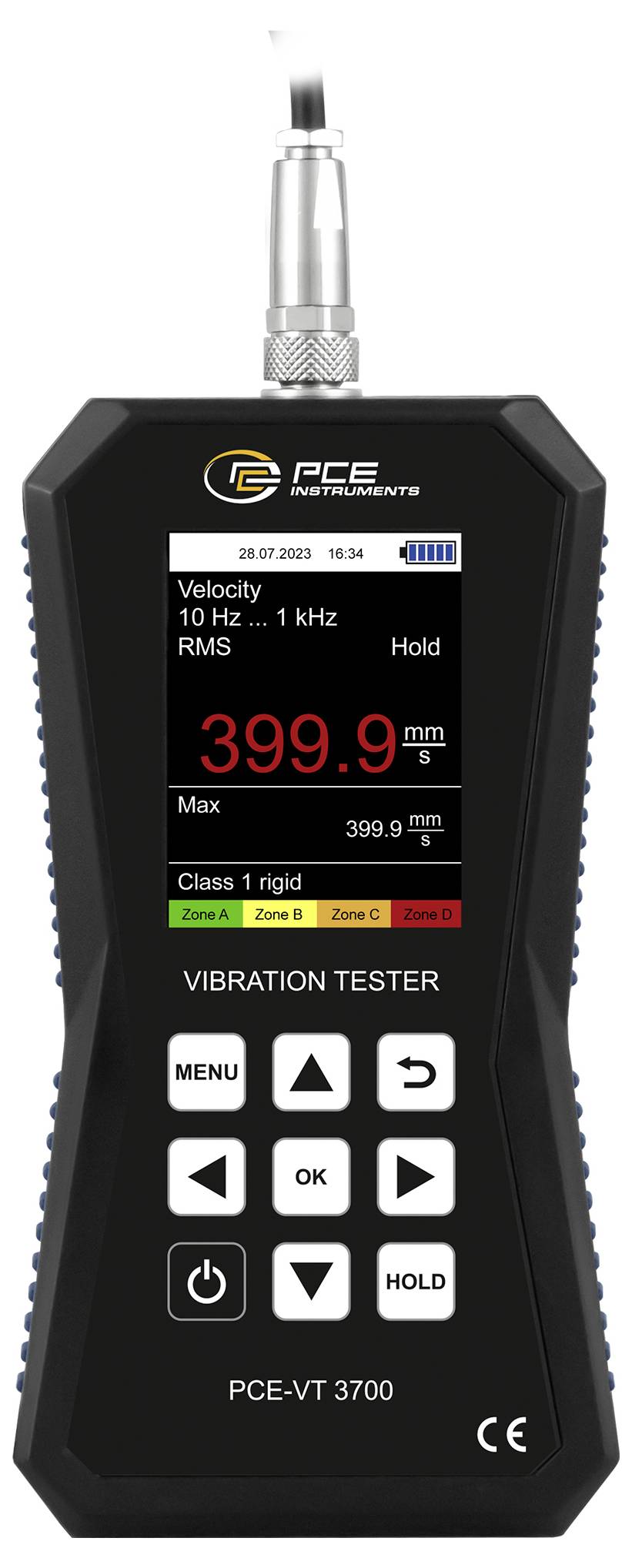

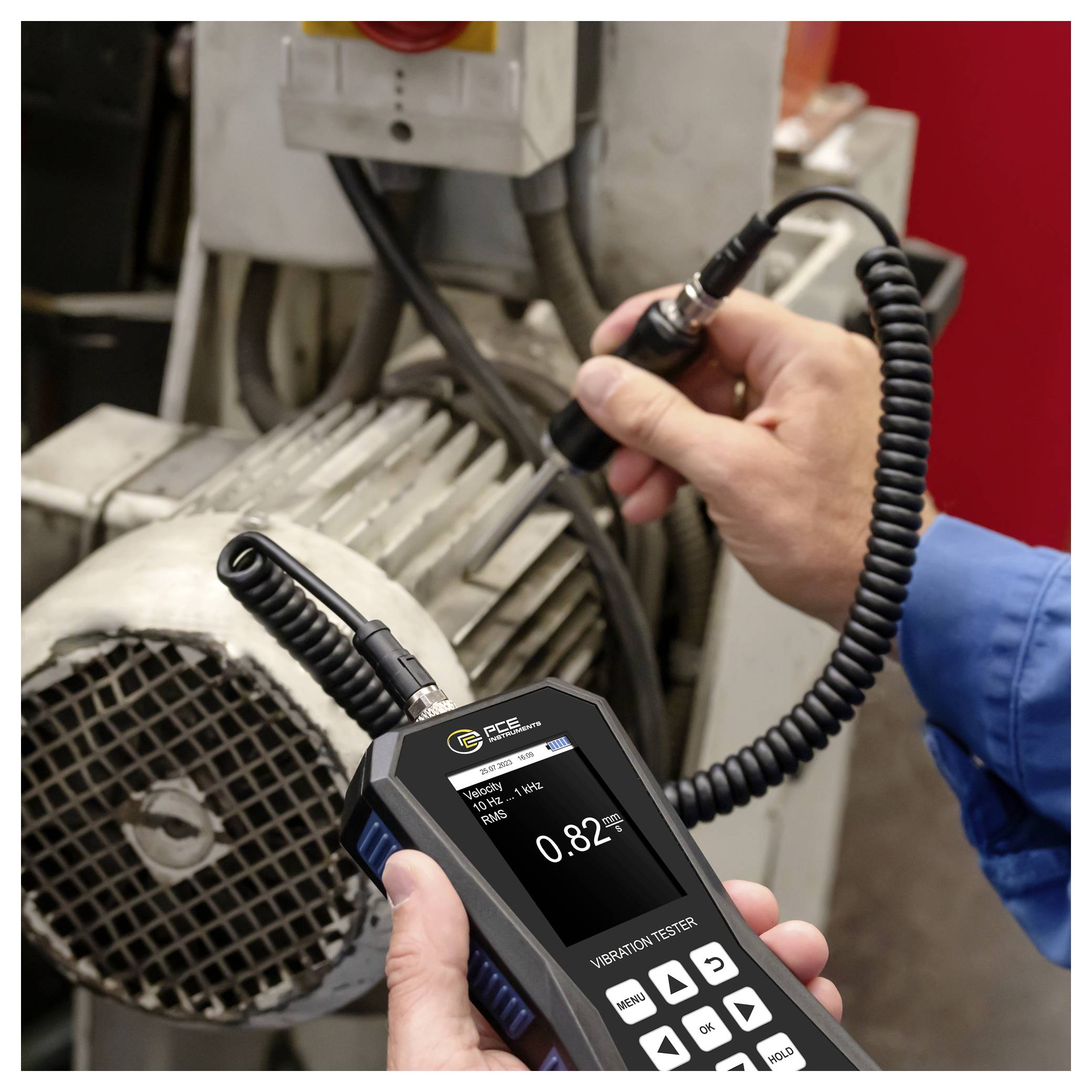

The vibration measuring device is Ideal for maintenance workers for the quick checking of vibrating parts, machines and plants. This vibration meter shows the vibration acceleration, vibration speed and travel directly on the display. Thus you can quickly and safely detect and track the imbalance and developing bearing damages. The vibration meter is equipped with a mode that allows you to make measurements according to ISO 10816-3. The vibration meter analyzes the measurement values and automatically shows a good-bad evaluation on the display.
The vibration measuring device is delivered with sensor at spiral cable, holding magnet, service bag and batteries. The ISO factory certificate completes the scope of delivery. The display of the vibration meter is a color graphical display that makes operation easier by displaying all instructions and menu items in clear text. The 12 languages in the menu of the vibration meter can be switched easily.
This text is machine translated.
The vibration measuring device is delivered with sensor at spiral cable, holding magnet, service bag and batteries. The ISO factory certificate completes the scope of delivery. The display of the vibration meter is a color graphical display that makes operation easier by displaying all instructions and menu items in clear text. The 12 languages in the menu of the vibration meter can be switched easily.
This text is machine translated.
Features
- Automatic ISO 10816-3 evaluation
- easy to operate
- For mobile vibration measurement
- Colour graphical display
- Peak hold function
- Incl. ISO calibration certificate
Scope of delivery
- 1 x vibration meter PCE-VT 3700S-ICA-ICA

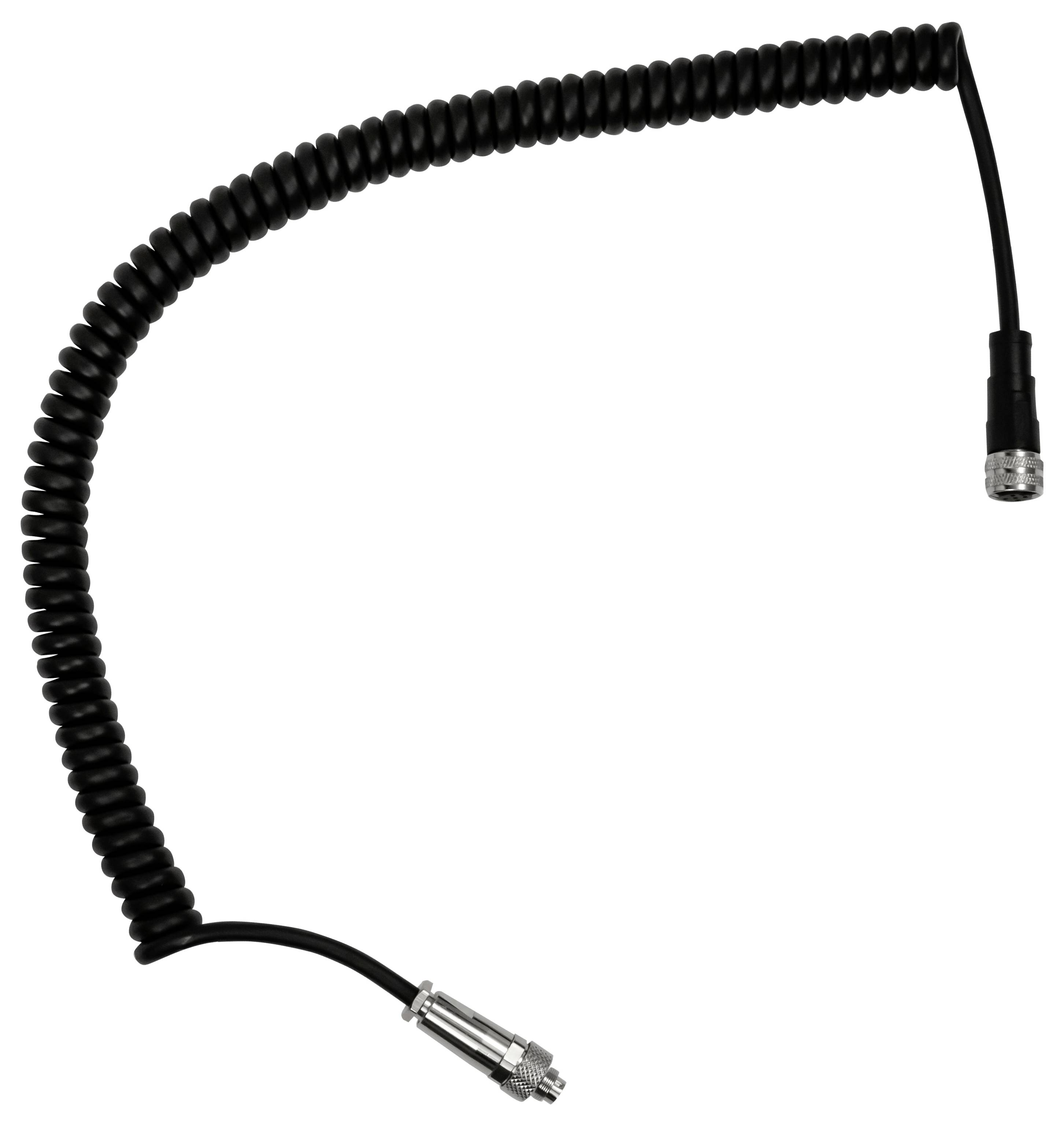

- 1 x sensor with spiral cable PCE-VT 3xxx SENSOR
- 1 x PCE-VT VMH magnetic holder

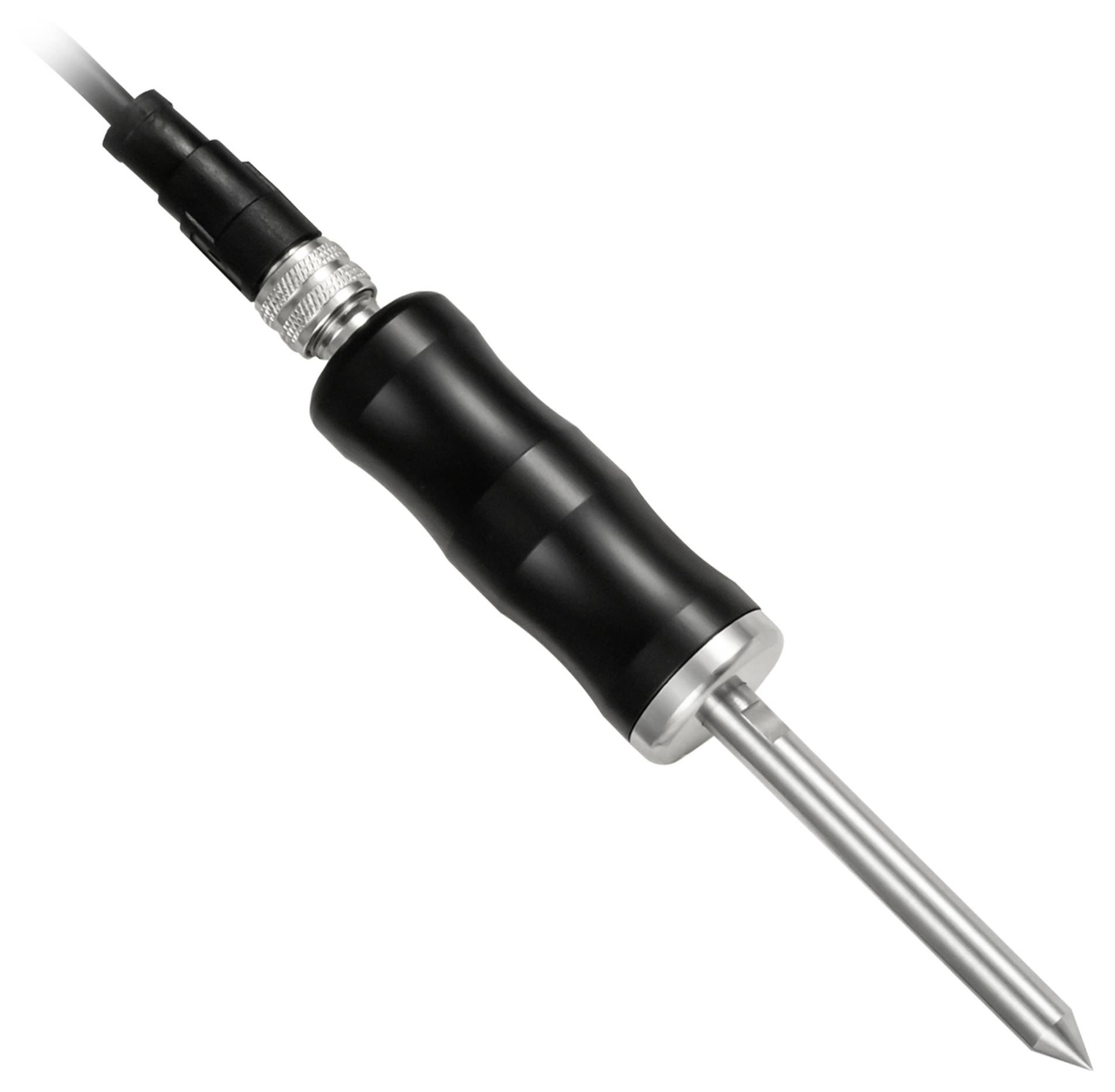

- 1 x needle sensor PCE-VT NP
- 3 x 1.5 V AA battery
- 1 x QuickStart Guide
- 1 x Service case

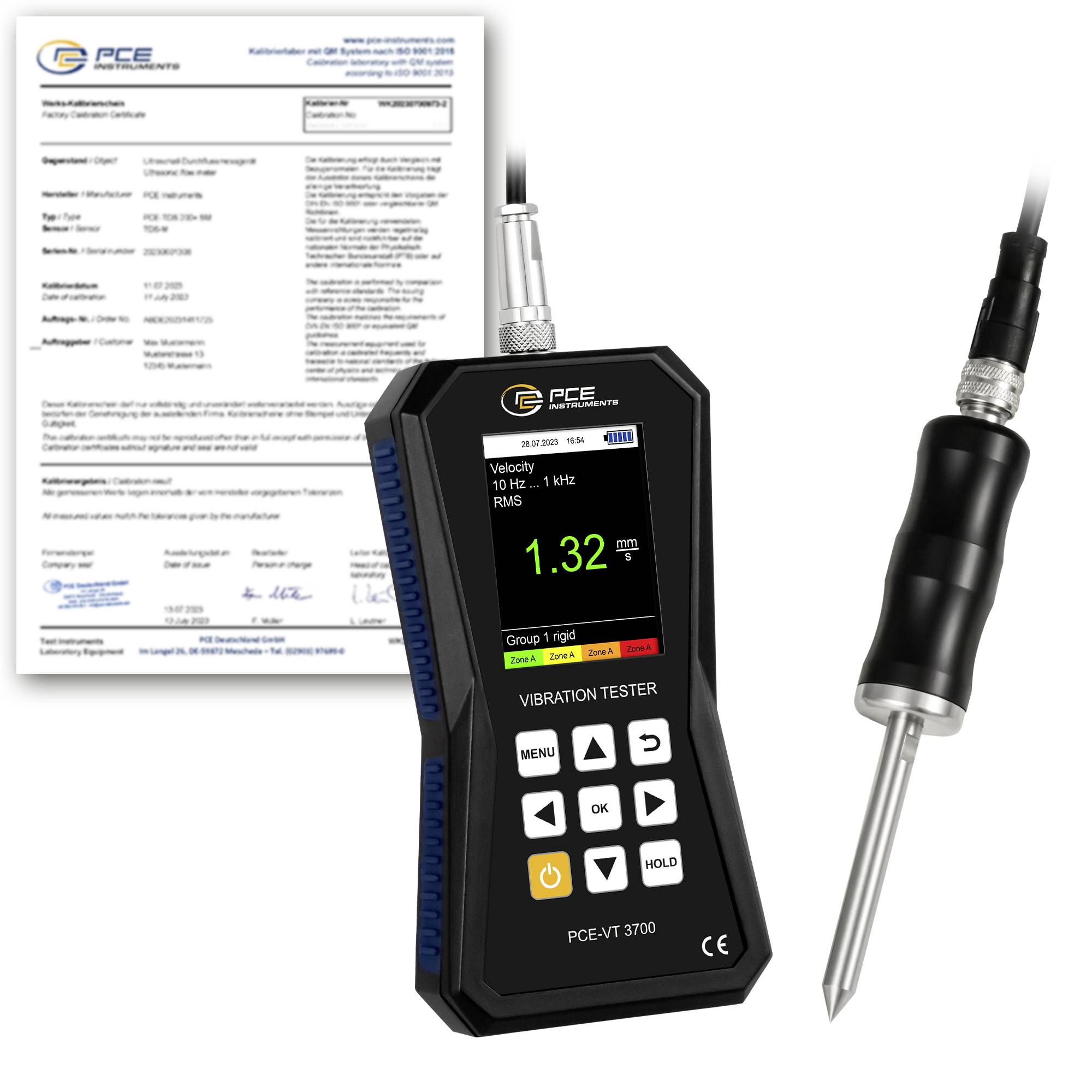

- 1 x ISO calibration certificate
- 1 x ISO calibration certificate
