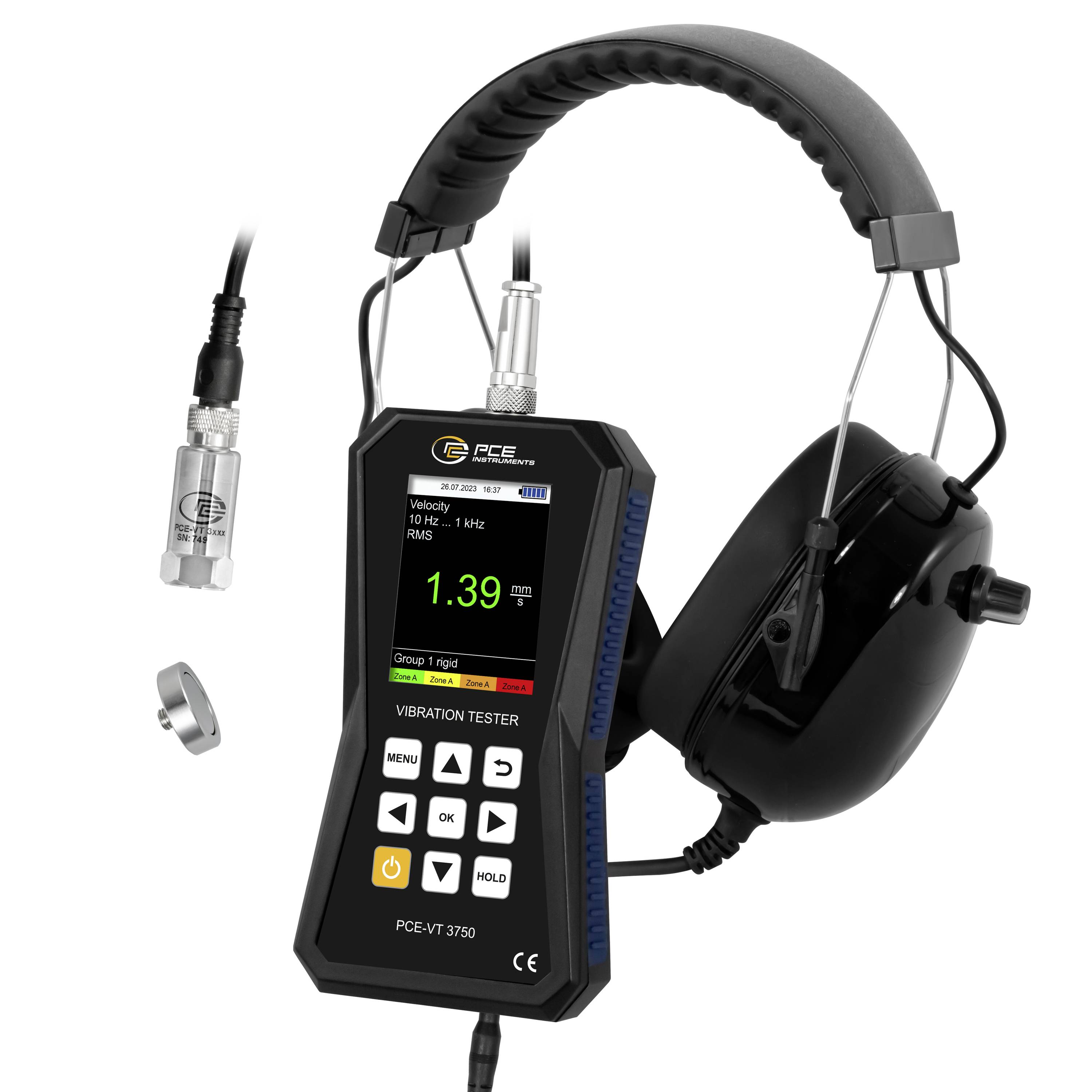

Handheld vibration tester with headphones and sensor probe, showing a digital reading of 1.39 and labeled vibration tester controls.

Coiled black hose with metal connectors on both ends, isolated on a white background.

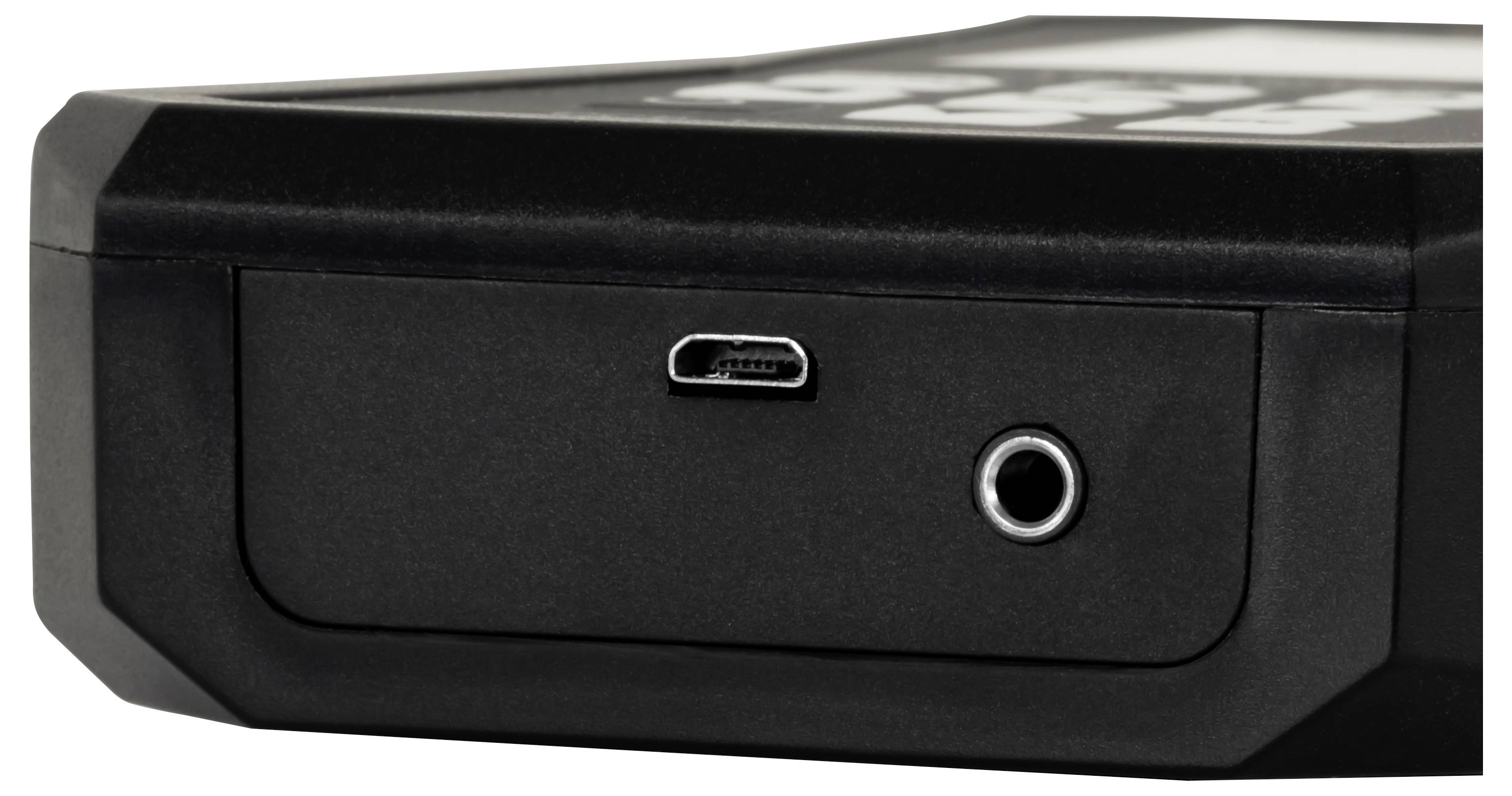

Close-up of a black device front panel with a USB-C port and a round headphone jack.

Close-up of a silver cylindrical industrial sensor with a black cable, shown against a white background.

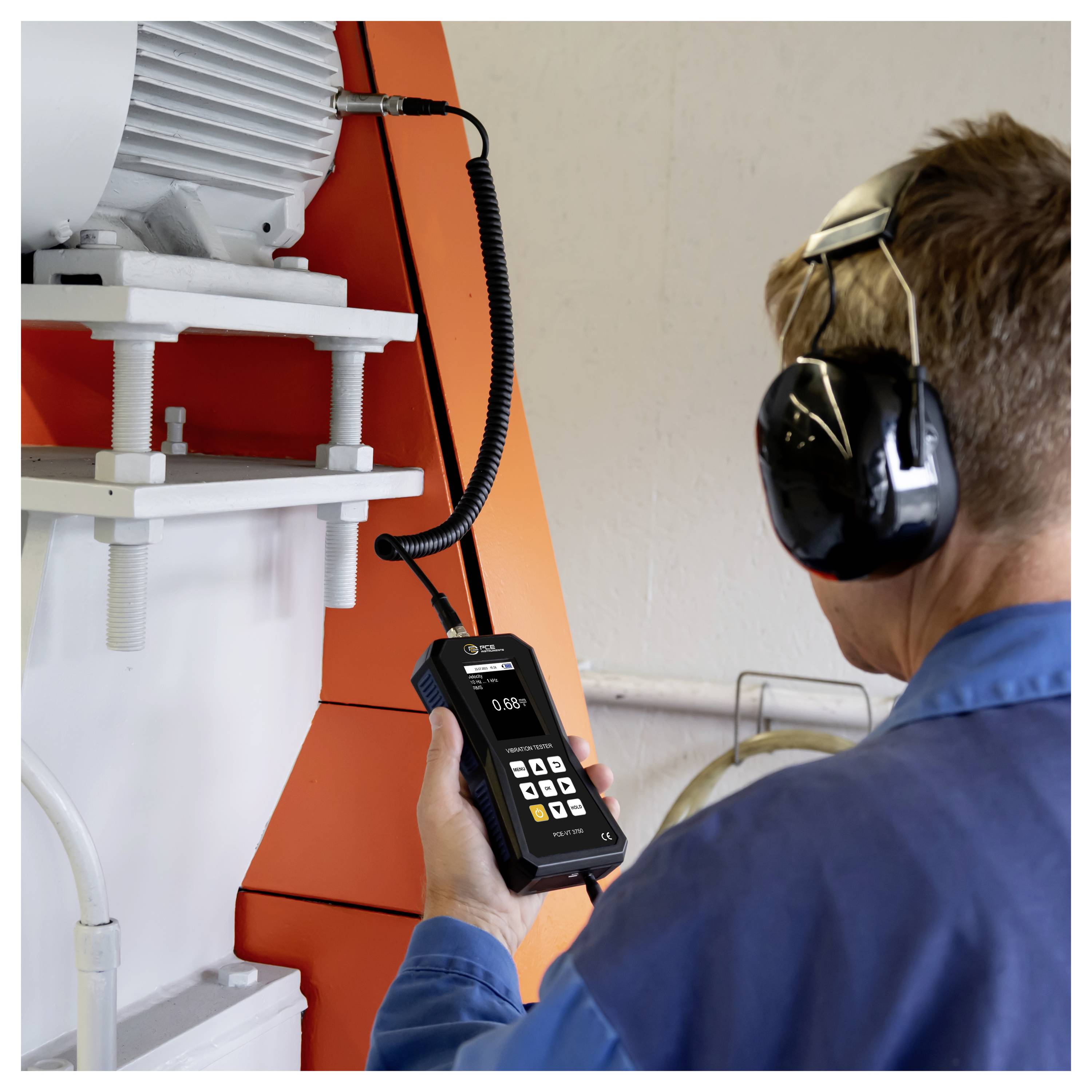

Technician in ear protection uses a handheld meter to inspect industrial machinery beside a large motor and orange equipment panel.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-VT 3750

Handy vibration meter for monitoring the vibration of machines and systems
HOLD function
Peak value measurement
Hand device for mobile vibration measurement
Automatic ISO 10816-3 evaluation
Inc. headphones

Technical specifications

Measuring range acceleration 0.0 ... 399.9 m/s²
Resolution 0.1 m/s²
Accuracy @ 160 Hz ±2 %
Frequency range 1 kHz … 10 kHz, 10 Hz ... 10 kHz
Measuring range speed 0.00 ... 399.9 mm/s
Resolution 0.1 mm/s.
Accuracy @ 160 Hz ±2 %
Frequency range 10 Hz ... 1 kHz
Measuring range path 0.000 ... 3.9 mm
Resolution 1 µm
Accuracy @ 160 Hz ±2 %
Frequency range 10 Hz ... 200 Hz
Measurement parameters RMS, peak, peak-peak, crest factor
Units can be switched metric/Imperial
Display 2.8" LC Display
Menu languages English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese
Power supply 3 x 1.5 V AA batteries
Operating and storage conditions -20 ... +65 °C; 10 ... 95 % r.F.
Protection class IP52
Dimensions 165 x 85 x 32 mm
Weighs 239 g.

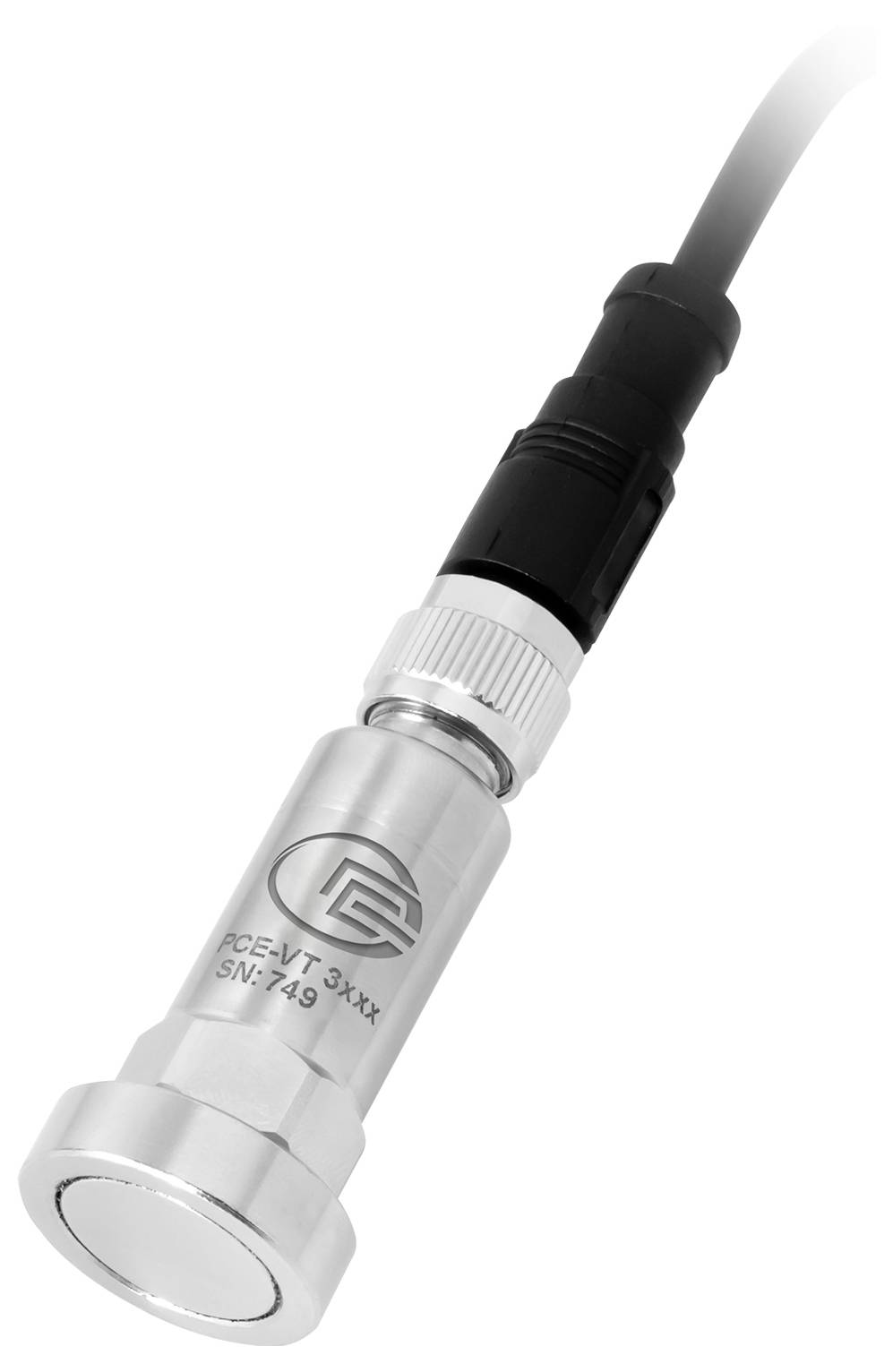

Technical data acceleration sensor
Resonant frequency 24 kHz
Cross-sensitivity ≤ 5%
Noise limit 5000 g (peak)
Operating and storage temperature -55 °C … +150 °C.
Housing material stainless steel
Fastening thread ¼ - 28"
Dimensions Ø 29 x 81 mm
Weight (without cable) 119 g

Basic accuracy: ±2 %

Product type: Vibration tester

Reading type: Acceleration
Speed
Vibration

Display: LCD

Dim: (L x W x H) 85 x 32 x 165 mm

Weight: 239 g

Minimum object size: 10

Width: 32 mm

Height: 165 mm

Length: 85 mm

Interfaces: DIN plug 5-pin

Type: PCE-VT 3750

Documents & Downloads

Datasheet

Datasheet 3192984 PCE Instruments PCE-VT 3750 Vibration tester ±2 %

User & Safety Instructions

User & Safety Instructions 3192984 PCE Instruments PCE-VT 3750 Vibration tester ±2 %

Description

The vibration meter is Ideal for service personnel to quickly inspect vibrating parts, machines and equipment. This vibration meter shows the vibration acceleration, vibration speed and travel directly on the display. Thus you can quickly and safely detect and track the imbalance and developing bearing damages. The vibration meter is equipped with a mode that allows measurement according to ISO 10816-3. The vibration meter analyzes the measurement values and automatically shows a good-bad rating on the display.

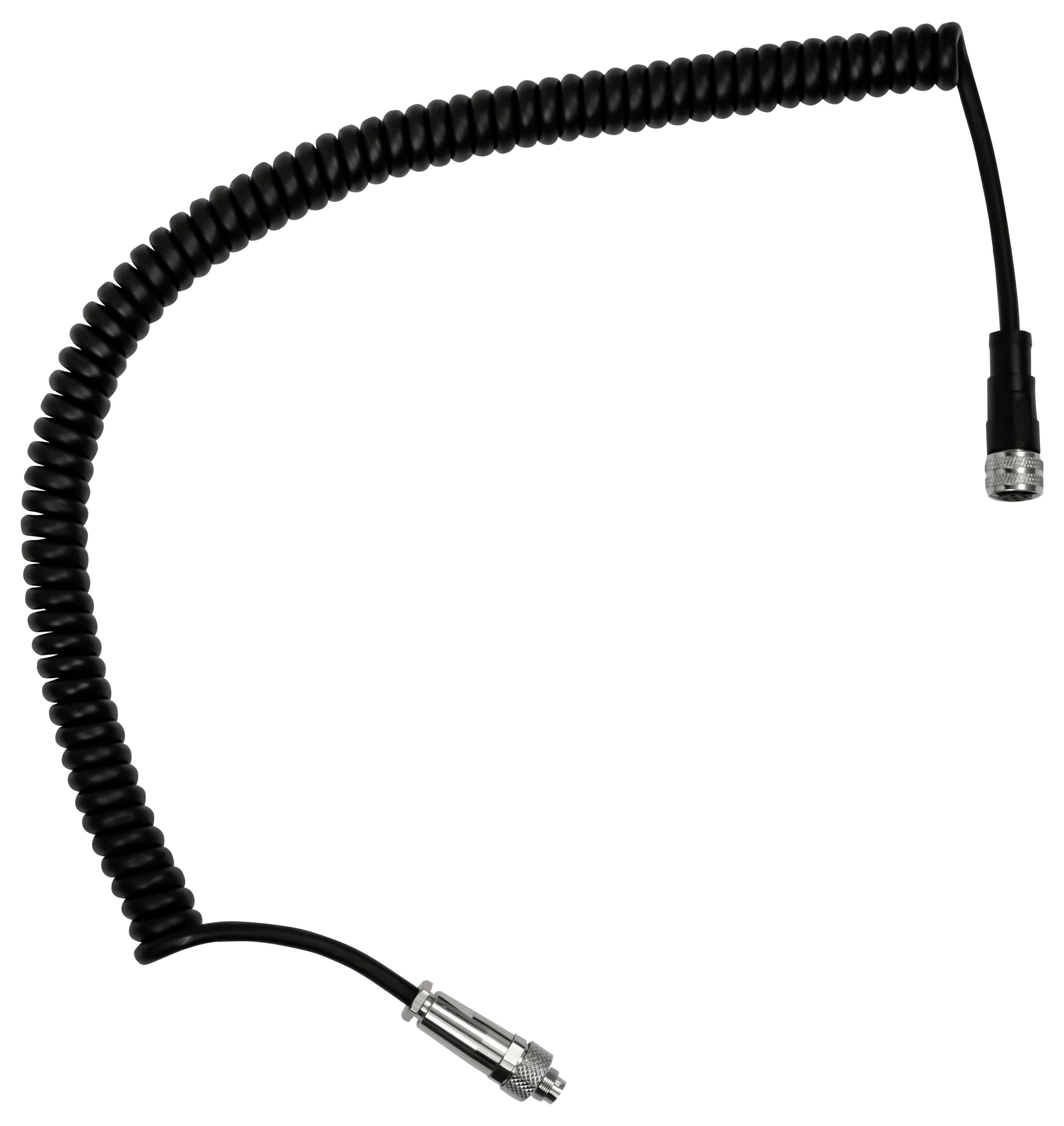

The vibration measuring device is supplied with sensor to the spiral cable, holding magnet, service bag and batteries. The display of the vibration meter is a colored graphical display that makes operation easier, since all instructions and menu items are displayed in clear text. The 12 languages in the menu of the vibration meter can be easily switched.
