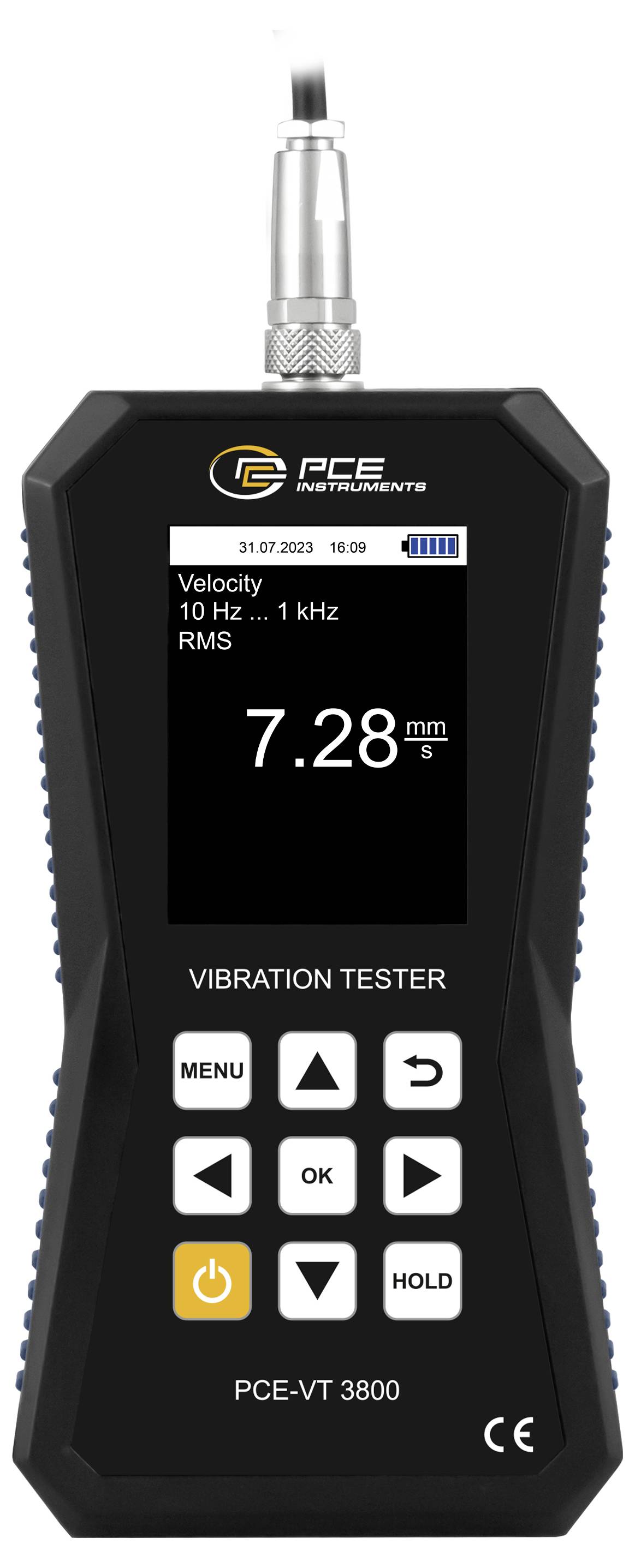

PCE Instruments PCE-VT 3800-ICA Accelerometer ±2 %

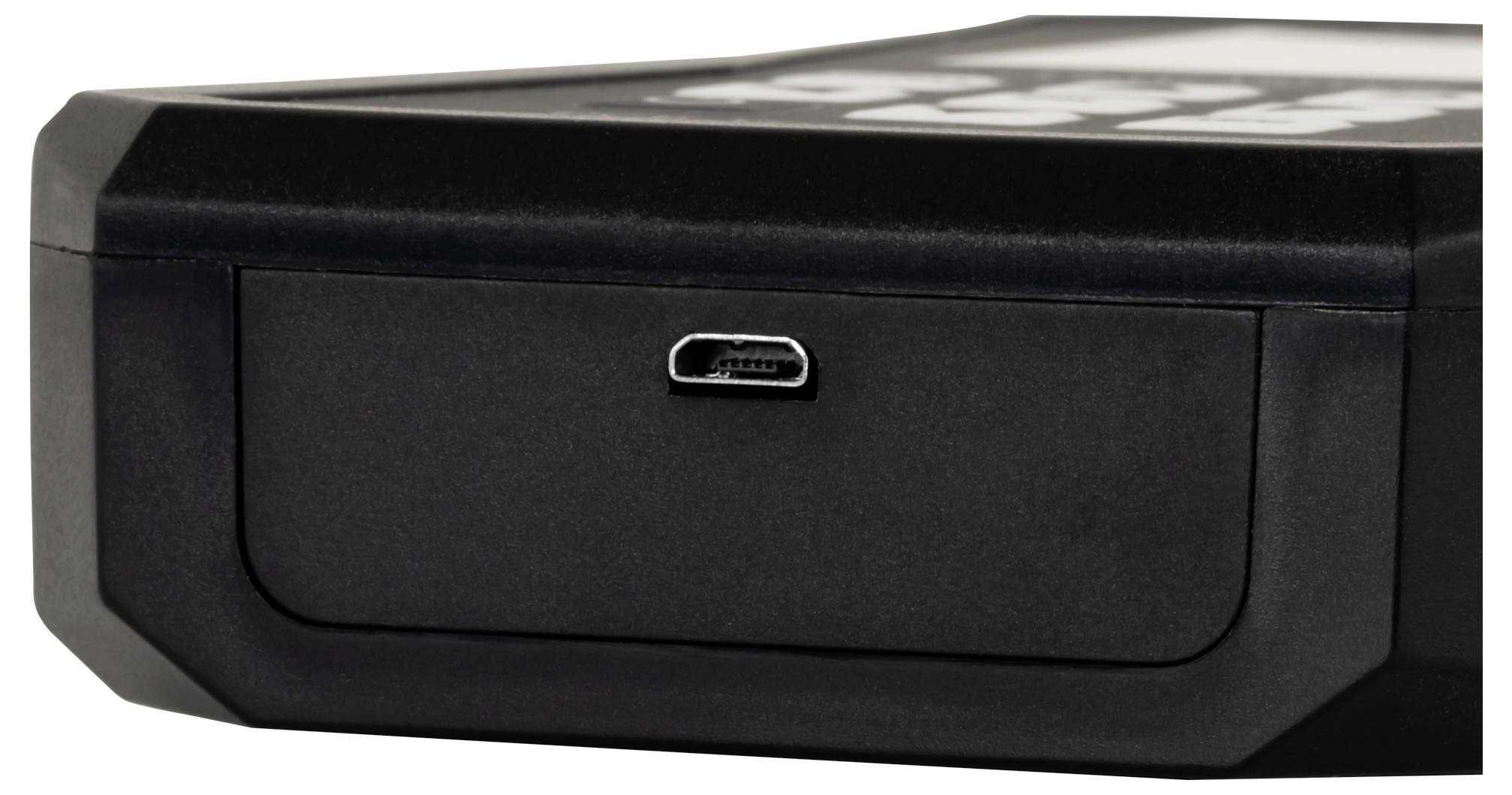

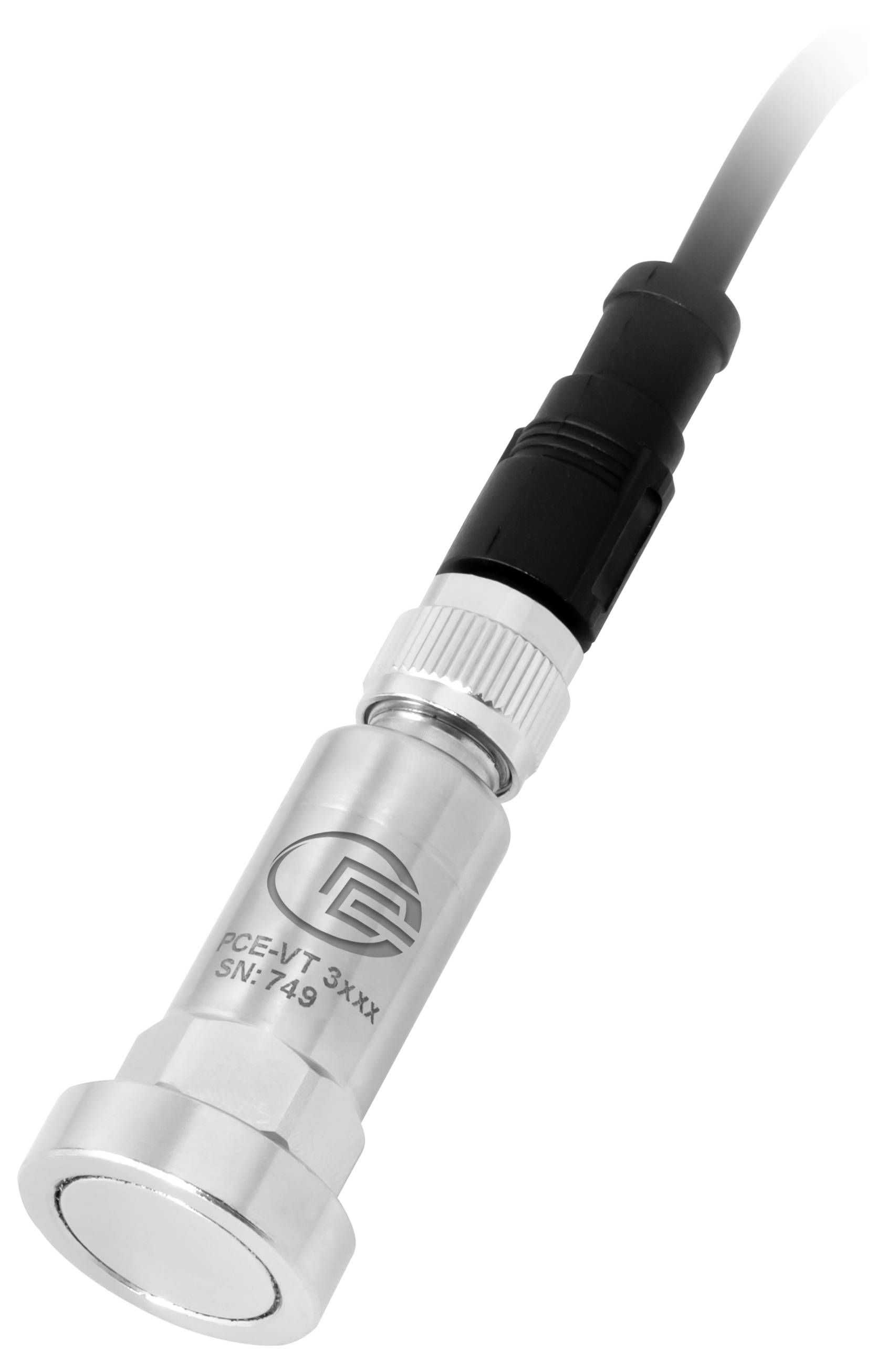

The vibration meter is the ideal companion for checking vibrating parts, machines and systems. The external vibration sensor in the vibration measuring device for vibration can be used to determine the oscillation range up to 3.9 mm, the vibration velocity up to 399.9 mm/s and the vibration acceleration up to 399.9 m/s². As measuring parameters are available in the vibration meter RMS, peak, peak and crest factor. Another function of the vibration meter is the automatic evaluation in accordance with ISO 10816-3. Thus, the vibration meter can determine the current vibration condition of a machine by means of a good-bad evaluation. This allows the vibration meter to be used for repair or maintenance work on machines, for example. The built-in LiPo battery with a capacity of 2500 mAh is a battery runtime of up to 20 hours possible. The LiPo battery can be recharged via the micro-USB interface on the vibration meter.

In order to process the measured values further, they can be stored directly on the data collector for vibrations. An internal memory is available for this purpose. In this case, the measured values can be saved manually or automatically by the data collector for vibrations. After a measurement, the recorded measured values can be read from a PC. With the software for the data collector for vibrations, the measured data can now be analyzed on the basis of the graphical display and table list. The measured data can be exported as a CSV file for further processing. If a firmware update is available for the data collector for vibration, this can also be done directly via the software.
