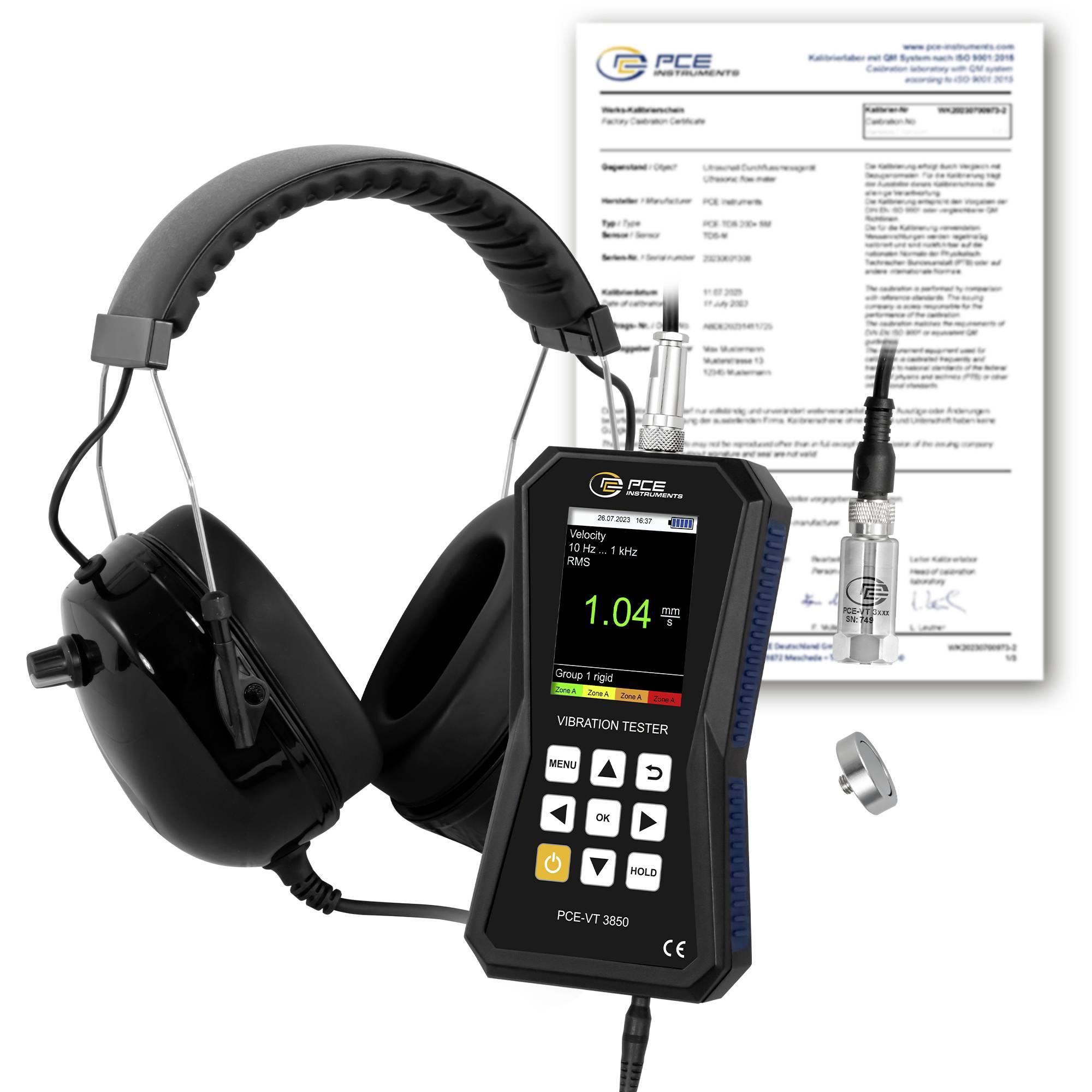

PCE Instruments PCE-VT 3850-ICA Vibration transducer ±2 %

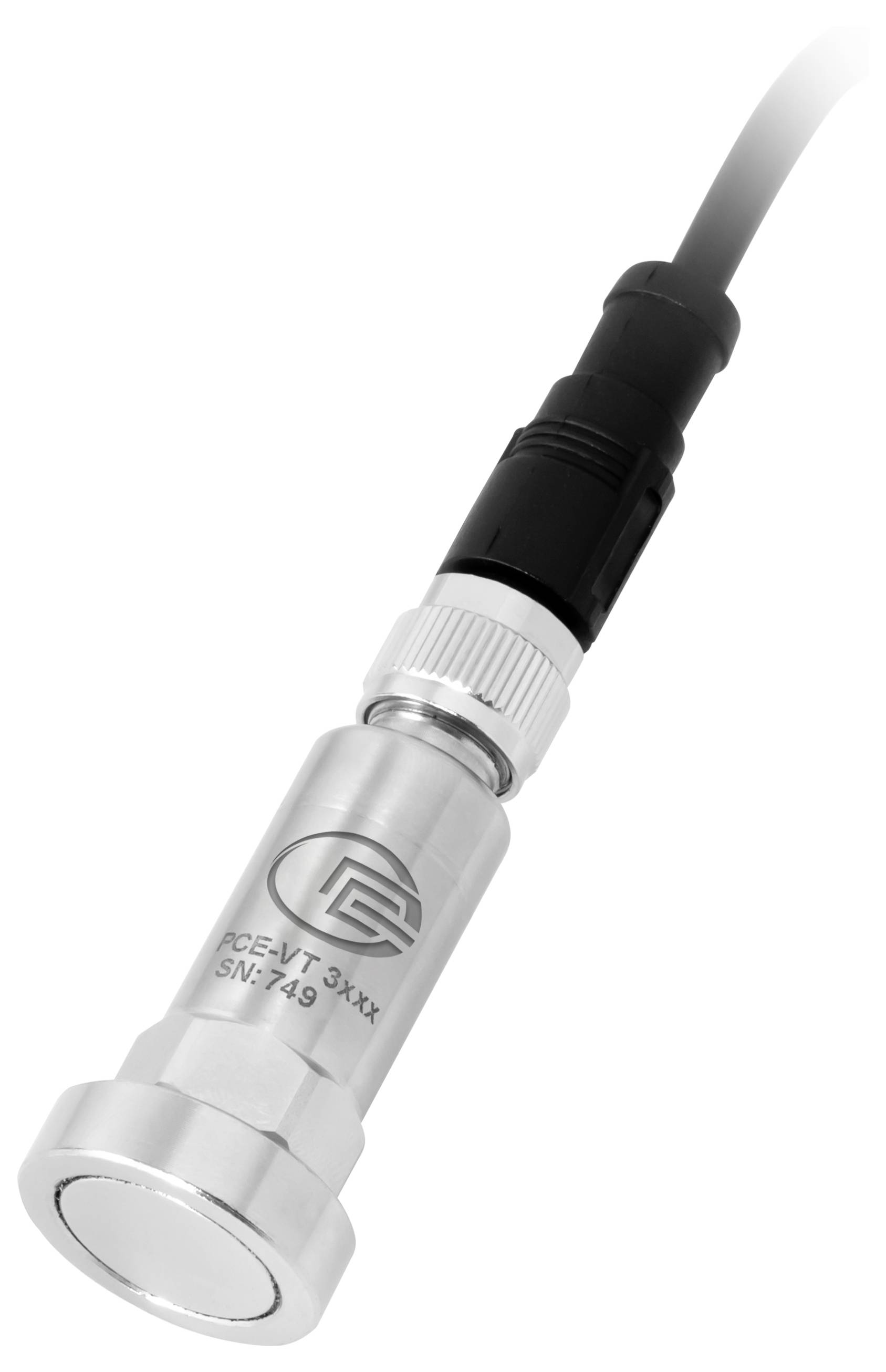

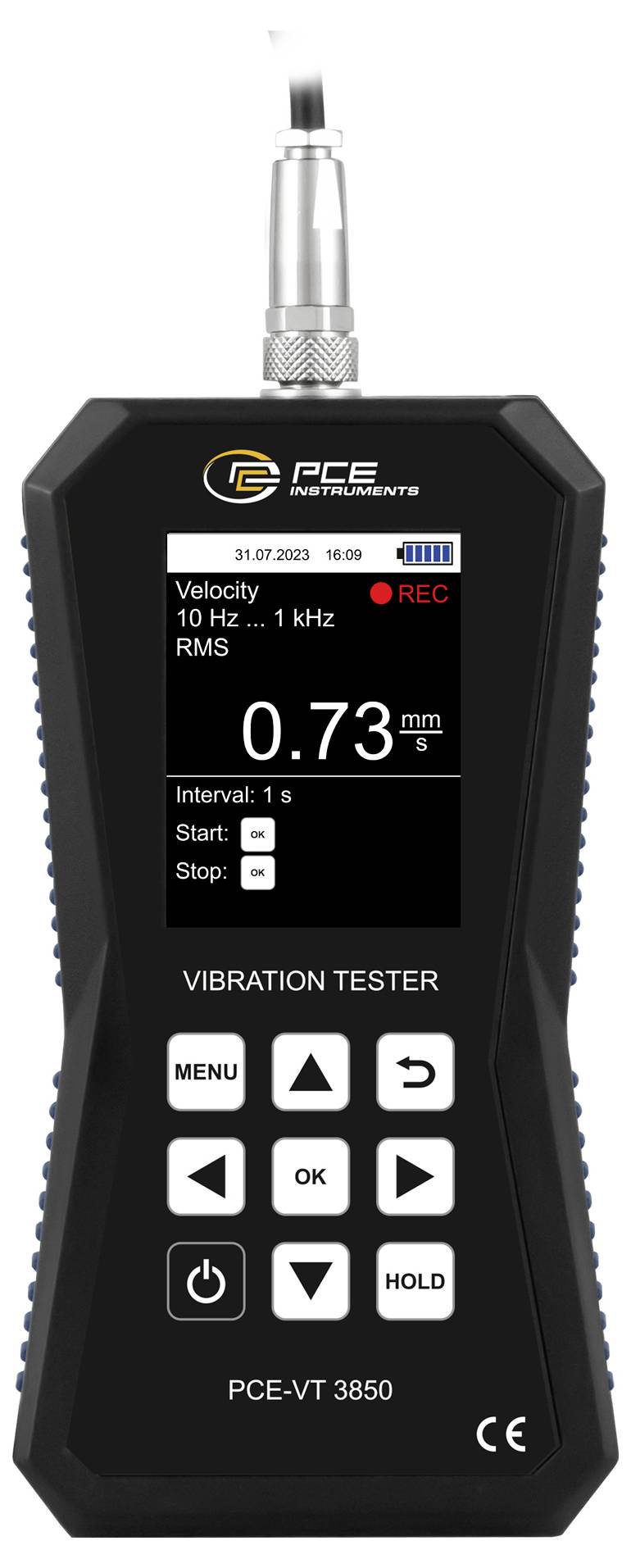

The acceleration sensor for vibration is the ideal companion for checking the vibrating parts, machines and systems. The external vibration sensor of the accelerometer can be used to determine the oscillation range up to 3.9 mm, the oscillation speed up to 399.9 mm/s and the vibration acceleration up to 399.9 m/s². The measurement parameters for the acceleration sensor are RMS, peak, peak-peak and crest factor. Another function of the accelerometer is the automatic evaluation according to ISO 10816-3. Thus, the accelerometer can determine the current vibration state of a machine by means of a good-bad evaluation. This allows the accelerometer to be used for repair and maintenance work on machines, for example. The built-in LiPo battery with a capacity of 2500 mAh is a battery runtime of up to 20 hours possible. The LiPo battery can be recharged via the micro-USB interface on the acceleration sensor.

In order to process the measured values further, they can be stored directly on the acceleration sensor. An internal memory is available for this purpose. The measured values can be stored manually or automatically by the accelerometer. After a measurement, the recorded measured values can be read from a PC. With the software for the acceleration sensor, the measured data can now be analyzed on the basis of the graphical display and table list. The measured data can be exported as a CSV file for further processing. If a firmware update is available for the accelerometer, this can also be done directly via the software.
