PCE Instruments PCE-VT 3950S Vibration tester ±2 %
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-VT 3950S
- Vibration tester with internal memory
- Route measurement
- Rechargeable battery
- Software for evaluating the saved data
- Measurement range up to 399.9 m/s²
- PC interface
- Optionally with ISO calibration certificate
- Inc. headphones
Technical specifications
- Measuring range acceleration 0.0 ... 399.9 m/s²
- Resolution 0.1 m/s²
- Accuracy @ 160 Hz ±2 %
- Frequency range 10 Hz ... 10 kHz, 1 kHz ... 10 kHz
- Measuring range speed 0.00 ... 399.9 mm/s
- Resolution 0.1 mm/s.
- Accuracy @ 160 Hz ±2 %
- Frequency range 10 Hz ... 1 kHz
- Reading range
- Speed 600 … 50000 RPM
- FFT acceleration 10 Hz … 8 kHz
- FFT speed 10 Hz … 1 kHz
- Accuracy @ 160 Hz ±2 %
- Number of FFT lines 2048
- Route measurement 100 routes with 100 machines each with 100 measurement points each with 1000 measurement values
- Measuring range path 0.000 ... 3.9 mm
- Resolution 1 µm
- Accuracy @ 160 Hz ±2 %
- Frequency range 10 Hz ... 200 Hz
- Measurement parameters RMS, peak, peak-peak, crest factor
- Manual memory 99 folders á 50 readings
- Data logger Various start-/stop triggers
- Measurement interval between 1 s … 12 h, 50 memory slots á 43200 measured values
- Units can be switched metric/Imperial
- Display 2.8" LC Display
- Menu languages English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese
- Internal power supply: LiPo rechargeable battery (3.7 V, 2500 mAh), external USB 5 VDC, 500 mA
- Headphone connection 3.5 mm jack
- Operating time approx. 15 … 20 h (depending on the display brightness)
- Operating and storage conditions Temperature: -20 ... +65 °C, humidity: 10% RH … 95% RH, non-condensing
- Protection class IP52
- Dimensions 165 x 85 x 32 mm
- Weighs 239 g.
- Technical data acceleration sensor
- Resonant frequency 24 kHz
- Cross-sensitivity ≤ 5%
- Noise limit 5000 g (peak)
- Operating and storage temperature -55 °C … +150 °C.
- Housing material stainless steel
- Fastening thread ¼ - 28"
- Dimensions Ø 29 x 81 mm
- Weight (without cable) 119 g
- Basic accuracy
±2 %
- Product type
Vibration tester
- Reading type
Acceleration
Speed
Frequency
Vibration
- Display
LCD
- Dim
(L x W x H) 85 x 32 x 165 mm
- Weight
239 g
- Minimum object size
10
- Width
32 mm
- Height
165 mm
- Length
85 mm
- Interfaces

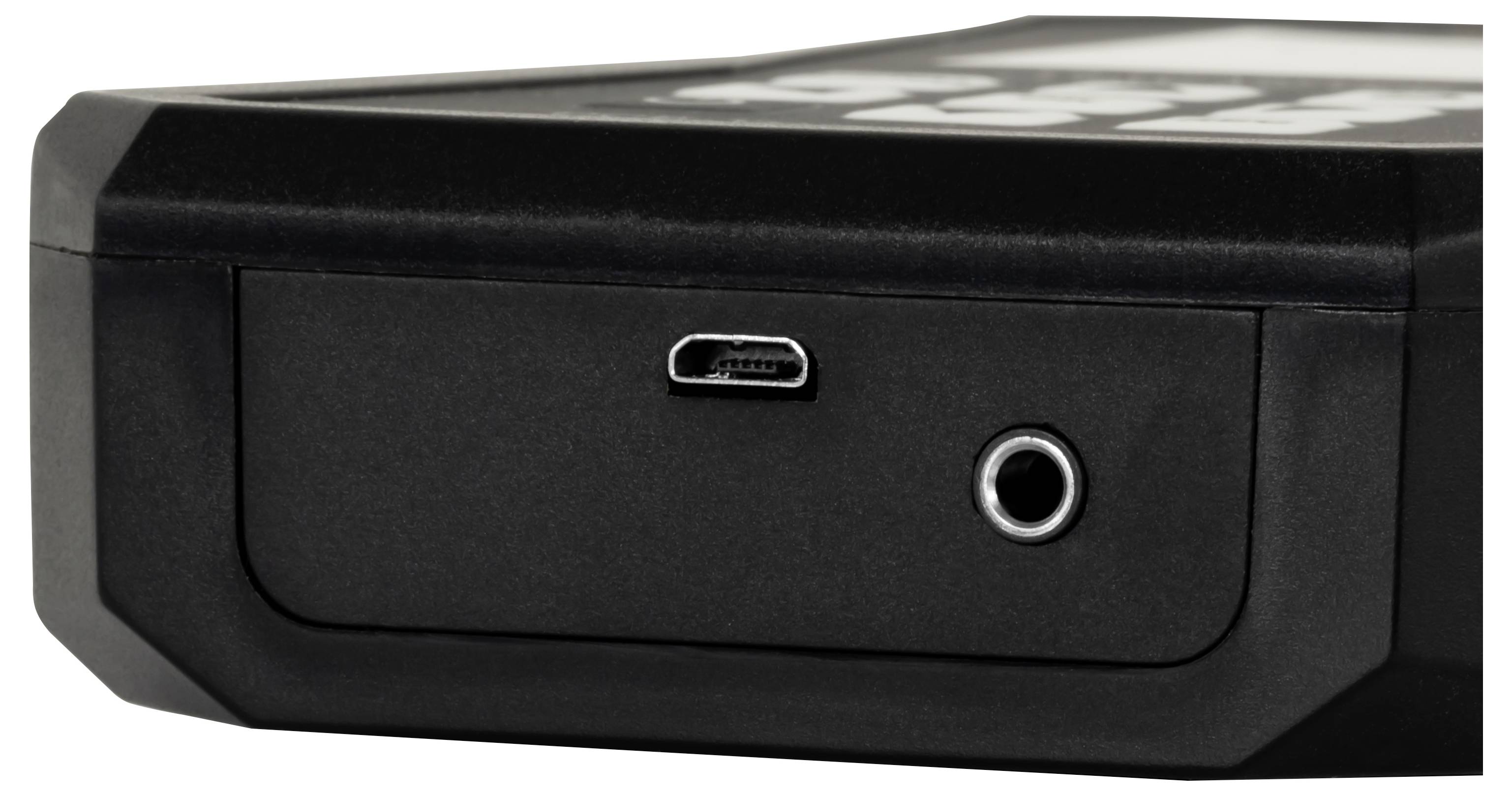

Micro USB
- Type
PCE-VT 3950S
ISO standards
Documents & Downloads
Datasheet
Datasheet 3192989 PCE Instruments PCE-VT 3950S Vibration tester ±2 %
User & Safety Instructions
User & Safety Instructions 3192989 PCE Instruments PCE-VT 3950S Vibration tester ±2 %
Description

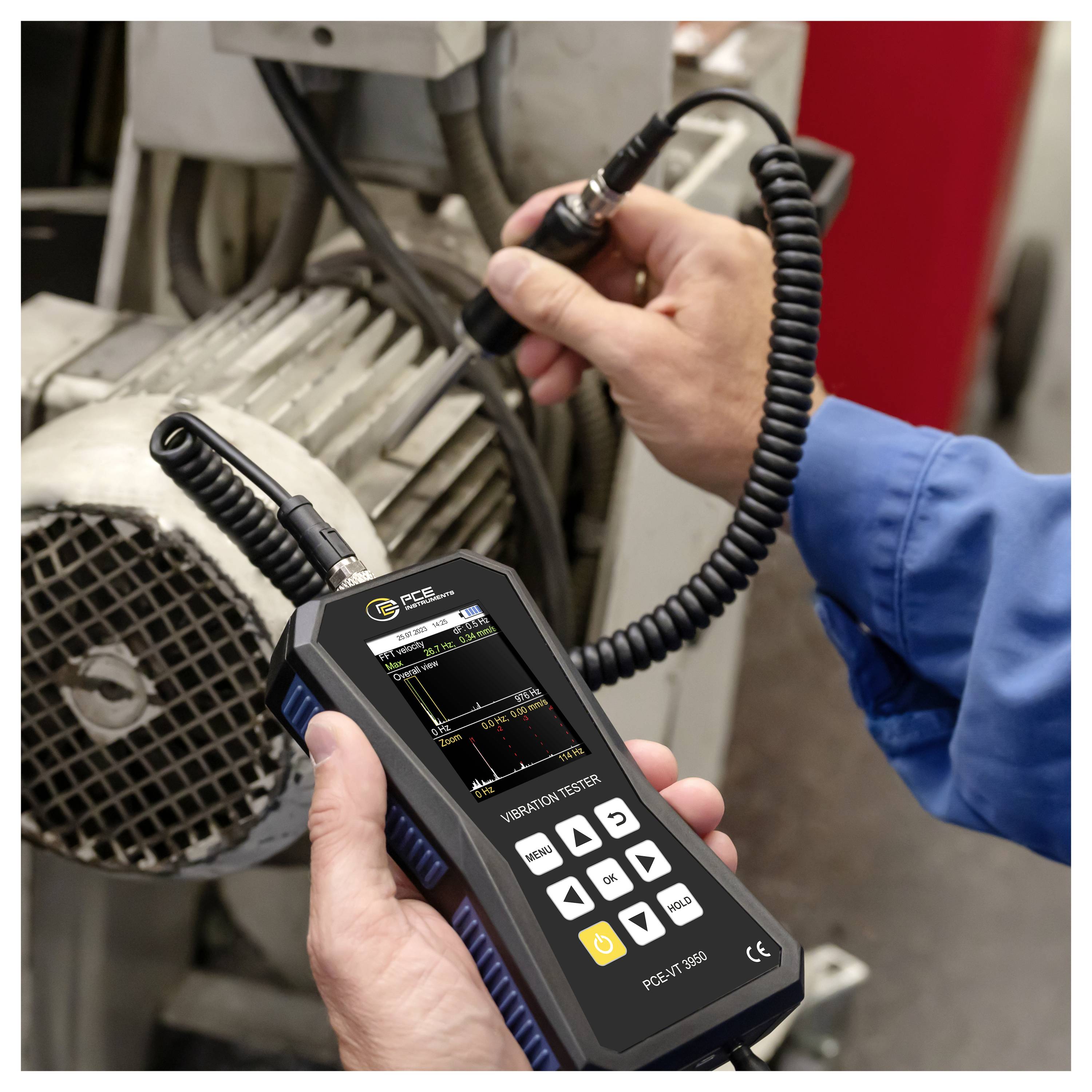

The vibration meter is an ideal measuring device for fast and precise inspection of vibrating parts, machines and plants. This vibration measuring device determines the vibration path via the external vibration sensor (measuring range 0.000 ... 3.9 mm), the oscillation speed (measuring range 0.00 ... 399.9 mm/s) and vibration acceleration (measuring range 0.0 ... 399.9 m/s²). Various measurement parameters are available for this purpose, such as RMS, peak, peak and crest factors. The vibration meter is equipped with a mode that allows a measurement to be automatically evaluated according to the limits of ISO 10816-3. The vibration meter analyzes the measurement values and shows a corresponding good-poor evaluation on the display. The built-in rechargeable battery for the vibration meter has a capacity of 2500 mAh and can be recharged directly via the installed Micro-USB interface.
In addition to the normal measuring mode, the vibration meter has an FFT mode. In FFT mode, the frequency spectrum for the measured vibration velocity or vibration acceleration is calculated and displayed. In a graphical display, the calculated FFT lines are displayed in a general view for the entire frequency band and in parallel in a zoom view for the representation of the individual lines.
The route measurement is an additional function. The route measurement is meant especially for recurring measurements at identical measurement points. This enables an ordered measurement of different measuring points. Because of its extensive measurement functions, the vibration meter is therefore used for machine maintenance and repair work.
The internal memory of the vibration meter enables the displayed measuring data of the various measuring functions to be saved. The data stored on the vibration meter can be transferred to a PC via the installed Micro-USB interface. The software for the vibration meter then enables a graphical and tabular analysis of the measured values. These can be exported via the software as a CSV file for further processing of the measurement data. In order to keep the vibration measuring device always up to date, an automatic firmware update can also be carried out via the software in addition to the analysis of the measurement data.
This text is machine translated.
In addition to the normal measuring mode, the vibration meter has an FFT mode. In FFT mode, the frequency spectrum for the measured vibration velocity or vibration acceleration is calculated and displayed. In a graphical display, the calculated FFT lines are displayed in a general view for the entire frequency band and in parallel in a zoom view for the representation of the individual lines.
The route measurement is an additional function. The route measurement is meant especially for recurring measurements at identical measurement points. This enables an ordered measurement of different measuring points. Because of its extensive measurement functions, the vibration meter is therefore used for machine maintenance and repair work.
The internal memory of the vibration meter enables the displayed measuring data of the various measuring functions to be saved. The data stored on the vibration meter can be transferred to a PC via the installed Micro-USB interface. The software for the vibration meter then enables a graphical and tabular analysis of the measured values. These can be exported via the software as a CSV file for further processing of the measurement data. In order to keep the vibration measuring device always up to date, an automatic firmware update can also be carried out via the software in addition to the analysis of the measurement data.
This text is machine translated.
Features
- For mobile vibration measurement
- Measurement range up to 399.9 m/s²
- FFT analysis
- Route measurement
- Manual measured value memory
- Automatic ISO 10816-3 evaluation
- Internal memory
- 2.48" LC Display
- Rechargeable battery
- Micro-USB interface
- Inc. headphones
Scope of delivery

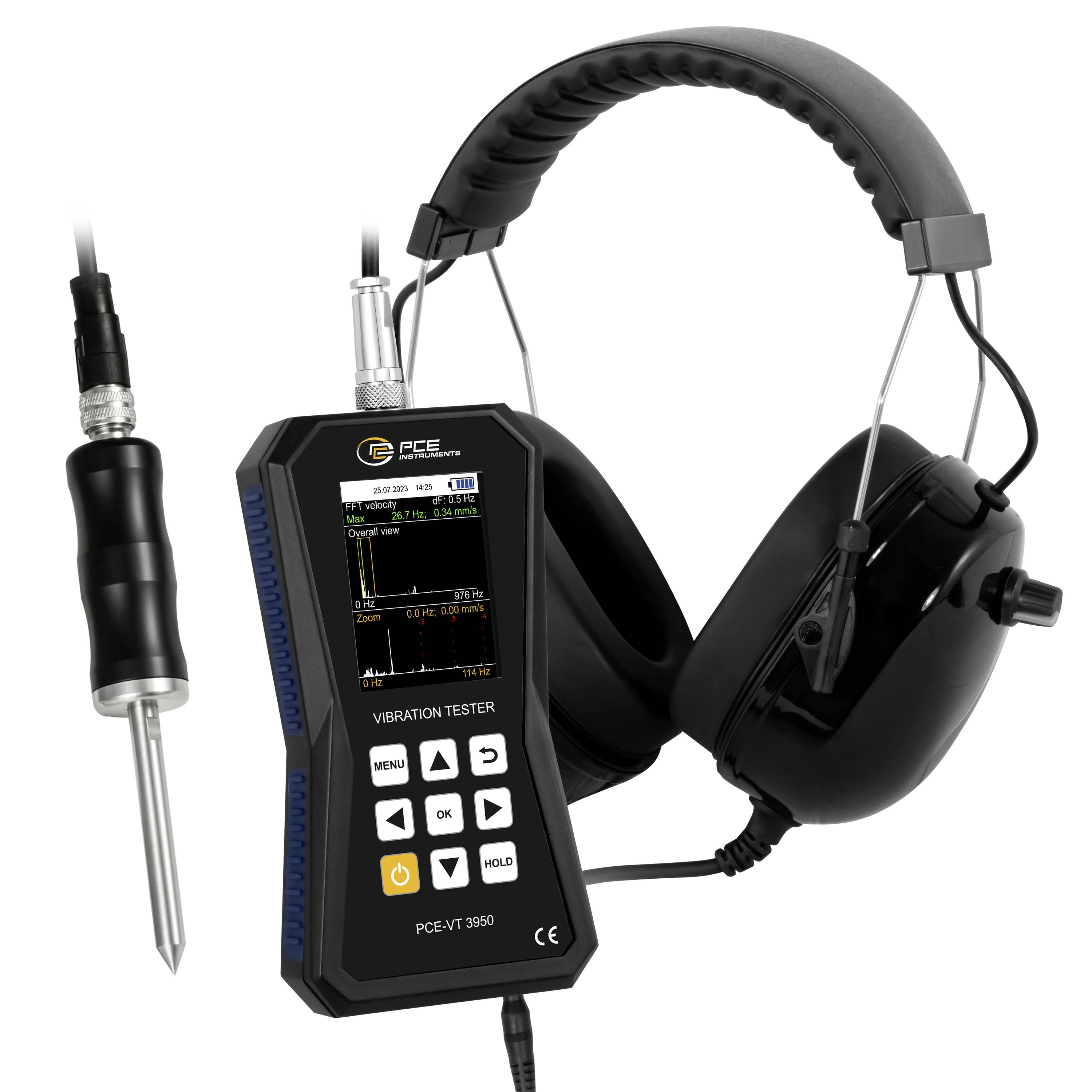

- 1 x vibration meter PCE-VT 3950S

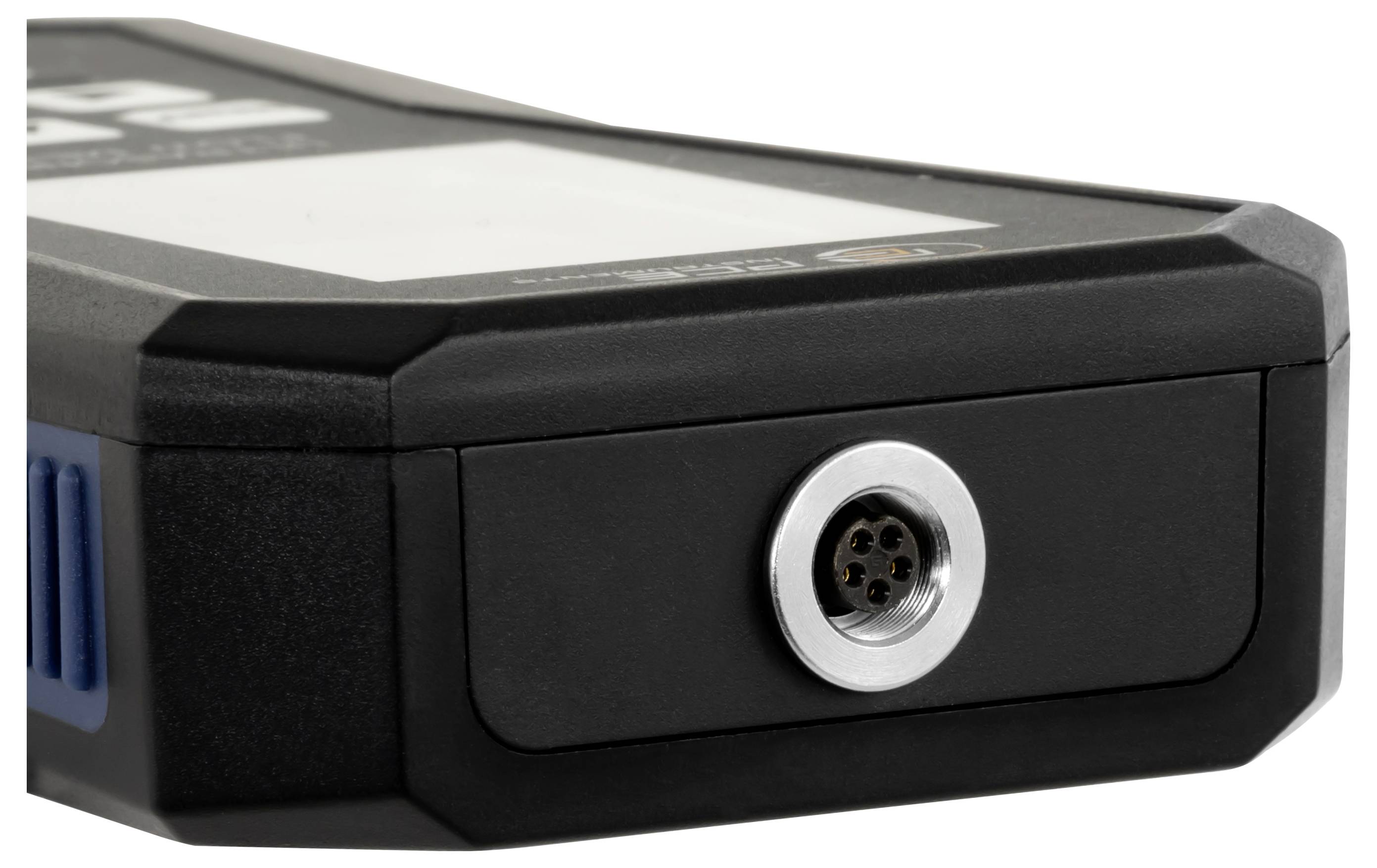

- 1 x sensor with spiral cable PCE-VT 3xxx SENSOR

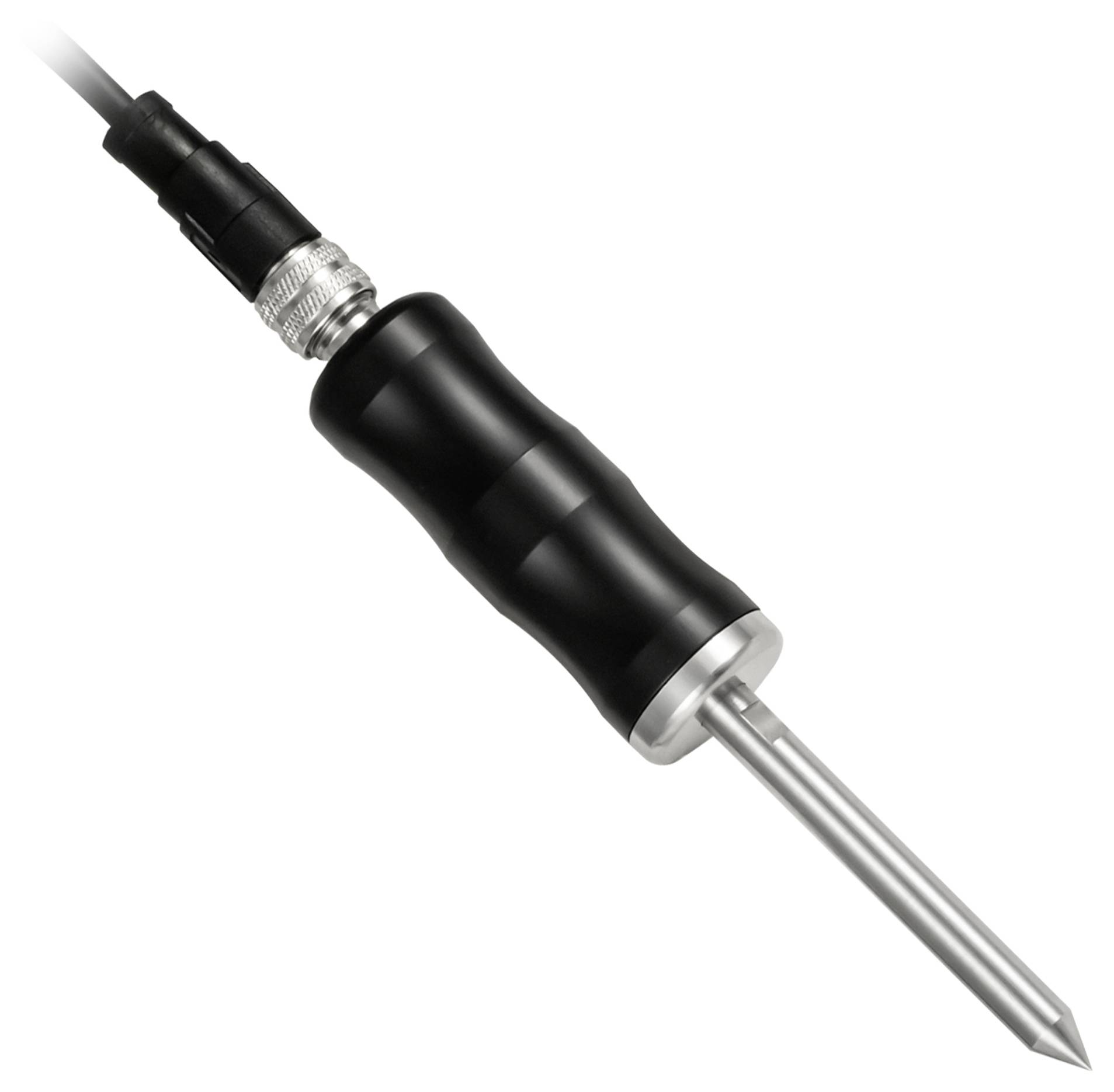

- 1 x needle sensor PCE-VT NP
- 1 x micro USB cable
- 1 x USB stick with software and instructions
- 1 x quick instructions
- 1 x Service case
- 1 x headphones
