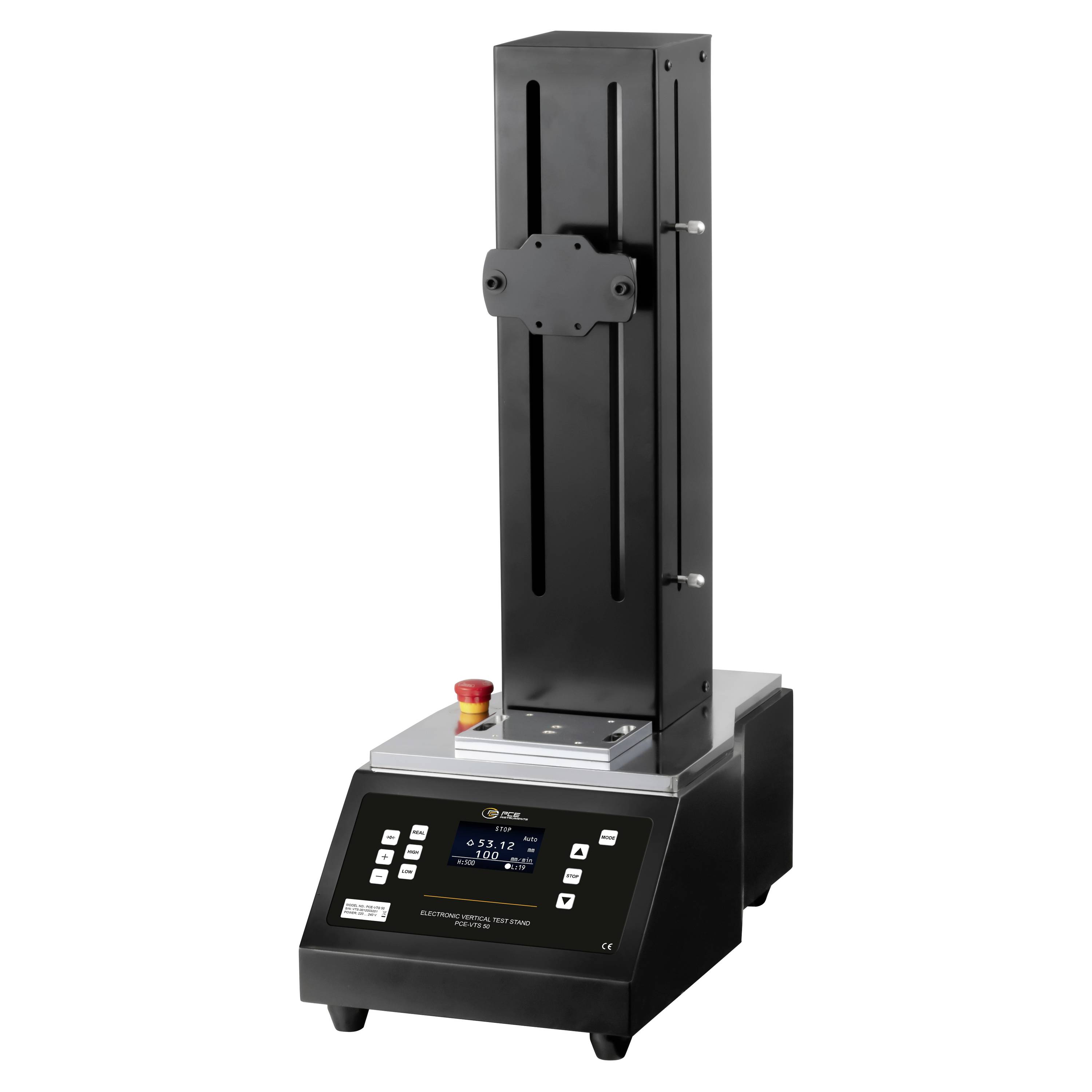

PCE Instruments PCE-VTS 50 Force test stand Manufacturer's standards (no certificate)

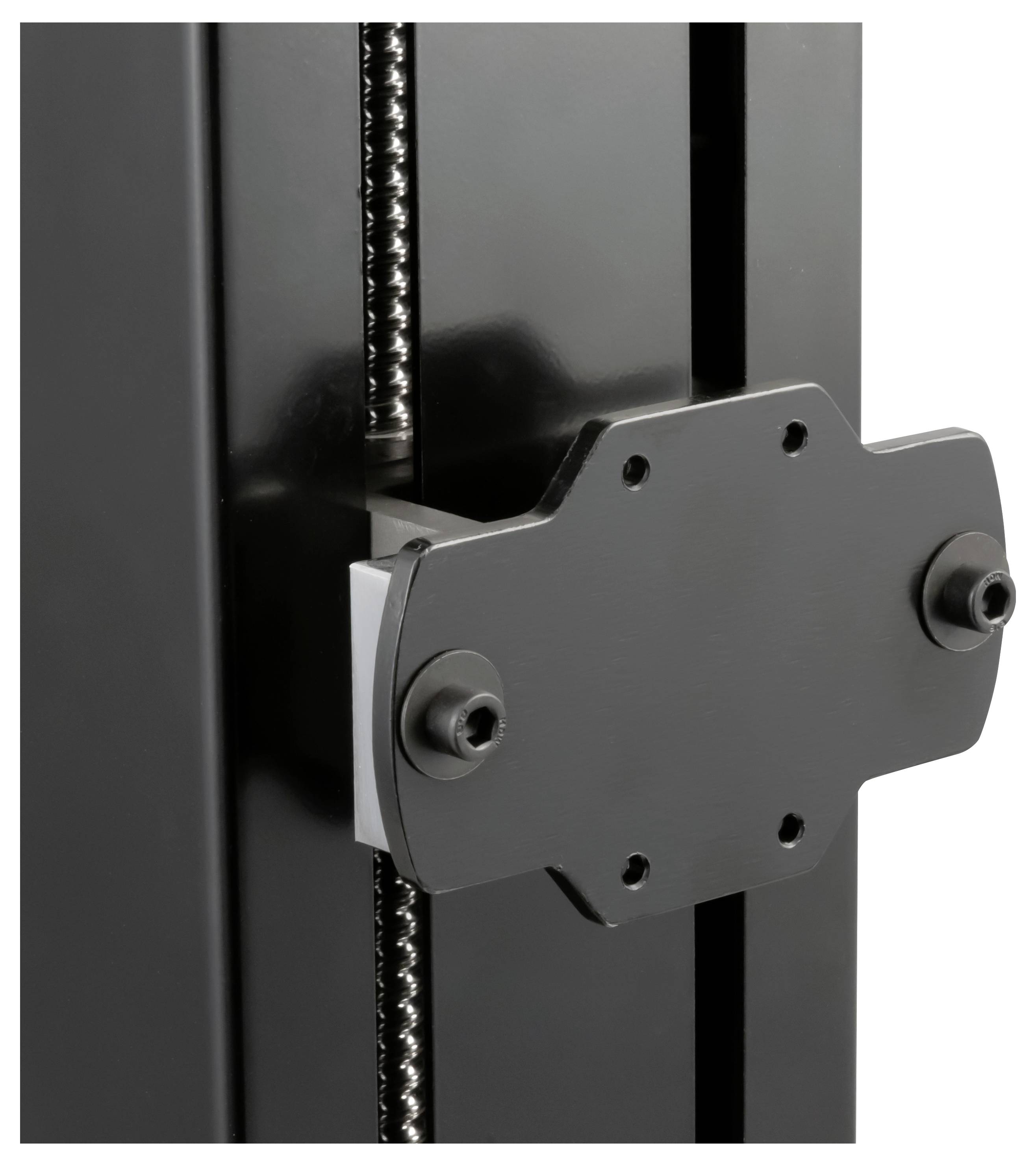

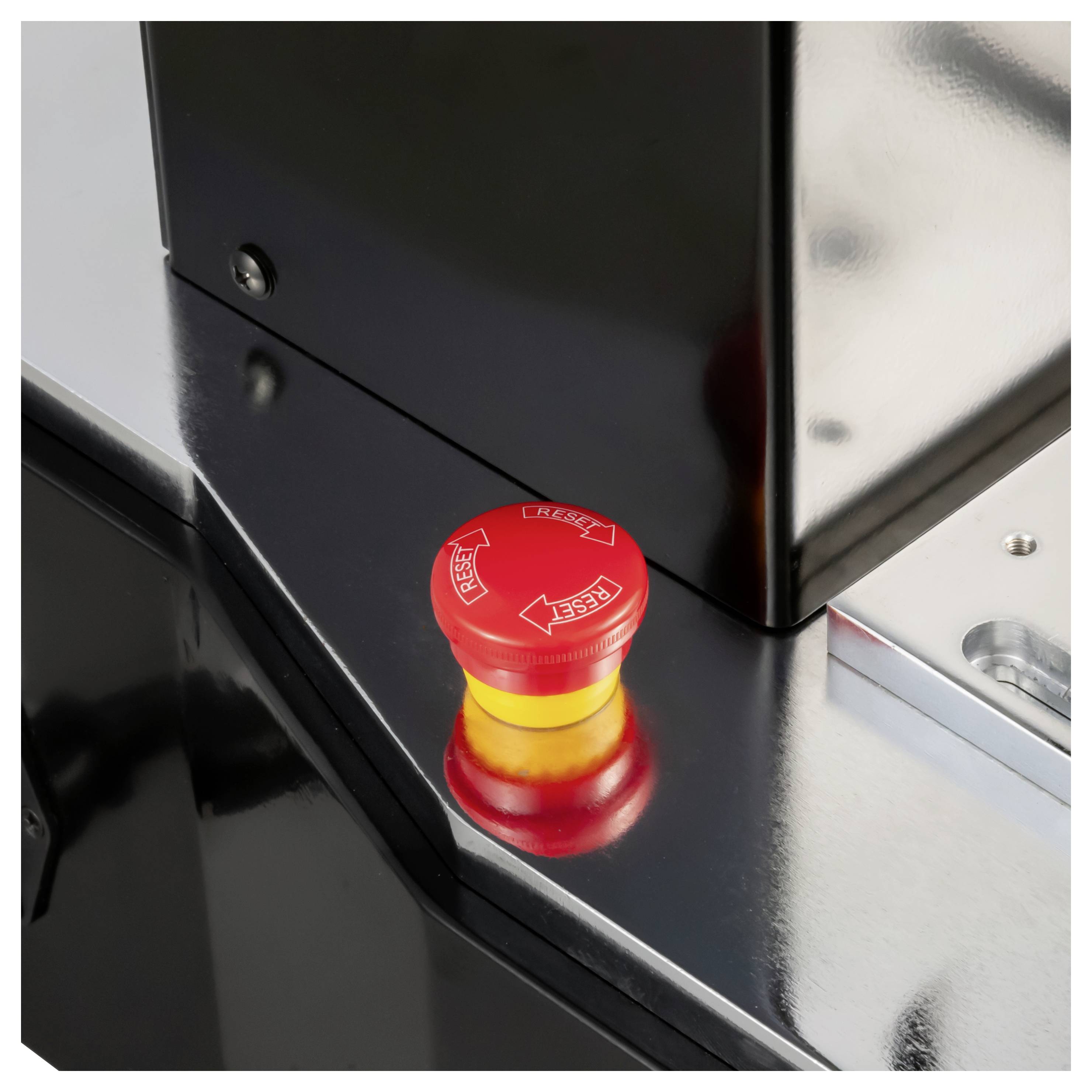

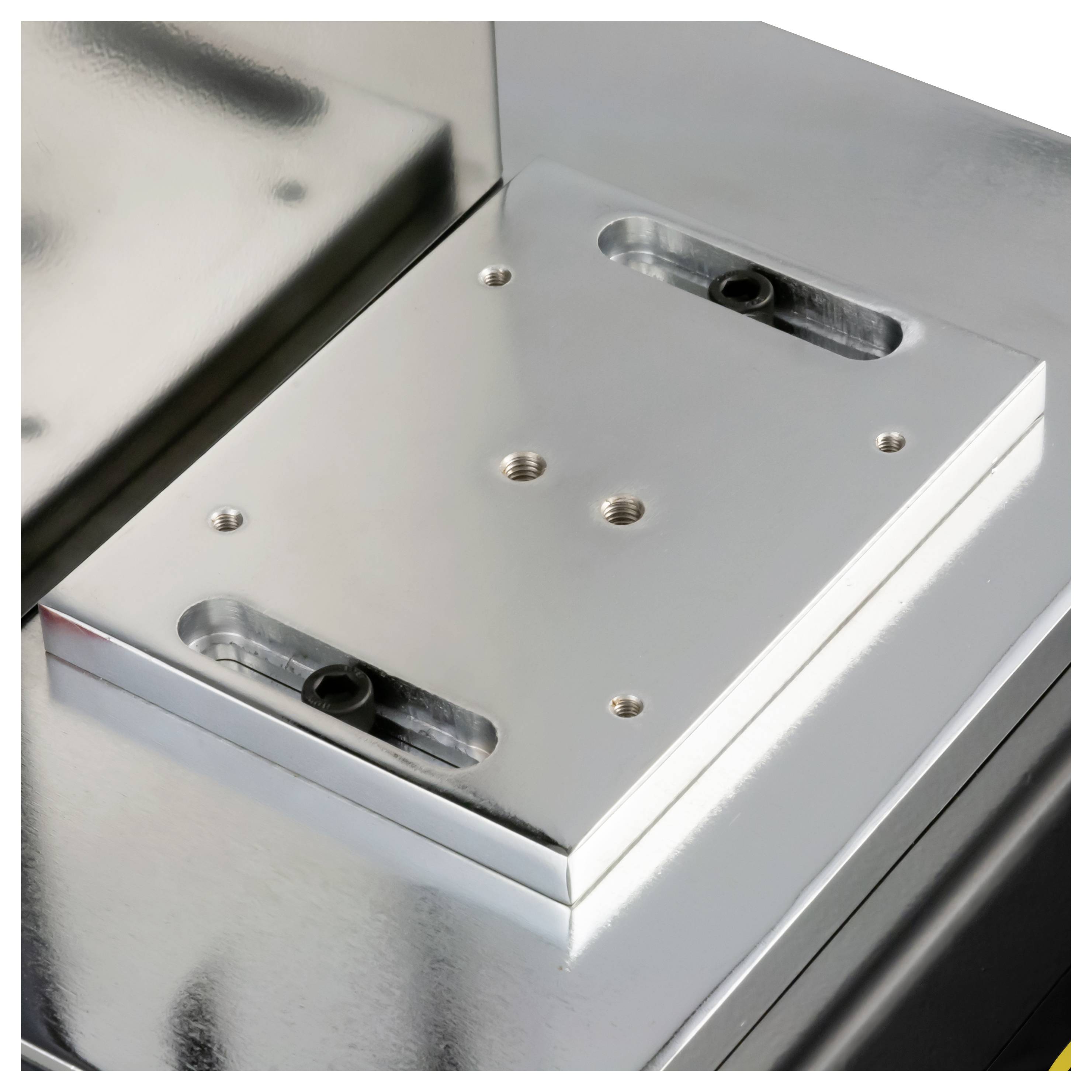

Motorized train-pressure test bench with 500 N force range, emergency stop switch, various mounted force measuring devices, adjustable limit switches, universally applicable, With precise speed setting. The motorized train-pressure test bench is a motorized test station with a force range of up to 500 N. With the help of the test bench, it is possible to carry out train-pressure tests. Thanks to the large travel distance of 270 mm, the most varied test pieces, clamping devices and measuring systems with the most different dimensions can be mounted on the motorized tension-pressure test bench. The driving speed can be precisely adjusted in 1 mm/min steps between 1 - 500 mm/min. The set speed as well as the travel path is shown on the high-contrast display of the motorized train-pressure test bench. In addition to setting the speed, the motorized train pressure test bench also has the option of switching between automatic and manual modes. In manual mode, the test bench only moves when the corresponding button is pressed. In automatic mode, this is done automatically until the operator stops the process or a limit switch is approached. The travel distance from the motorized train-pressure test bench can be limited via the limit switches. This has the special advantage that the operator can limit the travel path with the limit probes, for example to protect the measuring device before it hits the bottom of the vertical test bench or travels into the chuck, thus triggering an overload and also damage to the measuring system. At the same time, the length of the train can be defined when a draft test is applied. In addition to the test bench, PCE Instruments also offers suitable force measuring systems that can be mounted on the motorized train-pressure test bench. Different chuck types are available as an option for a wide variety of test tasks. This allows a large range of measuring tasks to be carried out with a single measuring system.
