PCE Instruments PCE-WMM 100 Carbon dioxide detector 0 - 50000 ppm Oxygen sensor, Thermometer, Wall mount Calibrated to M
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
CO2 GAS ALARM PCE-WMM 100
- CO2 and O2 sensor
- Main and REMOTE UNIT
- Alarm relay - 4 ... 20 mA analogueue outputs
- Acoustic alarm
- Integrated temperature measurement
Technical specifications
- Measuring function CO2 Measuring range 0 .... 50000 ppm Resolution< 10000 ppm: 10 ppm > 10001 ppm: 100 ppm Accuracy ± 100 ppm / 5 % of MW. Measuring function O2 Measuring range O2: 0 ... 30 % Resolution 0.1% Accuracy< 3% v.MB Measuring function temperature Measurement range 0 ... 50 °C Resolution 0.1 °C Accuracy: ±1 °C Repeatability CO2: ±20 ppm at 400 ppm O2:< ±1% Temperature dependence ± 0.3 % of MW. / °C. (At 25 °C) ± 2 ppm / °C. (The greater value applies) Pressure dependence 0.13% of MW. / MmHg Response time: CO2: T90< 60s O2: T90< 30s Temperature: 20 ... 30 min. Alarm 1 CO2: 5000 ppm, 1%, 1.5%, 2% O2: 18%, 18.5%, 19%, 19.5%, 20% Alarm 2 CO2: 1.5%, 2%, 2.5%, 3%, 3.5%, 4% O2: 16%, 16.5%, 17%, 17.5%, 18% Alarm tone volume 80 db / 0.1 m. Heating-up time < 60 s at 22 °C ambient temperature Voltage distribution power supply 100 ... 240 V AC / 6 V DC / 0.5 A Analogue output 2 x 4 ... 20 mA Load < 150 Ohm Relay max. 2 A / 30 V DC / 250 V AC Operating conditions 0 ... 40 °C / max. 95 % r.h. Storage conditions -20 ... 60 °C / max. 95 % r.h. Protection class Sensor unit: IP54 Remote UNIT: Dimensions Sensor unit 170 x 63 x 26 mm Remote: 80 x 35.7 x 10 mm Weight sensor unit: 1200 g incl. cable Remote UNIT 120 g.
- Product type
Carbon dioxide detector
- Unit of measurement
Oxygen
Temperature
CO2
Gas
- Reading range
0 - 50000 ppm
- Dim
(L x W x H) 170 x 26 x 63 mm
- Features
Oxygen sensor
Thermometer
Wall mount
- Accuracy
5 ppm
- Weight
1200 g
- Weight, information
with cable
- Reading range (max.)
50000 ppm
- Reading range (min.)
0 ppm
- Width
26 mm
- Height
63 mm
- Length
170 mm
IP54
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452733 PCE Instruments PCE-WMM 100 Carbon dioxide detector 0 - 50000 ppm Oxygen sensor, Thermometer, Wall mount Calibrated to M
User & Safety Instructions
User & Safety Instructions 2452733 PCE Instruments PCE-WMM 100 Carbon dioxide detector 0 - 50000 ppm Oxygen sensor, Thermometer, Wall mount Calibrated to M
Description

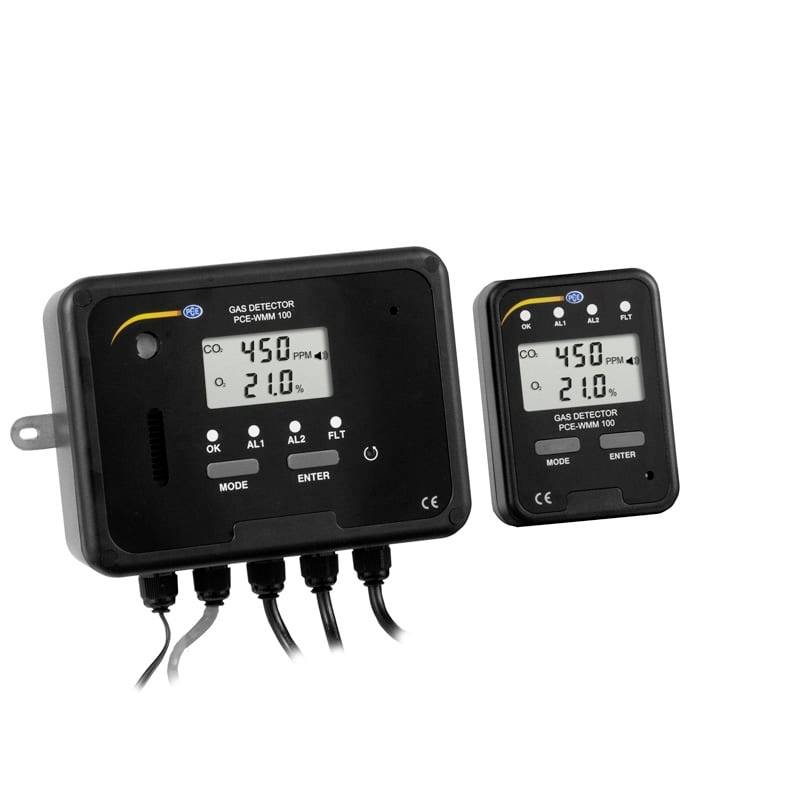

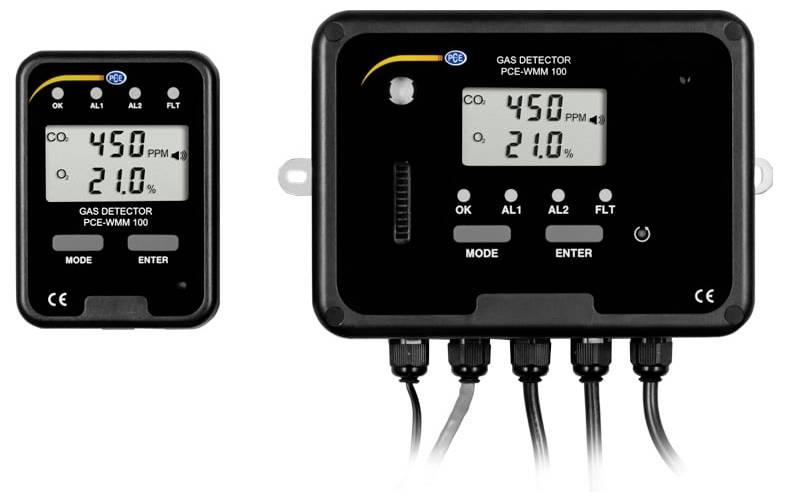

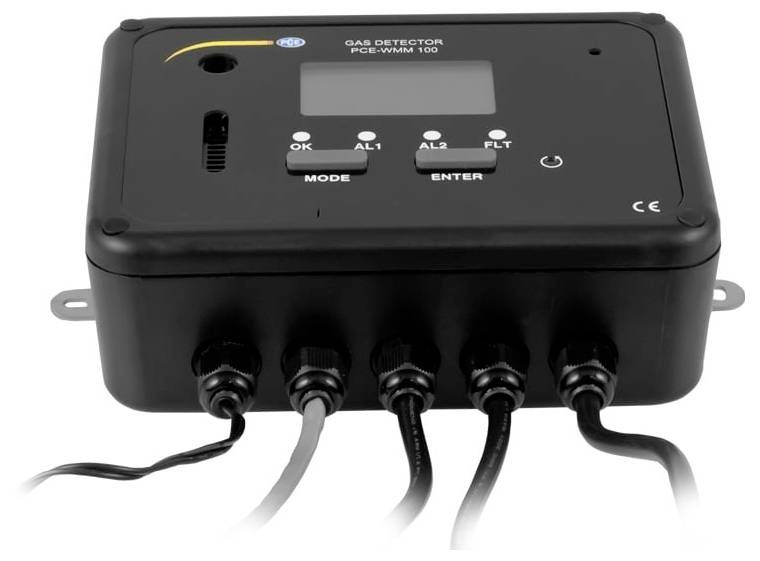

CO2 Warning device PCE-WMM 100 CO2 Warning device for carbon dioxide and oxygen / adjustable alarms / 4-digit LC display / consisting of main and remote unit / relay contacts / analogue output the CO2 Warning device PCE-WMM 100 consists of a main unit and a remote display. The CO2 warning device is used to measure carbon dioxide and oxygen stationary. The CO2 warning device protects persons from the odorless gas CO2 and also warns against low oxygen content in the breathing air. The gas alarm time indicates the measured values on an LCD. The PCE-WMM 100 CO2 warning device has two relays, which can be used to control alarm lights or acoustic signaling devices. Furthermore, the CO2 warning device has an integrated, acoustic alarm, which emits a tone of 80 db in the event of an alarm. The warning device is used wherever CO2 can be released. This can be in warehouses, breweries, wine cellars or restaurants. The main unit is protected according to IP54. 4 LEDs on the front provide information about the system status.
This text is machine translated.
This text is machine translated.

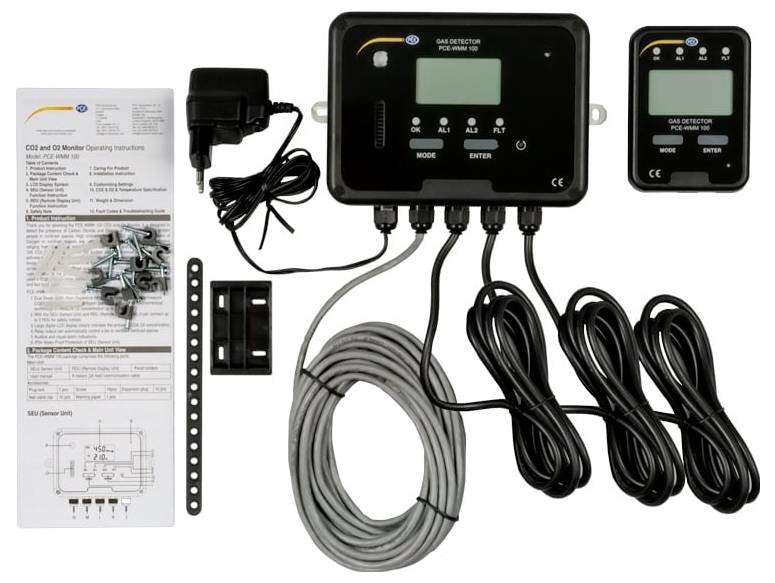

Scope of delivery
- 1 x CO2 gas warning system PCE-WMM 100

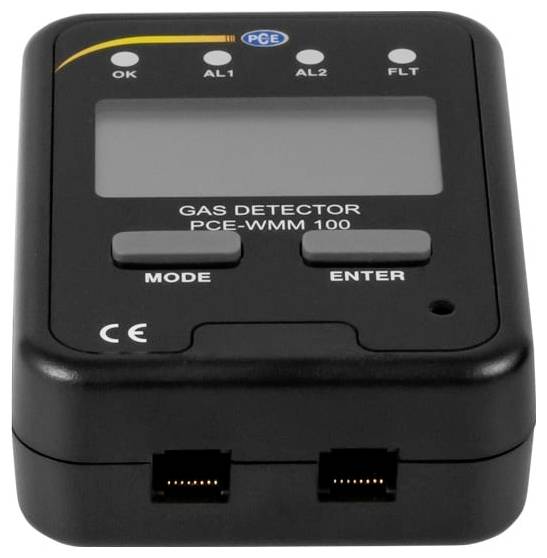

- 1 x REMOTE UNIT 8 m connection cable
- 1 power unit
- 1 x assembly material
- 1x user manual
