Name: PCE Instruments PCE-WMT 300 Wood moisture meter Wood moisture reading range 3.5 up to 150 % suitable for hardwood
Brand: PCE Instruments
SKU: 3812939

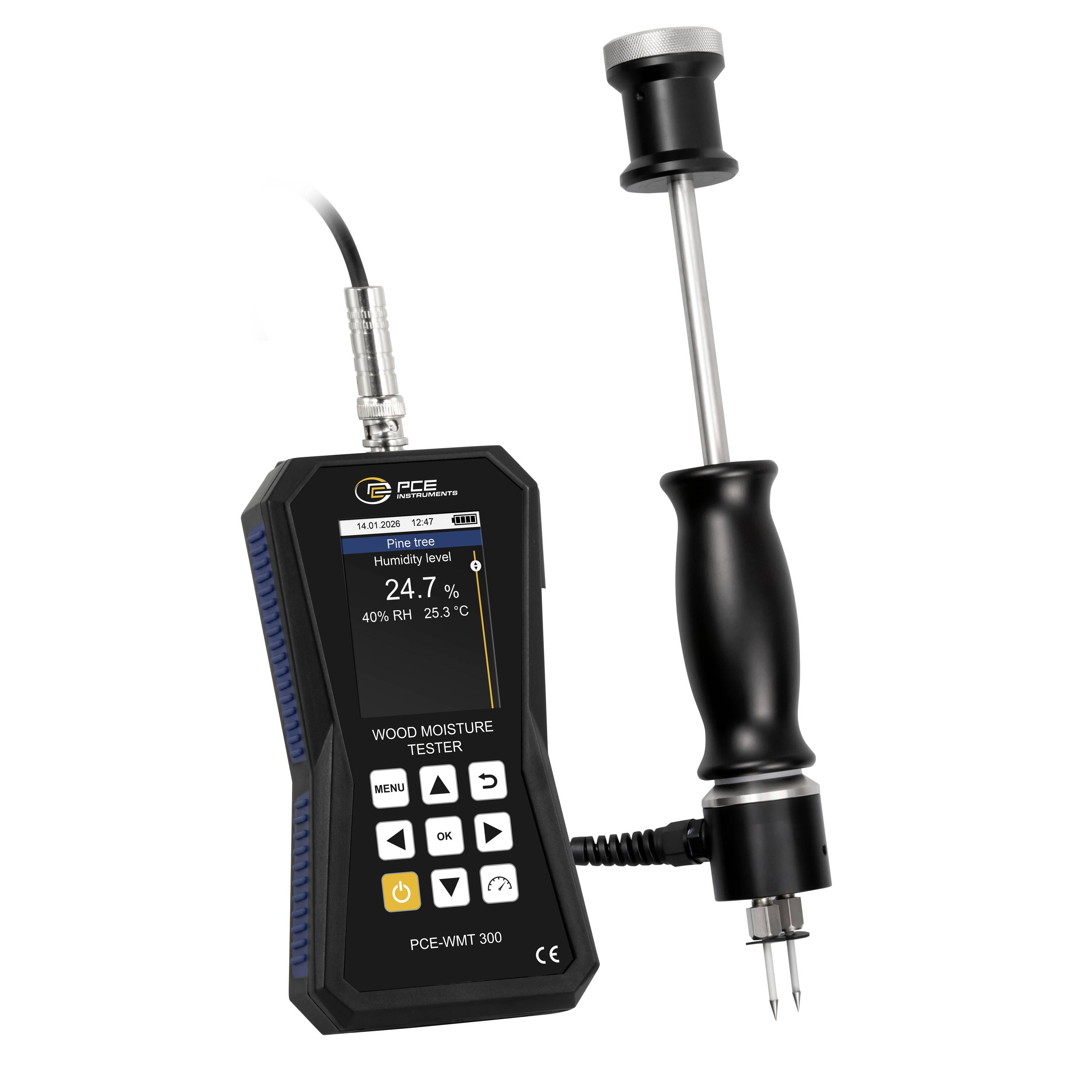

Wood moisture tester with handheld meter showing 24.7% humidity and a separate probe attachment for measuring wood moisture.

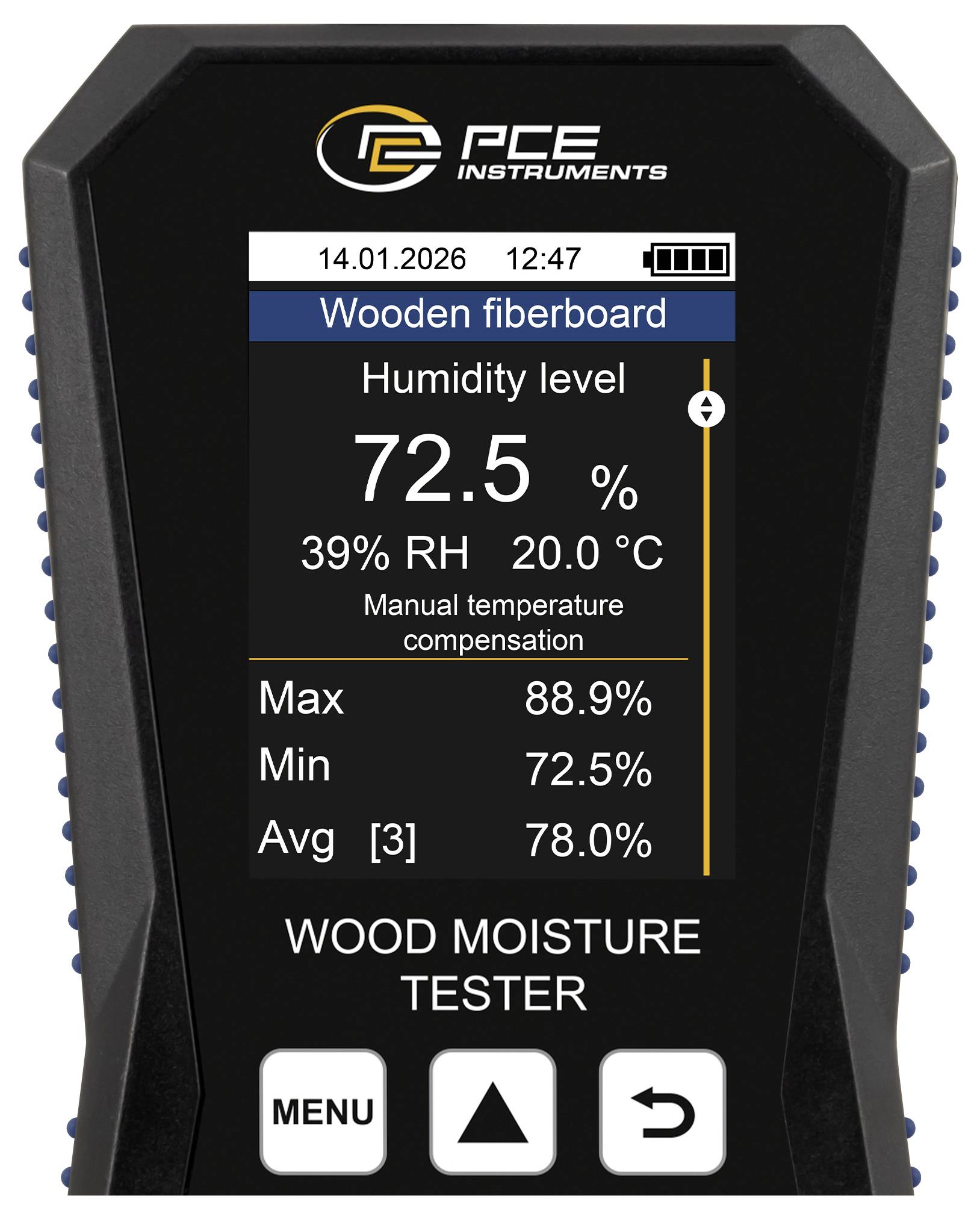

Handheld PCE Instruments wood moisture tester showing 'Wooden fiberboard' humidity level 72.5%, with max 88.9%, min 72.5%, avg 78.0%, date 14.01.2026 and battery indicator.

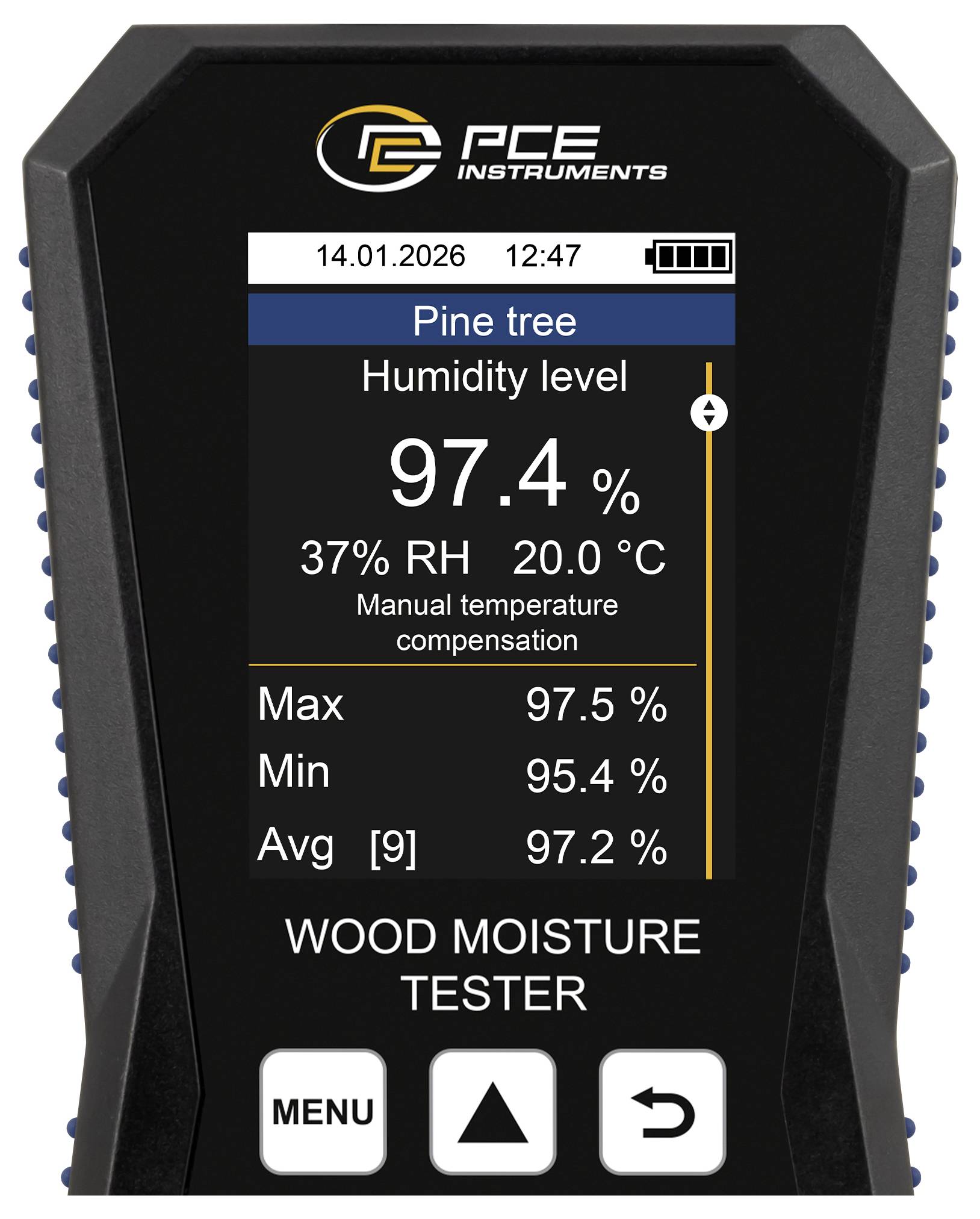

Handheld PCE Instruments wood moisture tester showing 'Pine tree' humidity level 97.4%, with date 14.01.2026 and temperature 20.0°C.

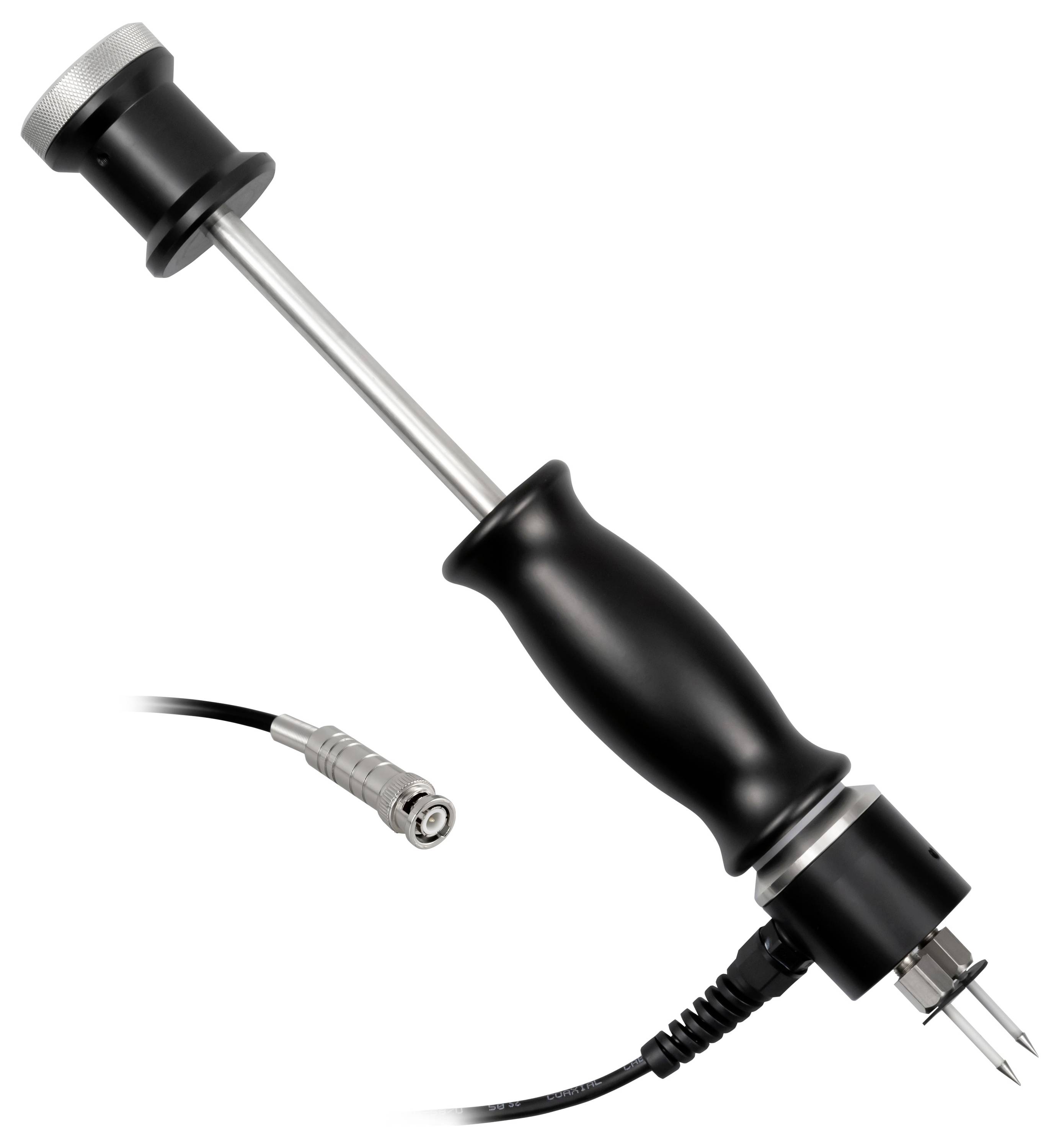

A handheld metal probe with a black grip, connected by a cable to a small plug, shown on a white background.

Close-up of a black industrial device with two metal rod probes extending from the front and a cable entering from the left.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-WMM 300

Suitable for Wood

Technical specifications

More details
Materials hardwood, maple: 7.9 ... 150 %,American birch: 6.4 ... 150 %,Basla: 7.3 ... 150 %,Berghahorn: 7.9 ... 150 %,Birch: 8.1 ... 150 %,beech: 7.2 ... 150 %,Real mahogany: 6.7 ... 150 %,Noble chestnut: 8.1 ... 150 %,Alder: 8.1 ... 150 %,Ash: 8.1 ... 150 %,False acacia: 8.1 ... 150 %,yellow birch: 6.4 ... 150 %,Hagbuche: 8.1 ... 150 %,hornbeam: 8.1 ... 150 %,Canadian birch: 8.1 ... 150 %,Cherry tree: 8.1 ... 150 %,walnut: 8.1 ... 150 %,Poplar: 6.8 ... 150 %,Plum tree: 8.1 ... 150 %,plane: 7.1 ... 150 %,Robinie: 8.1 ... 150 %,redbeech: 7.2 ... 150 %,Schwarzerle: 8.1 ... 150 %,Sipo: 9.7 ... 150 %,Stone beech: 8.1 ... 150 %,Steal oak: 7.0 ... 150 %,teak: 6.8 ... 150 %,Grape oak: 7.0 ... 150 %,elm: 8.0 ... 150 %,Walnut: 8.1 ... 150 %, pasture: 6.1 ... 150 %,white maple: 7.9 ... 150 %,White birch: 8.1 ... 150 %,White beech: 8.1 ... 150 %,Sugar birch: 8.1 ... 150 %,zweschgen tree: 8.1 ... 150 %,,needlewood,Douglas: 6.6 ... 150 %,spruce, common: 8.1 ... 150 %,spruce, Central European: 8.1 ... 150%,spruce, Scandinavian: 8.1 ... 150%, jaw: 6.6 ... 150 %,Larch: 7.5 ... 150 %,fir: 8.5 ... 150 %,Cypress: 6.7 ... 150 %,,building materials,building moisture: 11 ... 200 digits,wood-fiber insulation plate: 6.8 ... 150 %,chipboard: 3.5 ... 150 %,,Resolution wood humidity: 0.1 %,Resolution digit: 1 digit,Repeatability: ±0.5 %
General Technical Data
Cable length 1.2 m
Temperature compensation -20 … +50 °C, manual / automatic,-4 … +122 °F, manual / automatic
Measurement principle Electrical resistance measurement
Display type LCD
Display size 2.8 inches
Interface USB-C
Sensor ramming electrode
Operating time 22 h
Dimensions of bumper electrode 332 x Ø45 mm, pair of needles 165 x Ø2,85 mm, 45 x Ø 3.05 mm
Menu language German, English (GB), English (US), French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese, Danish
Protection class (device) IP52
Voltage supply: 5 V DC
Battery/Battery 1 x 3.7 V internal , Lithium-Ion polymer battery
Capacity 2500 mAh
Operating conditions -20 ... 65 °C , 10 ... 95 % r.F.
Storage conditions -20 ... 65 °C , 10 ... 95 % r.F.
Dimensions ( L x W x H ) 165 x 85 x 32 mm
Weight 250 g

Product type: Wood moisture meter

Wood moisture reading accuracy ±: 0.5 %

: Manufacturer's standards (no certificate)

Suitable for: Wood

Interfaces: USB C

Power supply (details): 3.7 V

Dim: (L x W x H) 165 x 85 x 32 mm

Weight: 250 g

Features: suitable for hardwood

Wood moisture reading range (max.): 150 %

Wood moisture reading range (min.): 3.5 %

Reading accuracy - wood moisture: 0.5 %

Width: 85 mm

Height: 32 mm

Length: 165 mm

Power supply: Rechargeable battery

Documents & Downloads

Datasheet

Datasheet 3812939 PCE Instruments PCE-WMT 300 Wood moisture meter Wood moisture reading range 3.5 up to 150 % suitable for hardwood

User & Safety Instructions

User & Safety Instructions 3812939 PCE Instruments PCE-WMT 300 Wood moisture meter Wood moisture reading range 3.5 up to 150 % suitable for hardwood

Description

The wood humidity meter is a versatile measuring instrument for determining the moisture in hard wood, soft wood and selected construction materials. With the resistive measuring principle and the robust ramming electrode, the wood humidity meter enables reliable and precise humidity measurements in up to 42 different wood types. You can also add custom materials. The measurement ranges from 3.5% to 150% wood humidity, depending on the material, with a high resolution of 0.1% and a repeatability of ±0.5%. Temperature compensation can be performed manually or automatically to ensure accurate results under different environmental conditions.

The wood humidity meter has a 2.8" LCD display, which shows the current measured value as well as the ambient temperature and humidity. Statistical functions such as the display of minimum, maximum and average values support the evaluation of the measured data. The measurement values are stored internally, whereby the data can simply be transferred, analyzed and archived via the USB-C interface and the accompanying PC software. Menu navigation is available in several languages, including German, English, French, Spanish and others.

The wooden humidity meter is operated via clear function keys. Different measurement modes, such as the choice between % wood moisture and % water content, as well as the possibility to create custom materials, offer flexibility for different applications. The powerful LiPo battery provides a long operating time of up to 22 hours. Thanks to the protection class IP52, the device is protected against dust and drip water.

The wood humidity meter is suitable for Ideal for use in wood processing, construction, drying processes as well as for quality control of wood and wood materials.

This text is machine translated.
