PCE Instruments PCE-WNM 100 Colorimeter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

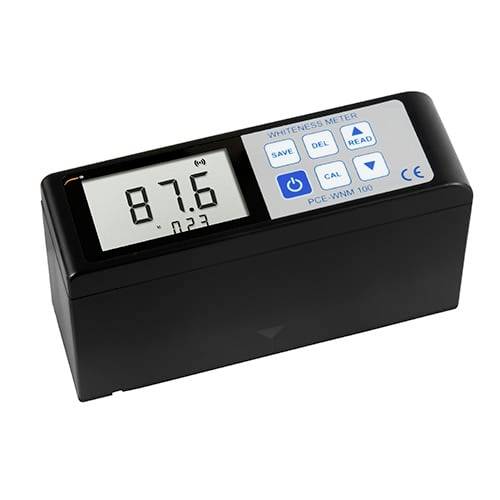

PPCE-WNM 100 whiteness meter
- Supports VESA standards up to
Technical specifications
- Measurement range 0 ... 120 Resolution 0.1 Offset drift< 0.1 Repeat accuracy < 0.5 Measuring geometry 45/0 Light source LED 457 nm Calculation of the degree of whiteness R457 (Blue Light White Level) Measuring field size 18 x 11 mm Power supply lithium-ion battery Operating conditions 0 ... 40 °C < 85% r.h. Weight 305 g. Dimensions 140 x 45 x 75 mm
- Product type
Colorimeter
- Width
140 mm
- Height
45 mm
- Weight
305 g
- Dim
(W x H) 140 mm x 45 mm
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452735 PCE Instruments PCE-WNM 100 Colorimeter
User & Safety Instructions
User & Safety Instructions 2452735 PCE Instruments PCE-WNM 100 Colorimeter
Description

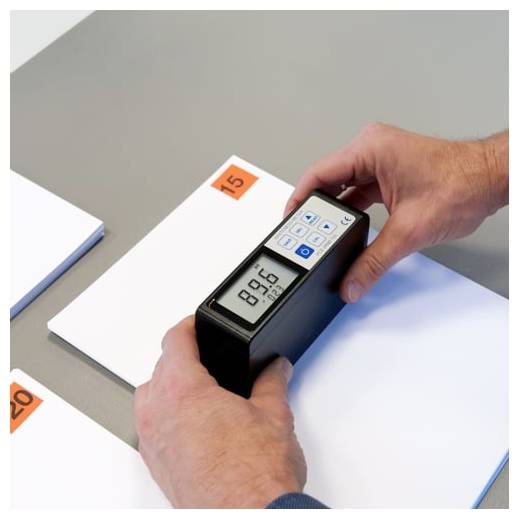

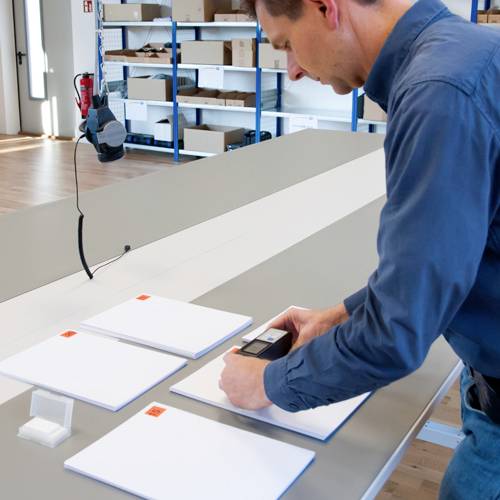

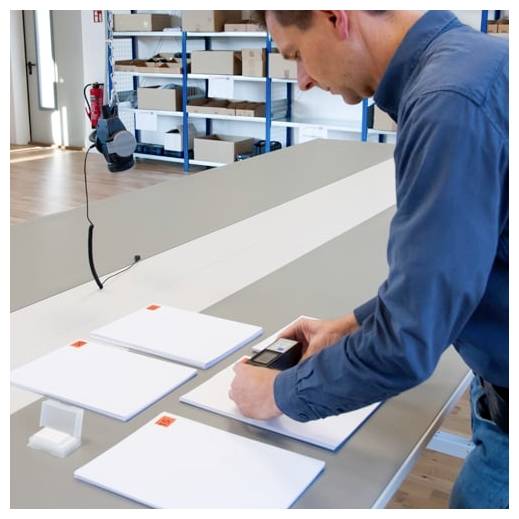

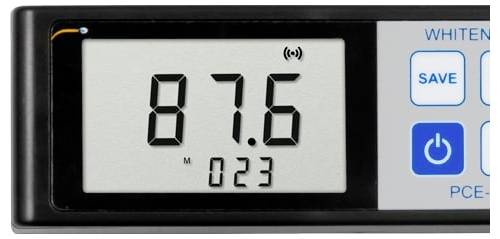

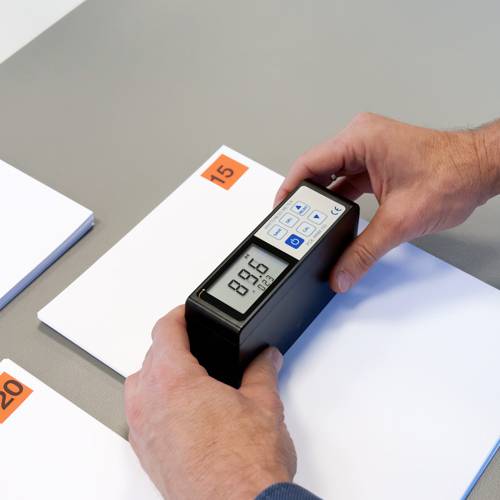

PPCE-WNM 100 White-degree Meter / Measuring range up to 120 / LC Display / Interface / Li-Ion Battery The PPCE-WNM 100 White-degree Meter is used to measure the whiteness of flat surfaces or powders. The white-degree meter can be used in particular to measure the white of textile prints, dyes, building materials, cardboard and paper as well as plastics. It can also be used to measure all other surfaces. The white-degree measuring device consists of a light source and an optical measuring system, which measures the reflection of the light and thus determines the whiteness of the surface according to R457. The white-degree measuring device can be used directly after an initial calibration on the supplied white standard. A memory of up to 245 measured data enables a logging of the measured values. The measuring device can be connected to the PC via the serial interface. This makes it possible to record the measured data from the white-degree measuring device live.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x PPCE-WNM 100 white-degree meter
- 1 x calibration plate
- 1 x Cleaning cloth
- 1 x power supply
- 1 x carrying case
- 1x user manual
