PCE Instruments PCE-WP24 Wood moisture meter Building moisture reading range 0 up to 10 vol% Wood moisture reading range
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

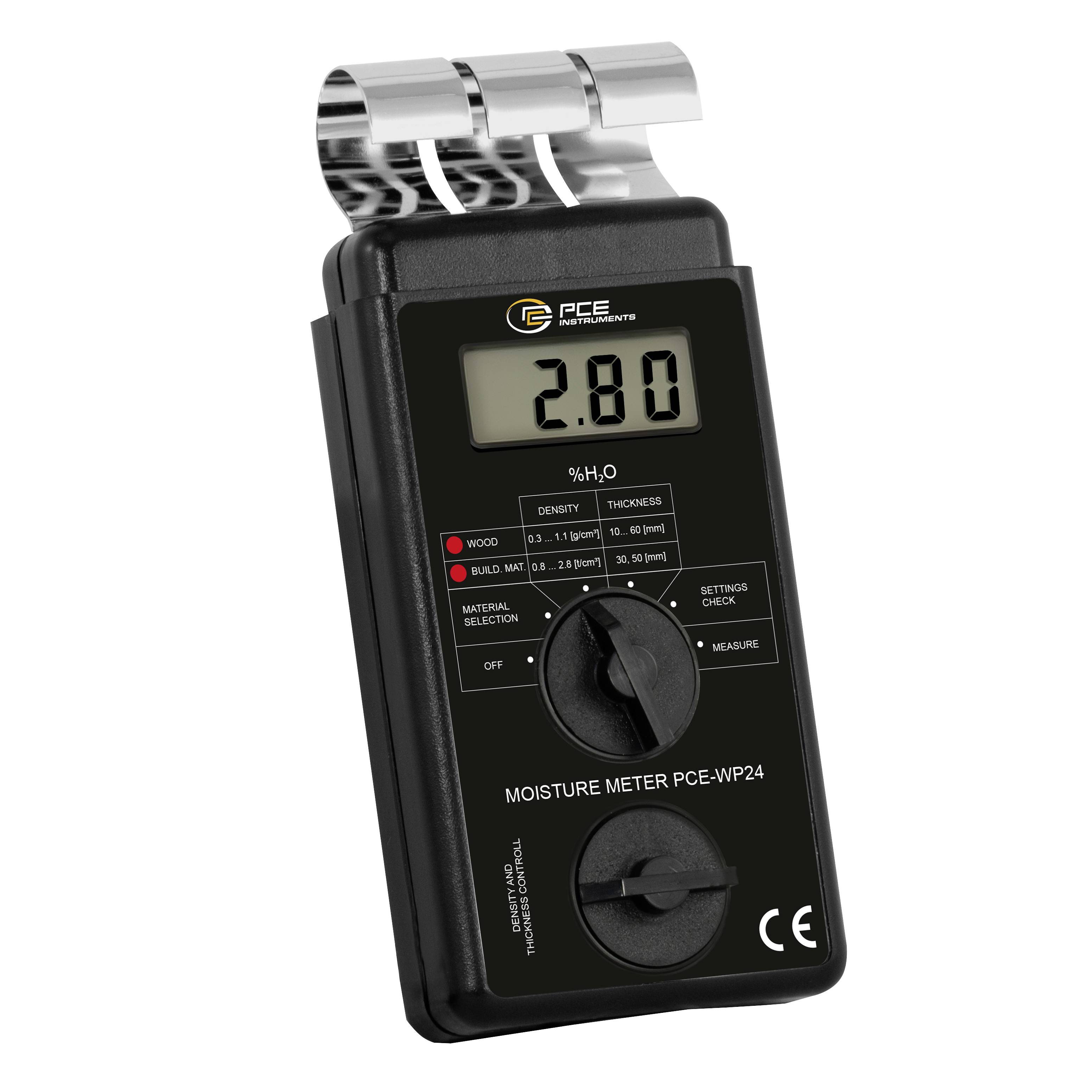

Humidity meter for building materials and wood PCE-WP24
- Measurement type (details) Non-invasive
- Suitable for Wood, Building materials
Technical specifications
- Reading range - Wood 4 ... 60 % - Construction materials 0 ... 10 %Resolution 0.1%Accuracy ±0.7 %Measuring depth - Wood approx. 60 mm - Construction materials approx. 50 mmSetup range - Density (wood) 0.3 ... 1.1 g/cm³ - Density (construction materials) 0.8 ... 2.8 t/m³ - Strength (wood) 10 ... 60 mm - Thickness (construction materials) 30 or 50 mmAdjustment steps - Density (wood) 0.02 g/cm³ - Density (construction materials) 0.2 t/m³ - Thickness (wood) 2 mm - Strength (construction materials) not applicableDisplay: LCD-display 12.7 mmHousing: PlasticSupply: 1 x 9 V block batteryBattery life: Approx. 2000 measurementsDimensions 165 x 80 x 33 mmWeight: 500 g
- Product type
Wood moisture meter
- Measurement type (details)
Non-invasive
- Building moisture reading accuracy ±
0.7 %
- Wood moisture reading accuracy ±
0.7 %
Manufacturer's standards (no certificate)
- Suitable for
Wood
Building materials
- Dim
(L x W x H) 80 x 165 x 33 mm
- Weight
500 g
- Features
suitable for hardwood
- Building moisture reading range (max.)
10 vol%
- Building moisture reading range (min.)
0 vol%
- Wood moisture reading range (max.)
60 vol%
- Wood moisture reading range (min.)
4 vol%
- Reading accuracy - wood moisture
0.7 %
- Width
165 mm
- Height
33 mm
- Length
80 mm
- Power supply
9 V battery (1x), included
Documents & Downloads
Datasheet
Datasheet 2620742 PCE Instruments PCE-WP24 Wood moisture meter Building moisture reading range 0 up to 10 vol% Wood moisture reading range
User & Safety Instructions
User & Safety Instructions 2620742 PCE Instruments PCE-WP24 Wood moisture meter Building moisture reading range 0 up to 10 vol% Wood moisture reading range
Description
Wood humidity measuring device PCE-WP24 Wood humidity testing device / many different types of wood and construction materials / fast, non-destructive measurement The wood humidity measuring device PCE-WP24 is a measuring device for fast and non-destructive determination of the wood moisture of different types of wood and is also suitable for determining the humidity in construction materials. The measuring method of the wood moisture meter works according to the dielectric constant/high frequency measuring principle. The electromagnetic waves penetrate the surface about 50 mm deep. The measuring result is thus an average value of the upper 50 mm. In order to obtain a measurement result with the wood moisture tester, you only have to select the wood type/construction material (on the back of the device) and place the electrodes on the surface. The tester is supplied factory calibrated and is stable for a long time (due to its measuring principle). Therefore, it does not need to be recalibrated.
This text is machine translated.
This text is machine translated.
Scope of delivery

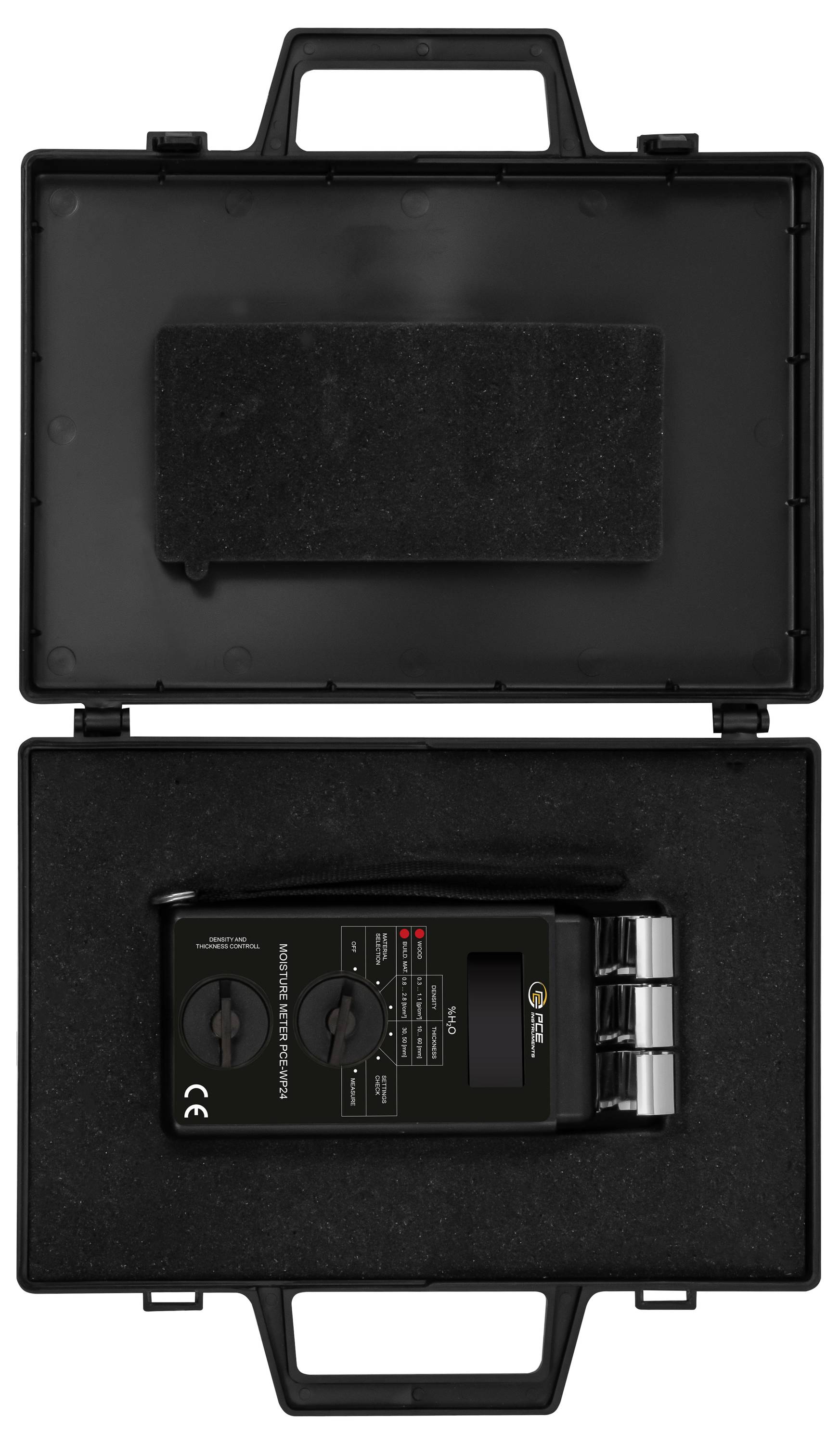

- 1 x humidity meter for wood and construction materials PCE-WP241 x battery1 x case1x user manual
