Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-WQS 20

Simultaneous measurement of pH and conductivity
Highly precise measurement with fast response time
LCD screen displays readings
RS485 interface for system integration
DIN rail mounting for the control cabinet
Robust electrodes for continuous use
Supply voltage of 9 ... 24 V DC
Ideal for water treatment, agriculture, research and industry
No analogue outputs!

Technical specifications

Conductivity
Measuring range 0 ... 5000 µS/cm
Resolution 0.1 µS/cm
Accuracy ±1.5 % FS
PH
Measuring range 0 ... 14 pH
Resolution 0.01 pH
Accuracy ±0.03 pH
Electrode
Designation PH:004 (pH-electrode)
Temperature range 0 ... 60 °C
Plastics shaft material
Material: Glass diaphragm
Shaft length 50 mm
Shaft diameter: 23 mm
Shaft diameter Additional information 3/4 inch External thread at the top and bottom of the electrode
Min Immersion depth 25 mm
Cable length 5 m
BNC connection
Dimensions 160 x 28 mm
Electrode
Designation EC:004 (conductivity electrode)
Temperature range 0 ... 60 °C
Plastics shaft material
Shaft length 76 mm
Shaft diameter: 13 mm
Shaft diameter additional information 1/2 inch NPT thread connection
Min Immersion depth 25 mm
Cable length 5 m
Connection open cable ends
Dimensions 133 x 25 mm
General Technical Data
Display type LCD
Display size 1.26 inches
Interface: RS485
Response time 45 s
Mounting: DIN rail
Menu language English (GB), English (US)
Protection class (device) IP20
Power supply 9 ... 24 V DC
Operating conditions 0 ... 60 °C , 0 ... 100 % r.F.
Storage conditions 0 ... 60 °C , 0 ... 100 % r.F.
Dimensions ( W x H x D ) 53 x 100 x 60 mm
Weight 113 g

Product type: Water quality tester

Reading type: pH
Conductivity

Display: LCD

: Manufacturer's standards (no certificate)

Power supply (details): 9 - 24 V DC

Dim: (L x W x H) 53 x 60 x 100 mm

Weight: 113 g

Conductivity reading range: 0 - 5000 µS/cm

Conductivity reading range (max.): 5000 µS/cm

Conductivity reading range (min): 0 µS/cm

pH reading range: 0 - 14 pH

pH reading range (max.): 14 pH

pH reading range (min.): 0 pH

Width: 60 mm

Height: 100 mm

Length: 53 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3812989 PCE Instruments PCE-WQS 20 Water quality tester pH, Conductivity

User & Safety Instructions

User & Safety Instructions 3812989 PCE Instruments PCE-WQS 20 Water quality tester pH, Conductivity

Description

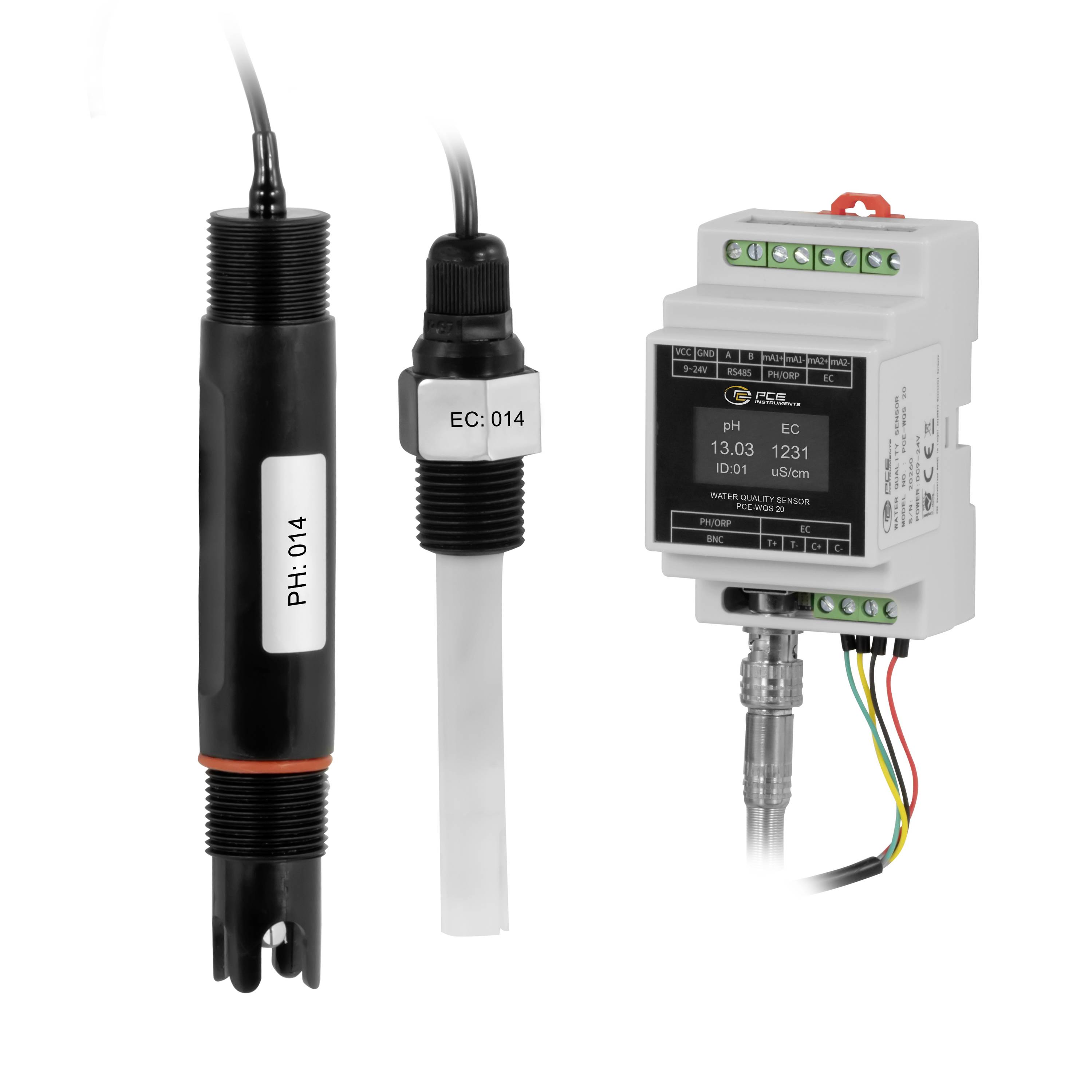

This high-quality water quality sensor enables the reliable and fast monitoring of important water parameters. With the simultaneous measurement of pH and conductivity, the Ideal water quality sensor is suitable for applications in water treatment, plant cultivation, scientific laboratories, and in municipal and industrial processes.

The water quality sensor has a pH measuring range of 0 ... 14 pH with a high resolution of 0.01 pH and an accuracy of ±0.03 pH. The conductivity measurement is carried out in the range of 0 ... 5000 µS/cm at a resolution of 0.1 µS/cm and an accuracy of ±1.5 % FS. In this way, the sensor provides accurate readings for the continuous monitoring of water quality.

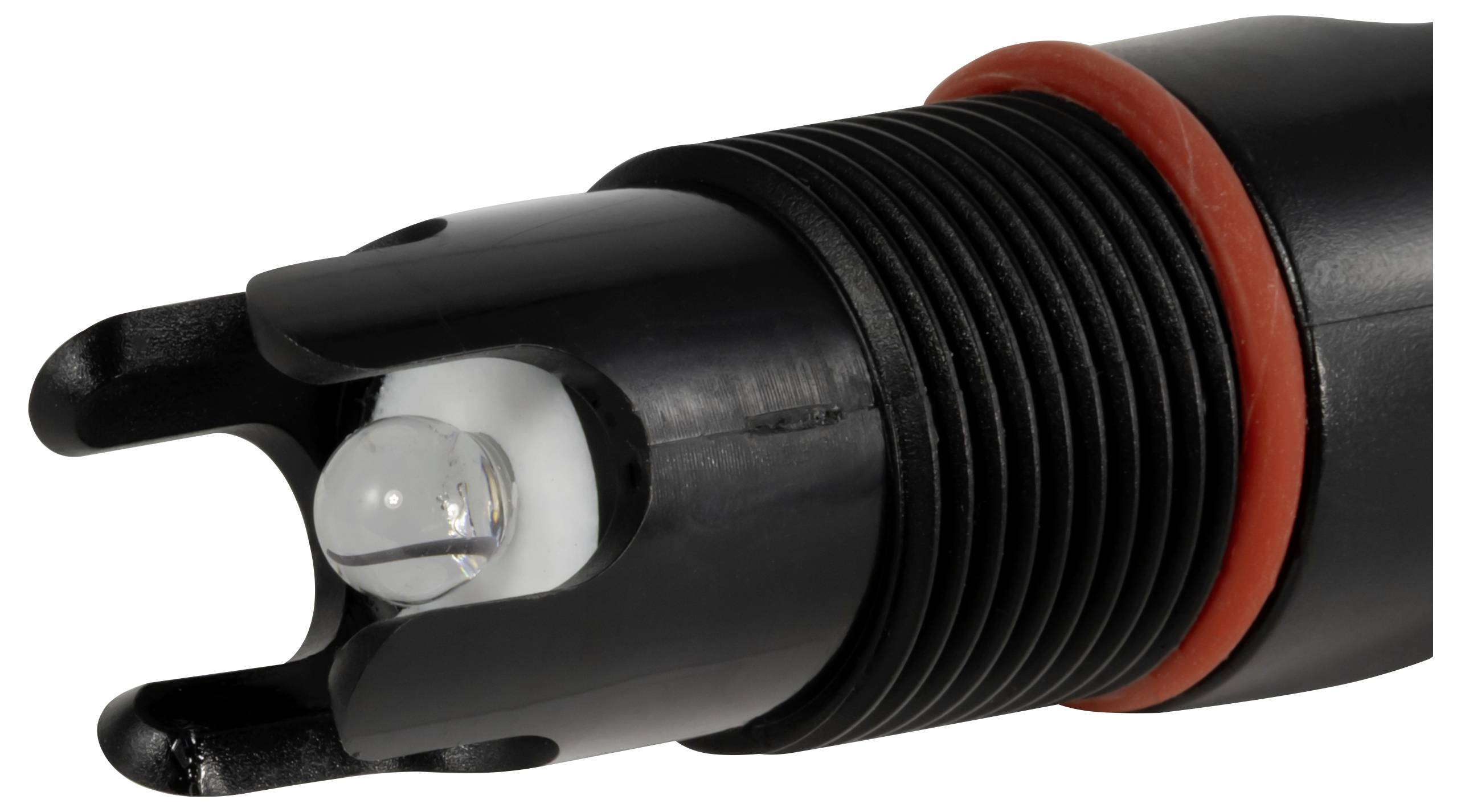

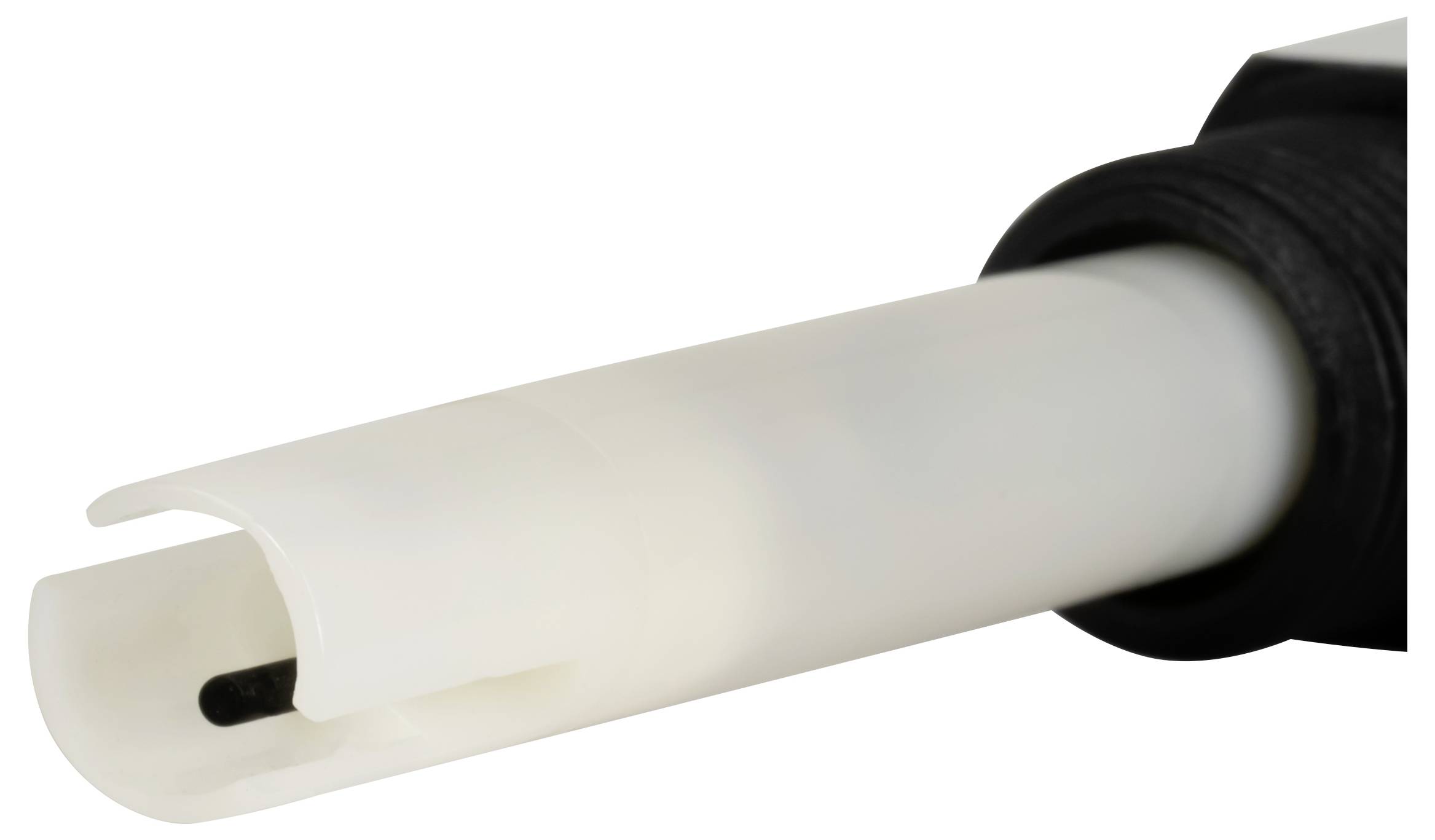

The pH-electrode has a robust plastic shaft with glass diaphragm and is designed for temperatures from 0 to 60 °C. For simple installation, it has a 3/4-inch external thread on the top and bottom. The connection is made via a BNC plug, while the 5 m long connection cable allows a flexible mounting. The conductivity electrode also consists of a durable plastic shaft and is equipped with a 1/2-inch NPT threaded connection.

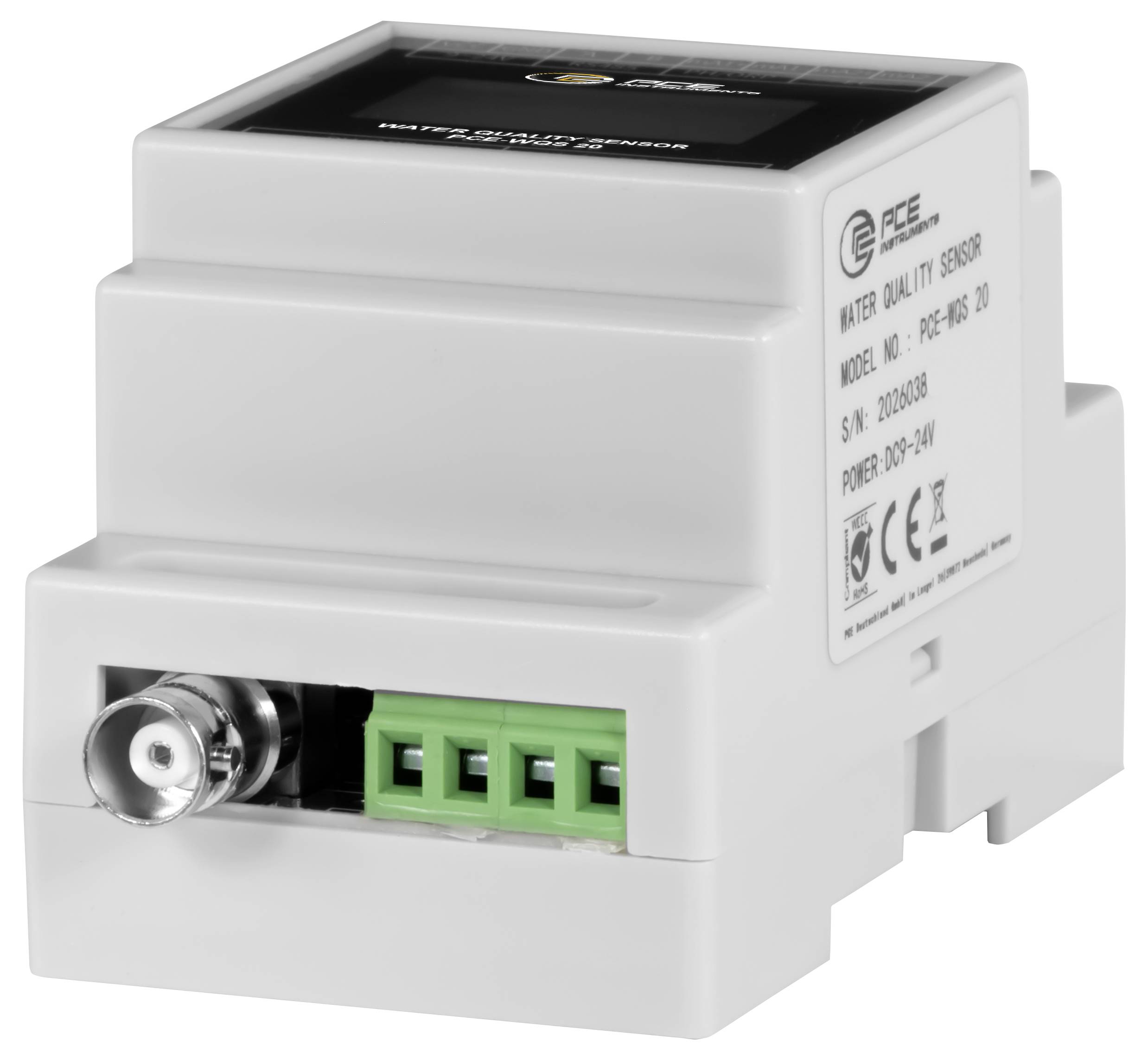

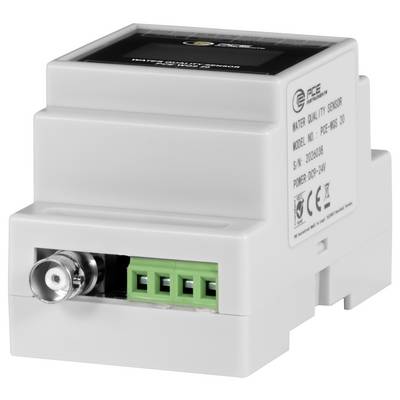

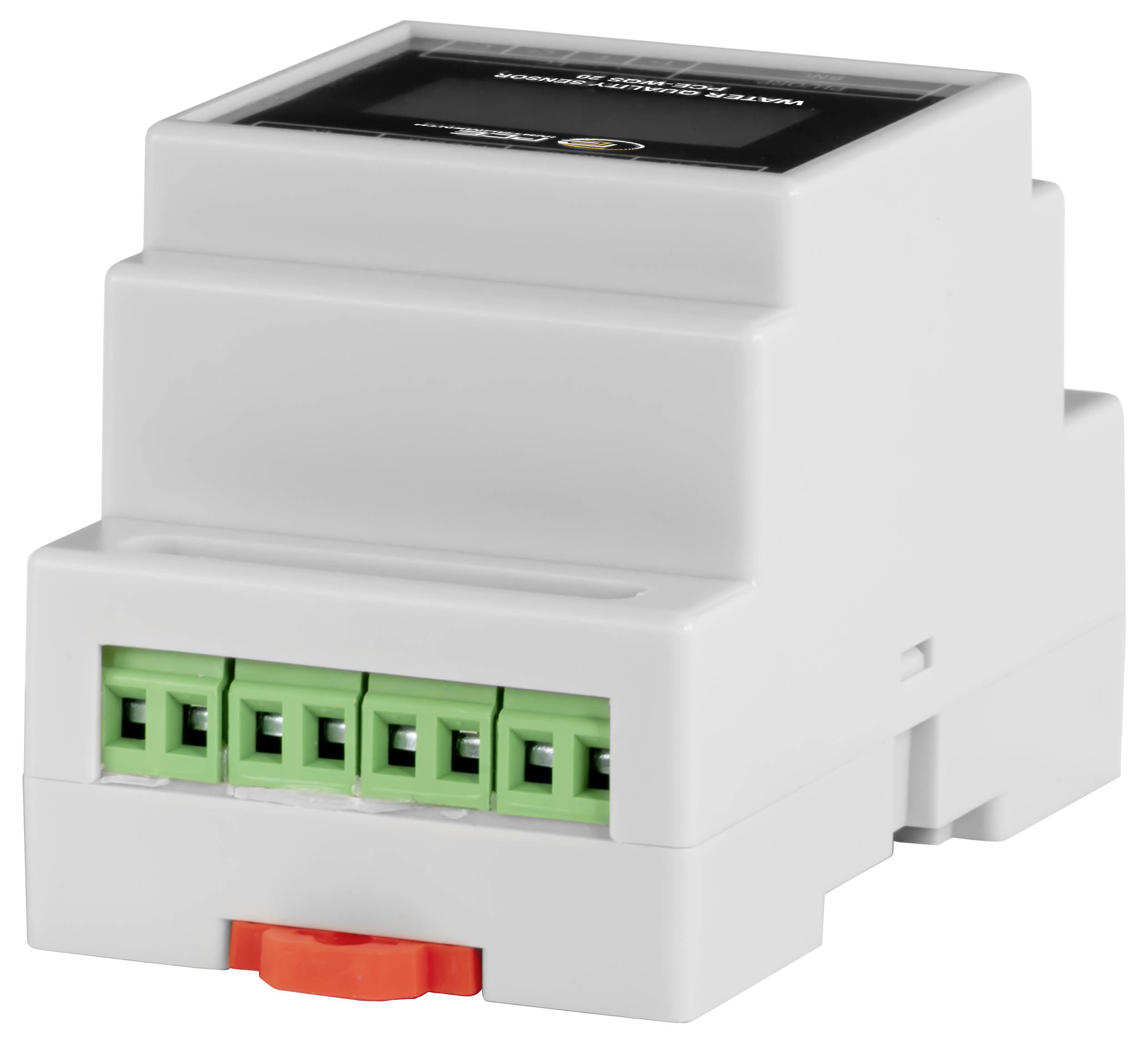

The 1.26" LCD display allows you to read readings on site. Communication takes place via an RS485 interface, whereby the water quality sensor can be integrated without any problem in the existing measurement, control and automation systems. Installation takes place on a DIN rail in a space-saving way. A supply voltage of 9 to 24 V DC is necessary for operation

With a response time of just 45 seconds, the water quality sensor is particularly suitable for applications requiring fast and reliable measurement results. Typical areas of application are fast control of water quality, plant cultivation, scientific experiments, urban sewage treatment plants, chemical process engineering as well as projects in the field of environmental protection.
