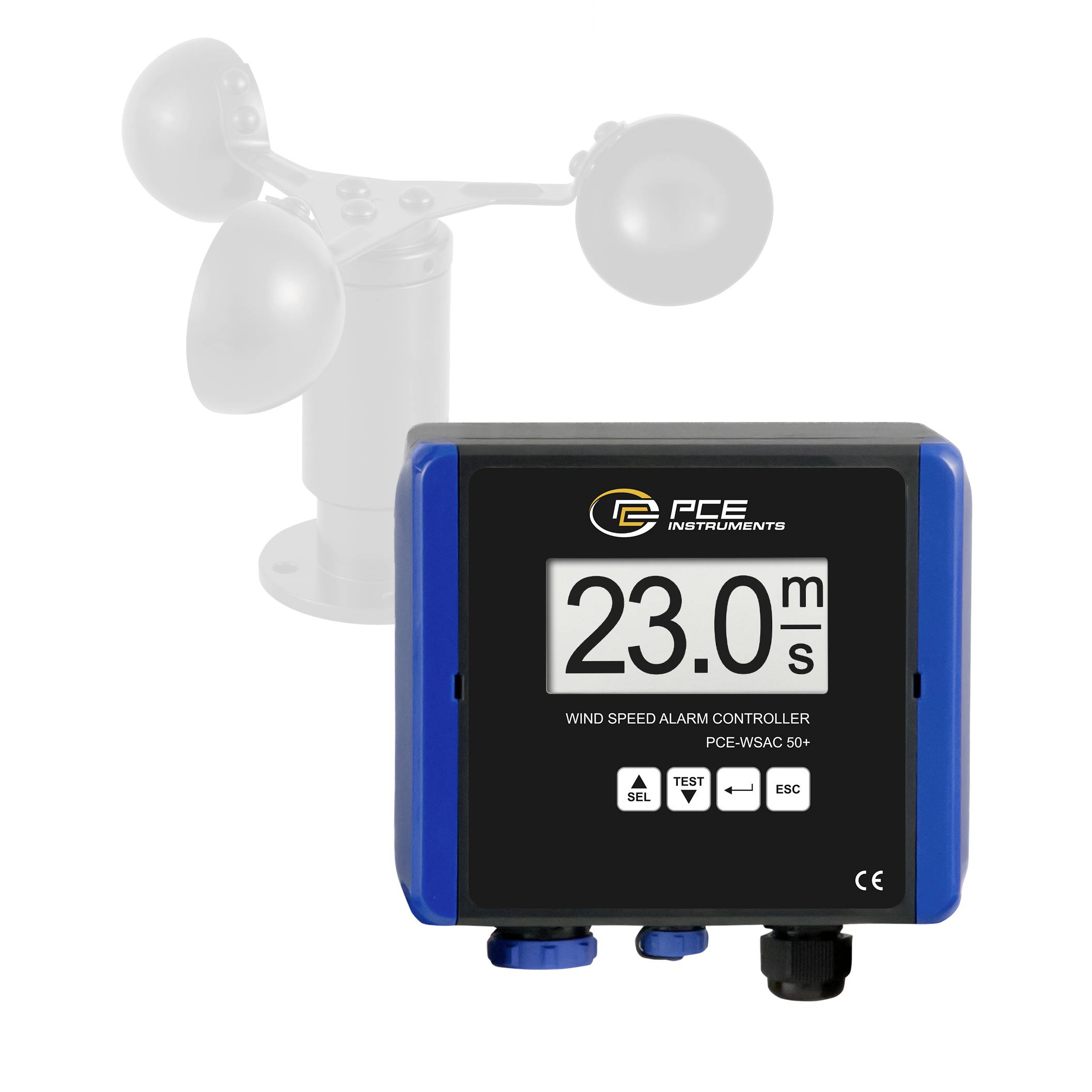

PCE wind speed alarm controller displaying 23.0 m/s, shown in front of a faded anemometer.

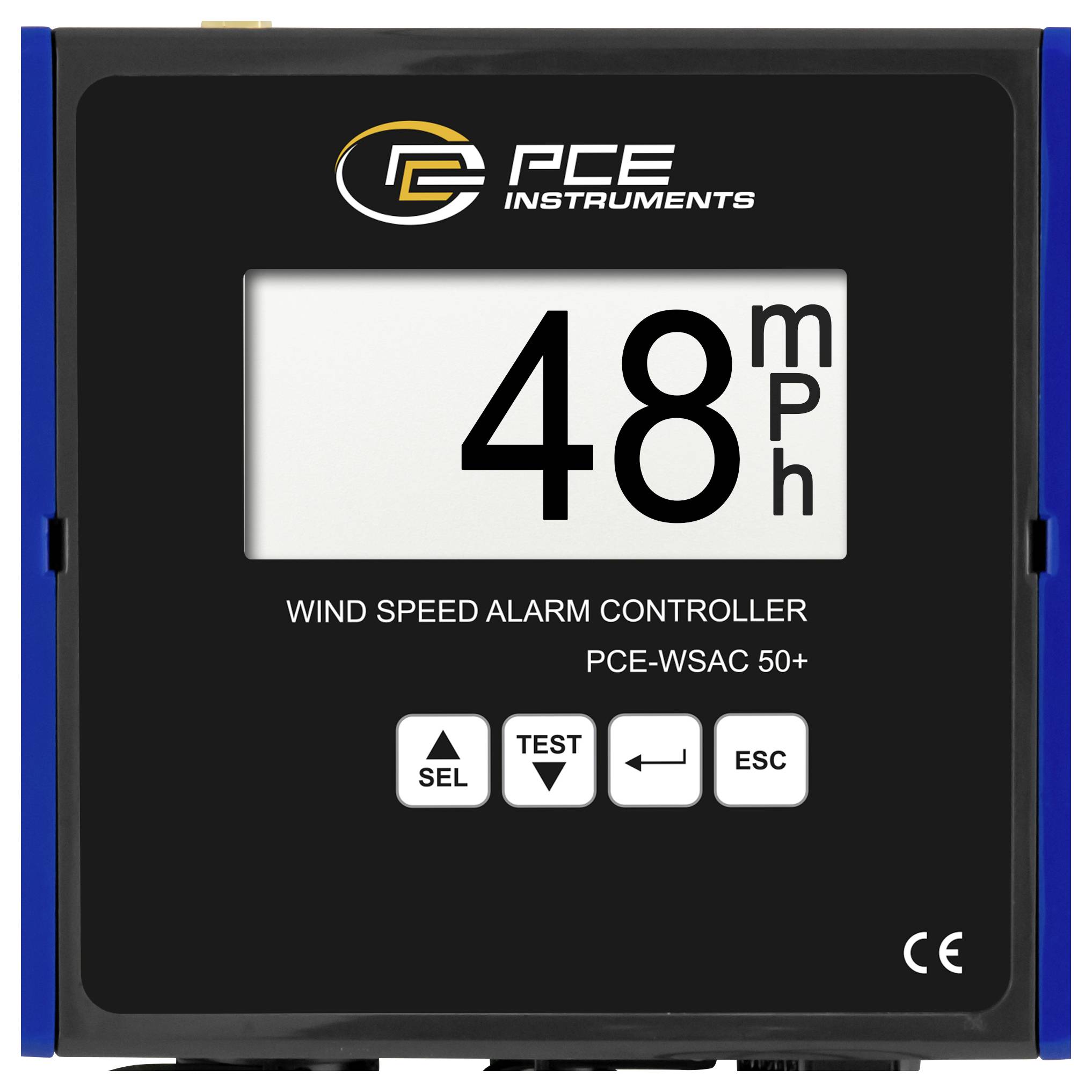

PCE Instruments wind speed alarm controller displaying 48 mph, with SEL, TEST, back, and ESC buttons.

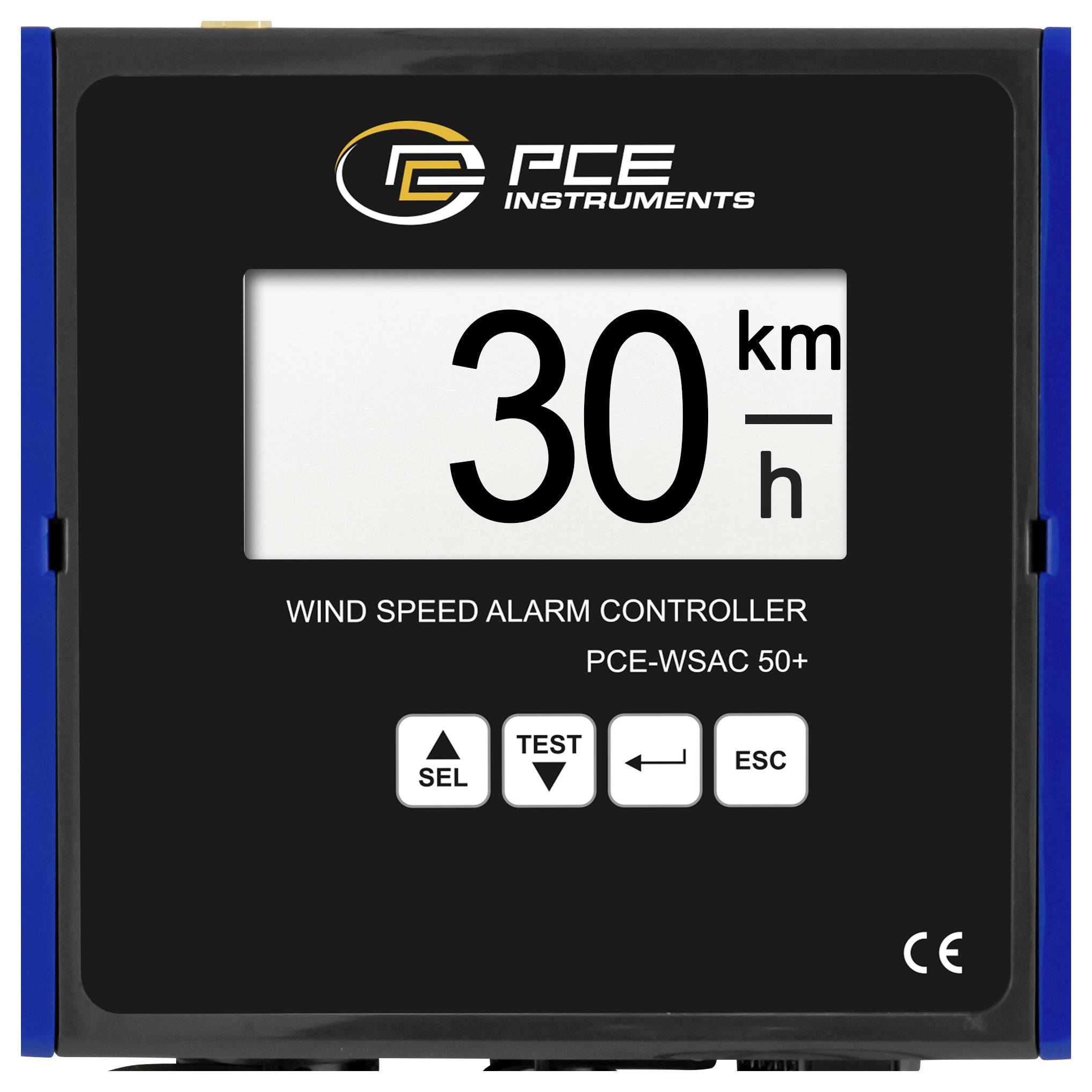

PCE Instruments wind speed alarm controller display showing 30 km/h, with SEL, TEST, back, and ESC buttons.

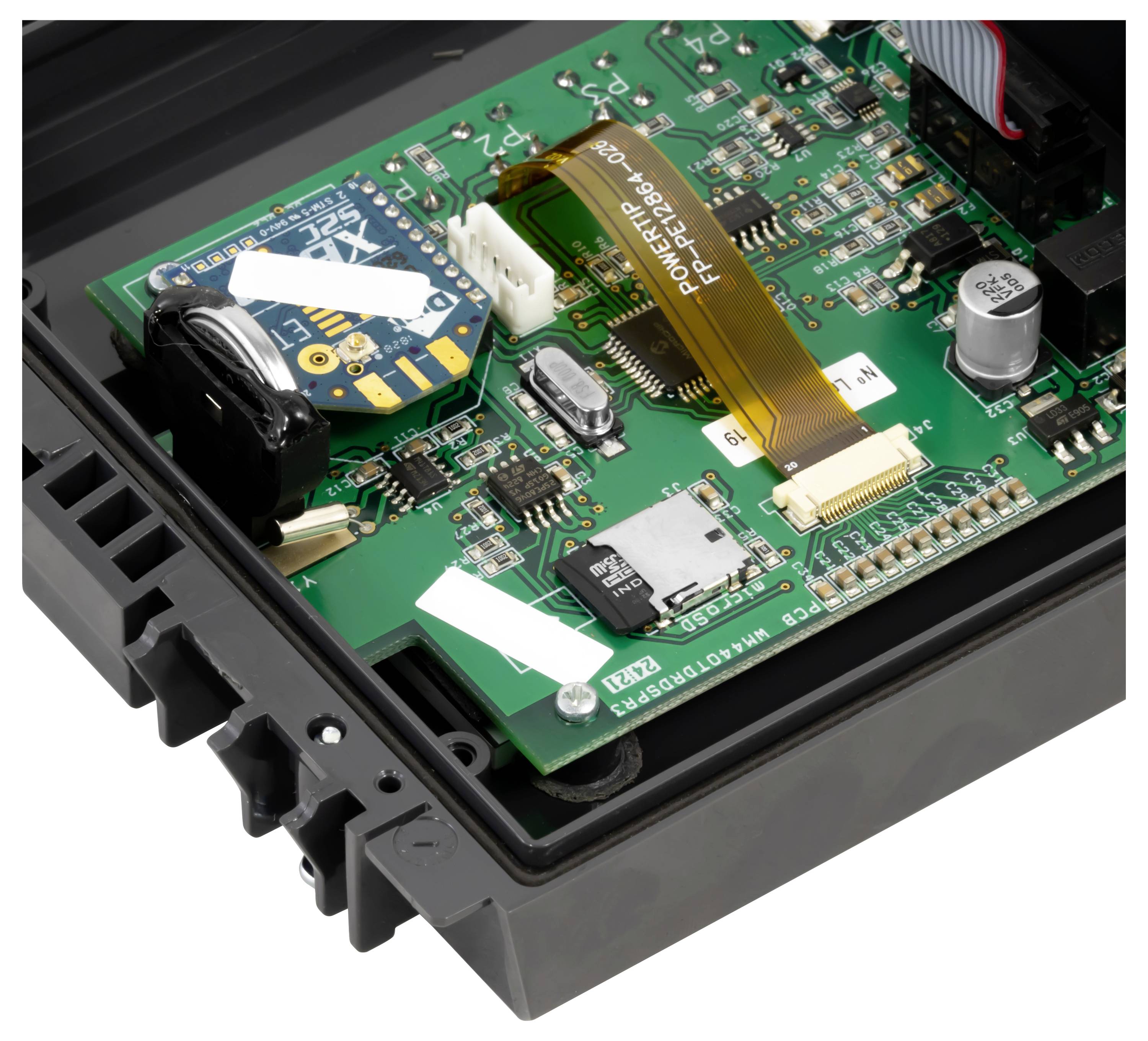

Open electronic device showing a green circuit board with a ribbon cable, connectors, chips, and a black plastic housing.

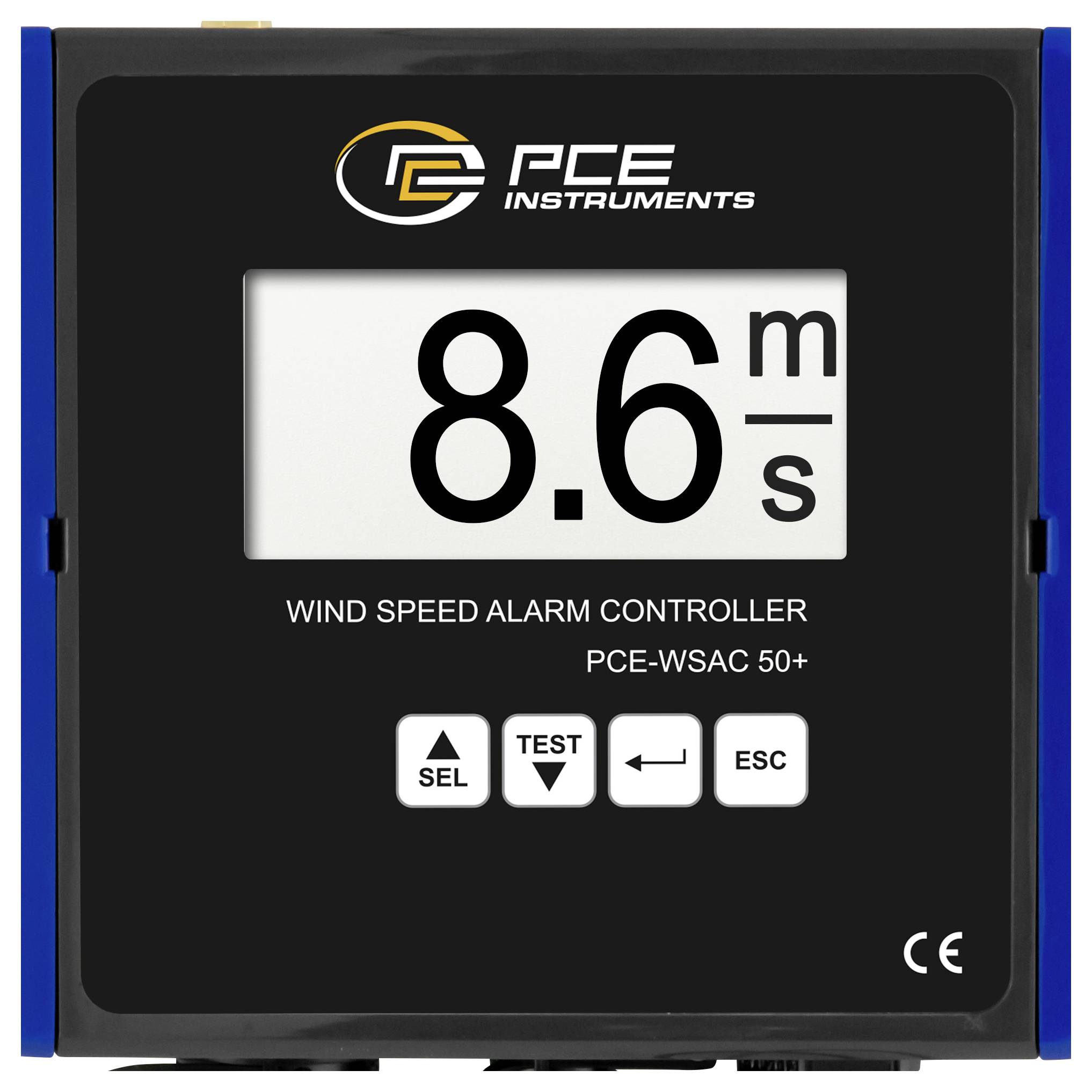

PCE Instruments wind speed alarm controller display showing 8.6 m/s, with SEL, TEST, back, and ESC buttons.

PCE Instruments PCE-WSAC 50+ 230 Anemometer 0 up to 50 m/s Datalogger function-5

PCE Instruments PCE-WSAC 50+ 230 Anemometer 0 up to 50 m/s Datalogger function-6

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE WSAC 50+ 230

2 Alarm types
Supply voltage 230 V AC
Input signal 4 – 20 mA
Communication: RS485
2 Alarm relay installed
In-built beeper for alarming
Sensor supply via evaluation unit

Technical specifications

Speed
Measuring range 0 ... 50 m/s
Resolution 0.1 m/s
Accuracy ±0.3 m/s by MB.
General Technical Data
Inputs 4 ... 20 mA, Impulse
Outputs 4 ... 20 mA, max. 250 V AC, 8 a, 15 V DC
Units m/s, km/h, mph
Display type LCD
Display size 3 inches
Display resolution 128 x 64 pixels
Storage medium Micro SD card, internal memory
Storage capacity of 30000 records
Storage capacity (additional information) External memory: Max. Capacity 32 GB (8 GB SD - card included in the delivery)
Storage intervals of 10 s.
Storage intervals of up to 1 h
Interface: RS485
Sensor supply 12 ... 24 V DC / max. 150 mA
Protection class (device) IP65
Power supply AC 110 ... 230 V | Hz 50 / 60
Weight 570 g.
Operating conditions -20 ... 70 °C , 0 ... 95 % r.F.
Storage conditions -35 ... 70 °C , 0 ... 95 % r.F.
Dimensions ( L x W x H ) 150 x 160 x 93 mm

Wind speed resolution: 0.1 m/s

Product type: Anemometer

Temperature reading range: -20 up to 70 °C

Automatic temperature compensation: No

Accuracy: 0.3 ms

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 150 x 160 x 93 mm

Features: Datalogger function

Accuracy: 0.3 m/s

Weight: 570 g

Temperature reading range (max.): 70 °C

Temperature reading range (min.): -20 °C

Air speed reading range (max.): 50 m/s

Air speed reading range (min.): 0 m/s

Width: 160 mm

Height: 93 mm

Length: 150 mm

Power supply (details): 230 V DC

Documents & Downloads

Datasheet

Datasheet 3369130 PCE Instruments PCE-WSAC 50+ 230 Anemometer 0 up to 50 m/s Datalogger function

User & Safety Instructions

User & Safety Instructions 3369130 PCE Instruments PCE-WSAC 50+ 230 Anemometer 0 up to 50 m/s Datalogger function

Description

The anemometer can be used in various fields of application. The anemometer is able to perform measurements even in very little wind movements. On the one hand, the anemometer can be used to monitor the current wind speed. On the other hand, there is the option of using the anemometer with a data logger 230V to perform average readings of the last two and five minutes. If the values of the wind speed are above the preset values, a pre-alarm is activated before the alarm is released. Both alarms are transmitted visually and acoustically to the anemometer. If the pre-alarm is active, a yellow LED will flash on the front of the device and a beep will sound periodically. If the normal alarm has to be activated, the red LED flashes and the beep is played continuously by the device.

Generally, the anemometer is used anywhere where wind monitoring is required. This is often the case in factories, mines, wind turbines and the like. If required, a relay can also be connected to the anemometer with 230V data logger. Apart from the low wind speeds the anemometer is characterized by its high reliability and high accuracy.
