Buy PCE Instruments PCE-WSAC 50-321 Anemometer Calibrated to (ISO standards) 0 up to 50 m/s

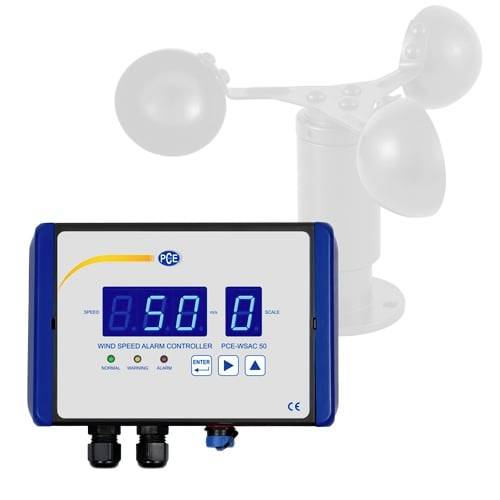

PCE wind speed alarm controller with digital display and buttons, shown with an anemometer in the background.

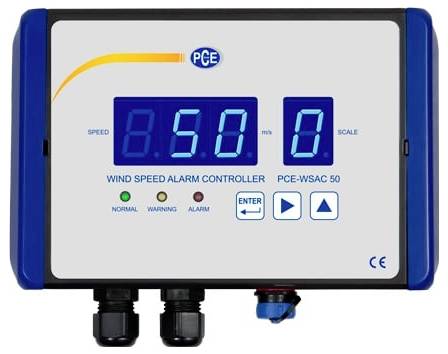

Digital wind speed alarm controller with blue display showing 5.0 m/s, warning and alarm indicators, and control buttons.

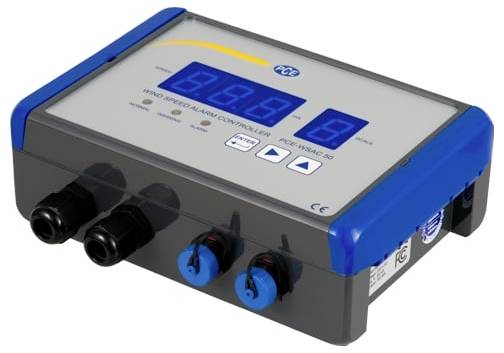

Digital alarm controller unit with blue casing, LCD display, and front cable connectors on a white background

Blue and gray digital alarm controller unit with LED display, buttons, and cable connectors on the front.

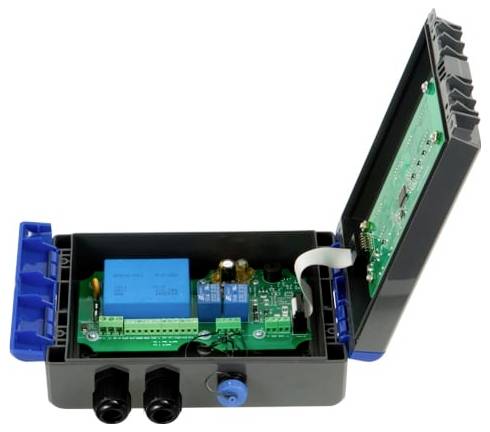

Open black electronic control box with hinged lid, showing circuit board, blue relay, wiring terminals, and external cable ports.<br>

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Anemometer PCE-WSAC 50-321

Wind warning device with adjustable alarms
Supply voltage 24 V DC
Input signal: 0...10
Communication: RS485
2 alarm relays installed
Built-in beeper for alarm
Sensor supply via evaluation unit

Technical specifications

Power supply: 24 V DC Supply voltage for sensor output 12 V DC 24 V DC Measurement range 0 ... 50 m/sec. Measuring accuracy ±3 % of the measuring range Signal input 0 ... 10 V Alarm relay 2 x changer 220 V AC / 10 A. Interface RS485 Operating temperature -20 ... +60 °C Protection class IP66 Dimensions 197,5 x 90 x 45 mm

Product type: Anemometer

Automatic temperature compensation: No

: ISO standards

Dim: (L x W x H) 185 x 125 x 60 mm

Accuracy: 0.3 %

Weight: 860 g

Air speed reading range (max.): 50 m/s

Air speed reading range (min.): 0 m/s

Width: 125 mm

Height: 60 mm

Length: 185 mm

Documents & Downloads

Datasheet

Datasheet 2452750 PCE Instruments PCE-WSAC 50-321 Anemometer Calibrated to (ISO standards) 0 up to 50 m/s

User & Safety Instructions

User & Safety Instructions 2452750 PCE Instruments PCE-WSAC 50-321 Anemometer Calibrated to (ISO standards) 0 up to 50 m/s

Description

Anemometer / wind warning device PCE-WSAC 50-321 Anemometer with pre-alarm and alarm / RS485 interface / wind speed display / simple operation / display of average speed of the last 2 and 5 minutes The wind warning device can be used in different fields of application. In the application, the wind gauge performs measurements from even the smallest wind movements. The wind warning device can be used for monitoring the current wind speed. On the other hand, it is also possible to use the wind gauge for the average measurement of the last two or five minutes. If the wind speed values are higher than the preset values, a pre-alarm is activated before the alarm is output. Both alarms are signaled visually and acoustically on the wind warning device. If the pre-alarm is activated, a yellow LED will flash on the front of the device and a beep will sound a periodic warning signal. If the normal alarm has to be activated, the red LED flashes and the beep tone is played continuously by the device. In general, the wind warning device is used wherever wind monitoring is required. This is often the case in factories, mines, wind turbines and the like. If required, a relay can also be connected to the wind gauge. In addition to the low wind speeds, the wind gauge is characterized by its high reliability and high accuracy.
