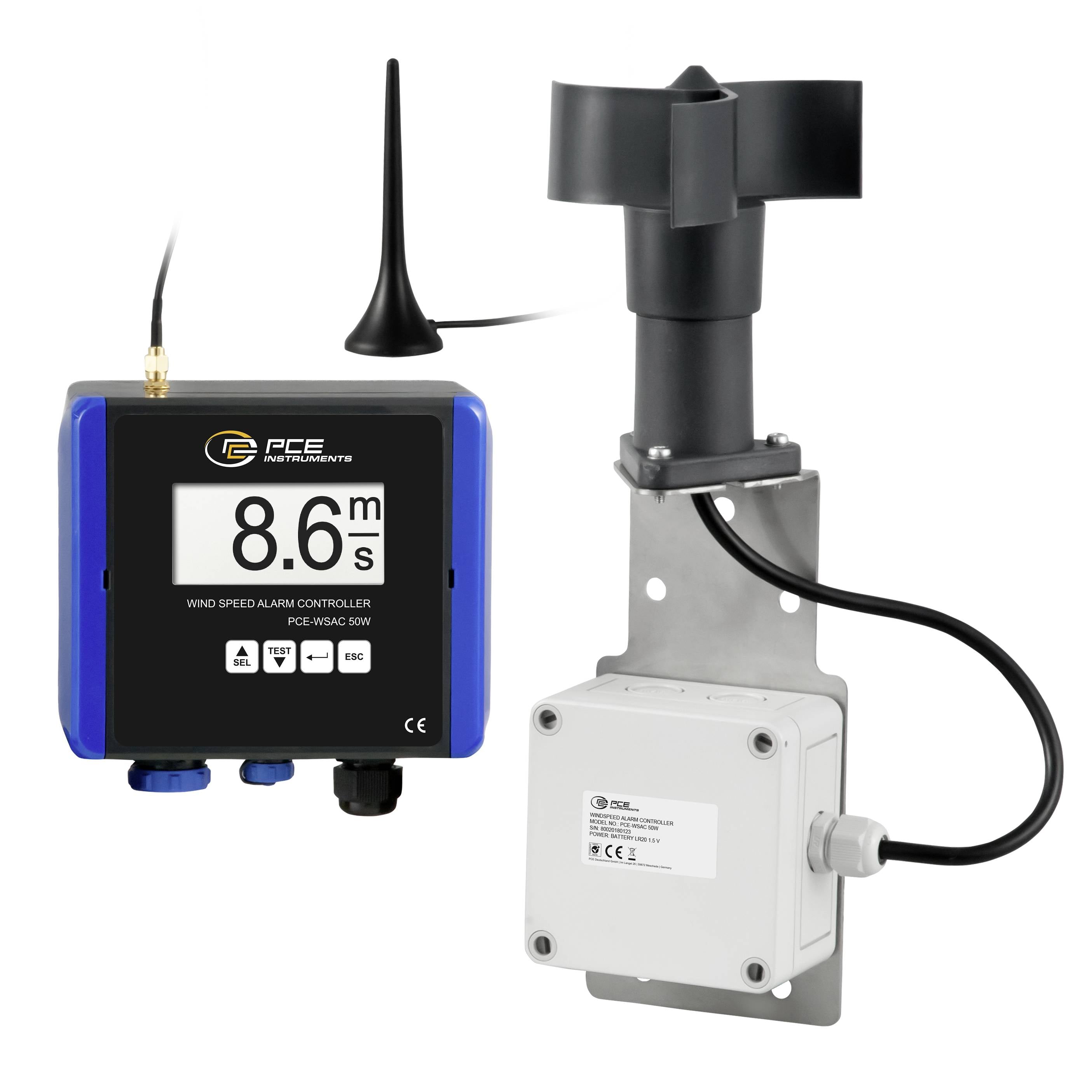

Wind speed alarm controller with digital display reading 8.6 m/s, connected to an outdoor wind sensor and antenna on a mounting bracket.

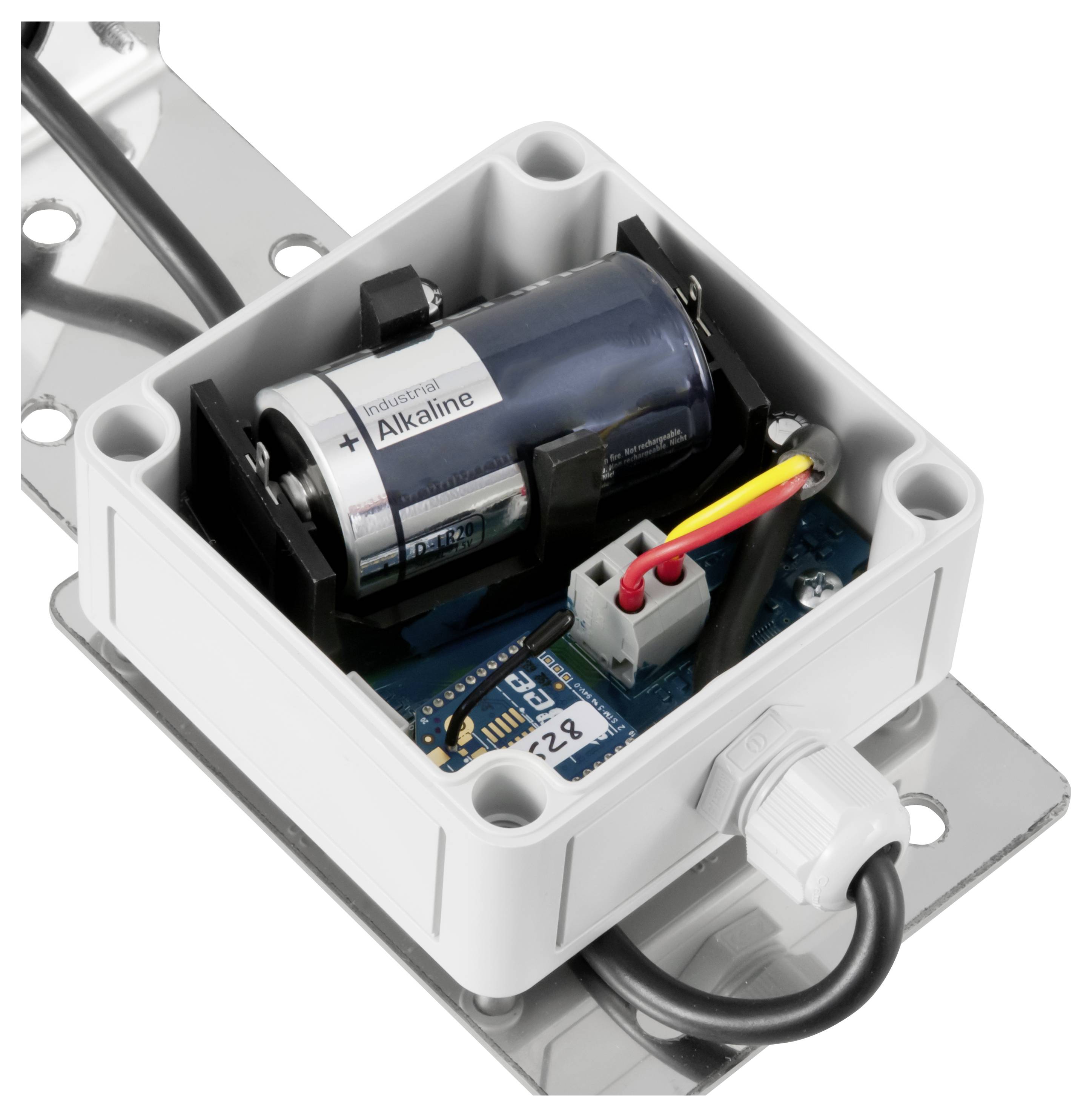

Open electrical enclosure with an alkaline battery, wiring, and circuit board mounted on a metal bracket.

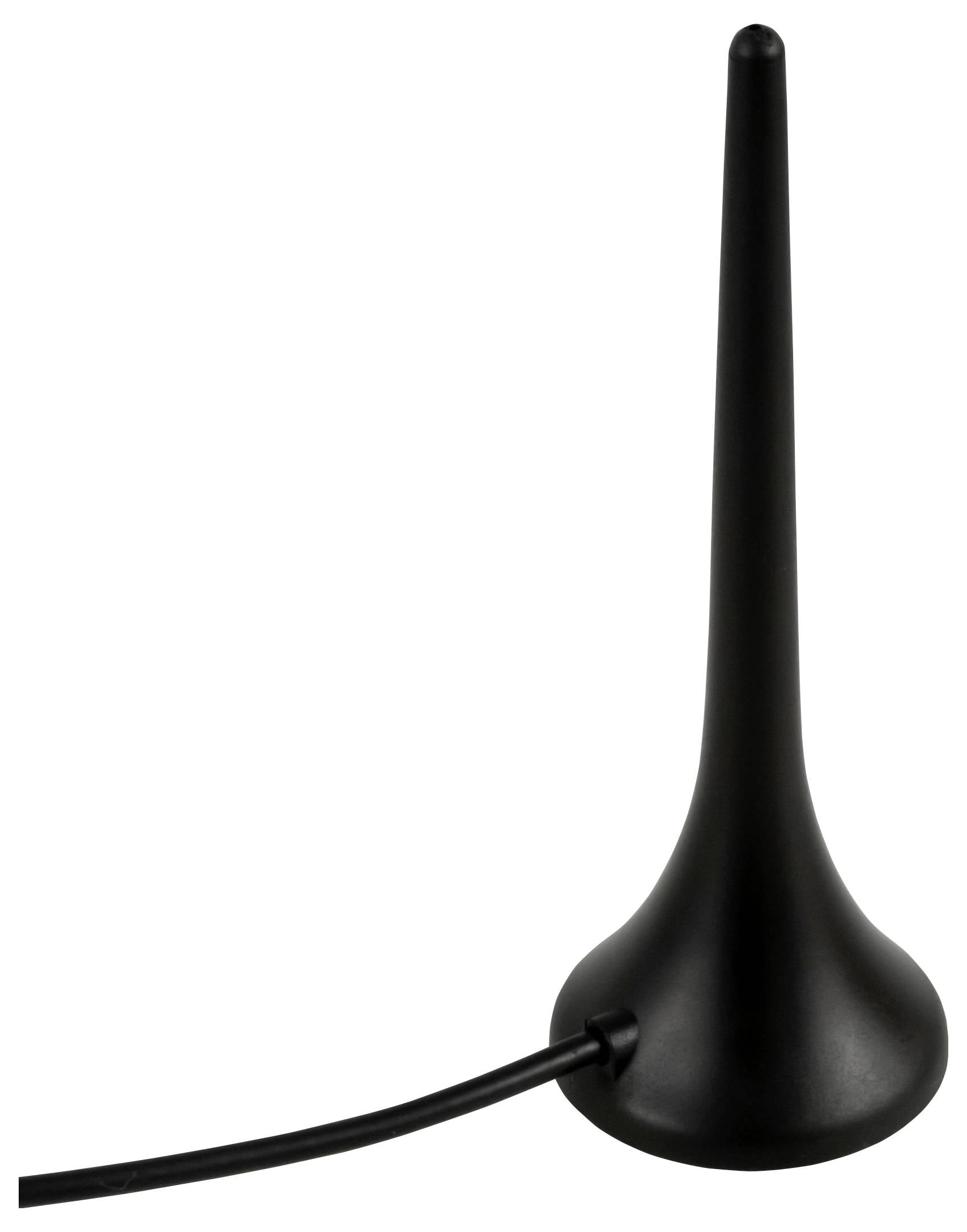

Black conical antenna with a cable attached to its base on a white background.

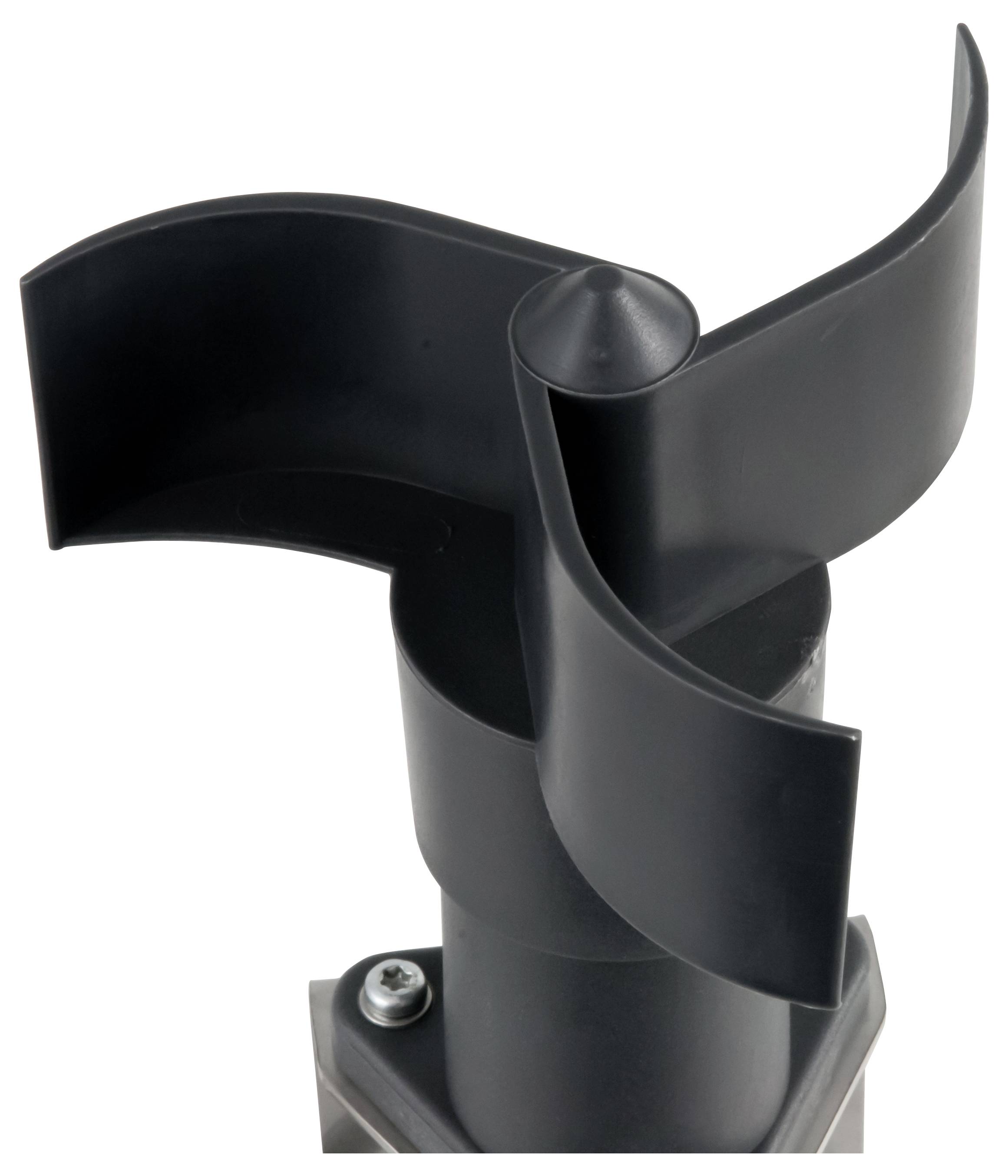

Black three-blade propeller-like rotor mounted on a cylindrical base against a plain background.

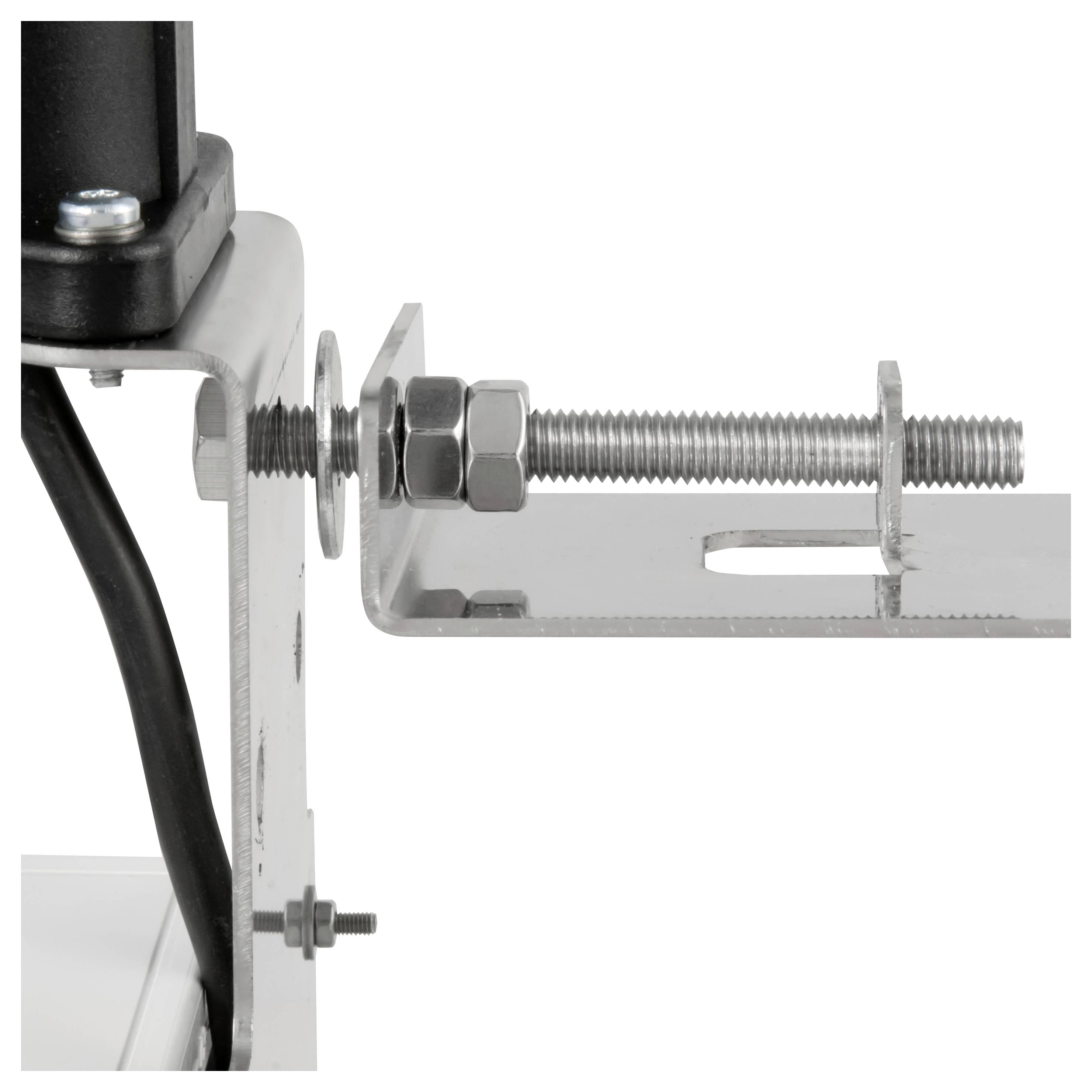

Metal bracket with threaded bolt, nuts, and washers mounted on a white support frame, showing an adjustable clamp mechanism.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Anemometer / Warning device PCE-WSAC 50W 230

Robust plastic housing
Units: Km/h, mph, m/s.
4 ... 20 mA analogueue output
128 x 64 pixel LCD
Alarm relay
Measurement range up to 180 km/h.
Durable stainless steel ball bearings
Ambient temperature -20 ... +70 °C
Wireless transmission

Technical specifications

Display of the wind warning device PCE-WSAC 50W 230 Input pulse, analogueue (4 ... 20 mA) or radio Radio IEEE 802.15.4 ISM 2.4 GHz Units km/h, mph, m/s. Power supply for sensors +15 V DC Analogue output 4 ... 20 mA Maximum input impedance 500 Ω Resolution of the analogue output 10 bits Accuracy of the analogue output ±1.5 % Alarm relay max. 250 V AC, 8 A Display backlit 128 x 64 pixel LCD Robust plastic housing Protection class IP65 Dimensions 145 x 95 x 125 mm Weight 650 g Wind warning sensor PCE-WSAC 50W Measuring range 4 ... 180 km/h minimum starting speed 8 km/h. Accuracy ±1 km/h in area 4 ... 15 km/h ±3 % in the range 16 ... 180 km/h Power supply D battery 1.5 V DC Power consumption approx. 0.3 W at 1.5 V DC power supply Housing material PA + assembled Stainless steel ball bearing X65Cr13 Bracket stainless steel AISI 304 Weight (with standard bracket) approx. 680 g Calibrated with self-leveling bracket approx. 900 g. Dimensions 320 x 110 x 100 mm Storage temperature -35 ... +70 °C Ambient temperature -20 ... +70 °C Protection class IP65

Product type: Anemometer

Automatic temperature compensation: No

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 150 x 160 x 93 mm

Accuracy: 3 %

Weight: 570 g

Air speed reading range (max.): 180 km/h

Air speed reading range (min.): 4 km/h

Width: 160 mm

Height: 93 mm

Length: 150 mm

Documents & Downloads

Datasheet

Datasheet 2452751 PCE Instruments PCE-WSAC 50W 230 Anemometer 4 up to 180 km/h

User & Safety Instructions

User & Safety Instructions 2452751 PCE Instruments PCE-WSAC 50W 230 Anemometer 4 up to 180 km/h

Description

PCE-WSAC 50W 230 wireless anemometer warning system / wind monitoring of construction cranes / 4 ... 20 mA analogue output / power supply 110 ... 230 V AC the wind warning system PCE-WSAC 50W is primarily used to measure and monitor the wind load on cranes or wind turbines. Furthermore, the wind situation can be measured and analyzed before a wind turbine is commissioned. The PCE-WSAC 50W wind warning system is equipped with alarm relays for a pre- or main alarm. Due to the high measuring range of up to 50 m/s of the wind warning system, stormy gusts can also be monitored. The wireless range of the wind warning device is up to 750 m in open field in the free frequency band of 2.4 GHz. When installing the display of the wind warning device PCE-WSAC 50W in buildings, a range of up to 60 m can be achieved to the wind sensor. Through the integrated 4 ... 20 mA analogue output of the display of the wind warning device, the measured data can also be transferred to other controllers for evaluation.
