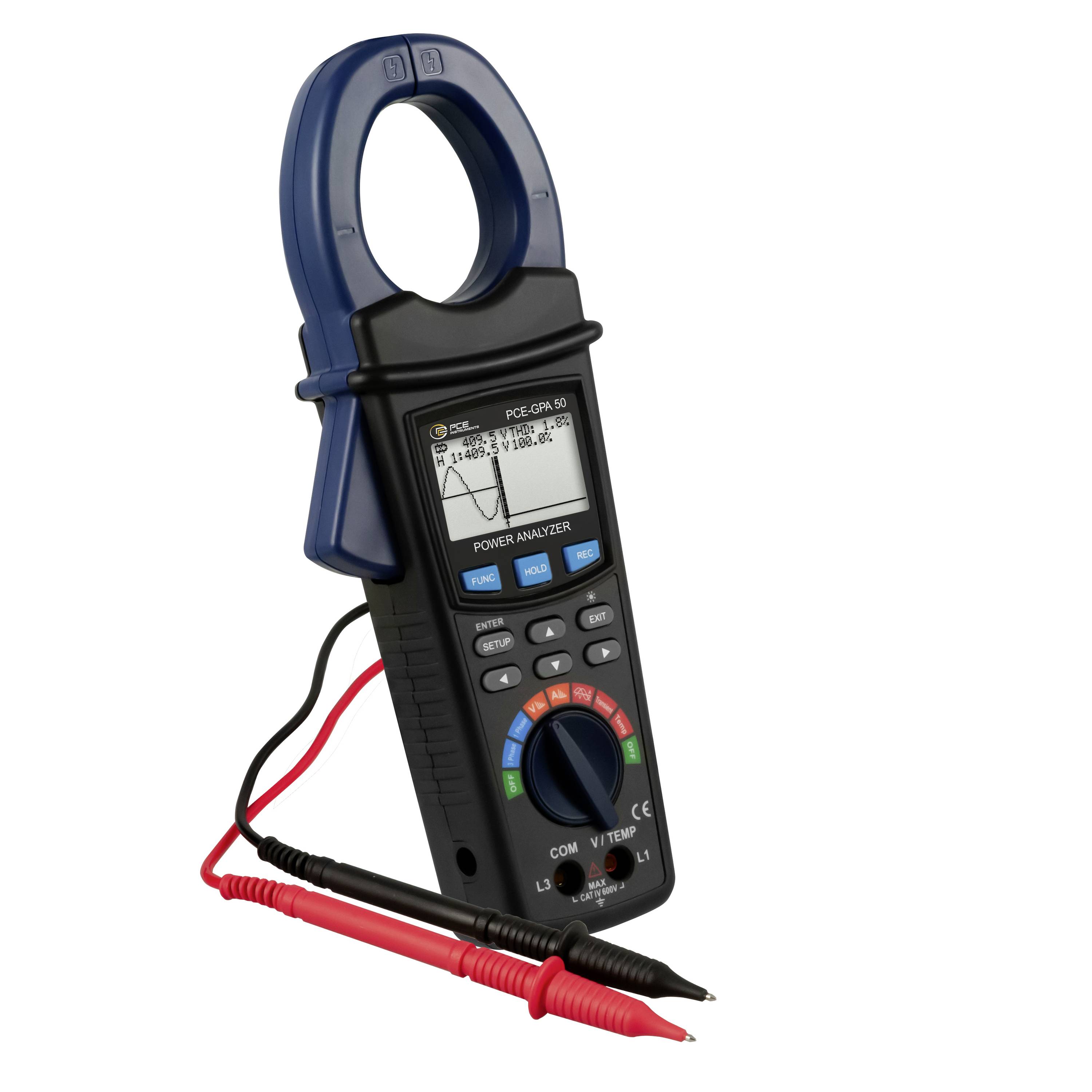

Clamp meter power analyzer with display, rotary selector, and red/black test leads on a white background.

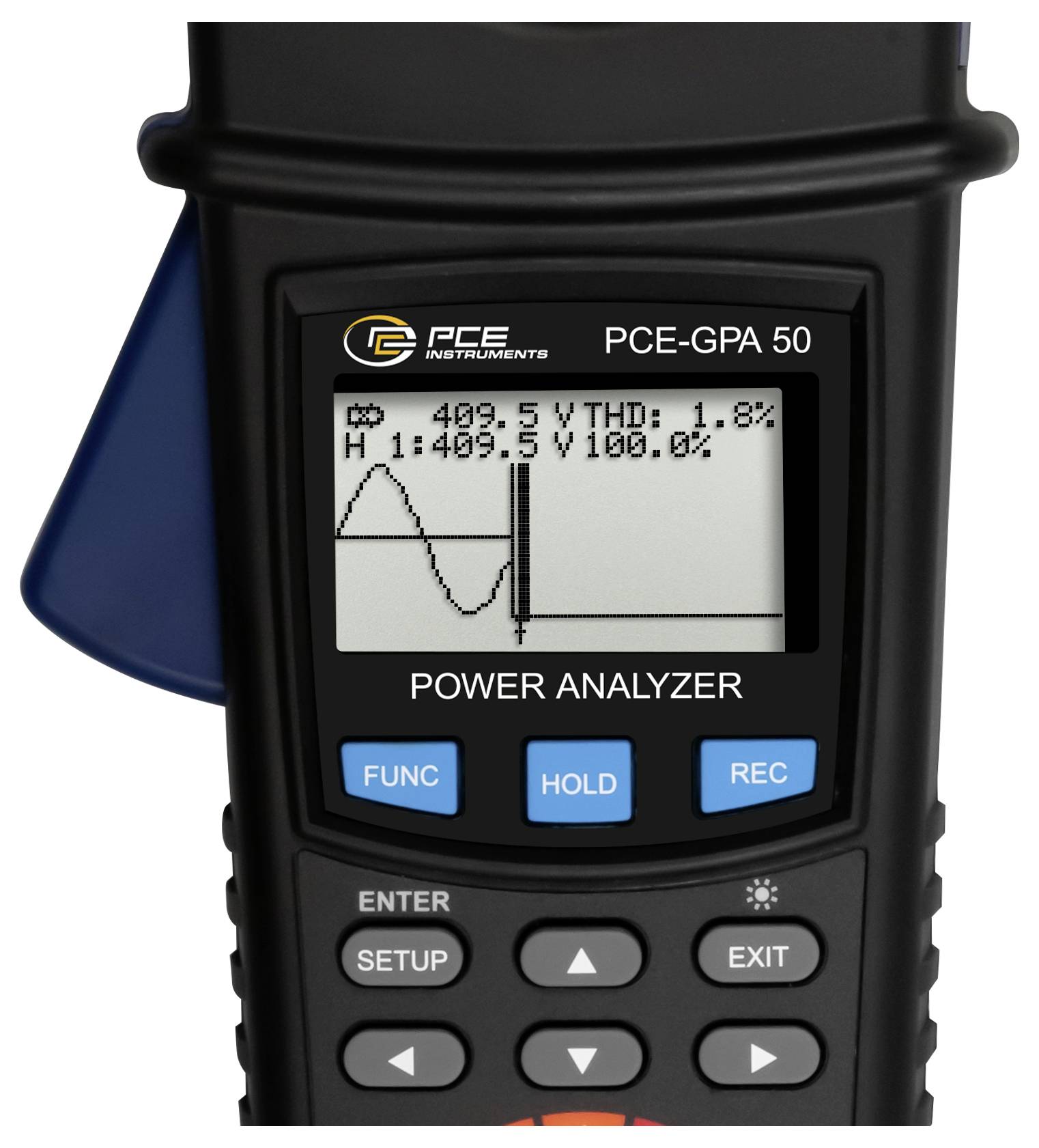

Handheld PCE-GPA 50 power analyzer showing a waveform display with 409.5 V and THD 1.8%<br>

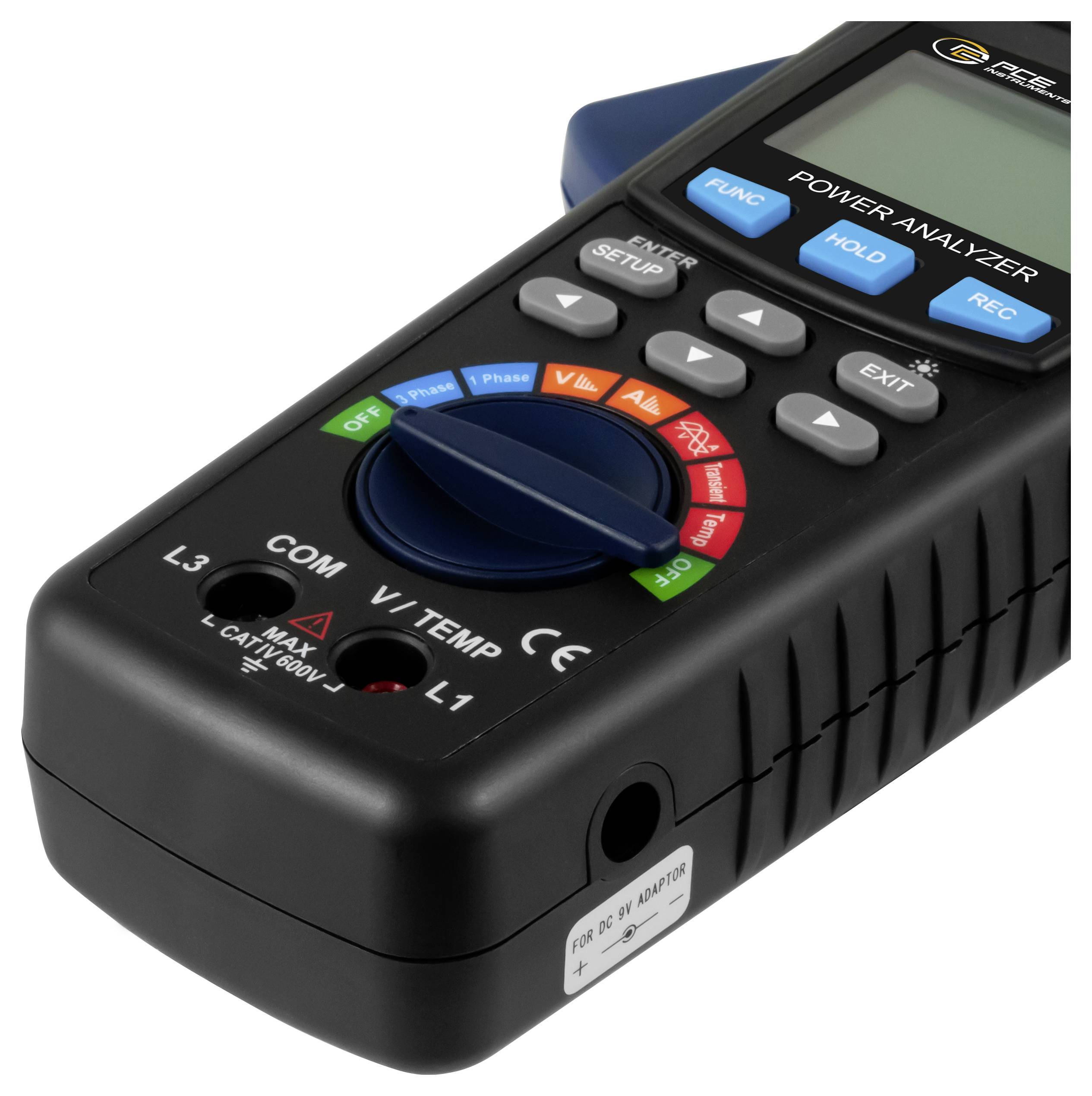

Handheld power analyzer with display, control buttons, and rotary selector for measuring voltage, current, and power.

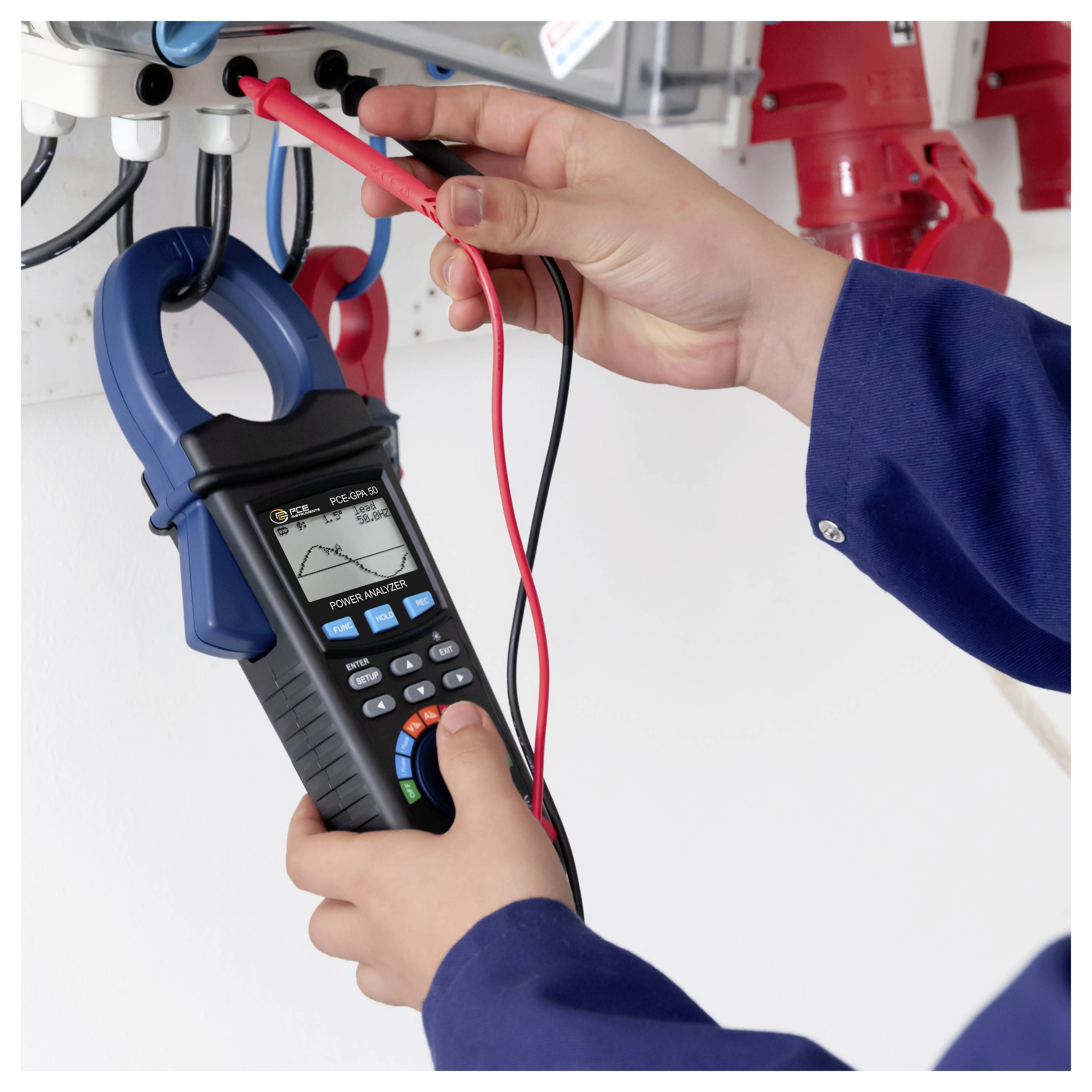

Technician using a clamp meter to test an electrical control panel, probing wires with red and black leads.<br>

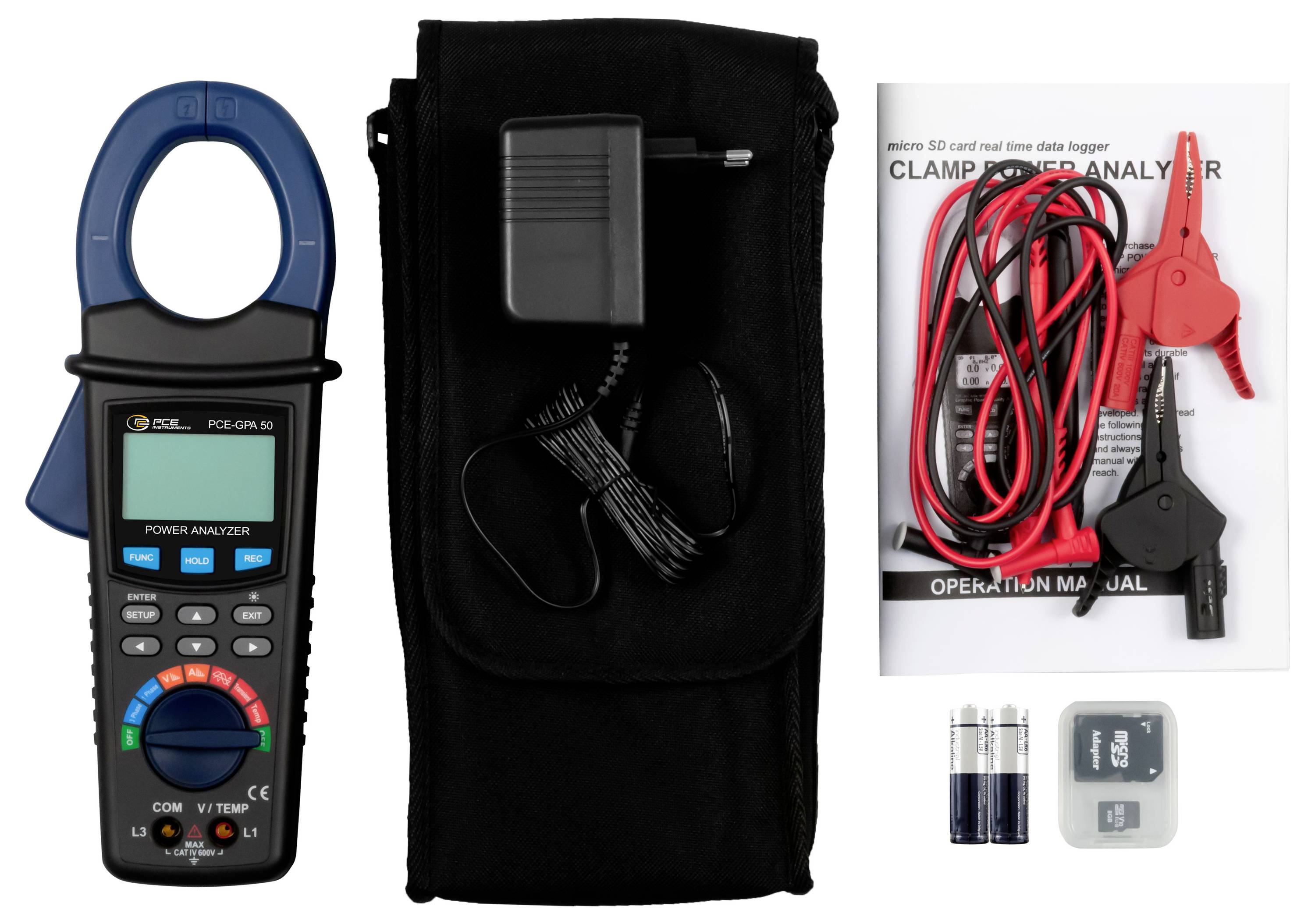

Clamp power analyzer kit with handheld meter, carrying case, test leads, clamps, batteries, and manual.

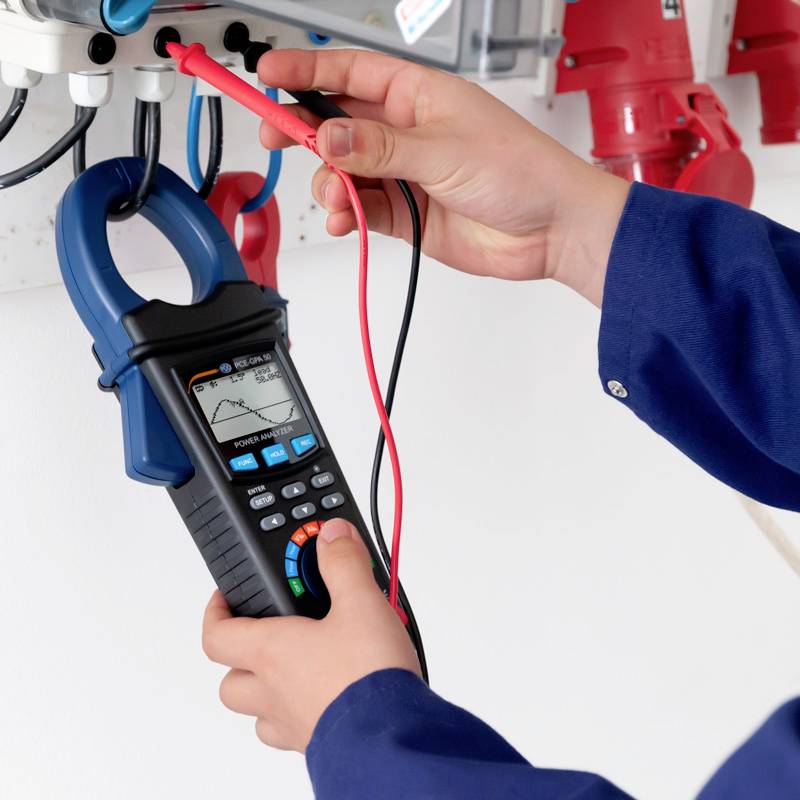

A person is measuring the electrical voltage in a control cabinet using a digital ammeter to conduct safety checks.

1/6

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Power Analyzer

Graphic display.
Data logger on micro-SD card
Measurement for 1 and 3 phases
Temperature measurement with thermocouple
Voltage measurement 10 V ... 600 V AC RMS
Current measurement 5 ... 2000 A AC RMS
Clamp-on ammeter opening 50 mm
Harmonic distortion up to 50. Order

Technical specifications

Measurement type AC voltage AC V Measurement range Resolution accuracy 10 ... 600 V 0.1 V ±(0.5 % ... 3 digits) Tip-tip 0.1 V ±(5% ... 30 digits) AC A 5 ... 2000 A< 100 A: 0.01 A< 200 A: ±(1 %+ 0.5 A) < 1000 A: 0.1 A > 200 A: ±(1 % + 5 A) Peak-peak > 1000 A: 1 A ±(5 % + 30 digits) Power factor (PF) 0 ... 1 0.001 ± 0.04 Phase angle -180 ° ... 180 ° 0.1 ° ± 1° x PF Frequency 45 ... 65 Hz 0.1 Hz ± 0.2 Hz Active, Blind & 0 ... 9.999 M 0.1 ... 0.001 M ±(1.5 % + 20 DIGIT) APPARENT POWER (W / VA / VAR) (W / VA / VAR) Harmonic AC V 1 ... 20th Order 0.1 V ±(2 % + 5 digits) 21 ... 50 Order 0.1 V ±(4 % + 5 digits) Harmonic AC A 1 ... 20th Order < 100 A: 0.01 A ±(2% + 5 digits) Alternating current < 1000 A: 0.1 A 21 ... 50 Order > 1000 A: 1 A ±(4% + 5 digits) Harmonic AC V % 1 ... 20th Order 0.1 % ±(2 % + 10 digits) 21 ... 50 Order 0.1 % ±(4 % + 20 digits) Absolute harmonic 0 ... 20% 0.1% ±(2% + 5 digits) Distortion 20.1 ... 100% 0.1% ±(6% + 10 digits) Temperature type K -100 ... 199.9 °C 0.1 °C ±(1% + 1 °C) Thermocouple 200 ... 1300 °C 1 °C ±(1% + 2 °C) Display graphic LCD AC V. Input impedance 10 MOhm Frequency range 40 Hz ... 1 kHz Clamp meter Calibrated frequency 45 ... 65 Hz Clamp meter Overload protection AC V: 720 V RMS AC A: 2100 A Data storage Micro-SD card Refresh rate 1 second Display Memory rate 2 ... 7200s Data storage Memory format XLS Serial interface for live display on PC (SOFT LUT USB is required) Power supply 2 x 1.5 V AA battery 9 V / 800 mA power supply Power consumption 60 mA DC Jaw opening 50 mm Operating conditions 0 ... 50 °C / max. 80 %r.h. Weight approx.: 595 g Dimensions 280 x 106 x 47 mm

Product type: Clamp meter

V AC reading range (min.): 10 V

V AC reading range (max.): 600 V

A AC reading range (min.): 5 A

Amperage reading range AC (max.): 2000 A

AC resistance: 10 MΩ

Basic accuracy: 0.5 %

Measurement type (details): True RMS

Height: 280 mm

Width: 47 mm

Length: 106 mm

Weight: 595 g

: Manufacturer's standards (no certificate)

Current reading: AC

Type: Power Analyzer

Display: Digital

Dim: (L x W x H) 106 x 47 x 280 mm

Temperature reading range (max.): 1300 °C

Temperature reading range (min.): -100 °C

Features: Graphics display

Interfaces: DC 3.5 plug
RS232
RS232C
USB 1.1 connector A
microSD slot
Mains plug
SDS slot
RS232 socket 3-pin
SD card
USB
Serial
USB host
3-core
USB 2.0 connector A
Serial interface
DC 3.5 socket
miniSD slot
USB 2.0 connector internal 4-pin
1x USB 2.0 (device)
1x USB 2.0 (host)
Pin strip (3-pin)
Show more

Opening range of current clamps: 50 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2452448 PCE Instruments Power Analyzer Clamp meter Digital Graphics display

Description

Ammeter Amperemeter up to 2000 A / TRMS Measurement / Power measurement / Harmonic analysis / Graphic display with lighting / Data storage / Power and battery operation The Amperemeter is used to measure current of 1 or 3-phase consumers. This ammeter is particularly characterized by its measurement range up to 2000 A. The graphic display of the ammeter must also be highlighted. In addition to the numerical measurements, the waveform of the phase of the ammeter can also be displayed here. The ammeter can also be used to measure voltages. This allows the ammeter to calculate active, apparent and reactive power using the phase angle. In addition, the ammeter can measure other network parameters such as energy, power factor and harmonic. In addition to the extensive measurement functions, the ammeter also features a data logger function. All measured values can be stored directly on a micro-SD card by the ammeter. The ammeter is operated with 2 1.5 V AA batteries. It is also possible to operate the ammeter with a power supply for long-term measurements.
