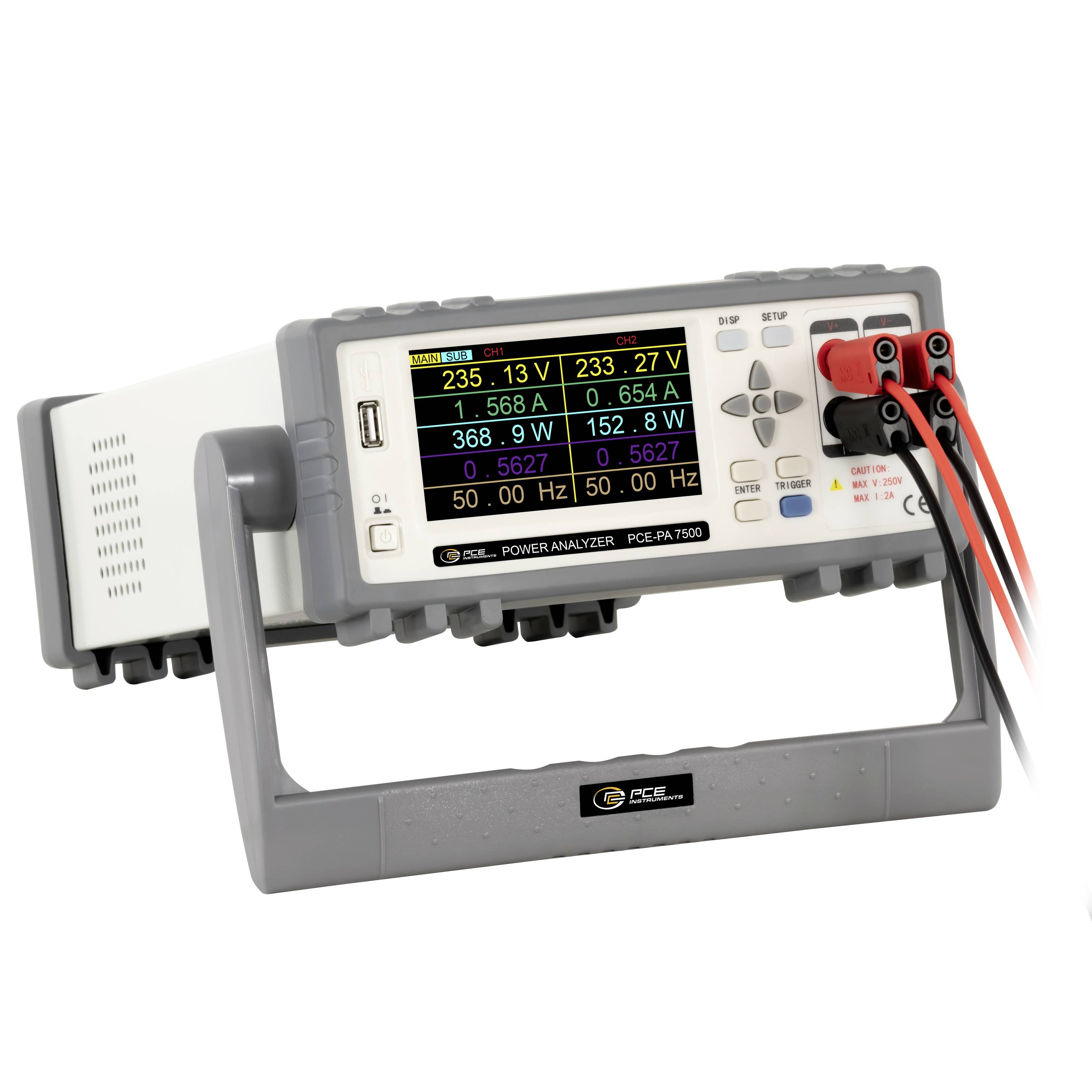

Digital power analyzer on a stand, with a color display showing voltage, current, power, and frequency readings and test leads connected on the right.

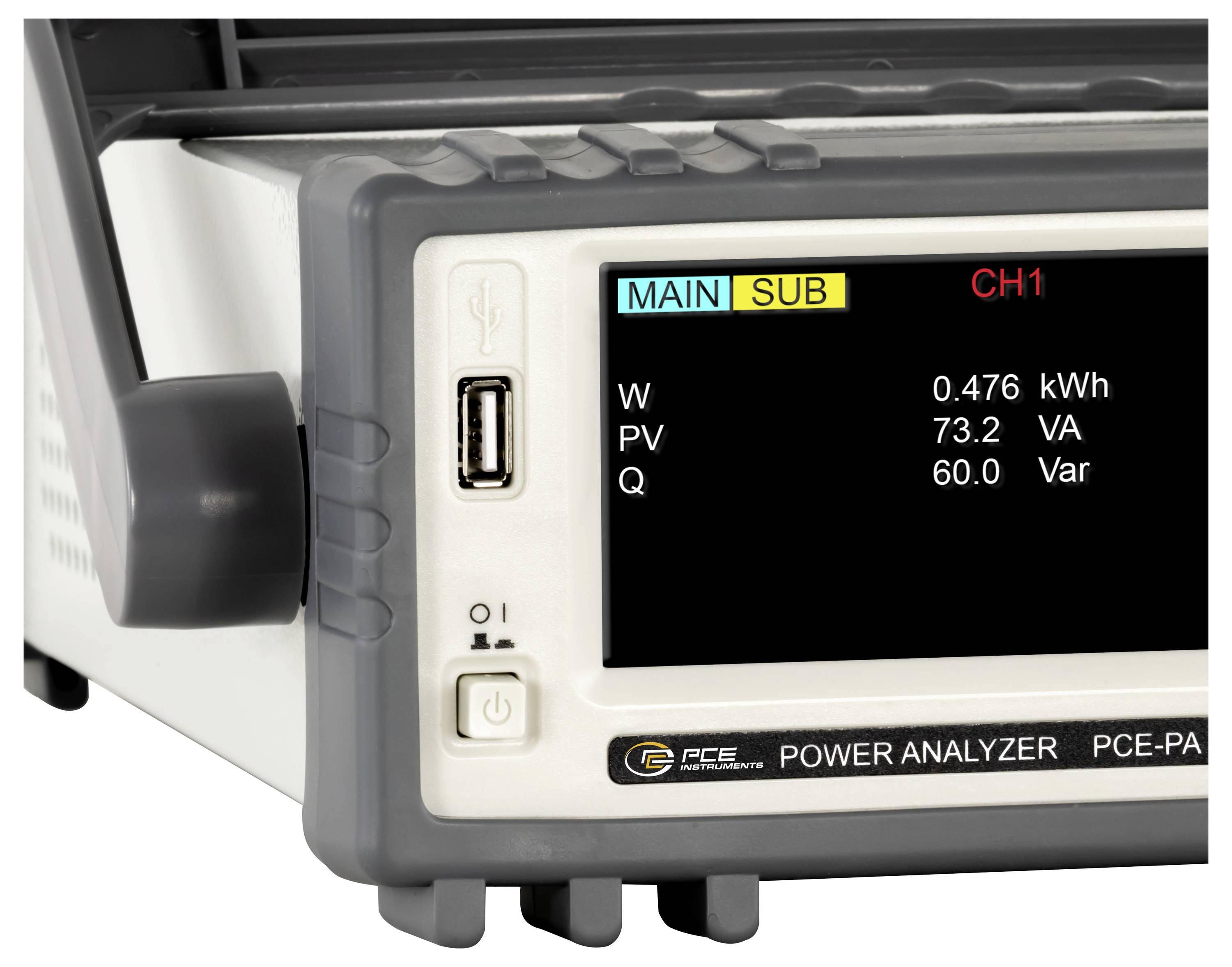

Close-up of a power analyzer display showing MAIN/SUB mode and channel CH1 with readings for W, PV, and Q.

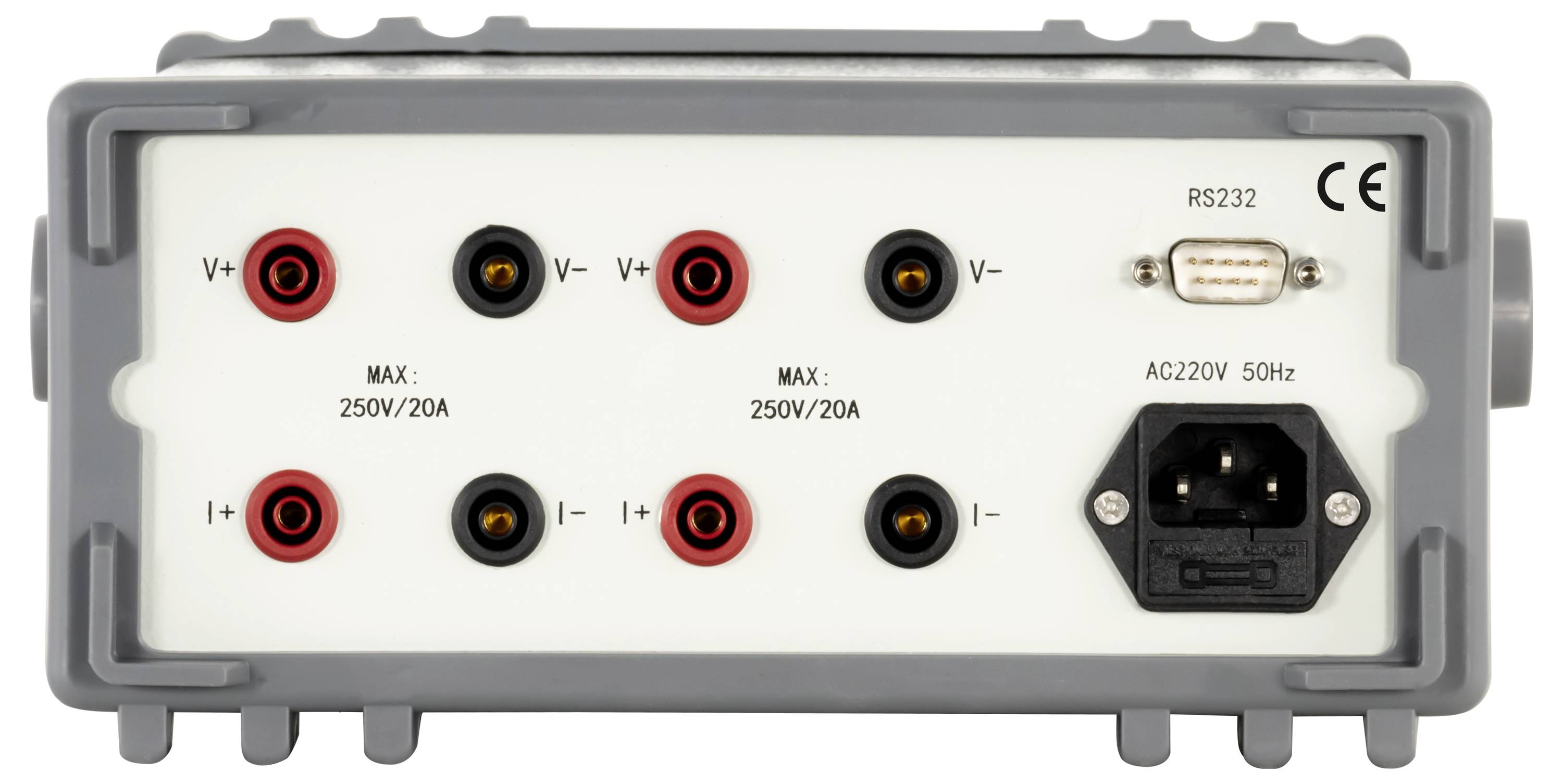

Rear panel of a lab power supply with four red/black output terminals labeled V+ and I+, an RS232 port, and AC 220V power inlet.

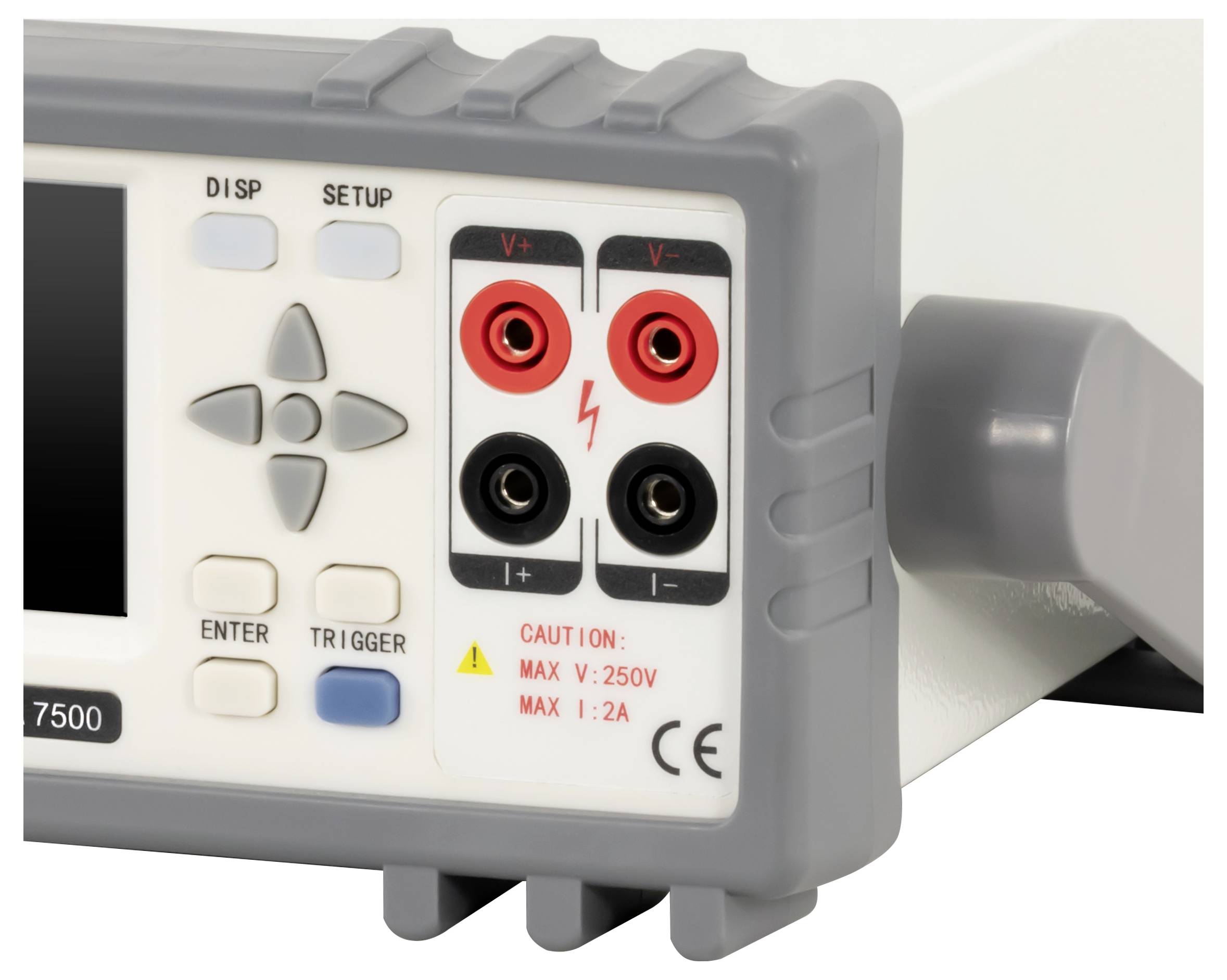

Close-up of a gray electronic test instrument showing four banana input/output jacks, navigation buttons, and caution labels including 'MAX V:250V' and 'MAX I:2A'.

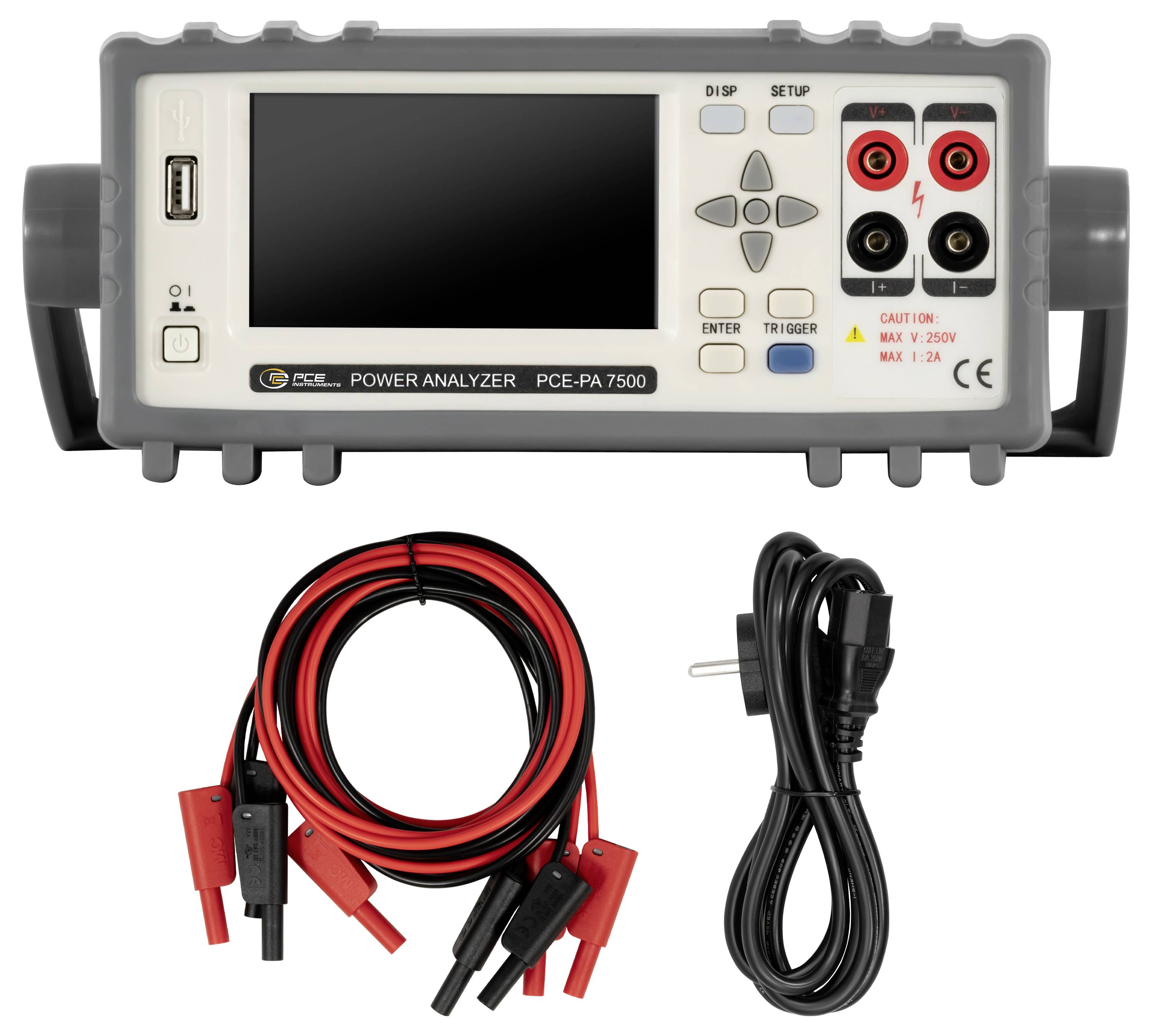

Power analyzer with screen, control buttons, input jacks, and included red-black test leads plus power cord.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-PA 7500

2-channel power meter for measuring current, voltage, power and consumption
Colour display with switchable view
Safety test leads
Measuring range for power: 0.1 ... 5000 W .
Current measuring range: 0.001 ... 20 A AC
Frequency, power factor, energy
Accuracy ±(0.4% of mw. + 0.1
2 input ports

Technical specifications

Alternating voltage AC
Measuring range 2 V ... 250 V / 3
Resolution 0.01 V
Accuracy ±(0.4 % from MW. + 0.1
Alternating current (AC)
Measuring range 0.001 A ... 20 A
Resolution: 0.001 A
Accuracy ±(0.4 % from MW. + 0.1
(Active power:
Measuring range 0.1 W ... 5000 W .
Resolution 0.1
Accuracy ±(0.4 % from MW. + 0.1
Power factor
Measuring range 0.001 ... 1
Resolution 0.0001
General Technical Data
Number of measurement channels 3
Frequency 10 ... 100 Hz
Display type TFT color display
Display size 4.3 inches
Cable length 2 m
Menu language English, Chinese
Protection class: IP20
Weighs 2870 g.
Device weight supplied with 3352 grams
Device weight with delivery scope and packaging 5220 g
Dimensions (L x W x H) 355 x 265 x 110 mm
Operating conditions 0 ... 40 °C, 0 ... 93 % r.F.
Storage conditions 0 ... 55 °C, 0 ... 93 % r.F.

Connector: IEC Mains Power Cables

Product type: Network diagnostics

Display (details): 4.3 inches TFT color display

Phase detection: No / No

PG recognition: No

: Manufacturer's standards (no certificate)

Power supply (details): 220 …. 240 V AC

Dim: (L x W x H) 355 x 265 x 110 mm

Weight: 2870 g

Measurement type: 1-phase

Features: Power testing

Width: 265 mm

Height: 110 mm

Length: 355 mm

Interfaces: PG jack socket
Jack plug

Documents & Downloads

Datasheet

Datasheet 3324694 PCE Instruments Power Analyzer Network diagnostics 1-phase Power testing

User & Safety Instructions

User & Safety Instructions 3324694 PCE Instruments Power Analyzer Network diagnostics 1-phase Power testing

Description

The power meter is for exact measurement and analysis of parameters such as power consumption and quality. The power meter has 2 input channels for measuring voltage, current, effective power, power factor, frequency and energy consumption in kWh. In addition to the color display, the power meter also has input sockets for measurements up to 2 A. The measuring range of 0.1 ... 5000 W enables a power measurement for many consumers in industry and trade. The power measuring device has a current measuring range of 0.001 ... 20 A AC with a resolution of 1 mA.

In the settings of the power meter, an alarm value can be set for the power and current value, which gives an acoustic warning if this value is exceeded. The performance meter is supplied with 4 safety test leads. The measuring sockets are also protected against electric shock to ensure safe measurement by the operator. The power meter can be used in the laboratory as well as in industrial environments by means of the adjustable pedestal on the table.
