PCE Instruments Pressure gauge PCE-DPG 25 PCE-DPG 25 0 up to 25 bar 1 pc(s)

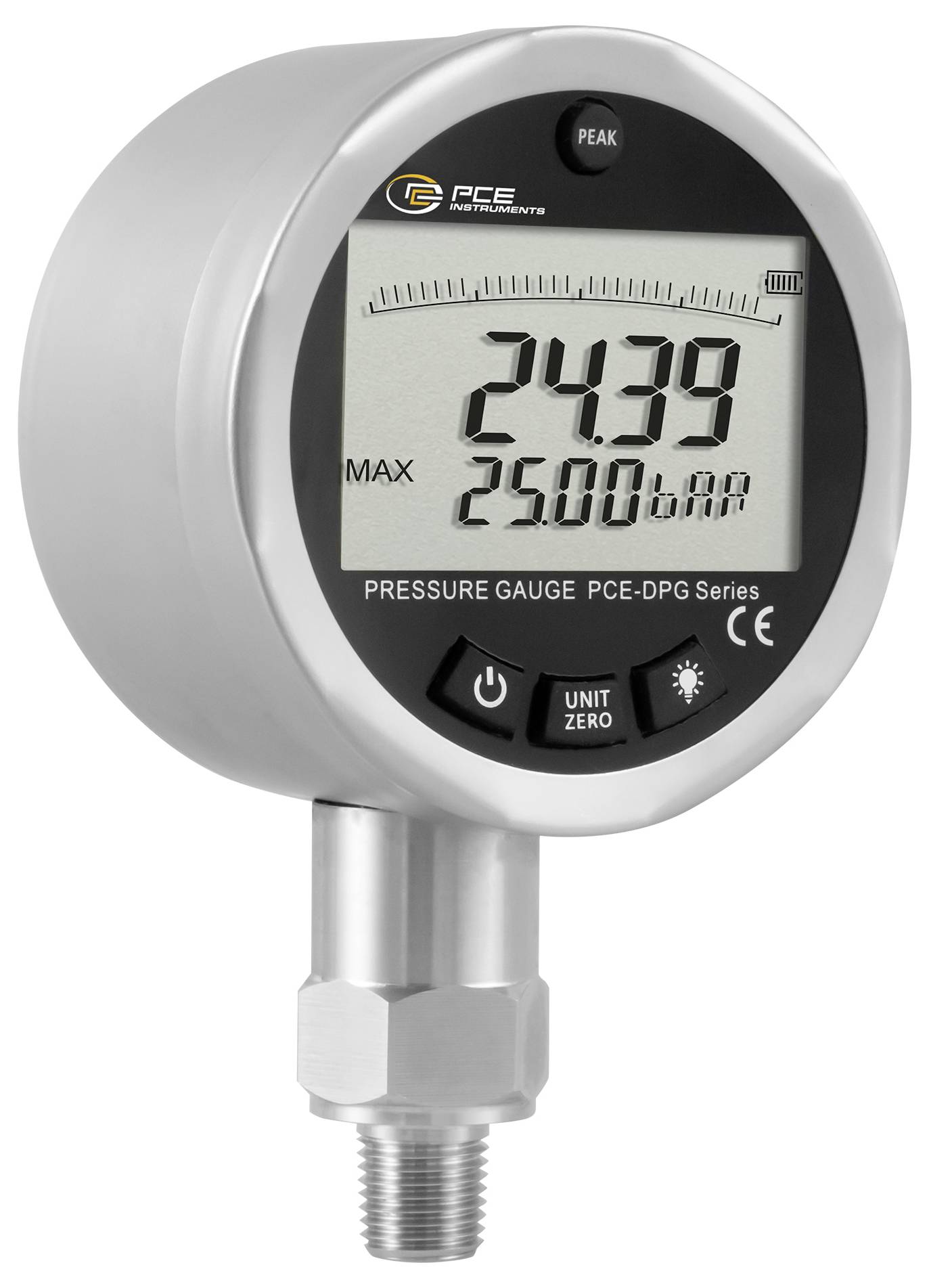

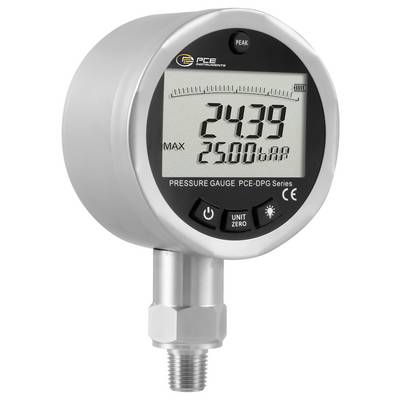

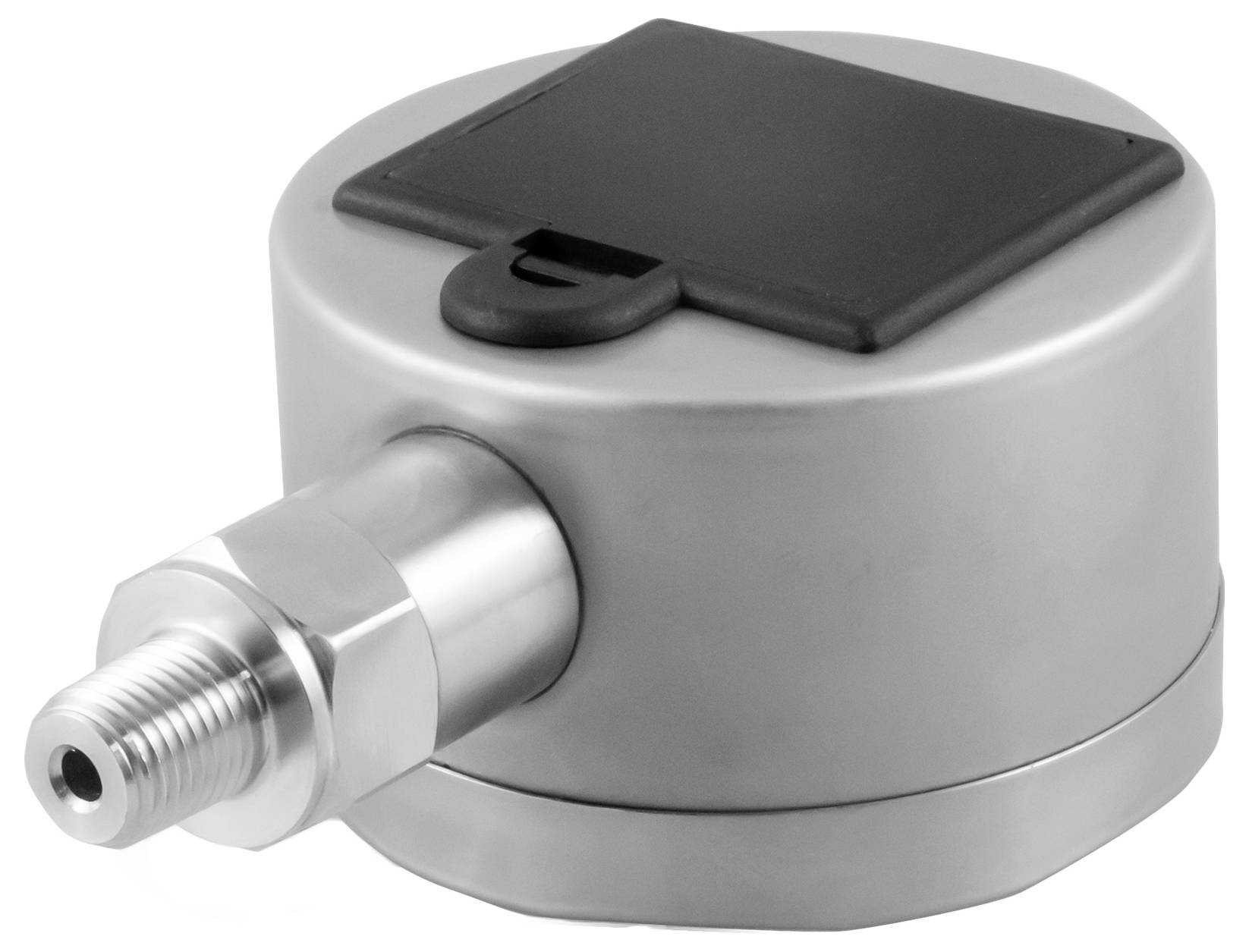

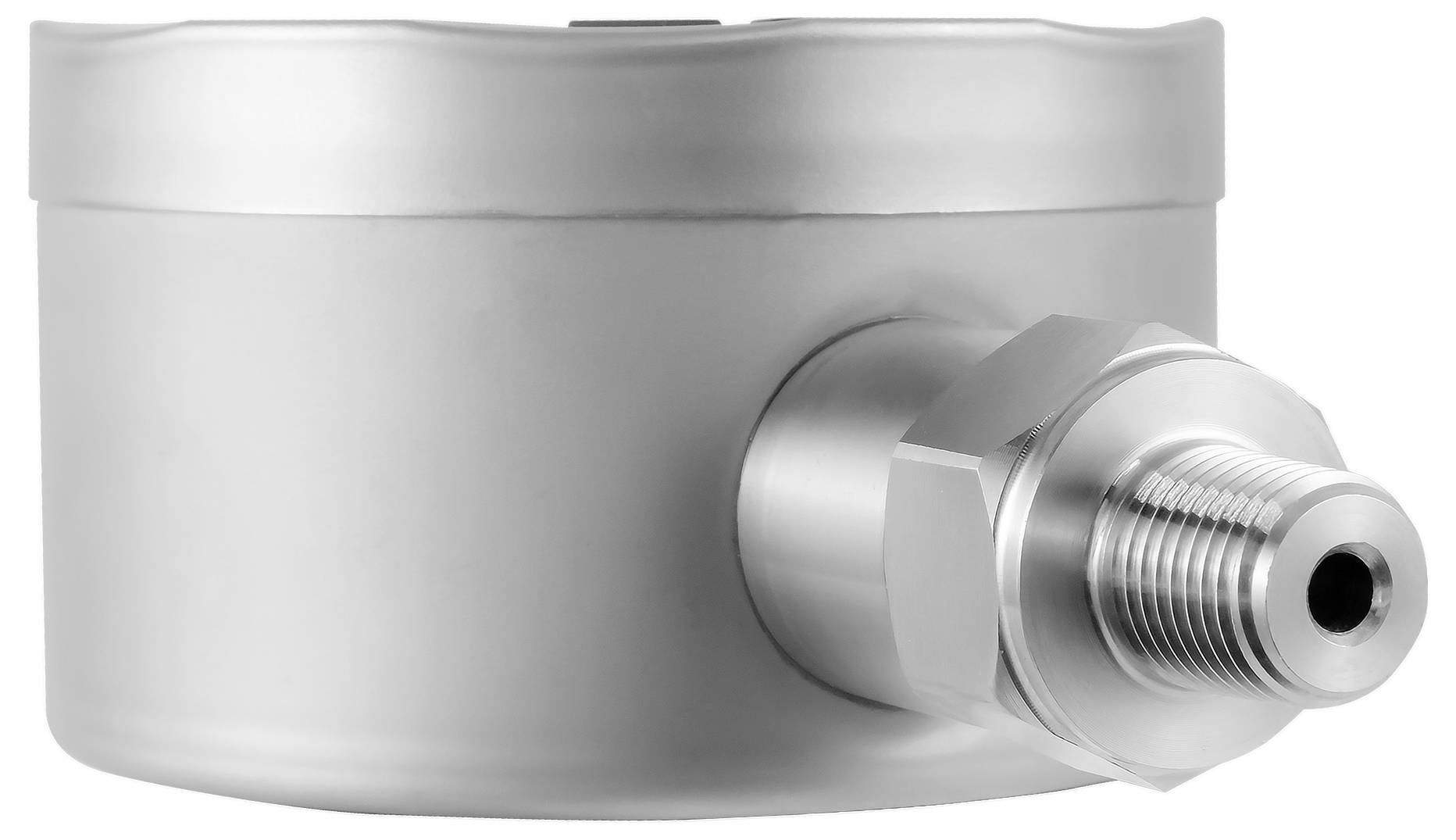

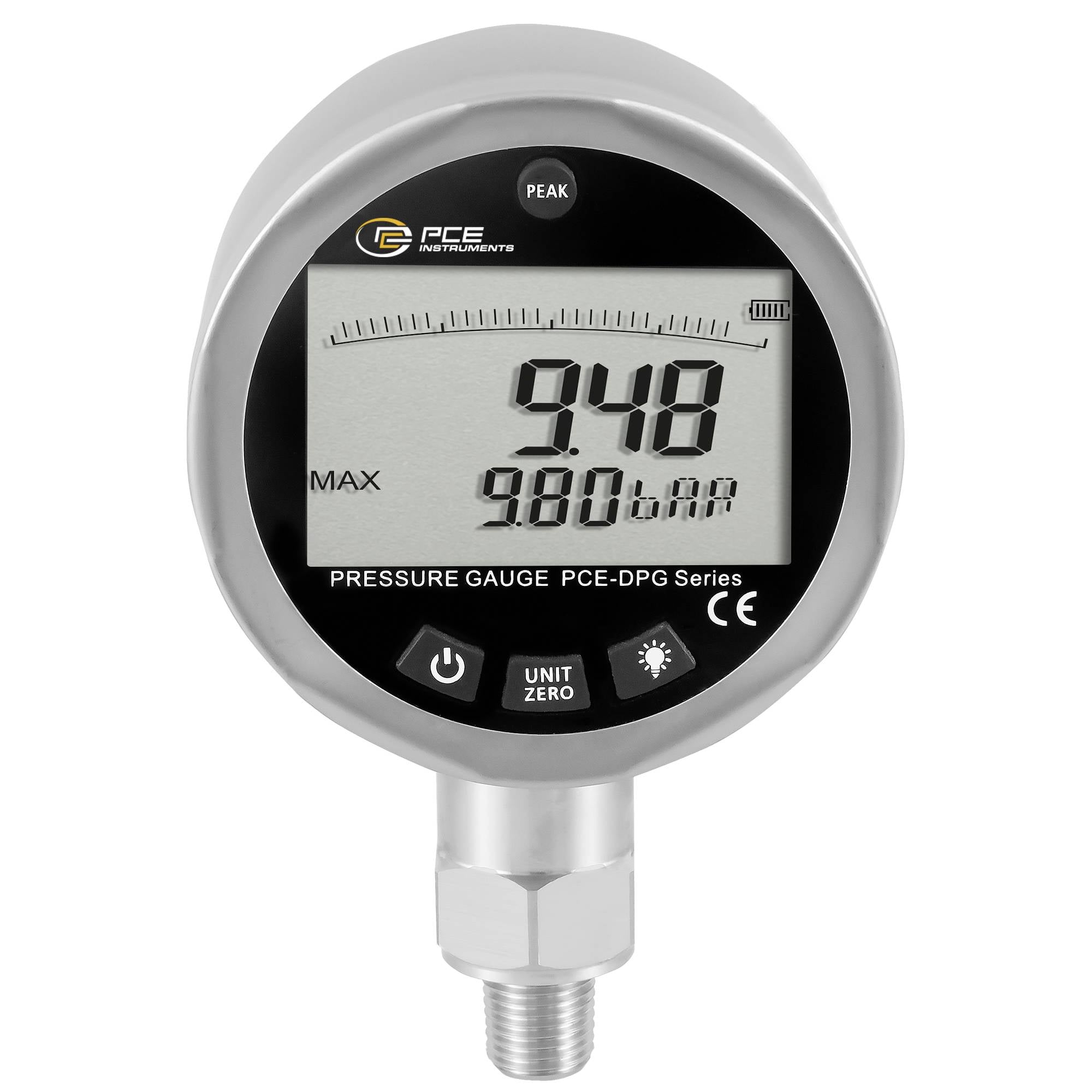

Digital manometer PCE-DPG 25 Pressure transducer for water and gases / 1/4 NPT threaded connection / adjustable background lighting / PEAK function / battery status display / battery operated of the pressure sensor of the PCE-DPG series is well suited for monitoring and displaying air pressure and water pressure. Thanks to its high measurement resolution and high accuracy, this pressure sensor can be used in a variety of applications. The current pressure is displayed by the pressure transducer as a value and at the same time as a bar graph. As a further function, the pressure transducer offers a peak function. This function shows the operator the largest and smallest measured pressure on the pressure transducer at the touch of a button. Thanks to the large display of 2.5", almost all measured values can be read directly. Possible adjustable units for the pressure transducer MPa, bar, kPa, mH2O, kg/cm², Psi, mmH2O, in.WC and mbar. The response time of the print sensor is <50 ms. The pressure transducer is connected to the process via a 1/4" NPT connection. Typical application areas are e.g. the suction control, leak test or pressure monitoring.
