PCE Instruments Sound level meter Calibrated to (ISO standards) Data logger PCE-432-EKIT-ICA 22 - 136 dB 3 Hz - 20 kHz U

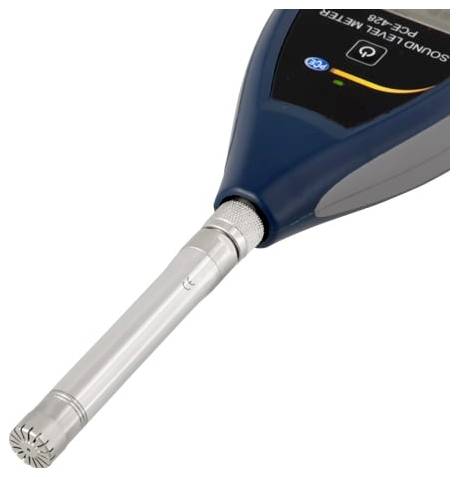

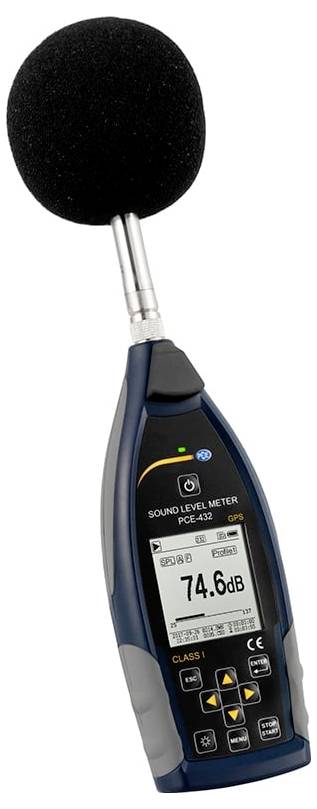

The sound level meter of the class 1 fulfills all requirements for the noise measurement and the frequency analysis. The sound level meter is equipped with a GPS receiver apart from the sound function. The GPS function allows the user to assign measured values to an exact position.

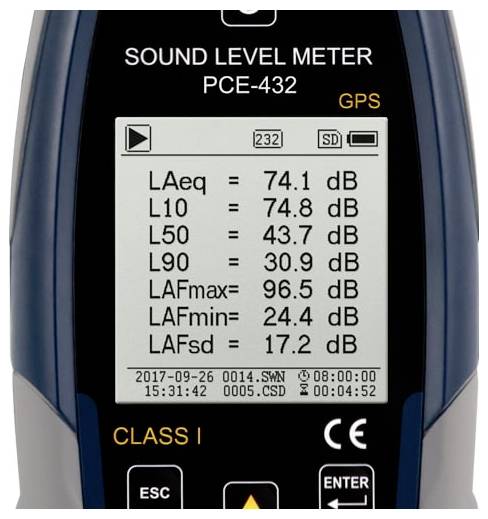

This integrated precision impulse sound level meter complies with all valid standards and guidelines (Class 1 EN/IEC 61672, ANSI S1.4-1983, ANSI S1.43-1997 EN/IEC61260, etc.) The sound level meter has a very large illuminated display. The display on the sound level meter displays the sound pressure levels numerically and graphically in real time. The sound level meter has an integrated data logger. Measured data are saved on a micro-SD card. This card can be read directly in the PC.

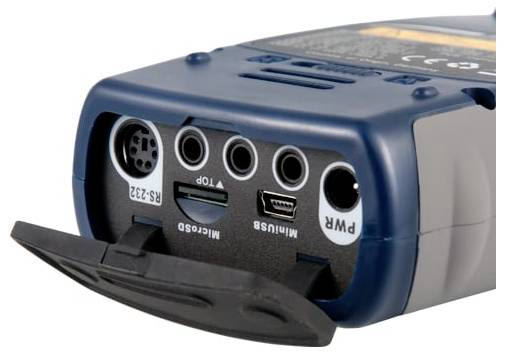

The sound level meter can also be connected to a PC via USB and the memory read. The post-processing software from the sound level meter enables a comfortable analysis of the measurement data. Typical applications for this equipment lie in the measurement of workplace noise, compliance with regulations, determination of environmental noise, selection of hearing protection Protector selection, selection of suitable noise reduction measures and estimation of exposure to noise

The impulse function of the sound level meter makes it possible to capture short-term acoustic events. By the integrated Octave band function, even here slightest differences in the frequency band can be detected. The frequency filter can be upgraded optionally via upgrade. The measuring range of this sound level meter ranges from 22 ... 136 db(A) at a frequency of 3 Hz ... 20 kHz bieten.

PCE-4xx-KIT
The additional kit for the outdoor sound measurement PCE-4xx-EKIT can be combined with the sound level meters PCE-428, 430 or PCE-432. This kit allows you to measure the outside noise with a sound level meter over a long period of time. The external noise sound measurement kit consists of a waterproof PELI carrying case with wheels. A charger and two additional lead-gel batteries are installed in this case which enable it to be operated from the sound level meter for up to 10 days. During the outdoor sound measurement the case can remain closed. The external connections for the microphone and the power supply protect all electronic components from water.

The scope of delivery of the external noise meter includes a rain and wind protection as well as a wire mesh for the microphone. A tripod is also provided that can be used to set up the microphone outdoors. The charger of the measuring kit PCE-4xx-EKIT is also waterproof. This allows the charger to remain outdoors. The external noise measurement device can be used, for example, for measuring the sound of road noises, flight and railway noise, event noise, etc. The weather conditions do not matter, hail, snow and rain are not a problem for the outdoor noise kit. When the PCE-432's sound level meter is combined with this measuring kit it is even possible to allocate the exact location of the sound level measurement around the outside area via the GPS receiver.

This text is machine translated.
