PCE Instruments Sound level meter Calibrated to (ISO standards) Data logger PCE-SDL 1-ICA 130 dB (max.) 31.5 Hz - 8000 H
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE Instruments mini-sound level data logger PCE-SDL 1-ICA
- USB interface for data transfer
- Runs under all current Windows versions
- 129,920 points measured value memory (internal)
- Adjustable logger function for long-term recording
- NORM (normal) and PEAK mode
- Adjustable limits.

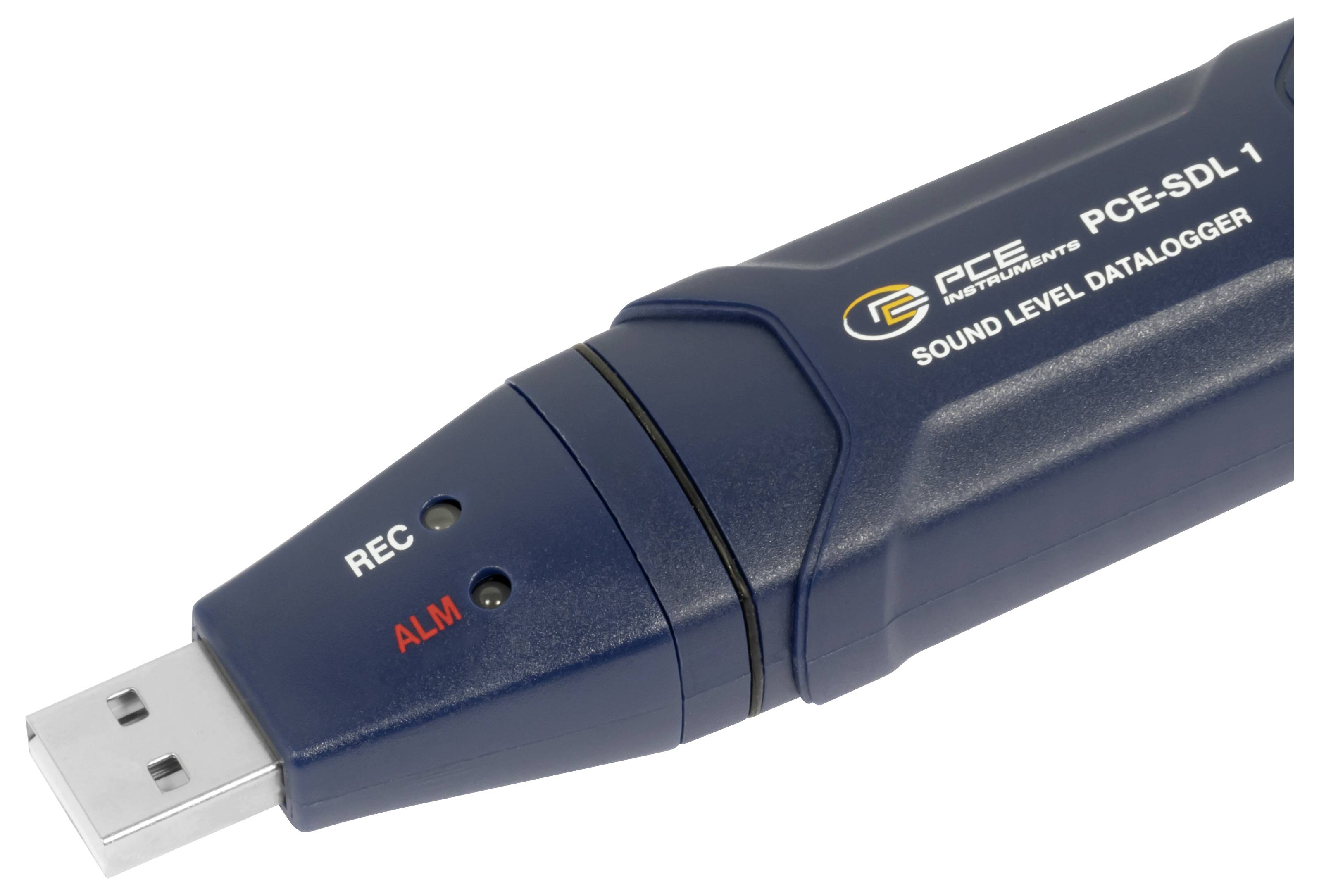

- LED display in case of over or under pressure
- A and C frequency evaluation
- Frequency range 31.5 Hz ... 8 kHz
- Adjustable measuring interval
- Time rating Fast / Slow
- Date & time
- Compact housing
- Manual and Auto start mode
- Standard IEC61672-1 Class 2

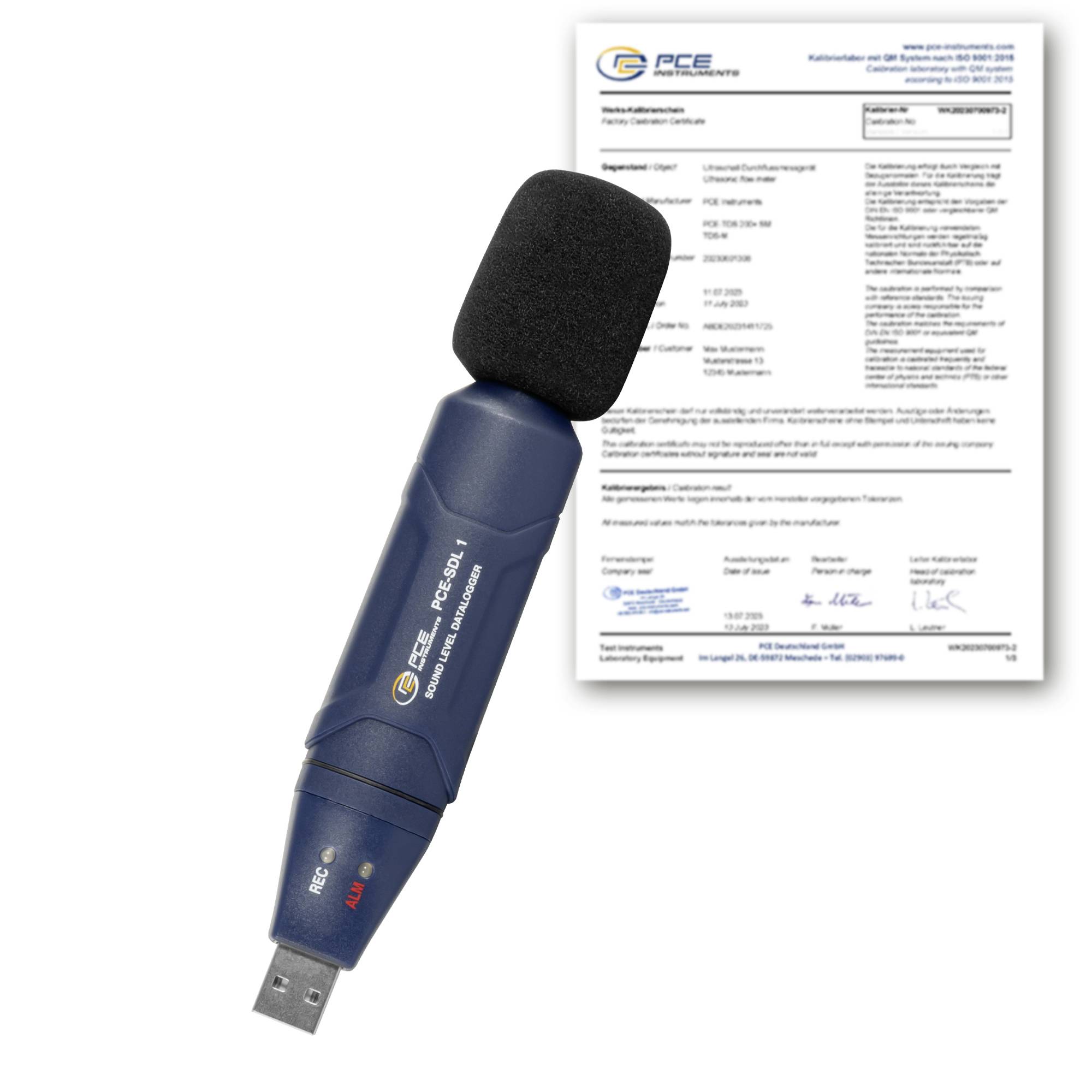

- Incl. ISO calibration certificate
Technical specifications
- Sound level
- Measuring range 30 ... 130 dB
- Resolution 0.1 dB
- Accuracy 1.4 dB at 1 kHz
- General Technical Data
- Time rating slow (1 s), fast (125 ms)
- Frequency weighting C, A
- Frequency 31.5 ... 8000 Hz
- Storage capacity of 129920 records
- Storage intervals of 1 s.
- Storage intervals of up to 24 h
- Microphone type Electret capacitor
- Interface USB
- Standard(s) IEC 61672-1 (Class II)
- Tripod socket 1/4 inch
- Dimensions Diameter of microphone 1/2 inch
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Power supply battery
- Battery 1 x 3.6 V 1/2 AA, Lithium
- Capacity 1200 mAh
- Operating conditions 0 ... 40 °C , 10 ... 90 % r.F.
- Storage conditions -10 ... 60 °C , 10 ... 75 % r.F.
- Dimensions ( L x W x H ) 145 x 28 x 25 mm
- Weight 70 g.
- Product type
Sound level meter
- Reading type
SPL
- SPL resolution
0.1 dB
- dB (A) SPL reading range (max.)
130 dB
ISO standards
- Dim
(L x W x H) 145 x 28 x 25 mm
- Max. frequency
8000 Hz
- Min. frequency
31.5 Hz
- Frequency range
31.5 Hz - 8000 Hz
- Weight
70 g
- Calibration service
Incl. ISO calibration certificate
- dB SPL (A) reading range
130 dB (max.)
- Width
28 mm
- Height
25 mm
- Length
145 mm
- Features
Data logger
- Interfaces
USB
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812723 PCE Instruments Sound level meter Calibrated to (ISO standards) Data logger PCE-SDL 1-ICA 130 dB (max.) 31.5 Hz - 8000 H
User & Safety Instructions
User & Safety Instructions 3812723 PCE Instruments Sound level meter Calibrated to (ISO standards) Data logger PCE-SDL 1-ICA 130 dB (max.) 31.5 Hz - 8000 H
Description

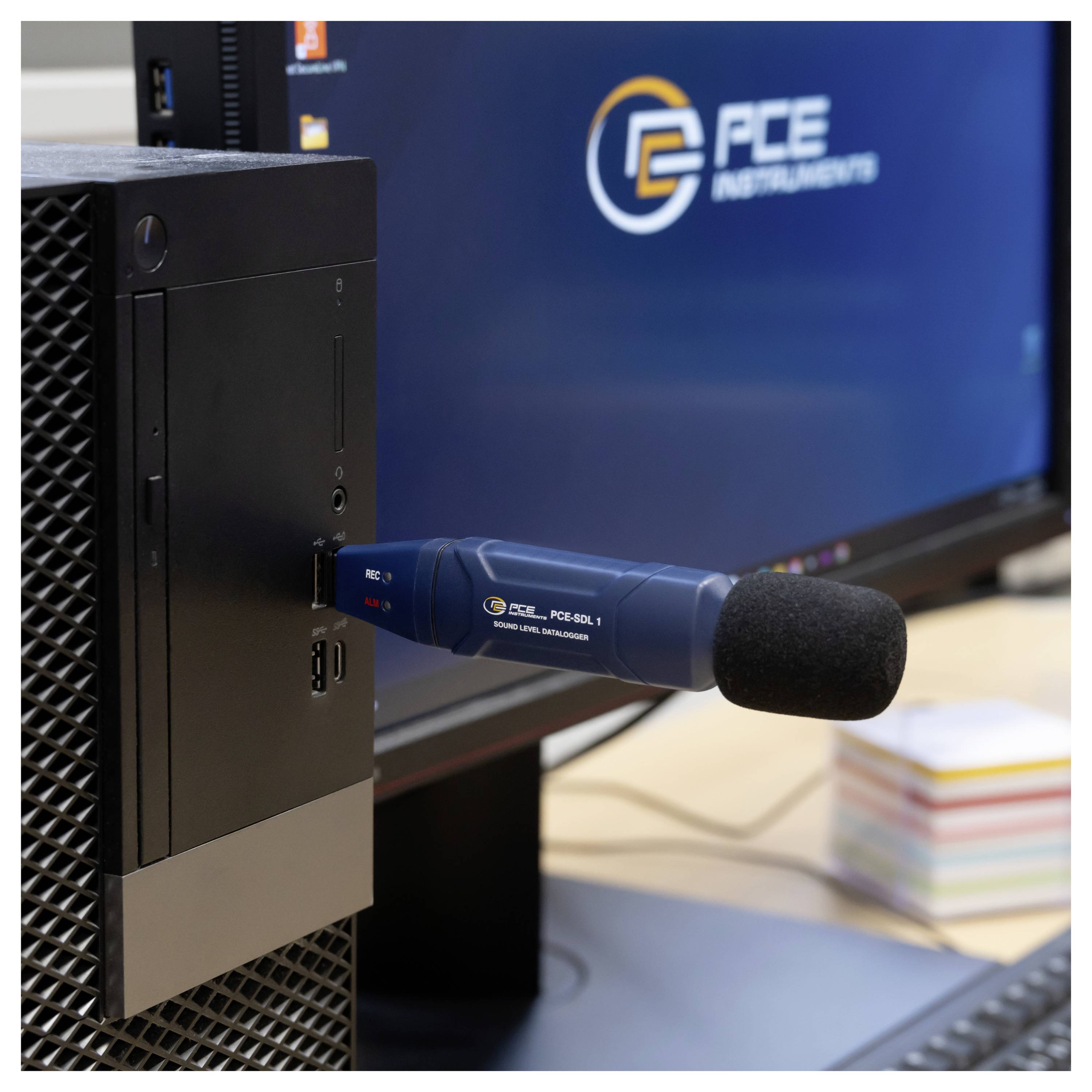

The mini sound level data logger detects noise levels of 30 ... 130 dB and stores them internally. This compact and robust mini sound level data logger with a large memory (up to max. 129920 data sets) is designed to be used for long-term registration in many different areas. The device acts as an independent logger, which registers all the sound levels in the desired time period. If desired, all values can be transferred to a laptop or PC. The data can either be directly stored at the PC or you can let the mini-sound level data logger record time-displaced first on site. Once the values have been transferred to the PC, they can be analyzed there.

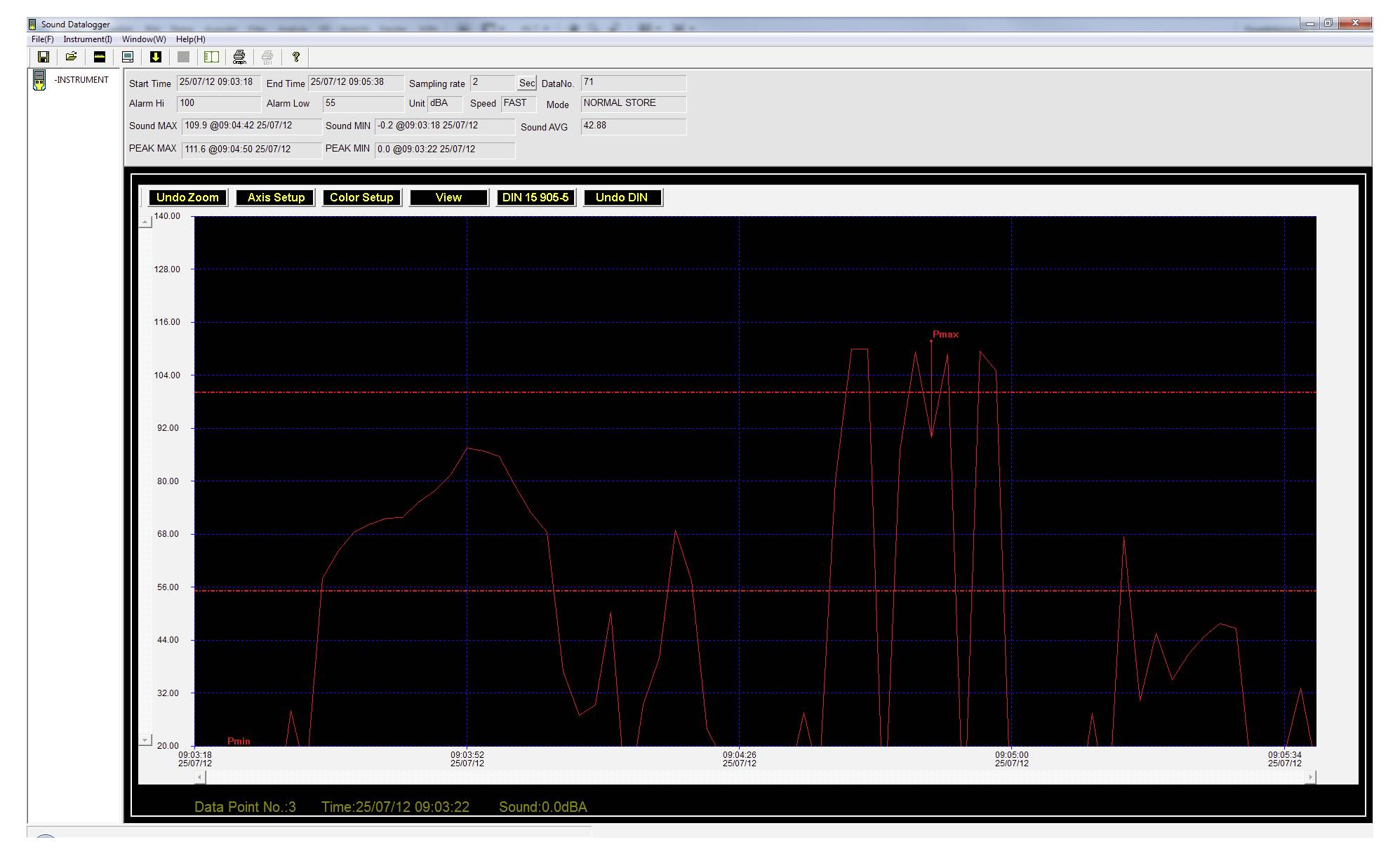

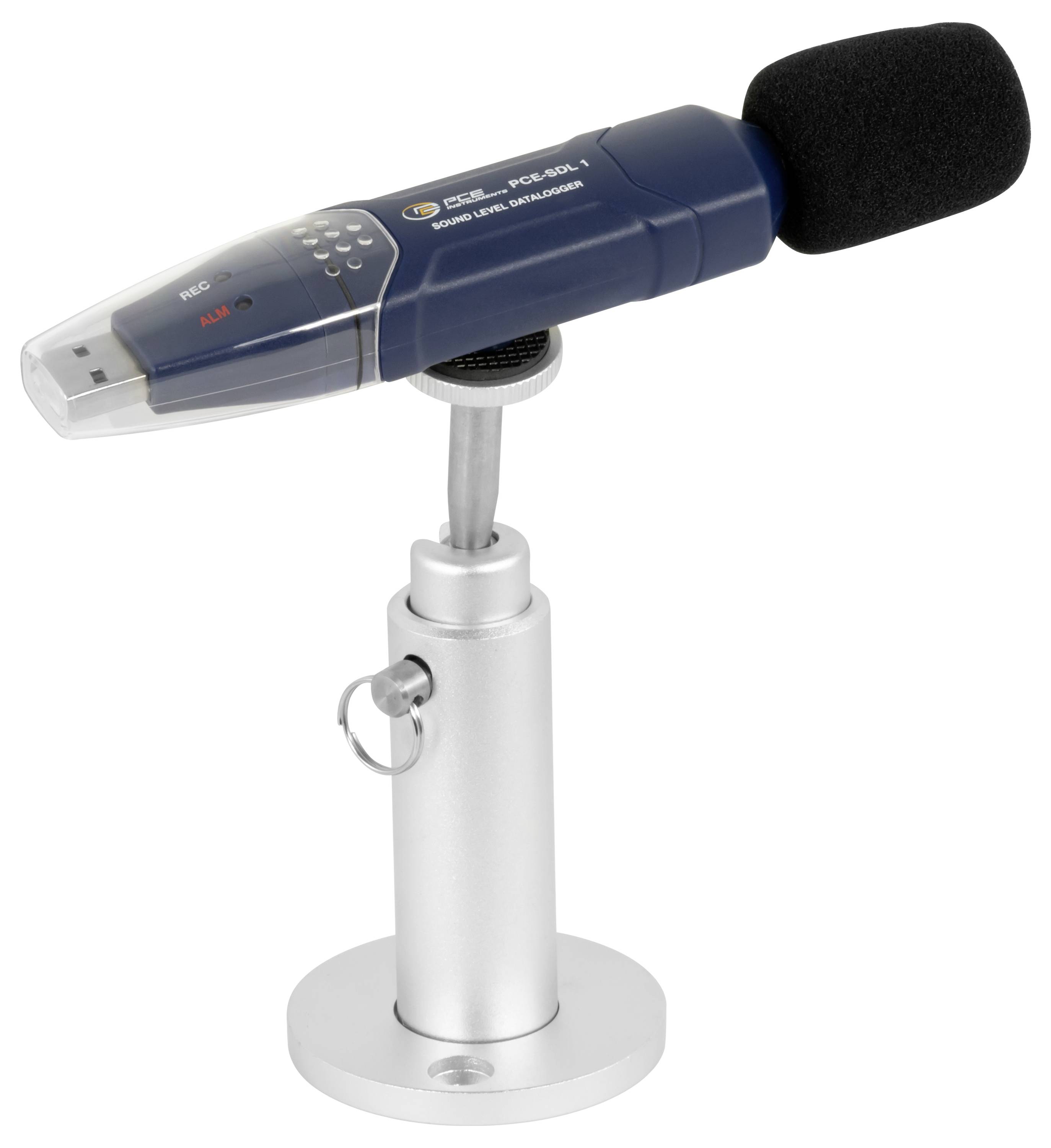

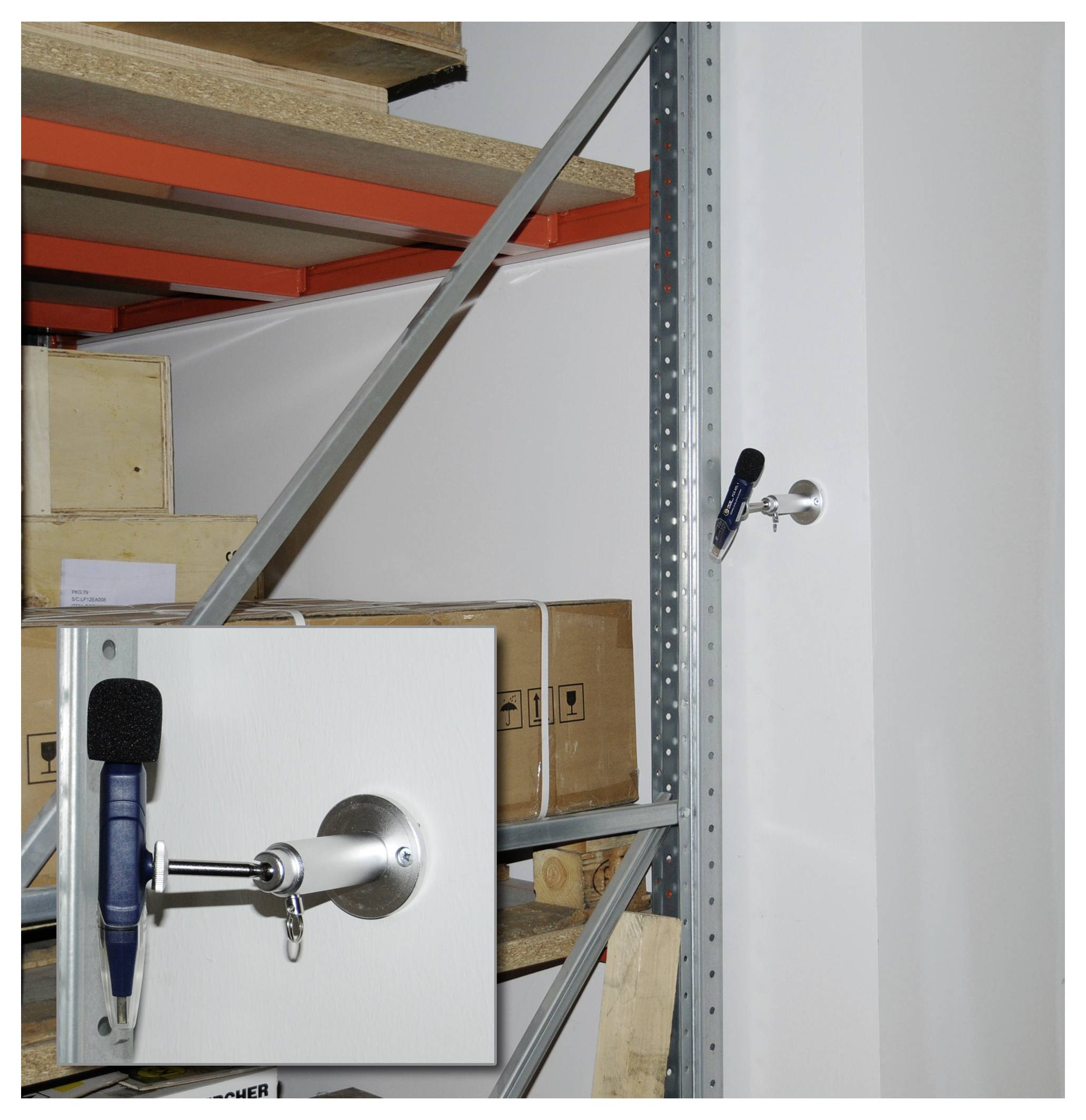

The software provided also creates a graphic for progression display. In addition, the software offers the option to set alarm limits. A flashing LED indicates that these limit values are exceeded/undercut. The internal real-time clock with date allows the user to accurately assign the events. A special feature is the power supply of this mini sound level data logger via a long-life internal 3.6 V lithium battery. Depending on the use, the life of this battery is around a year. The stand connection and the wall bracket allow the mini sound level data logger to record data over a longer period of time.
This text is machine translated.
The software provided also creates a graphic for progression display. In addition, the software offers the option to set alarm limits. A flashing LED indicates that these limit values are exceeded/undercut. The internal real-time clock with date allows the user to accurately assign the events. A special feature is the power supply of this mini sound level data logger via a long-life internal 3.6 V lithium battery. Depending on the use, the life of this battery is around a year. The stand connection and the wall bracket allow the mini sound level data logger to record data over a longer period of time.
This text is machine translated.

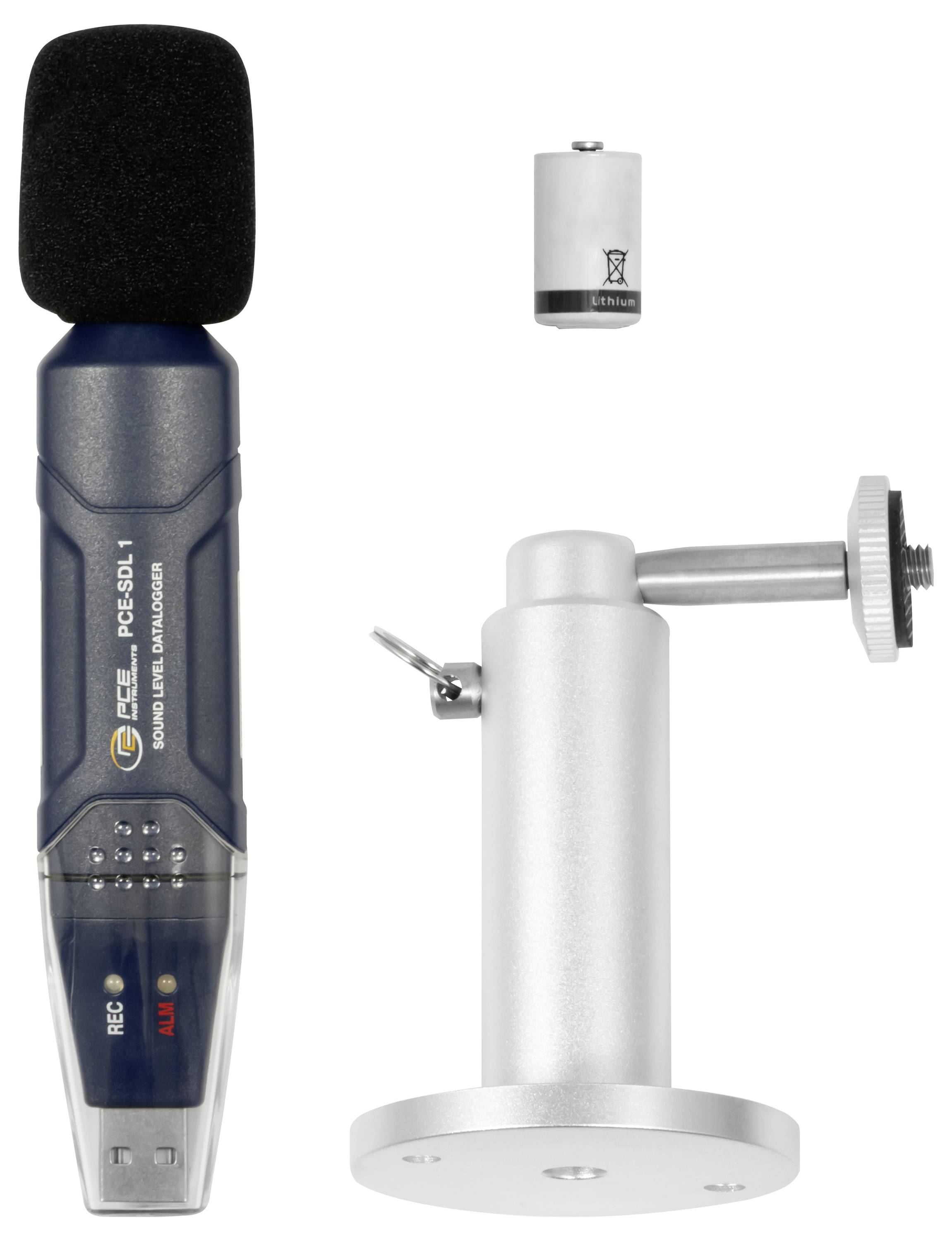

Scope of delivery
- 1 x mini sound level data logger PCE-SDL 1-ICA
- 1 x wind noise suppressor
- 1 x wall bracket,
- 1 x Windows® -compatible software (in English)
- 1 x 1/2 AA battery
- 1x user manual
- 1 x ISO calibration certificate
